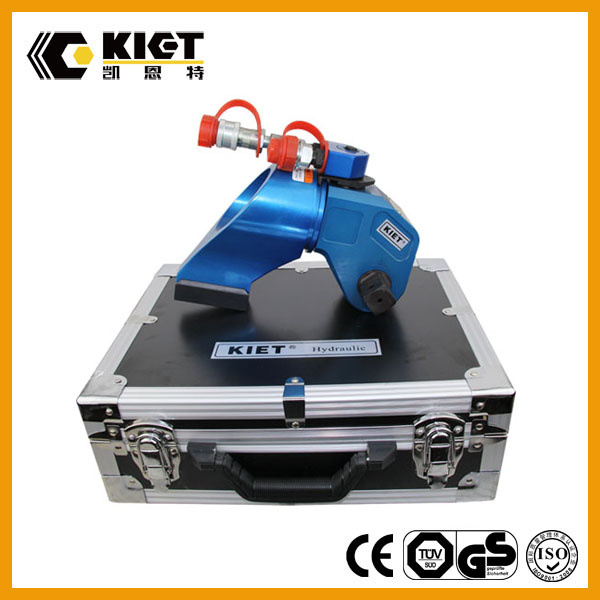

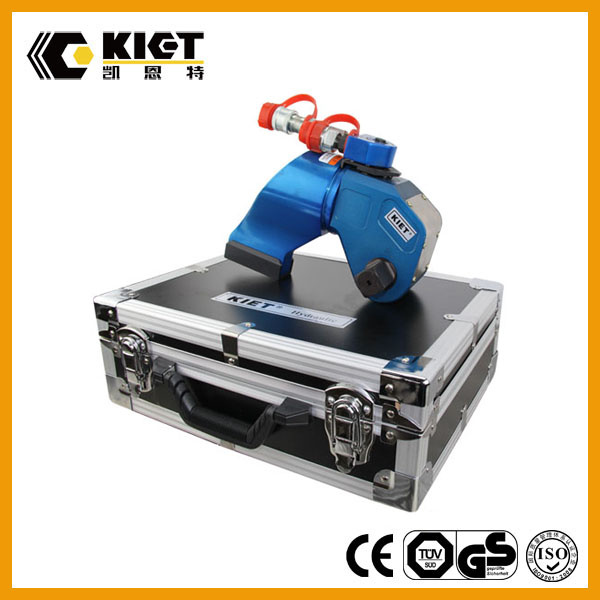

Factory Price Square Drive Hydraulic Torque Wrench

Prod Model:	KT-MXTA Series
Name:	Square Drive Hydraulic Torque Wrench
Torque Range:	1940-58673nm
Min. Torque(N.M):	139-4263 N.M
Axle:	1-1/2, 3/4
OEM:	Yes
Color:	Can Customer
Certificate:	Ce and ISO
Warranty:	One Year
Bolt Size:	16-36m to 72-130m

Product Description

Product Description:

1. Very high torque-to-weight ratio
2. High speed, double acting operation
3. High degree of rotation angle
4. Never-jam mechanism
5. High repeatability, with accuracy ± 3%
6. Slim nose radius and 360 degree swivel hose connection allow easier positioning in confined areas
7. Few moving parts means durability and low maintenance
8. Push button drive release; No tools needed to reverse square or allen key drives for tighening or loosening





Model No. for your reference:


Model	KT- 02MXTA	KT- 05MXTA	KT- 08MXTA	KT- 10MXTA	KT- 16MXTA	KT- 20MXTA	KT- 27MXTA	KT- 39MXTA	KT- 50MXTA	KT- 60MXTA
Max. Torque (N.M)	1940	4763	8012	10704	15633	20782	28286	39584	50844	58673
Min.torque(N. M)	139	340	572	765	1117	1484	2020	2827	3632	4263
Screw size(mm)	24-55	32-75	41-85	46-95	55-105	60-115	65-130	75-145	95-170	105-185
Bolt size(M)	16-36	22-48	27-56	30-64	36-72	39-80	42-90	48-100	64-120	72-130
axle	3/4"	1"	1-1/2"	1-1/2"	1-1/2"	2-1/2"	2-1/2"	2-1/2"	2-1/2"	2-1/2"
L1	127	170	213	223	251	2774	309	320	358	375
L2	187	253	292	354	359	418	453	490	522	539
L3	106	145	168	206	210	250	260	290	305	315
H3	52	70	82	94	103	110	126	135	150	156
H2	77	101	127	138	147	163	192	205	214	220
H3	98	133	153	184	196	225	234	269	276	288
H4	169	201	200	281	185	326	328	354	358	373
R	26	35	40	50	52	60	66	70	75	78
weight (kg)	2.3	5.2	8	12	14.8	18.9	28	41.2	46.3	53.5

Packaging & Shipping:
We provide Aluminum Alloy Lightweight Box, which can perfectly protect, the shipping can be by express parcel, by air or by sea shipping.




Our Service:
KIET provide one year guarantee for all the hydraulic torque wrench. We promise if there is any dysfunction of the hydraulic torque wrench during the quality warranty not by outside force, we will replace a new one for free. Any quality defects reported by customers will be responded in 24 hours.

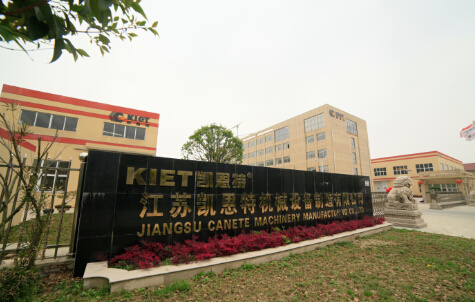

Company Information:

Jiangsu Canete Machinery Manufacturing Co., Ltd. Is a manufacturer engaged in design and manufacturing hydraulic cylinders (capacity covers from 10- 1000 tons), synchronous PLC hydraulic system, hydraulic pumps, hydraulic torque wrenches, and electric torque wrenches, and hydraulic components.
We successfully transformed from OEM manufacturer for Enerpac, Titan, to create our own brand KIET, and our factory has been approved by CE, ISO9001: 2008 consecutively.


We are a manufacturer in tools, such as:
? Hydraulic cylinders, jacks (5-1000ton), single acting and double acting, hollow plunger;
? Hydraulic/ electric /pneumatic torque wrench (100-72000Nm);
? Hydraulic bolt tensioner (100-11486NM); Hydraulic pullers (5-100 ton)
? Hydraulic pumps, manual and electric type (max up to 3000bar);
? Integrated hydraulic lifting system solutions ( 4-72 points lifting system for house translation or leveling, bridge supporting and tank welding supporting)
? Hydraulic nut and couplings. (M50-Tr1000)

Our products have been widely used in industrial field such as steel plant, cement industry, chemical and refinery, bridge, railway construction and maintenance.

FAQ:

Q1: How can contact sales?

A1: Please call: +86-021-68565866 for pre-sales or click the contact find our website and email address.

Q2: How can I buy Kiet products in my country?

A2: Please send us an inquiry or email, we will reply to your if there is distributor in your country.

Q3: How long does it take to get the product If I place an order?
A3: If products stock available, after confirmation of your payment or advance payment, we will pack
And deliver in 3-7 days. If you select international parcel service, it can be arrived in 3-7 days. If it is by sea
Shipment, it will take 15-45 days depending on different locations.
Q4: How to make payment?
A4: First send us an inquiry, and we will reply you quotation, if our price suits you, we will prepare proforma

Invoice with our banking details.

Q5: Manufacturing time?
A5: Please send us an inquiry for stock condition, if we don't have stock, and it is our standard products (refer to our model), it can be produced in 10-0 days. If it is customized, not our standard products, it will take 20-45 days to produce.
