| Prod Model: |
235mm |
| Type: |
Profile Extruder |
| Screw: |
Single-Screw |
| Automation: |
Automatic |
| Computerized: |
Computerized |
| Plastic Processed: |
PVC |
| Base Material: |
38crmoaia, 42CrMo |
| Diameter For Single Screw: |
20-500mm |
| Screw Design: |
Single Screw |
| Application: |
PP PVC PE |
| Certificat: |
Ce BV SGS TUV |
Product Description

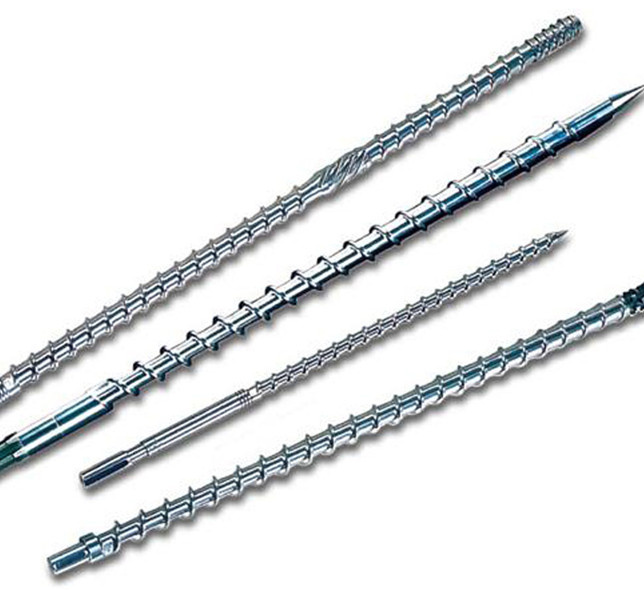

Single screw barrel extruder screws and barrels

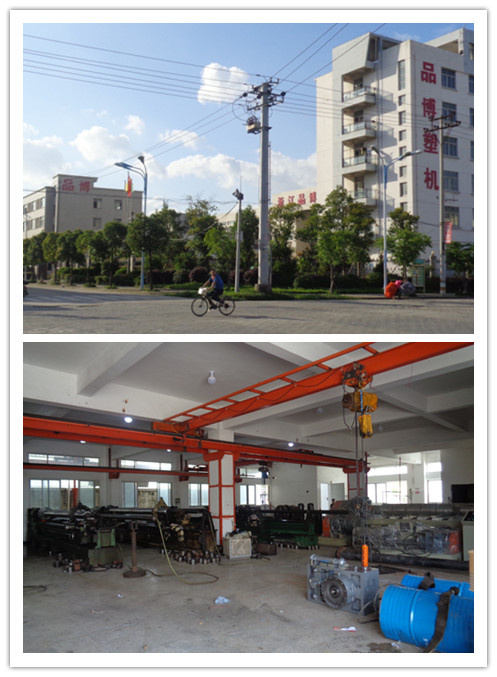

Office:
Zhejiang pinbo plastic machinery co.,ltd is located in ruian wenzhou city with brand of PYM(Former Ruian yumin machine screw co.ltd since 1988). The company is specialized in making screw barrel, gearbox zlyj series, t die, filter and extruder machine. It has become one of the largest supplier of main parts in Ruian city which is the basement of plastic machines.
It owns many computer-control CNC milling machines in length 8000mm In Fanuk series,18000mm
length deep hole drilling machine and other advanced equipment.Long time nitriding treatment for 7days and nights greatly ensure the hardness and lifetime of its products. Meanwhile, the company and its
products have passed assessment by SGS company, Bureau of Veritas, Tuv and Ce certificate.
The main advantage of screw barrel:
A. Advanced Nitriding Technology
B. Anti-corrosion and Wear-resisting Duplex Metal Spraying Technoloy
C. We uses special alloy powders being sprayed and welded on the screw's ridge, and uses different alloy and welding methods for the screw of different functions.
Certificate: BV, SGS, CE, TUV
Why choose us?
A> long time experience and history
B> long time nitriding treatment and heating treatment by itself
C>advanced Fanuk series CNC computer-controlled milling machines
D>depth hole drilling machine in 10meters length, which ensure the straigtnss of barrel inside.
E> CAD drawing confirmation before start making
F> Prompt after sale service
G>Land owner and registration capital 25, 000, 000RMB
Remarks: We can design and manufacture various kinds of screw barrels according to the customer's requirement
What is the packaging?
1) Wooden case package
2) Plastic film package
3) Suitable to transportation
4) As buyer request
5) One piece into one package
Payment: T/T, Western union, moneyGram and so on.
FAQ:
1. Q: What are we?
A: We are factory, with license of import and export goods by ourself.
2. Q; How to get to us?
A: The nearest airport is Wenzhou airport, and the nearest train station is Ruian station.
3. Q: How do we control the quality of screw barrel?
A: We have professional engineer and staffs to check every detail and dimensions from the raw materail, nitrding treatment and super grinding. We do the crucial nitriding treatment by ourself, we have nitriding ovens in depth8000mm, and do nitriding treatment in 8 days and nights, which greatly ensure the hardness of screw barrel.
Welcome to visit our company! Any question pls feel free to contact us. Waiting for your inquiries! !
Parameters :
| Product | The best single screw barrel for extruder in ruian |
| Material | 38 CrMoAlA(JIS SACM645); 42 CrMo(JIS SCM440) |
| Hardness of nitrogen treatment | HV900°~1100° |
| Tempering hardeness | HB240 ° ~280° |
| Depth of nitrogen layer: | 0.6~0.8mm |
| Nitrided Brittleness | above 1 stage |
| Surface Roughness | Ra0.4 um |
| Screw straightness | 0.015mm |
| Hardess of surface chromium-plating after Nitriding | HV≥950HV |
| Chromium plating Depth | 0.025-0.085mm |
| Alloy Depth | 2.5mm-4mm |
| Alloy hardness | HRC62°~72° |
| Heating-treatment | nitrogen ,electroplated hard -chrome finish,high frequency quenching |
Zhejiang pinbo plastic machinery Co., Ltd is a factory, specialized in making screw barrel, filter, mold, gearbox and extruder machines. Frormer name is Ruian yumin machine screw Co., Ltd since 1988 with brand name PYM. During the past 2 decades, it has become the biggest supplier of main parts of plastic machines in Ruian city, covering the land over 10000 cube meters. Its hot sell products are various kinds of screw barrel for film blow machine and reccement bag, rice bag, shoe machines and injection machine. It is equipped with professional machines and equipment, like FANUK series CNC computer-controlled machines, depth hole drilling machine in 18000 mm length, nitriding ovens in 8000mm depth. It does nitriding treatment for 7 days and nights, which greatly ensure the hardness of products. Its products are welcome a lot with clients and friends all over the world. With its large-scale production, it continuously improve the quality assurance system and implement standardized management. It insists on the spirit of "innovation for development together with our cooperators". Any consult or inquiry, are warmly welcomed.
