Fail Locked Sturdiness Narrow Frame Electric Bolt Door Lock with Emergency Key
| Price: |
US $ 39-51/Piece |
| Trade Terms: |
FOB |
| Min Order: |
1/Piece |
| Pay Type: |
T/T,Western Union,Paypal |
| Prod Model: |
NI-600T |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Version: |
Fail Locked(The Bolt Is Locked When The Current Is |
| Diameter Dead Bolt: |
ø16mm,13mm(Full Solid Stainless Steel) |
| Shear Strength: |
3000lbs/1500kg |
| Lock Status Sensors: |
LED |
| Autolock Time Delay: |
0,3,6,9sec |
| Rated Operating Voltage: |
DC 12V or 24V (Customization Available) |
| Optional Functions: |
Buzzer,Lock Sensor |
| Face Plate Dimensions(L X W X D): |
210L*25W*42h(mm) |
| Strike Plate Dimensions(L X W X D): |
90L*25W*3h(mm) |
| Weight In Kg: |
1.0kg |
Product Description

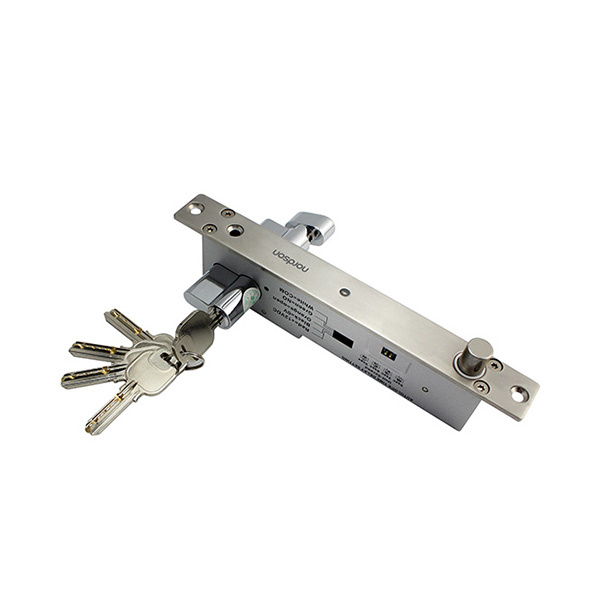

Fail locked Sturdiness Narrow Frame Electric Bolt Door Lock with Emergency KeyIntroduction:NI-600T Fail Secure Sturdiness Electric Bolt with Cylinder for Narrow Door , coming with Mechanical lock cylinder. High security locks suit for narrow-framed wooden doors, metal doors, fire doors,glass doors. Lock body are made of 304ss high hardness, corrosion resistant stainless steel, all solid lock withstand 3000 pounds linear positive impact. Owning unique Emergency mechanical locks, used in emergency situation. Special photoelectric control ultra-low temperature, low efficacy,Safe and reliable energy saving.
Specification:
| Version | Fail locked(the bolt is locked when the current is off) |
| Diameter dead bolt | ø16mm,13mm(Full solid stainless steel) |
| Shear strength | 3000Lbs/1500kg |
| Lock Status Sensors | LED |
| Door Status Sensors | Dry contact NO,NC,COM |
| Relock Delay Timer | 0,3,6 seconds open time delay is adjustable |
| Push Button Contact | Door Open Push Button Input Contact |
| Rated Operating Voltage | DC 12V or 24V (Customization Available) |
| Start Current | 900mA |
| Standby Current | 80mA |
| Optional Functions | Buzzer,Lock Sensor |
| Face place material | High Aluminum |
| Surface Temp | Low Temperature |
| Ambient temperature in °C | -10°C - +55°C |
| Suitable for | Specially suitable for narrow door
Wooden & Aluminum & Glass & Fireproof &Metal door |
| Face Plate Dimensions(L x W x D) | 210Lx25WX42H(mm) |
| Strike Plate Dimensions(L x W x D) | 90Lx25Wx3H(mm) |
| Weight in kg | 1.0kg |
| CE-mark for building | YES |
| Rohs-mark for building | YES |
