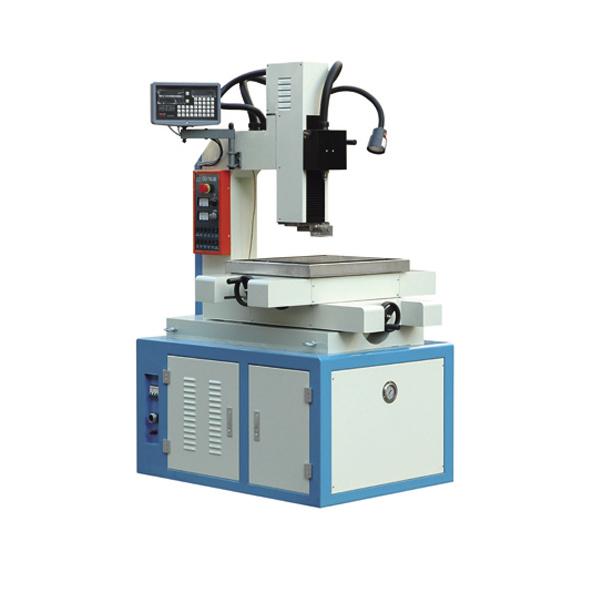

Fast Electric Spark EDM Drill Small Hole Machines
| Price: |
US $ 4500set |
| Min Order: |
1set |
| Pay Type: |
L/C,T/T |
| Prod Model: |
DD703 |
| Worktable Travel(X *Y): |
200*300 mm |
| Main Spindle Speed: |
60 Rpm |
| Water Tank: |
25L |
| Power Supply: |
3n-380V/50Hz |
| Layout: |
Vertical |
| Controlling Mode: |
CNC |
| Automatic Grade: |
Manual |
| Precision: |
Normal Precision |
| Structure: |
Micro Hole Drilling EDM |
| Hole Diameter: |
0.3~3.0 mm |
Product Description
Technique parameters | Technique parameters | unit | DD703 | DD703.30 | DD703.32 | DD703.40 |
| Worktable size | mm | 320x440 | 320x440 | 360x610 | 460x690 |
| Worktable travel | mm | 200×300 | 300×400 | 320×400 | 400x500 |
| Z-axis travel | mm | 280 | 300 | 300 | 300 |
| Max.load on table | mm | 200 | 200 | 200 | 200 |
| Main spindle speed | rpm | 60 |
| Diameter of electrode | mm | φ0.3-φ3 |
| MAX.distance from guider to worktable | mm | 240 | 300 | 400 | 500 |
| water tank | L | 25 |
| Filtering model | | Shallow-gap filter |
| Working medium | | water |
| MAX.working pressure | Mpa | 7 |
| Power supply | | 380V,3Ph,50Hz |
| Max.woking current | A | 30 |
| Power consumption | Kw | 3 |
| Machine weight | kg | 700 | 850 | 1300 | 1700 |
| Machine demensions | mm | 1060×750×1700 | 1060×750×1760 | 1550×1170×1800 | 1800x1380x1800 |
Products advantages
1) It can drill small holes on the materials. Such as stainless steel, quenched steel, carbide,copper, aluminium,etc
2) It can drill the deep holes with diameters 0.3-3mm and depth-diameter ratio 200:1 or more.
3)Working speed is 30-60mm depth per minute it can directly drill on oblique curved surfaces.
4) It can water as workingfluid.
5) It can become a machine with multi-axis numerical control or numerical display for the user requirement.

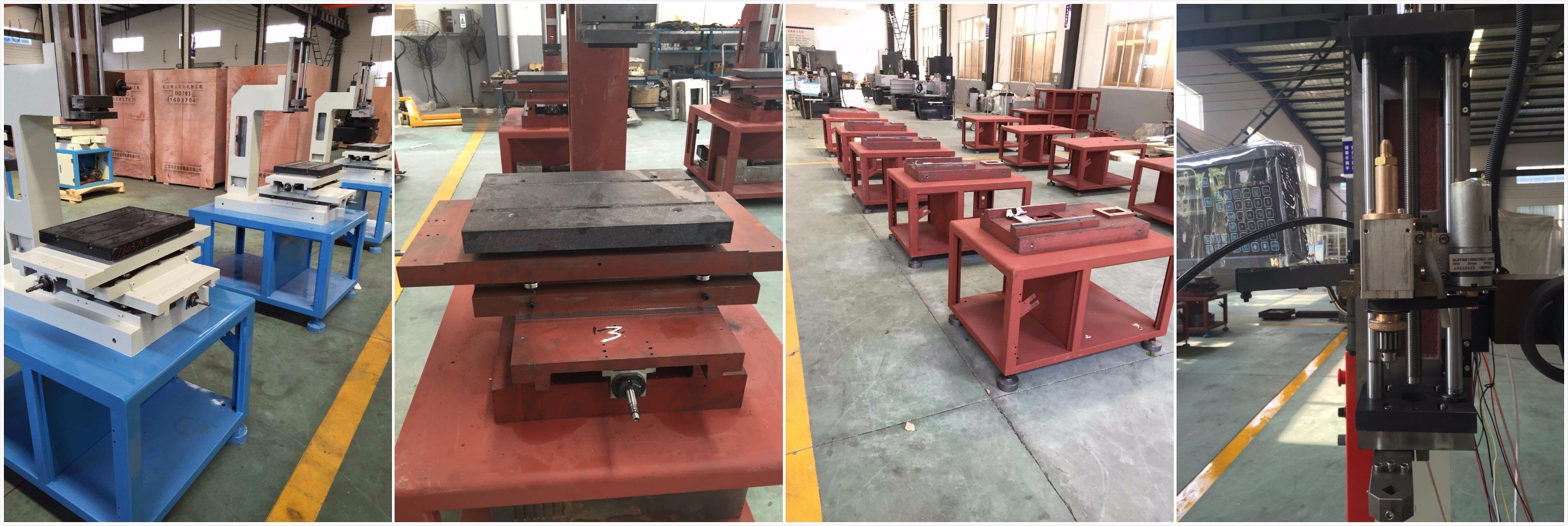

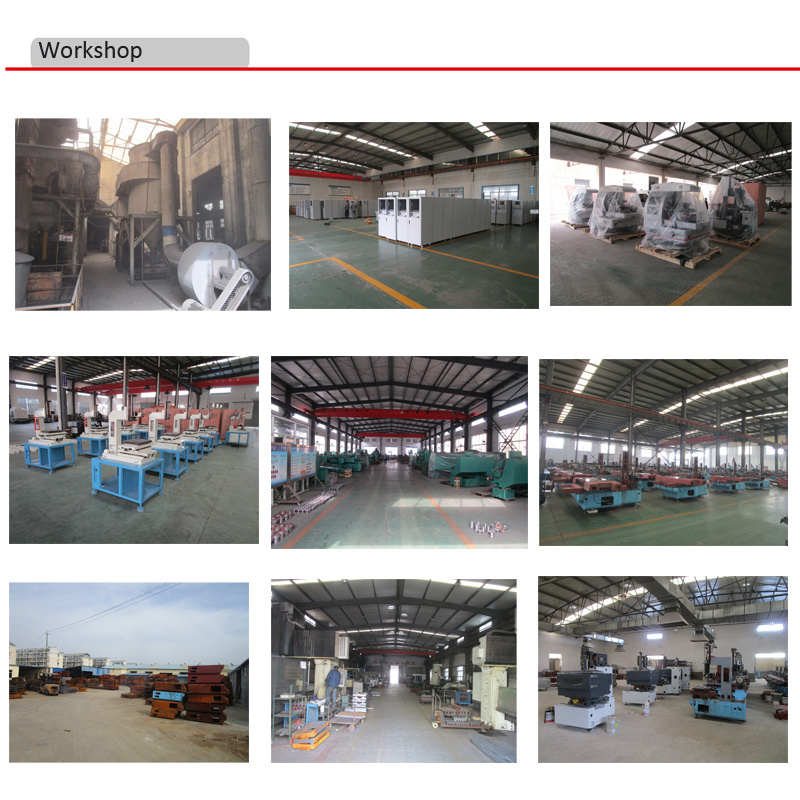

Our Factory
Our Services1) Quality : We take care of the product quality in order to provide good service to our customers.
2)Warranty: One year after shipment,consumables are not included.
3)The quotation do not include installation and education training fee.
4) Payment Method: T/T or L/C
5) Delivery time : 20--25 days

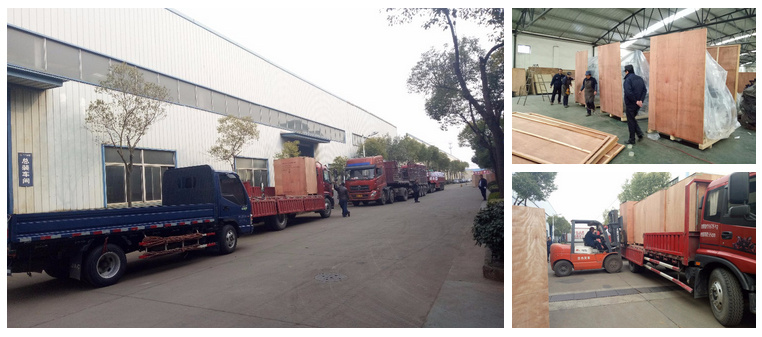

6) Packing : Standard export wooden cases
7)Port: Shanghai
Contact usCompany:Jiangsu Dongqing CNC Machine Tool Co.Ltd
Address:East Suburb Development Zone,Taizhou city,Jiangsu Province,China
Tel:0086-523-86290115
Mobile: 0086-15961057018
Web:www.topscnc.cn
Jiangsu Dongqing CNC Machine Tool Co. Ltd is founded in 1958 and developed more than half a century, Jiangsu Dongqing CNC Machine Tool CO. Ltd., has now became a forge ahead modern enterprise for production of CNC machine.
The R&D, production and marketing are the main component of the company. As shown on the website, the main product of the company covers five series, CNC milling machine & vertical machining center, CNC engraving machine, CNC wire cut EDM, Die sinking EDM and Micro hole drilling EDM.
The company has always engaged in improving the quality, function and performance of CNC machine in the past several years. It has successfully passed identification of ISO, CE, SGS, TUV & Bureau. "Innovation, development and win-win situation" makes TOPSCNC enjoy high reputation in this line.
It always keep a great ideal in mind, aims to create century brand and strive for top grade. The confidence comes from advanced product, strict quality control system and sustained technical innovation, comes from after-sales service all over the country and global market.
TOPSCNC people wish to share success with you in the future!
