| Price: | US $ 19.5-20.5/Piece |
|---|---|
| Min Order: | 20/Piece |
| Pay Type: | L/C,T/T,D/P,Western Union,Paypal |
| Prod Model: | customzied |
|---|---|
| Application: | Metal |
| Process Usage: | CNC Non-Conventional Machine Tools |
| Movement Method: | Contour Control |
| Control Method: | Open-Loop Control |
| Numerical Control: | CNC/Mnc |
| Processing Precision: | +0.02mm |
| Performance Classification: | High-End CNC Machine Tools |
| Condition: | New |
| Connection: | Welding |
| Customized: | Customized |
| Certification: | ISO 9001, SGS |
| Sample: | Available |
| Color: | Silver |
| Material: | Tungsten Carbide |
| Specifications: | Wc+Co |
| Type: | Tungsten Carbide |

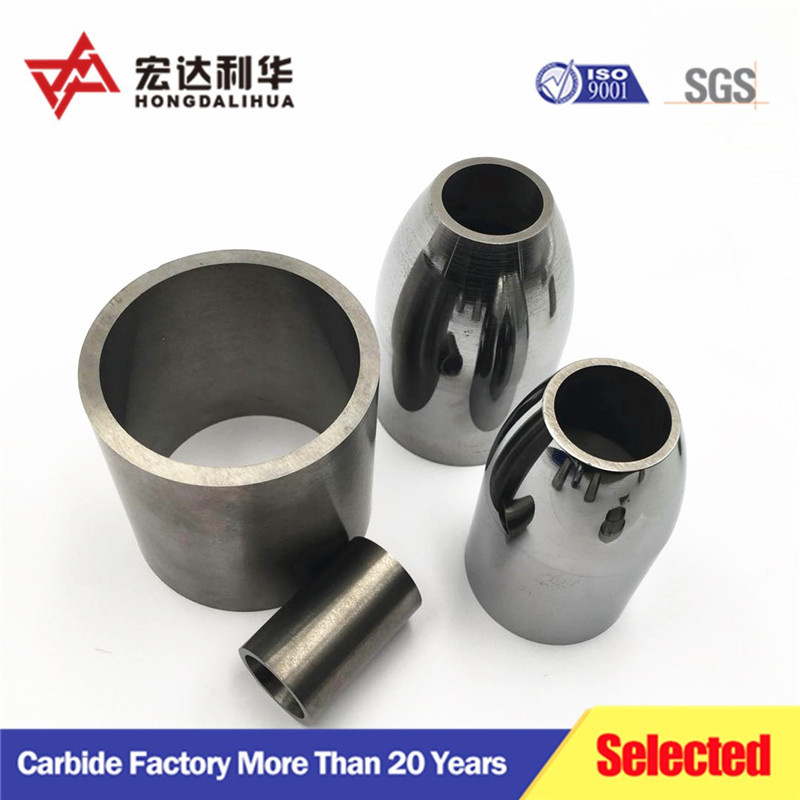

Fast Shipping Customized Cemented Carbide Drill Machinery Bushings
Advantages:
(1). Abrasive resistant, corrosion free, good compression property, the most wear-resistant bushing, heat resistance, low maintenance ;
(2). The hardness is 10 times of gold, 5 times of tool steel, 4 times of titanium, oil resistance, separate the harmful medium;
(3) . No shape change, no twist when temperature is above 1000 °C or below 500 °C, long service life, the maximum height can reach 270mm;
The grade information for sintered carbide shaft sleeves
| Grade | Binder(Wt%) | Density(g/cm3) | Hardness(HRA) | TRS(over N/mm2) |
| YG6 | 6 | 14.8 | 90.0 | 1520 |
| YG6X | 6 | 14.9 | 91.0 | 1450 |
| YG6A | 6 | 14.9 | 92.0 | 1540 |
| YG8 | 8 | 14.7 | 89.5 | 1750 |
| YG12 | 12 | 14.2 | 88.0 | 1810 |
| YG15 | 15 | 14.0 | 87.0 | 2050 |
| YG20 | 20 | 13.5 | 85.5 | 2450 |
| YG25 | 25 | 12.1 | 84 | 2550 |
| Grade | Density(g/cm3) | T.R.S | Hardness | Performance & Application Recommended |
| YG6 | 14.9 | 2150 | 89.5 | Qualified for finish maching and semi-finished maching for the cast iron,non-ferrous metal alloy and unalloyed materials |
| YG6X | 14.9 | 1560 | 91 | Qualified for maching of chiled cast iron |
| YG6A | 14.8 | 1580 | 91 | Alloy cast iron,refrectory steel,alloy steel,Also qualified for the maching of common cast iron |
| YG8 | 14.7 | 2320 | 89.5 | High bending strength,wear resistance lower than YG6A,used for processing blades,wear resisitance parts etc. |
| YG11C | 14.4 | 2260 | 87.5 | Qualified for molding the drills for heavy-duty rock drill,detachable bits used for deep hole drilling,rock drill torlley,etc. |
| YG15 | 14.0 | 2500 | 87.5 | Used for punch dies,stamping dies and wear resistance |
| YS2T | 14.5 | 2800 | 92.5 | Qualified for low speed rough maching,milling,titanium alloy and refractory alloy,especially for cut off tool and sick prick. |
| YL10.2 | 14.5 | 3400 | 92.5 | |
| YG20 | 14.6 | 2480 | 83.5 | qualified for making dies with low impact such as punching watch parts,battery shells,small screw caps etc. |
About Lihua Cemented Carbide
Established in 1990, specialized in production carbide products more than 20 years and located in Zhuzhou city which is the hometown of tungsten carbide in China .
Our products sold well to worldwide ,has been build a long term relationship with our customers from Italy ,Portugal, German ,Turkey ,USA ,Mexico ,India , Australia ,South Africa etc .
Main Products

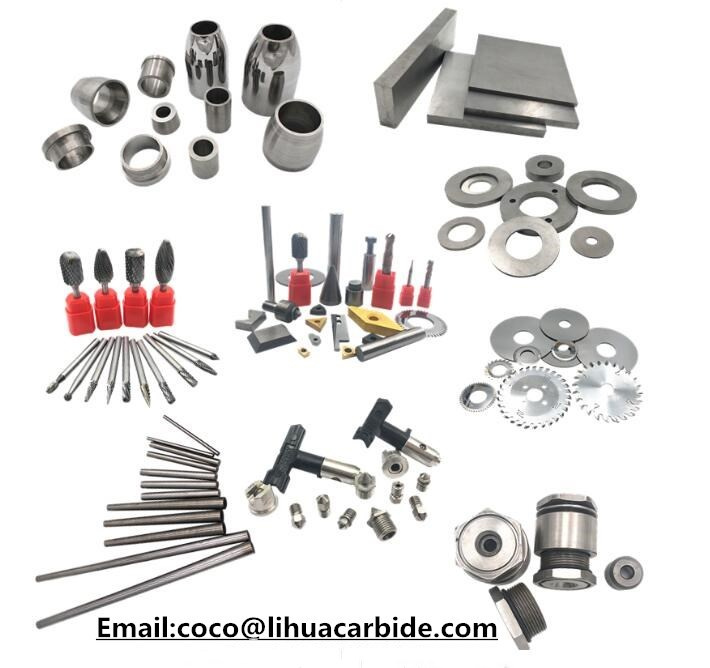

Our Main products include : Carbide Screwed Boring Bar, Plates, Rods, Sticks, Bushings, TP nozzles, 3D Printer Nozzles, Saw Blades, End Mills & Drill Bits, CNC inserts, Value Seats, Rotary Burrs, wheel cutters, Grits, Customized cutter :woodworking tool ,V-cutter , textile cutter , shoes cutter ects ,Any kinds of customized carbide products .
Monthly capacity of 15Ton

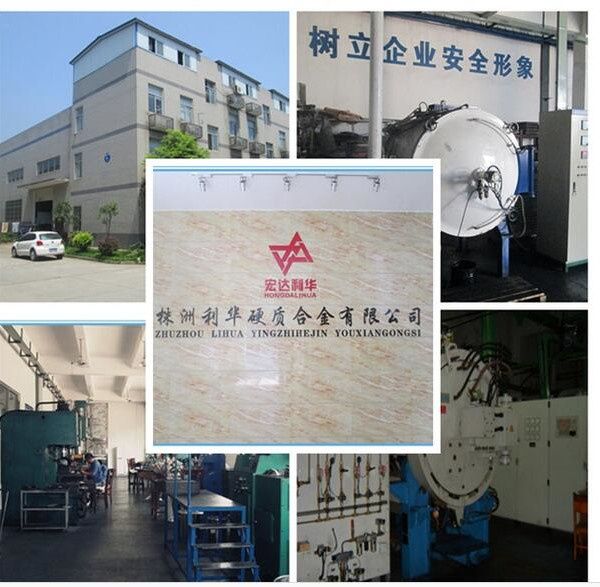

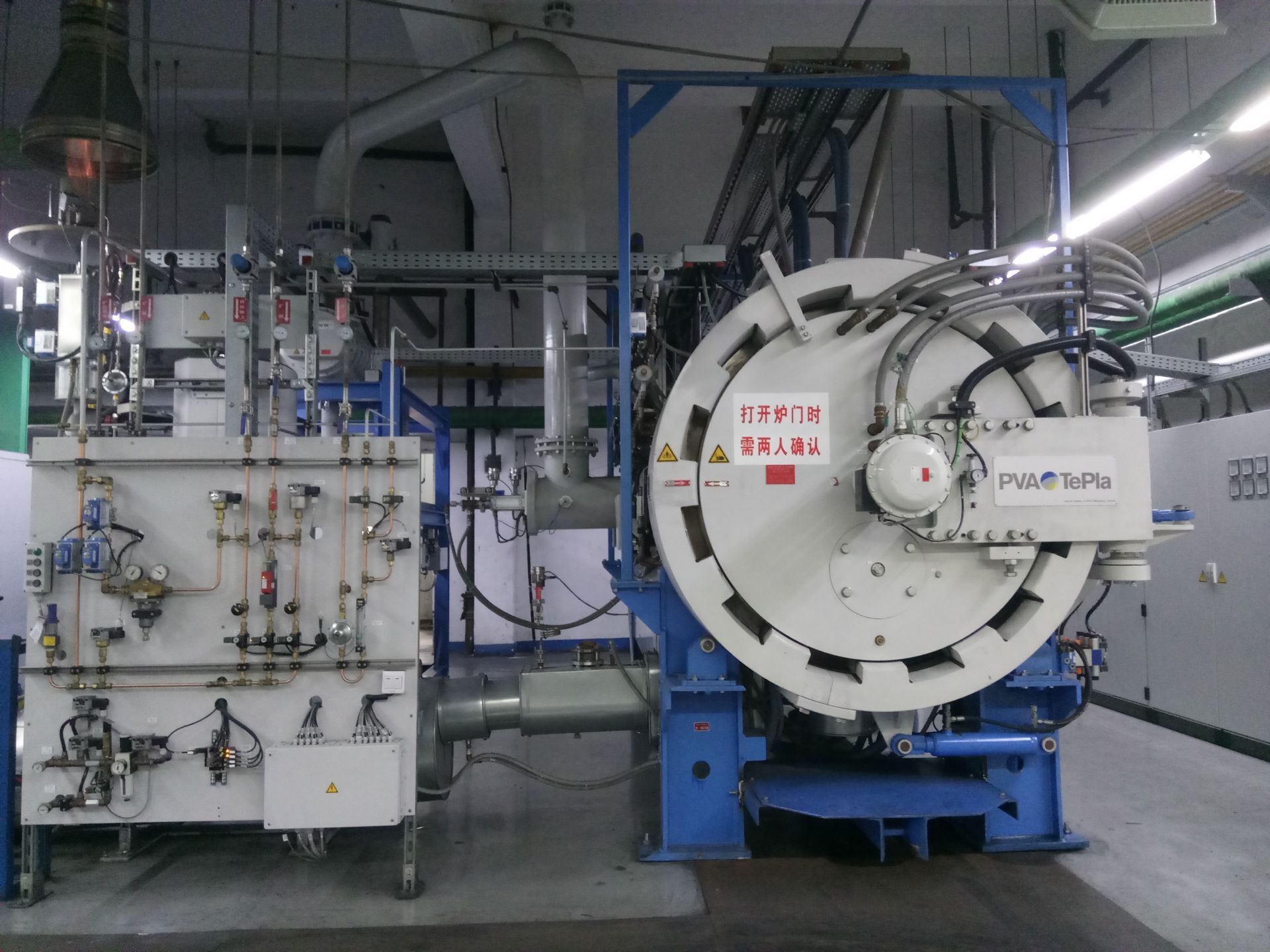

We have sophisticated equipment, such as Sintering Furnace, Automatic suppress Machine, Manual Hydraulic Suppress Machine, Ball Mill Machine, Drying Machine, Mixing Machine ect, Our production capacity up to 15Ton per month. Customized is welcome, customized sample can be ready in 3-5 days and 1 day can deliver for stocks.
Strictly QC
We have a professional QC team follow to the System of ISO9001:2008, Covering the Raw Materials Incoming, Production Processes, Finished Products and Packaging to ensure high quality products output.
We normally will dispatch your order within 2-10 working days depends on stock level, as soon as the order is shipped, we will list the tracking number on your order detail page, if there is any problem regarding to the shipping, please feel free to contact us.
Below shows the estimate delivery time for different courier:
TNT: 10-14 working days
DHL: 7-10 working days
FedEx: 8 to 10 working days
UPS: 7 to 10 working days
EMS: 10-14 working days
Less than or equal to $1000: 100% advance via Paypal , or Western Union .
Over $1000: 30% T/T advance, Balance before shipment .
Foreign Sales Manager: Coco
Mobile:+86 13973352165 (available 24 hours.)
Website: http://en.lihuacarbide.com/
Factory Address: Tower A, 6th Building, Block C, Auto parts park, Tianyuan zone, Zhuzhou, Hunan, 412000, China
