Fdb Series Lug Wrench Torque Multiplier

Name: Fdb Series Lug Wrench Torque Multiplier
Brand: tool-buy.com
SKU: 801042605
Availability: InStock
Rating: 5 (71 reviews)

Price:	US $ 100-2000/Piece
Min Order:	1/Piece
Pay Type:	L/C,T/T,Western Union

Contact Supplier

Jiangsu Feiyao Machinery Manufacturing Co., Ltd.

Showroom Product Company Profile

Prod Model:	FY-FDB
Application:	Bulldozer
Material:	Alloy Steel
Standard:	European Type
Feature:	Ordinary
Brand:	Feiyao
Type:	Wrench Set

Product Description

FDB Series Lug Wrench Torque Multiplier

Features:
1.A device that can multiply the moment of force to 4-60 times
2.Used in the difficult situation and places that big torque wrench is unable to use
3.The product operates easily and can save the manpower
4.People even can operate it with small torque
5.Applies to small size and poor working environment
6.All kinds of reaction torque arms can be used for many conditions
7.Match with the torque transducer

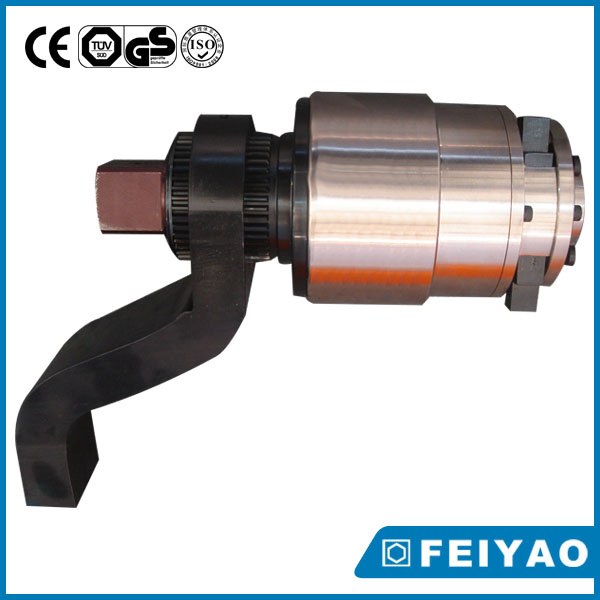

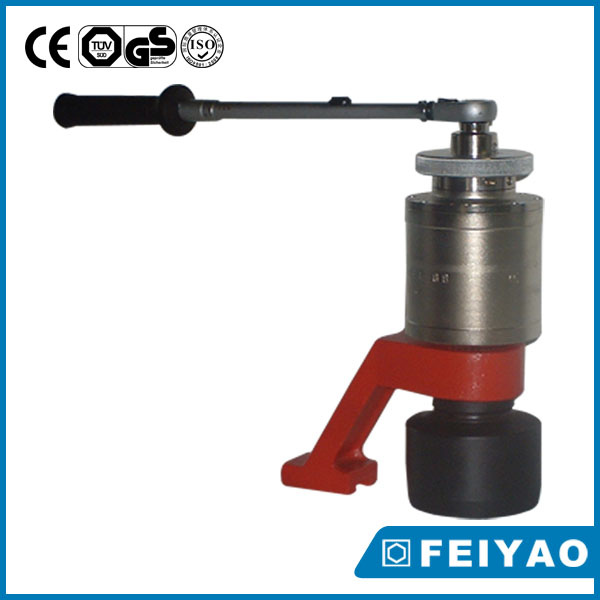

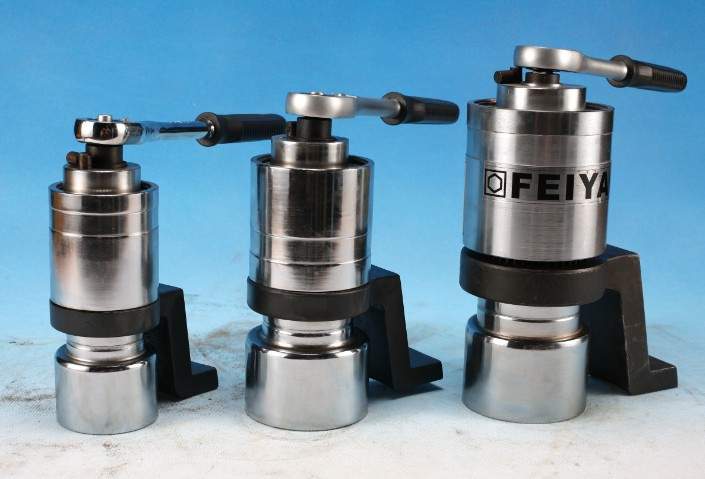

Photo of torque wrench multiplier

High Strength Torque Wrench Multiplier

Torque multipliers are the ideal tools for applications where air and electricity aren't easily accessible. The gearing design allows for a high torque output with minimal input. Commonly used in petrochemical, power generation, transportation, railway construction, shipping and maintenance industries.

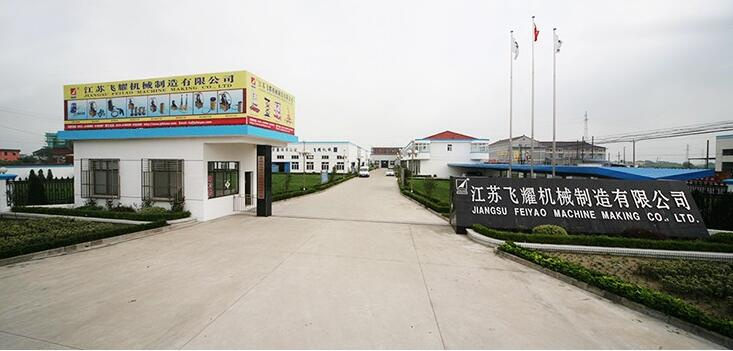

Brief Introduction of FEIYAO

Established in 1978, Jiangsu Feiyao Machinery Manufacturing factory is an professional leading manufacturer of hydraulic tools in China. Such as PLC lifiting systerm, hydraulic cylinders, torque wrench, nut splitter, flange spreader, gear pullers, hydraulic pumps and accessories etc.

Our products have been widely sold to Europe, South-east Asia and Middle East, and have got high appreciation and trust from all our customers. Whenever you need hydraulic products, please rememmber our company is always your reliable friends.

Our well-equipped facilities and excellent quality control enables us meet customers' satisfaction. Besides, we have gained CE and ISO9001 certificates.

We warmly welcome all overseas customers to talk with us about business or other cooperations.

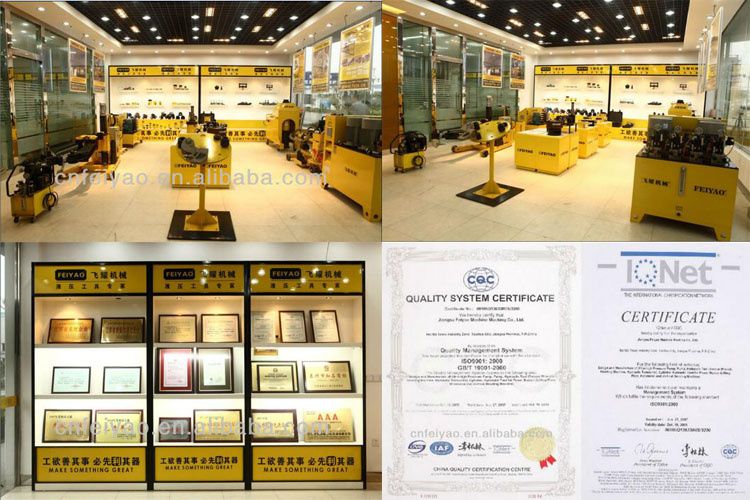

Showroom&Certification

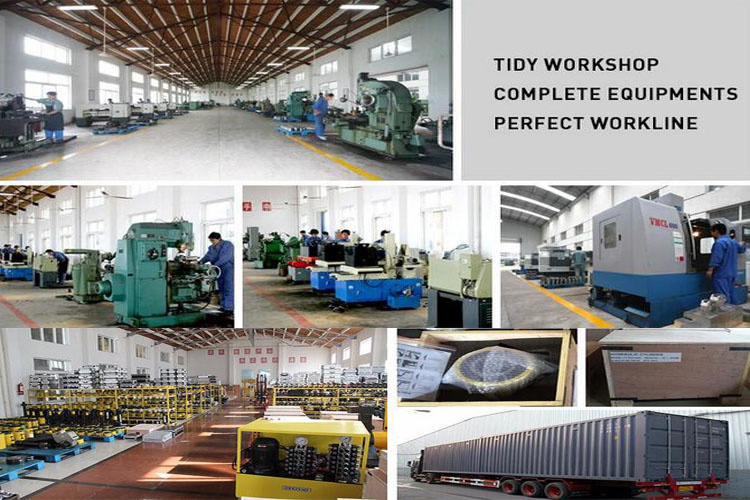

Factory Show & Packaging&shipping

Parameter information

model	FY-FDB-15	FY-FDB-20	FY-FDB-35	FY-FDB-55	FY-FDB-75	FY-FDB-100	FY-FDB-150	FY-FDB-200
Max torque(Nm)	1500	2000	3500	5500	7500	10000	15000	20000
drive ratio	4.8	14	17	19	22	61	74.8	96.8
imput square (mm)	12.7	12.7	12.7	12.7	12.7	12.7	12.7	12.7
output square (mm)	25	25	30	35	40	50	55	60
bolt (mm)	M20-30	M22-36	M30-45	M36-52	M42-60	M52-68	M60-76	M72-80
nut to edge(mm)	S30-46	S32-55	S46-70	S55-80	S65-90	S80-105	S90-115	S105-135
dimension(mm)	80×80× 119	74×74× 147	95×95× 162	105×105× 190	115×115× 210	134×134× 244	146×146× 305	146×146× 325
weight (kg)	2.6	3.9	5.5	7.5	10	17	25	31
