| Prod Model: |
FY-FDB |
| Max Torque: |
1500nm - 20000nm |
| Out Square: |
25mm - 60mm |
| Drive Ratio: |
4.8 -96.8 |
| Imput Square: |
12.7mm |
| Bolt: |
M20-80mm |
| Weight: |
2.6-31kg |
| Warranty: |
2 Year |
| OEM Services: |
Yes |
| MOQ: |
1 Piece |
| Color: |
Silver or Customized |
| Material: |
Carbon Steel |
| Standard: |
European Type |
| Surface Treatment: |
Chrome |
| Feature: |
Ordinary |
| Brand: |
Feiyao |
| Type: |
Torque Multipier |
Product Description
FY-FDB Series Operates Easily Torque Wrench Multiplier
Features :1.A device that can multiply the moment of force to 4-60 times
2.Used in the difficult situation and places that big torque wrench is unable to use
3.The product operates easily and can save the manpower
4.People even can operate it with small torque
5.Applies to small size and poor working environment
6.All kinds of reaction torque arms can be used for many conditions
7.Matched with the torque transducer

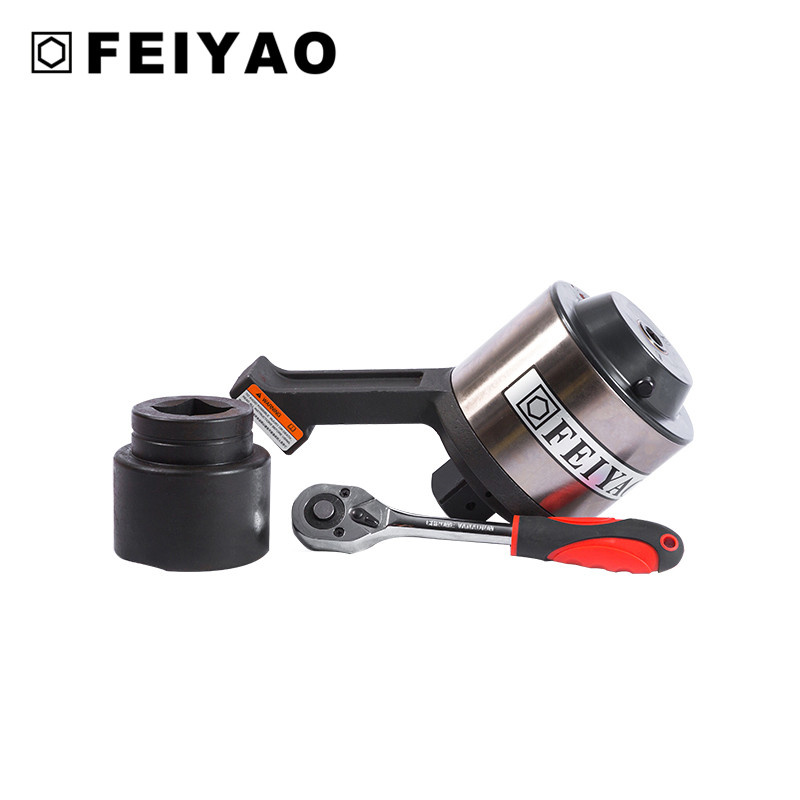

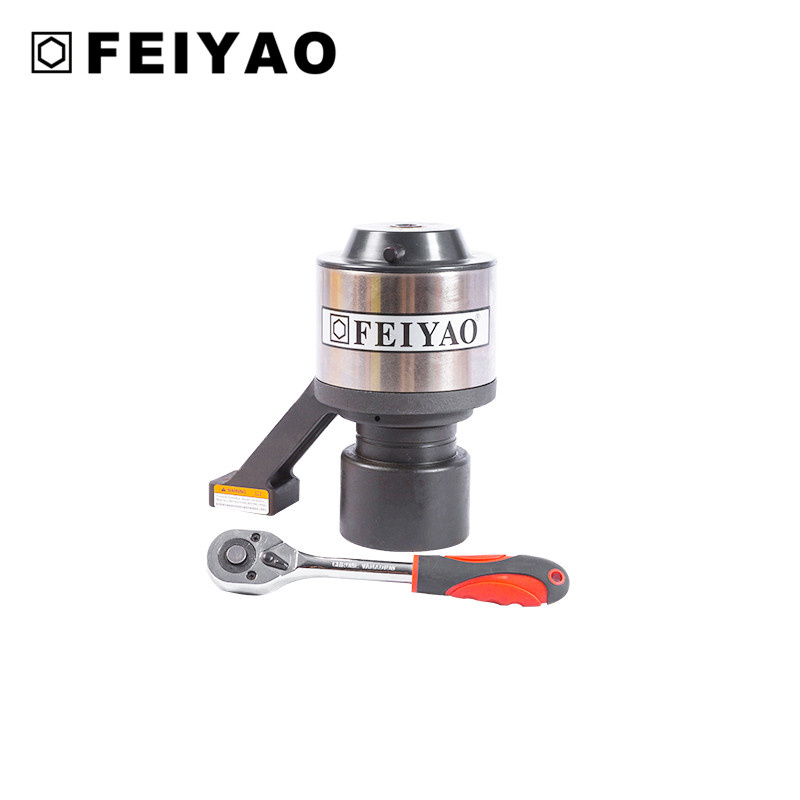

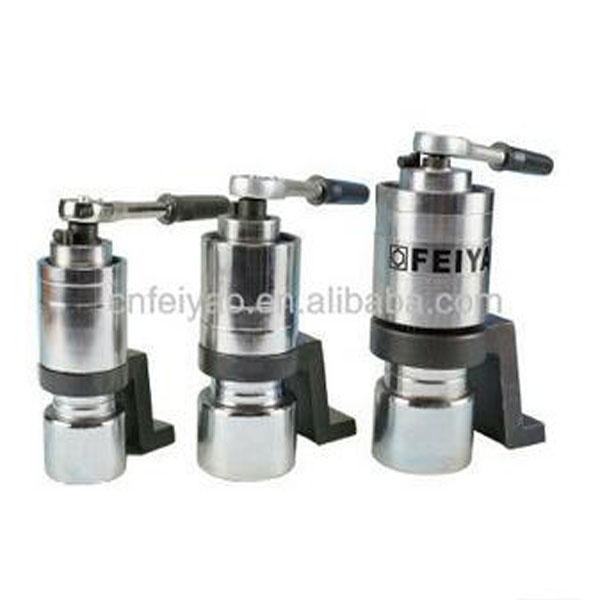

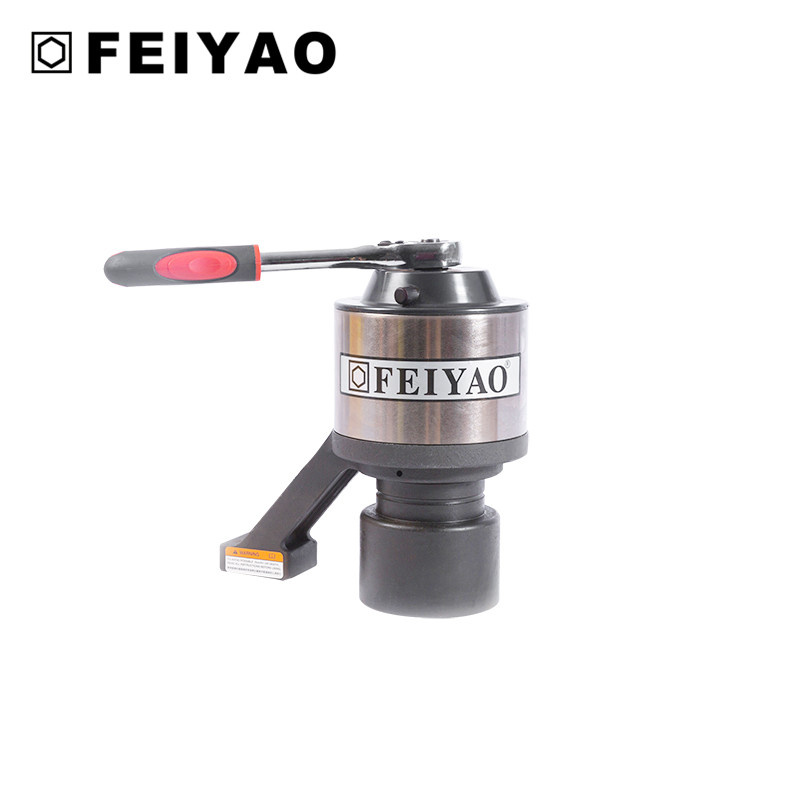

Products Photos:
Parameter Information | model | FY-FDB-15 | FY-FDB-20 | FY-FDB-35 | FY-FDB-55 | FY-FDB-75 | FY-FDB-100 | FY-FDB-150 | FY-FDB-200 |
| Max torque(Nm) | 1500 | 2000 | 3500 | 5500 | 7500 | 10000 | 15000 | 20000 |
drive
ratio
| 4.8 | 14 | 17 | 19 | 22 | 61 | 74.8 | 96.8 |
imput square
(mm)
| 12.7 | 12.7 | 12.7 | 12.7 | 12.7 | 12.7 | 12.7 | 12.7 |
output square
(mm)
| 25 | 25 | 30 | 35 | 40 | 50 | 55 | 60 |
bolt
(mm)
| M20-30 | M22-36 | M30-45 | M36-52 | M42-60 | M52-68 | M60-76 | M72-80 |
| nut to edge(mm) | S30-46 | S32-55 | S46-70 | S55-80 | S65-90 | S80-105 | S90-115 | S105-135 |
| dimension(mm) | 80×80× 119 | 74×74× 147 | 95×95× 162 | 105×105× 190 | 115×115× 210 | 134×134× 244 | 146×146× 305 | 146×146× 325 |
| weight (kg) | 2.6 | 3.9 | 5.5 | 7.5 | 10 | 17 | 25 | 31 |
Brief introduction of FEIYAO
Established in 1978, Jiangsu Feiyao Machinery Manufacturing factory is an professional leading manufacturer of hydraulic tools in China. Such as PLC lifiting systerm, hydraulic cylinders, torque wrench, nut splitter, flange spreader, gear pullers, hydraulic pumps and accessories etc.
Our products have been widely sold to Europe, South-east Asia and Middle East, and have got high appreciation and trust from all our customers. Whenever you need hydraulic products, please rememmber our company is always your reliable friends.
Our well-equipped facilities and excellent quality control enables us meet customers' satisfaction. Besides, we have gained CE and ISO9001 certificates.
We warmly welcome all overseas customers to talk with us about business or other cooperations.
Any phone call, E-mali, Fax from you would be a beginning of happy cooperation.
For more information please visit our website:www.fyhydraulic.cn
We are professional manufacturer, offer you competitive price.
If you have any questions about these products , please contact us ,we will try our best to help you !

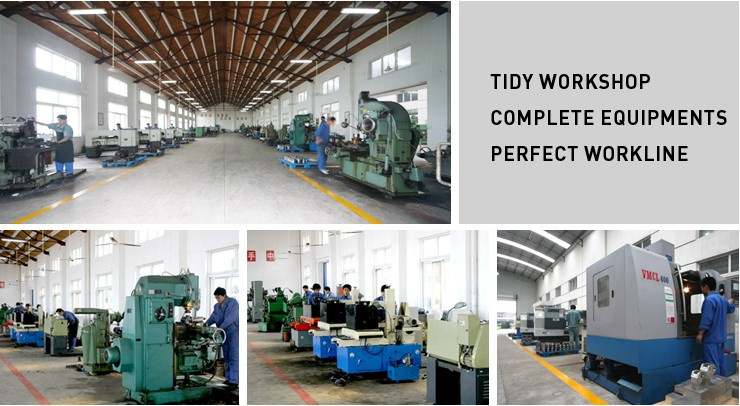

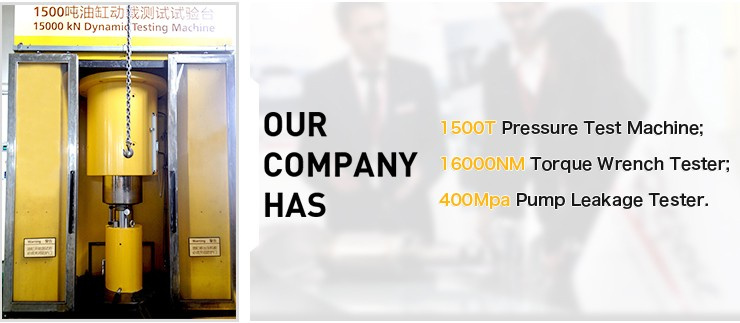

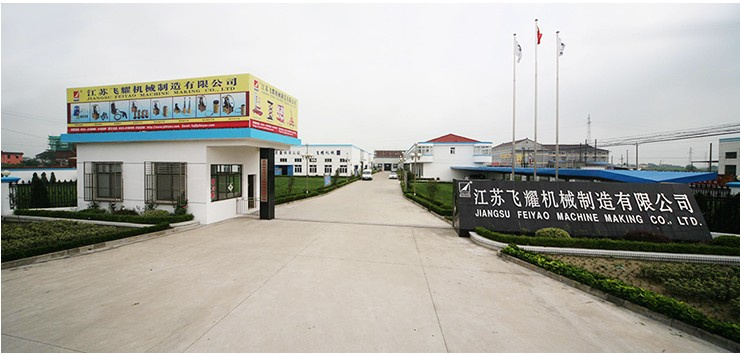

Factory Show:
FAQ:Q1: How to contact sales?
A1: Please email or call: +86-180-5260-7772 for pre-sales.
Q2: How to make payment?
A2: Once order confirmed, we will prepare proforma invoice with our banking details.
Q3: How long does it take to process orders?
A3: It usually takes 10-14 business days to process most orders for no stock, if stock available, only take 2- 3 business days.
Q4: What is the packing method?
A4: For small piece, we use carton box; for big piece, we use exporting grade plywood case.
Q5: How to ship?
A5: Sea freight, Air freight or International express(DHL, FEDEX,UPS...) all are available.
Q6: What is the warranty?
A6: 12 months against B/L date.
