| Price: | US $ 100-2000/Piece |
|---|---|
| Min Order: | 1/Piece |
| Pay Type: | L/C,T/T,Western Union |
| Prod Model: | FY-FDB |
|---|---|
| Application: | Bulldozer |
| Material: | Carbon Steel |
| Standard: | European Type |
| Type: | Wrench Set |
| Brand: | Feiyao |
Features:

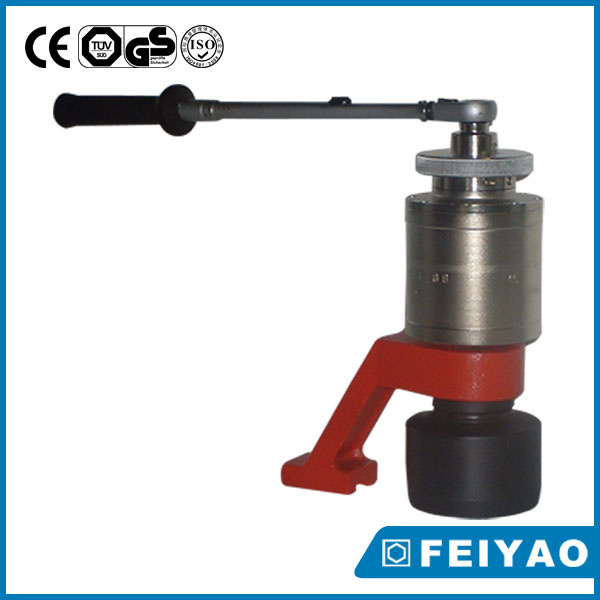

1.A device that can multiply the moment of force to 4-60 times
2.Used in the difficult situation and places that big torque wrench is unable to use
3.The product operates easily and can save the manpower
4.People even can operate it with small torque
5.Applies to small size and poor working environment
6.All kinds of reaction torque arms can be used for many conditions
7.Match with the torque transducer
Torque multipliers are the ideal tools for applications where air and electricity aren't easily accessible. The gearing design allows for a high torque output with minimal input. Commonly used in petrochemical, power generation, transportation, railway construction, shipping and maintenance industries.
Brief Introduction of FEIYAO
Established in 1978, Jiangsu Feiyao Machinery Manufacturing factory is an professional leading manufacturer of hydraulic tools in China. Such as PLC lifiting systerm, hydraulic cylinders, torque wrench, nut splitter, flange spreader, gear pullers, hydraulic pumps and accessories etc.
Our products have been widely sold to Europe, South-east Asia and Middle East, and have got high appreciation and trust from all our customers. Whenever you need hydraulic products, please rememmber our company is always your reliable friends.
Our well-equipped facilities and excellent quality control enables us meet customers' satisfaction. Besides, we have gained CE and ISO9001 certificates.
We warmly welcome all overseas customers to talk with us about business or other cooperations.
Showroom

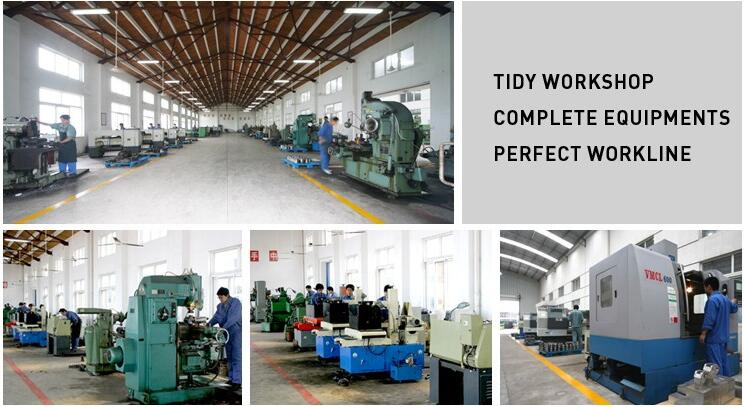

Factory Show
For more information please visit our website:www.fyhydraulic.cn
We are professional manufacturer, offer you competitive price.
If you have any questions about these products , please contact us ,we will try our best to help you !
CONTACT US
Contact Information
Sales Manager:Angela Zhang
Tel: +86-523-86183388
Fax: +86-523-86186999
Mobile: +86 18036786358
Facebook:+86 18036786358
IMO: 0086 18036786358
Web: www.fyhydraulic.com
Parameter information
| model | FY-FDB-15 | FY-FDB-20 | FY-FDB-35 | FY-FDB-55 | FY-FDB-75 | FY-FDB-100 | FY-FDB-150 | FY-FDB-200 |
| Max torque(Nm) | 1500 | 2000 | 3500 | 5500 | 7500 | 10000 | 15000 | 20000 |
drive ratio | 4.8 | 14 | 17 | 19 | 22 | 61 | 74.8 | 96.8 |
imput square (mm) | 12.7 | 12.7 | 12.7 | 12.7 | 12.7 | 12.7 | 12.7 | 12.7 |
output square (mm) | 25 | 25 | 30 | 35 | 40 | 50 | 55 | 60 |
bolt (mm) | M20-30 | M22-36 | M30-45 | M36-52 | M42-60 | M52-68 | M60-76 | M72-80 |
| nut to edge(mm) | S30-46 | S32-55 | S46-70 | S55-80 | S65-90 | S80-105 | S90-115 | S105-135 |
| dimension(mm) | 80×80× 119 | 74×74× 147 | 95×95× 162 | 105×105× 190 | 115×115× 210 | 134×134× 244 | 146×146× 305 | 146×146× 325 |
| weight (kg) | 2.6 | 3.9 | 5.5 | 7.5 | 10 | 17 | 25 | 31 |
