| Prod Model: |
216 |
| Material: |
Brass |
| Connection Form: |
Thread |
| Channel: |
Straight Through Type |
| Structure: |
Fixed Ball Valve |
| Type: |
Fixed Ball Valve |
| Application: |
Household Usage |
Product Description
Suggestion on spplication of ball valve:1.Ball valve is the control part of the pipeline system that can quickly truncate and connect the flow of the medium. In the process of use, the valve must be fully open or fully closed and cannot be used as the regulating flow
2.Ball valve has internal and external thread, card sleeve, hot melt connection, valve body and bonnet adopt thermostatic hot forging and tempering process, which greatly improves the mechanical performance and safety factor of valve.Valve pressure test was strictly performed according to GB/t13927-1992 < general valve pressure test > standard, 100% of the test was qualified before delivery.
3.Installation of valve must be carried out by professional personnel with relevant qualification. The deviation of the two ends of the pipe shall not be too large, otherwise excessive pipe installation stress will be produced, resulting in valve damage.When installing the screw, it should wrench the hexagon or octagonal parts of the same side of the thread, not the hexagon or octagonal parts on the other end of the valve, avoiding the deformation of the valve.
4.Valve pipe thread accuracy and effective length strictly enforce ISO228 standard, when installing a tightening must choose corresponding torque wrench or pliers, screwing length of screw thread can effectively, do not lead to excessive pressure in the end, cause valve, sealing surface breakage and leakage.
5.To ensure the normal use of the valve, install the filter at the inlet of the line whenever possible.In order to avoid pipeline pressure or temperature fluctuation to reduce the service life of the valve, corresponding preventive measures should be designed.
6.The ball valve handle is designed according to the use of the valve and the corresponding torque. Do not replace the lever arm, so that the operating torque is too large to damage the valve.In the process of use, the closing speed of the valve should not be too large, otherwise the water hammer effect will be doubled
7.Valve stem seal packing is polytetrafluoroethylene, such as the turbine-tightening cap to compensate the filling when the corrosion leak, replace the packing to remove the media pressure.
Sectonal drawing of gate valve

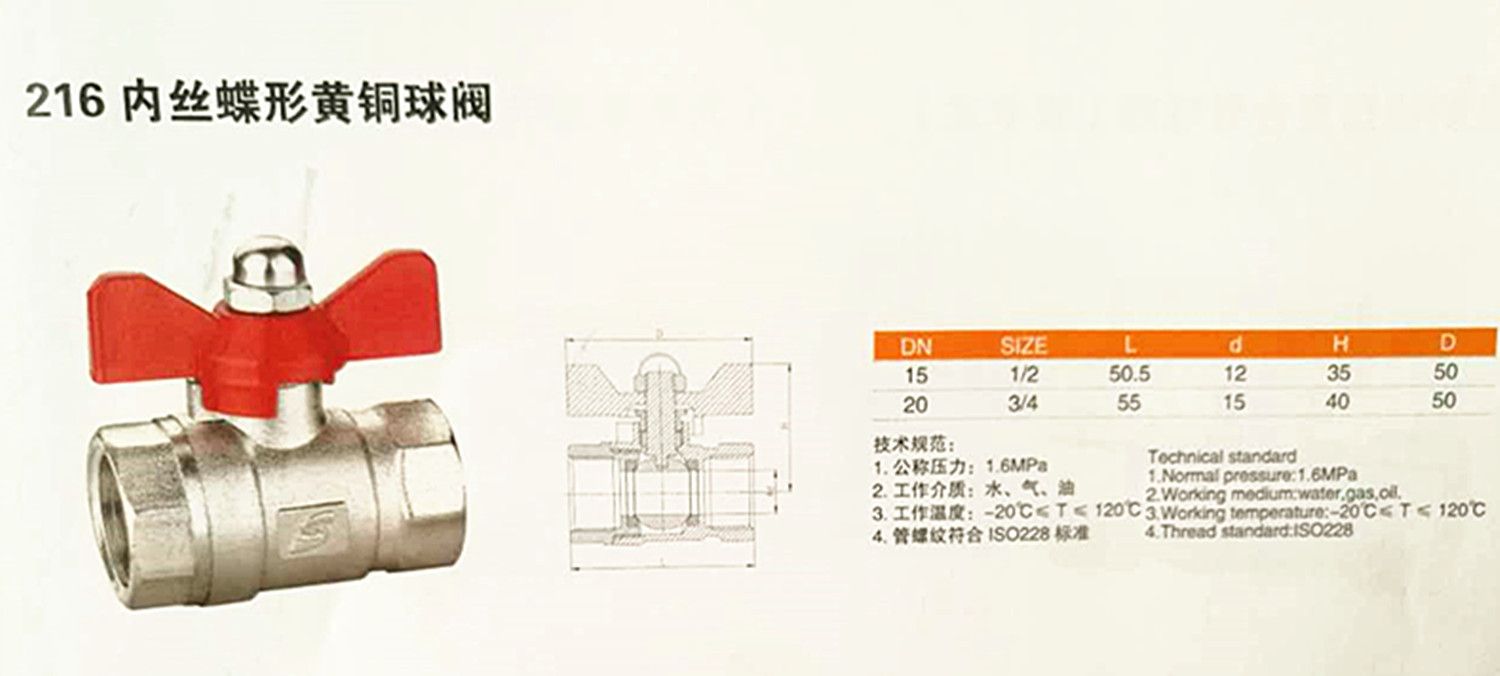

Size:

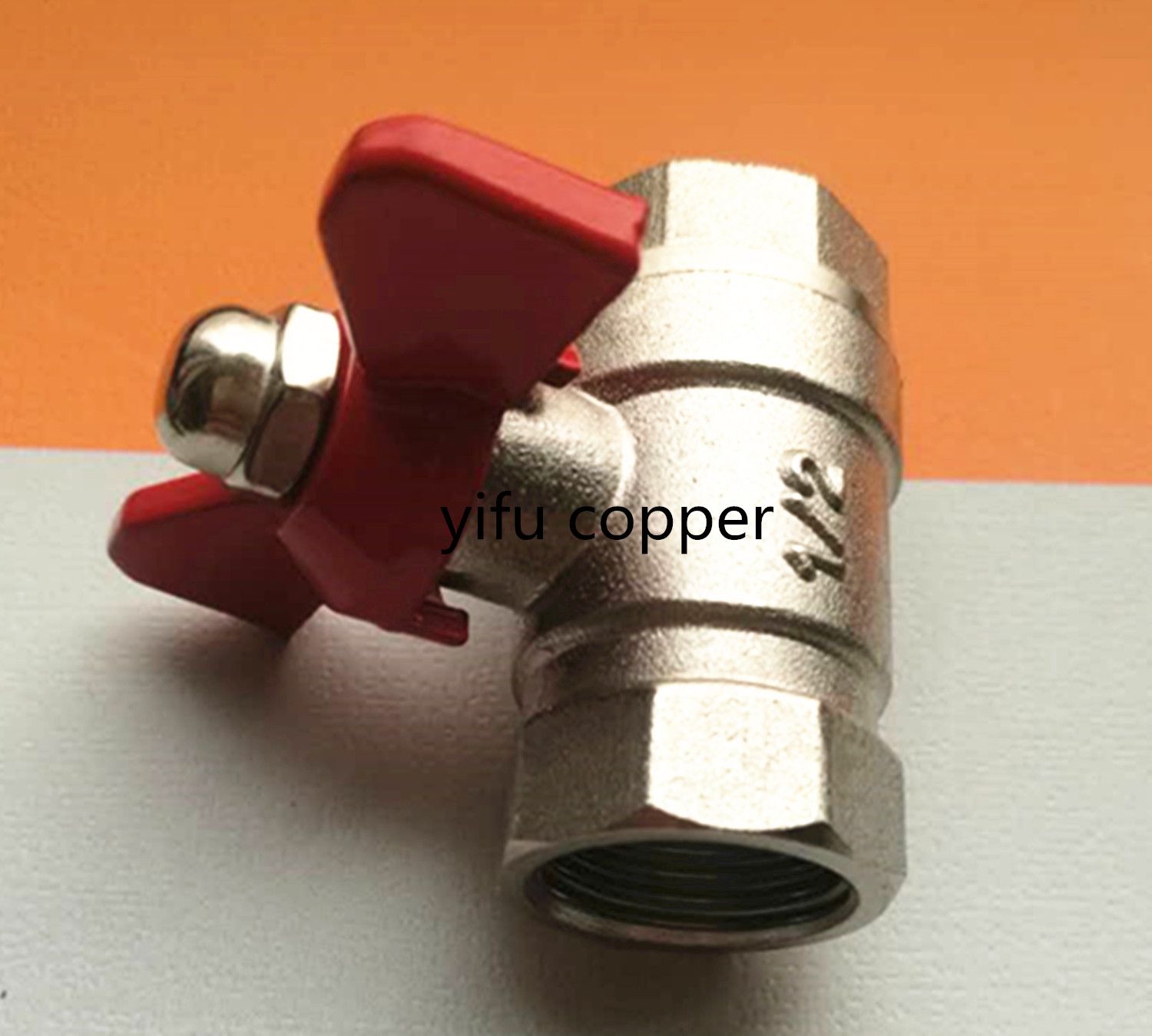

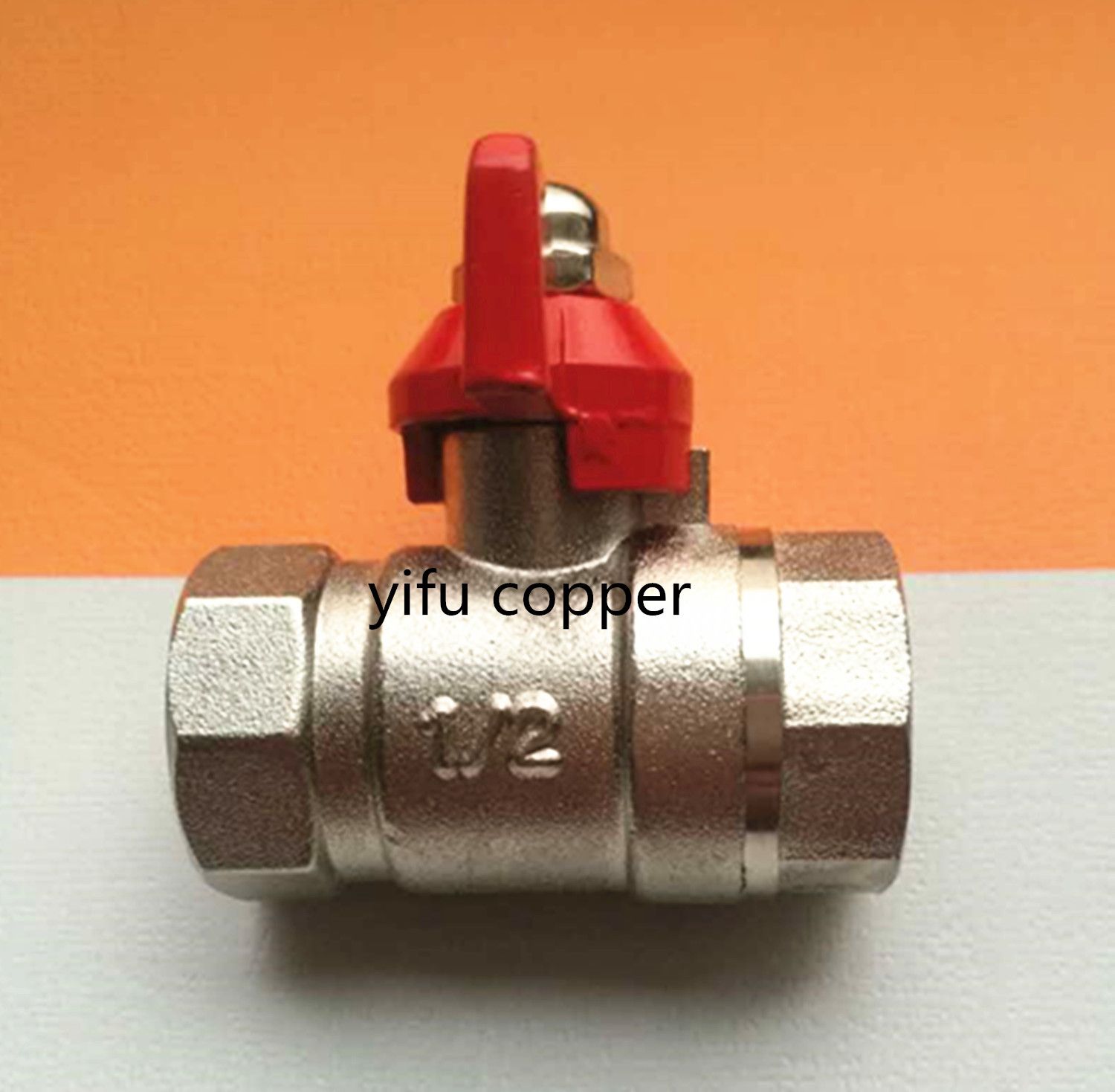

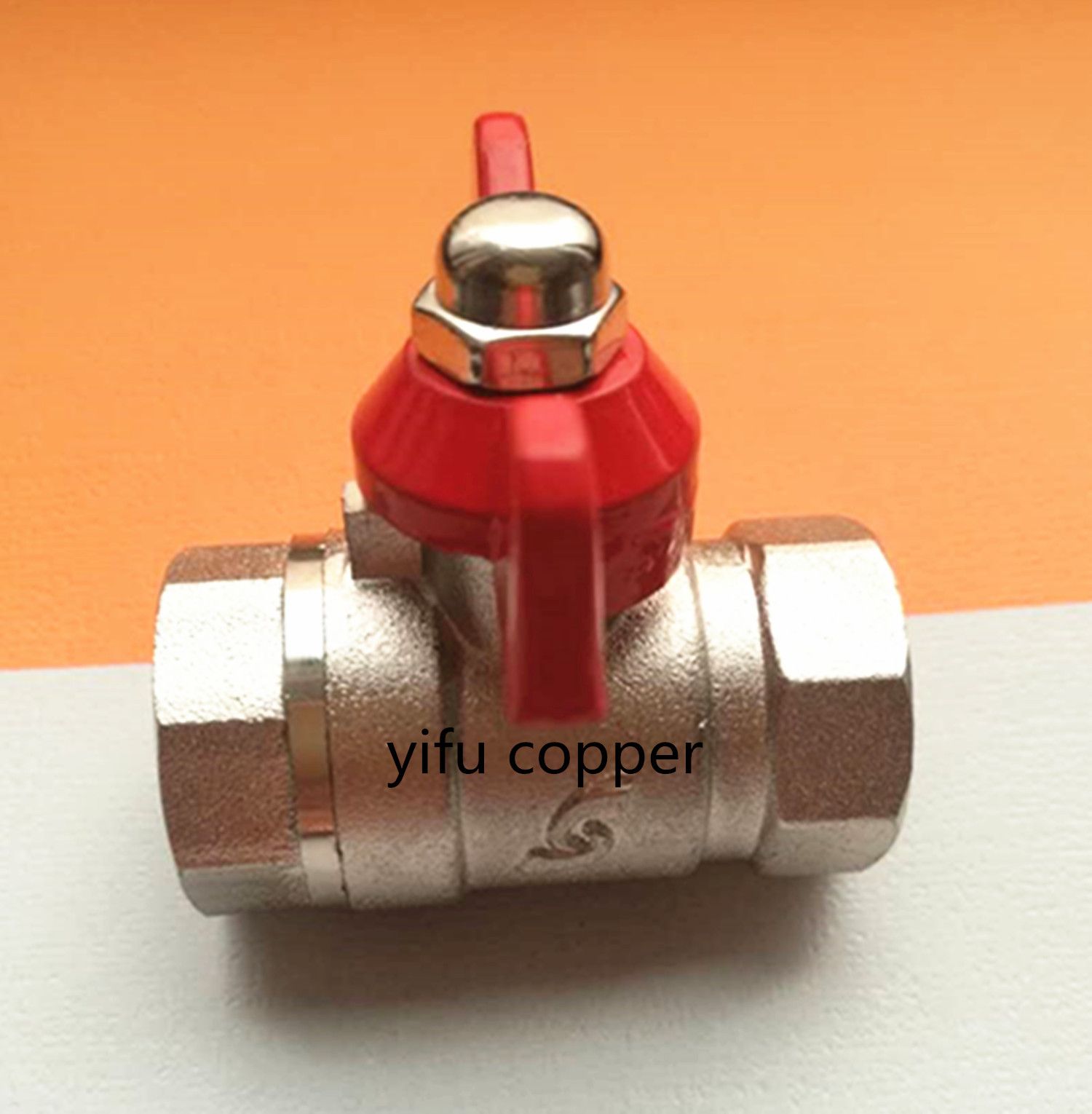

Product display:
Patent design:
Honorary certificate:
The company produces more than four million ball valves, thermostat valves and copper pipe fittings in tatal, which are widely used in widely used in water supply, gas, heating, facilities, home decoration, etc. Thanks to its strong capacity in technical R&D, the company has been titled as" Technology-based enterprise in Zhejiang Province'', "A Municipal-level seedling Industrial Enterprise" in Zhuji City, and "An Enterprise with municipal-level R&D Center"possessing 8 national patented products. Moreover, the thermostat valve developed by it has been rated as an "achievement of science and technology in Zhejiang province.
