Female Thread Brass Ball 1/2'' - 2''inch Valve High Quality
Price: |
Negotiable/Piece |
Min Order: |
3000/Piece |
Pay Type: |
T/T,Western Union,Paypal |
Prod Model: |
HBW-B12101 |
Name: |
Brass Ball Valve |
Color: |
Red |
Size: |
1/2' to 2' |
Usage: |
Industrial Usage, Household Usage |
Normal Pressure: |
1.6MPa |
Working Medium: |
Water, Gas, Oil |
Working Temperature: |
-20 Degree to 120 Degree |
Thread Standard: |
ISO228 |
Key Words: |
Brass Ball Valve |
Material: |
Brass |
Connection Form: |
Thread |
Channel: |
Straight Through Type |
Structure: |
Fixed Ball Valve |
Type: |
Fixed Ball Valve |
Application: |
Household Usage |
Product Description

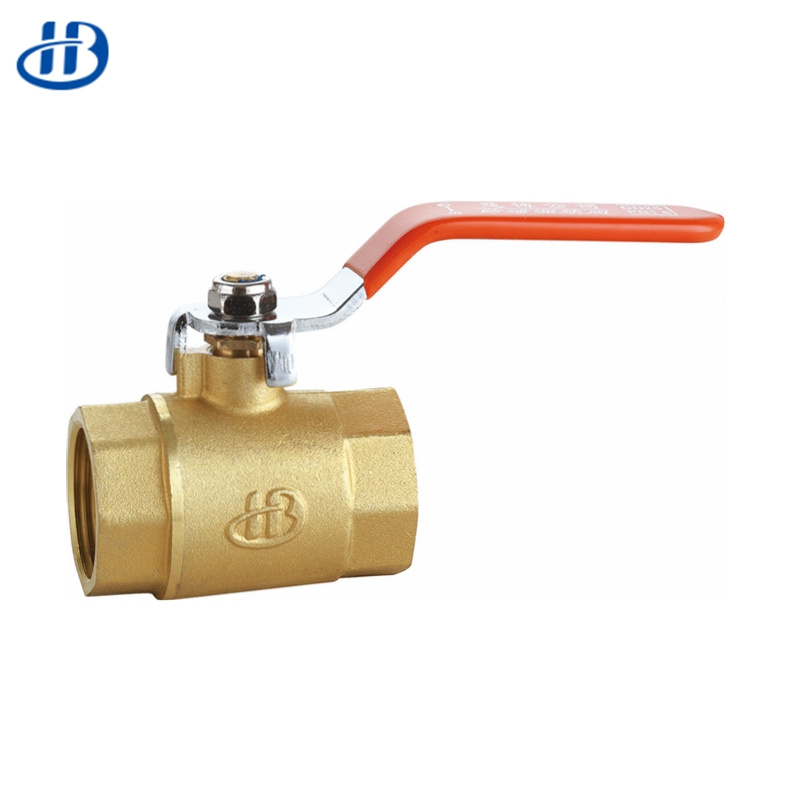

Female thread brass ballvalve high quality

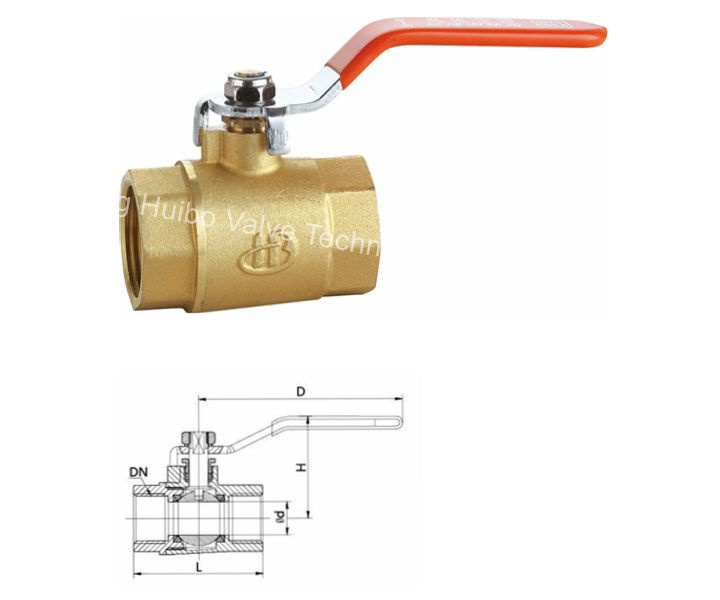

DN | SIZE | L | d | H | D |
15 | 1/2 | 52 | 14 | 44 | 86 |
20 | 3/4 | 65.5 | 15 | 47 | 92 |
25 | 1 | 66.5 | 20 | 53.5 | 104 |
32 | 1¼ | 72.5 | 24 | 61 | 118 |
40 | 1½ | 85 | 29 | 73.5 | 135.5 |
50 | 2 | 95 | 36 | 83.5 | 145 |
Technical standard-1.Normal pressure: 1.6Mpa
-2.Working medium: water, gas, oil
-3.Working temperature: -20ºC≤T≤120ºC
-4. Thread standard: ISO228Production specificationModel | HBW-B02101 |
Connection end | Thread |
Working pressure | 1.6Mpa |
Thread standard | ISO228 |
Packing | Standard export packing |
Port | Shanghai, Ningbo |
Payment | T/T, Paypal, Western Union |
Certificate | CE, SGS ISO9001 ISO14001 |
Color | Blue |
Size | ½ - 2 |
Material | Brass |
Field of Application | Water. Gas, Oil |
Work Temperature | -20ºC to 120ºC |
Production Capacity | 8000 pcs one day |
More display
Zhejiang Wisdom Valve Technology Co., Ltd., is an entity enterprise with 25 years brass valve manufacturing experiences. Our main products including temperature control valve, thermostatic radiator valve, ball valve, gate valve, globe valve, check valve, three-way valve, brass pipe fittings and etc. With more than 40 series and 2000 varieties.

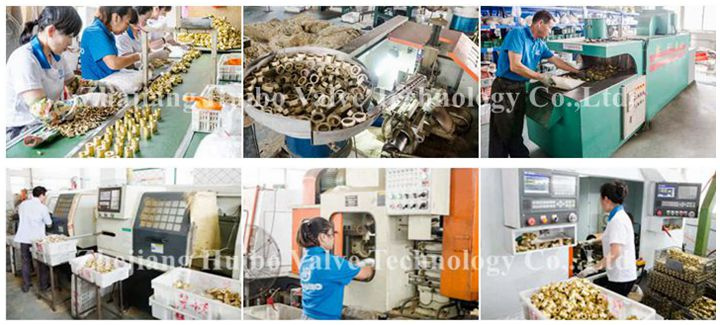

Regarding production process, all steps including hot forging, die-casting, Seiko CNC, assembling, processing and polishing are strictly implemented according to ISO9001: 2000 international quality system standard. And all Wisdom products are insured by Pacific Insurance Company.
So far, Wisdom also have cooperated with domestic colleges and universities, own more than 50 professional and technical personnel, equipped with German import spectrometer, test bench of anti-bending, anti-torque and tensile, test bench of hydraulic pressure, static pressure and blasting and so on.
We insist to emphasize on high quality and integrity. Taking quality as the fundamental of enterprise survival and development. By our effort and continuous upgrading on products and technology, have provided users with the overall distribution and technical support. Moreover, having set up many stores and dealership in recent years, carried out with unified planning and unified management, let products go deep into the majority cities of domestic market, as a national key construction project move towards to the world.
Wisdom adhere to the principle of " integrity-based, innovation, pragmatic cooperation, mutually beneficial win-win", welcome old and new customers at home and abroad working together hand in hand, striving for research and development to achieve our mutual benefits.
