| Prod Model: |
P00200 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Dn: |
4-32 |
| Stock: |
Yes |
| Size: |
All Avaliable |
| Color: |
White |
| Standard: |
DIN |
| Material: |
Medium Carbon Steel |
| Connection: |
Hydraulic Ferrule |
Product Description
Material: Brass, Carbon steel, Stainless Steel
Size: All size available
Surface Finish: White, yellow, trivalent chrome zinc plating
Series: FERRULE FOR SAE100R2A-DIN20022 2ST HOSE
Model: P00200

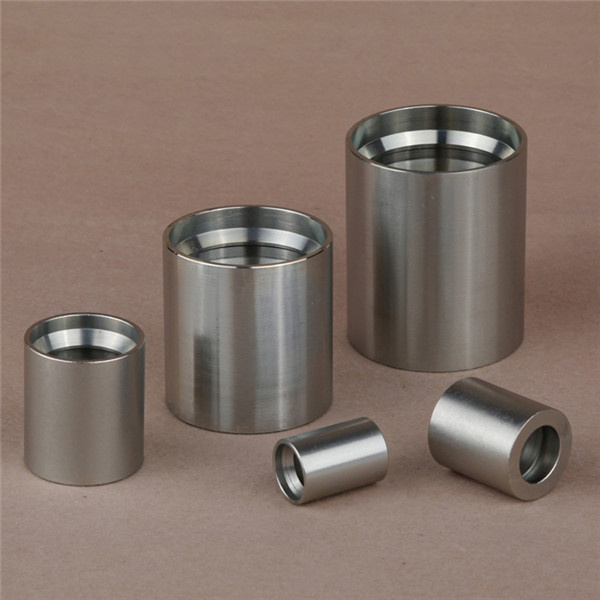

Two wire Ferrule Description: The material is Q235 steel. P00200 is used for 2 wires braid hose, our hydraulic ferrule is with high quality. 00200: It is used for 2 wire braid skived hose, if you need non-skived, pls order 00210.
| PART NO. | HOSE BORE | DIMENSIONS | Price |
| DN | DASH | D | L |
| P00200-03 | 4 | 03 | 20.6 | 27 | Price |
| P00200-04 | 6 | 04 | 21 | 30 | Price |
| P00200-05 | 8 | 05 | 24 | 31 | Price |
| P00200-06 | 10 | 06 | 25.5 | 32 | Price |
| P00200-08 | 12 | 08 | 30 | 34 | Price |
| P00200-10 | 16 | 10 | 33.4 | 37 | Price |
| P00200-12 | 20 | 12 | 38 | 43 | Price |
| P00200-16 | 25 | 16 | 46 | 50 | Price |
| P00200-20 | 32 | 20 | 56 | 59 | Price |
PEHEL is an ISO9001 and UKAS certified company and member of China Hydraulic and Pneumatic Seal Element Industrial Association.PEHEL is also a trustworthy unit in quality of product approved by the Technical Supervising Bureau.
PEHEL, equipped with advanced CNC machines and professional technicians, can design, develop and produce hydraulic controlling components and full sets of accessories all by itself.
Ningbo Yinzhou Pehel Machinery Co., Ltd (originally Ningbo Yinzhou Hengxi Dongming Machinery Factory), is a professional hydraulic components factory, who pass ISO9001 SYSTEM for 15 years.
Pehel, has more than 13000 square meters factory area, equipped with advanced CNC machines(250 sets), CNC machining centers and Japanese imported sealing equipment, can design, develop and produce hydraulic controlling components and full sets of accessories all on itself. Now pehel has the perfect quality control system.
Top quality is Pehel's eternal pursuit. By the pursuit we have built a strong and well known reputation and brand among our customers. Now our products are very popular in Europe, US, MID-East and South Asia, as well as hot sold in mainland.
Pehel is willing to create prosperous future with all friends around the world.
