| Prod Model: |
18 |
| Electrical Requirements: |
380V/50Hz.60AMP |
| Type For Cutting Machine: |
Laser Cutting Machine |
| Outline Size(mm): |
4270mm*2420mm*1750mm (L*W*H) |
| Automation: |
Automatic |
| Condition: |
New |
| Servo: |
Japan |
| Cooling Mode: |
Water Cooled |
| Certification: |
CS, SGS, ISO 9001:2008 |
| Type: |
High-Power Laser Cutting Machine |
| Transmission Way: |
Y-Axis Imported Gear Rack Double Driver |
Product Description

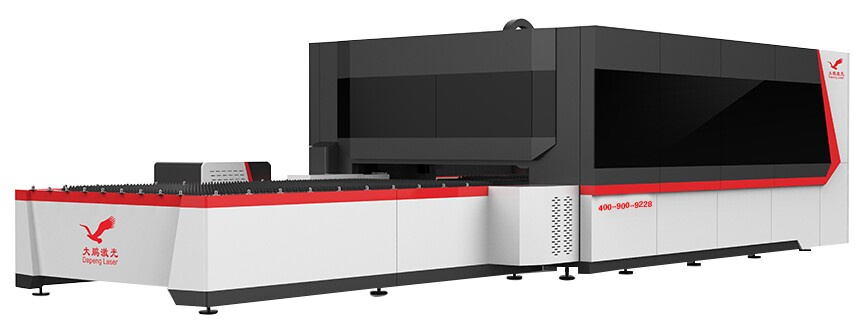

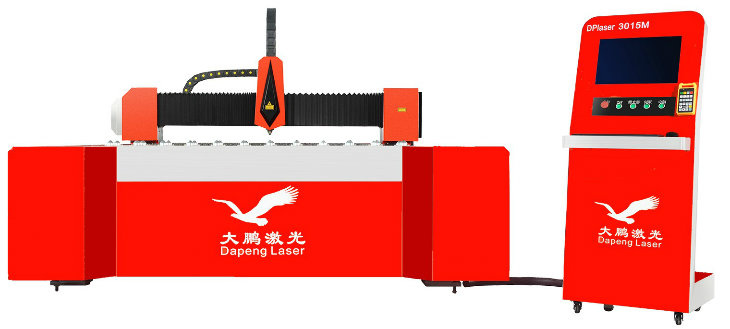

Fiber galvanized iron sheet Laser Cutting Machine
ADVANTAGES:
1, Cost saving on power consumption/ only 20-30% of co2 laser cutting machine under same power.
2, Flexibility and precision cutting of simple or complex parts
3, Adopts imported world brand fiber laser/Life time over 100,000hrs
4, Imported servo motor and gearing system ensure precision cutting
5, High quality cut with no extra finishing required
6, Higher cutting speed and efficient, speed of cutting plate over 10 meters per minute
7, Non contact cut which means no marks or contamination of the material
8, Ability to cut virtually any sheet metal
SPECIFICATIONS:
Model | DPLC3015-2000I | DPLC3015-1000I |
| Medium of laser | Semiconductor pump continuous ytterbium doped fiber |
| Laser wavelength | 1070nm |
| Laser output power | 2000W | 1000W |
| Cutting area(mm)(L×W) | 3000mm×1500mm |
| Max cutting speed(m/min) | 30 m/min | 24 m/min |
| Min line width | < 0.1mm | < 0.125mm |
| Cutting depth | 0.2mm---16mm | 0.2mm---10mm |
| Driving Way | Imported servo motor |
| Tranmission Way | Y-axis imported gear rack double driver,X-axis imported gear rack |
| Operational Temp Range | 10 ~ 40ºC |
| Electrical Requirements | 380V/50Hz.60Amp |
| Cooling Mode | Water cooled |
| Continuous working time | 24 hours |
| Warranty: | 2 years on laser source | |
| Weight | About 4500kg |
| Outline size(mm) | 4270mm×2420mm×1750mm (L×W×H) |
APPLICABLE MATERIALS:
Stainless steel, carbon steel, alloy steel, silicon steel, spring steel, aluminum, aluminum alloy, galvanized sheet and other metal pipes and tubes.
APPLICABLE INDUSTRY:
It is widely applied in industrial pipeline processing, explosion-proof equipment, military industry, chemical industry, oil exploration, lamps and lanterns, metal processing, ironware, building, etc.
-------------------------------------------------------------------------------------------------------------
SUPPORT and WARRANTY
MANUALS AND INSTRUCTIONAL VIDEOS
An Operation Manual and instructional video that contains clear explanations of the Installation process and the usage of the software, the control panel and other features.
WARRANTY AND PROFESSIONAL SUPPORT
To make sure your machine never stops running, in the unlikely event that your equipment needs technical service, we have an extensive inventory of spares parts as well as technical support at any of our fully stocked facilities in China and the others oversea(India), DA PENG LASER, also offers a comprehensive warranty policy for manufacture deffects.
Shipping and training
INSTALLATION, TRAINING, STOCK AND DELIVERY
Up to 8 hours of training (2 days of 4 hours) in the Installation, Maintenance & Operation of the Laser Machine, as well as the included software is available Free of charge at our premises. Unlimited technical support is offered via telephone, e-mail and other means. Optional On-Site Installation and Training by our Tech Support Engineer is available for an additional charge at the customer's request. We have 1 fully stock facilities and other plants in the China and can deliver anywhere in the world.

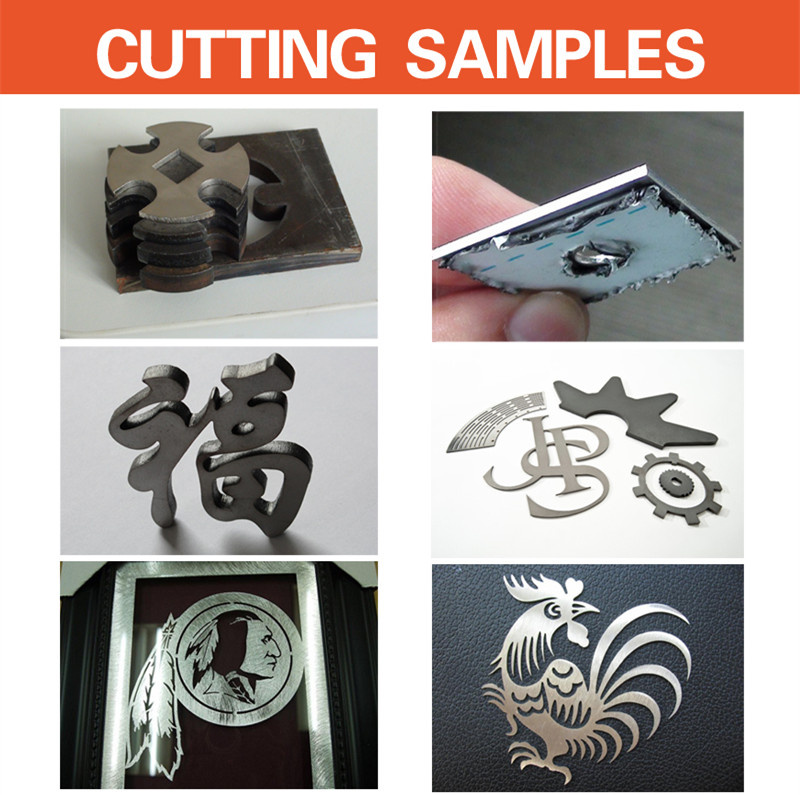

sample marking

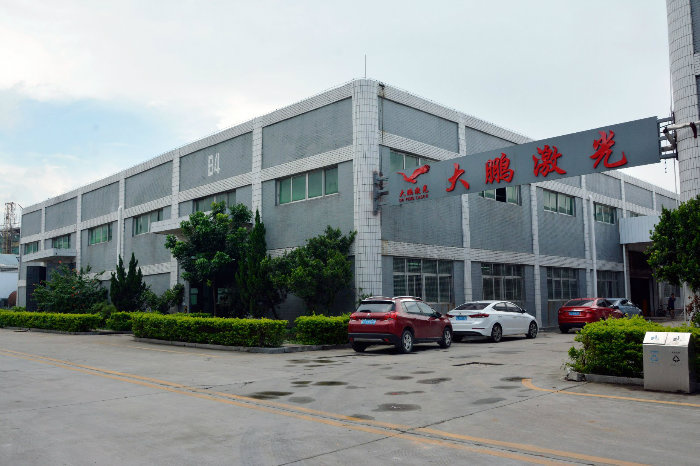

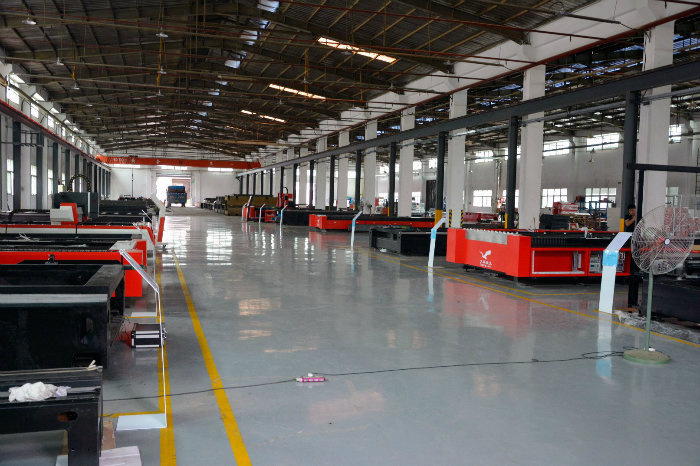

Company profileFounded in 2005, Shenzhen Dapeng Laser Technology Limited is the market leader in developing, manufacturing and
servicing products and systems for laser marking, laser welding, laser cutting and engraving. The company provides
equipment to a wide range of markets including medical industries, jewelry, automotive, aerospace, military,
semiconductor and solar industries as well as the battery, electric vehicle, electronics and general industrial markets.
With a decade of cumulative laser equipment design and manufacturing expertise, Dapeng Laser is able to offer standard
and custom designs that solve challenging OEM applications. Dapeng Laser is CE and FDA certified. Our laser marker
systems are highly precise, most reliable, and cost-effective. We have sold over thousands of systems worldwide for last
10 years. Our products can be found in Europe, America, Russia, India, Vietnam, Thailand, Indonesia, Egypt, Brazil,
Colombia, and South Africa, among others.
Since our inception, customer support has been a top priority and that standard still remains today. We hope that we will
have a chance to give you a great laser solution with Dapeng Laser products.
Our mission is to be a full service provider of industrial laser equipment that emphasize the quality, reliability, safety, cost
effectiveness, and technical support.
China. Last year 2016 we sold more than 5000sets of laser systems, about 80% are sold in domestic market, and others
we sold to America, Spain, Poland, India, Egypt and many other countries.
Founded in 2005, Shenzhen Dapeng Laser Technology Limited is the market leader in developing, manufacturing and servicing products and systems for laser marking, laser welding, laser cutting and engraving. The company provides equipment to a wide range of markets including medical industries, jewelry, automotive, aerospace, military, semiconductor and solar industries as well as the battery, electric vehicle, electronics and general industrial markets. With a decade of cumulative laser equipment design and manufacturing expertise, Dapeng Laser is able to offer standard and custom designs that solve challenging OEM applications. Dapeng Laser is CE and FDA certified. Our laser marker systems are highly precise, most reliable, and cost-effective. We have sold over thousands of systems worldwide for last 10 years. Our products can be found in Europe, America, Russia, India, Vietnam, Thailand, Indonesia, Egypt, Brazil, Colombia, and South Africa, among others.
Since our inception, customer support has been a top priority and that standard still remains today. We hope that we will have a chance to give you a great laser solution with Dapeng Laser products.
Our mission is to be a full service provider of industrial laser equipment that emphasize the quality, reliability, safety, cost effectiveness, and technical support.
