| Price: | US $ 3400-3500/Piece |
|---|---|
| Min Order: | 1/Piece |
| Pay Type: | L/C,T/T,Western Union |
| Prod Model: | BBS483D64 |
|---|---|
| Application: | Irrigation Water, Industrial Water |
| Material: | Carbon Steel |
| Name: | Double Chamber Configurations Sand Media Filtratio |
| Function: | Water Firtration |
| Sand Cylinder Number: | 3 |
| Cylinder Diameter: | 48" |
| Color: | Blue |

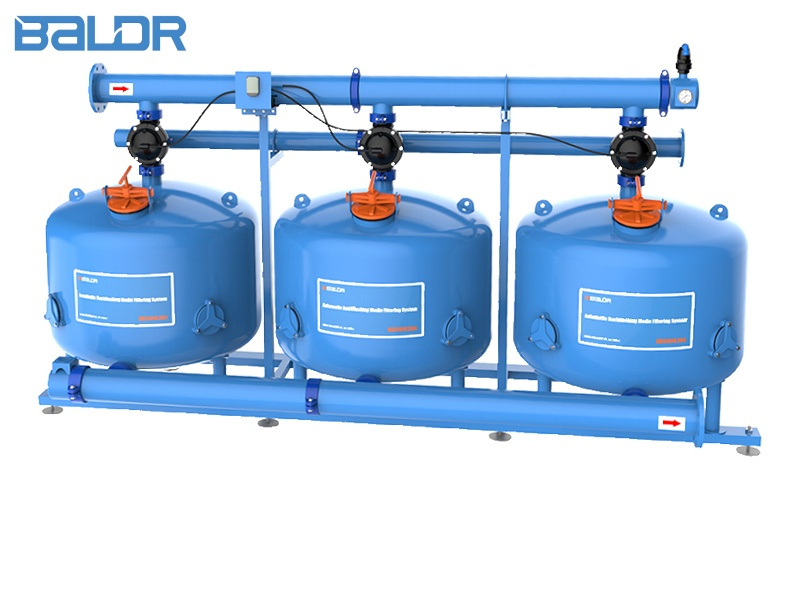

Filter machine/Auto three cylinder double-chamber 48 inch sand media filtration system / three cylinder
BALDR sand media filtration system is composed of one more standard filter sand cylinder units.The filter media is used to effectively remove suspended material and reduce turbidity.
The system is equipped with three-way back flushing control valve,and the automatic controller can realize multiple sand cylinders to flush each other,and the water supply can be continuously supplied,then the automatic unattended water filtration system is formed.Each cylinder is equipped with a unique water distributor and water collector,and the filter sand layer works smoothly,the filter water is uniform and the flow is large.
The sand media filtration system is especially suitable for the filtration of suspended objects,which can be used in conjunction with the high-precision disc filter or screen filter in the end to achieve the perfect filtering effect.

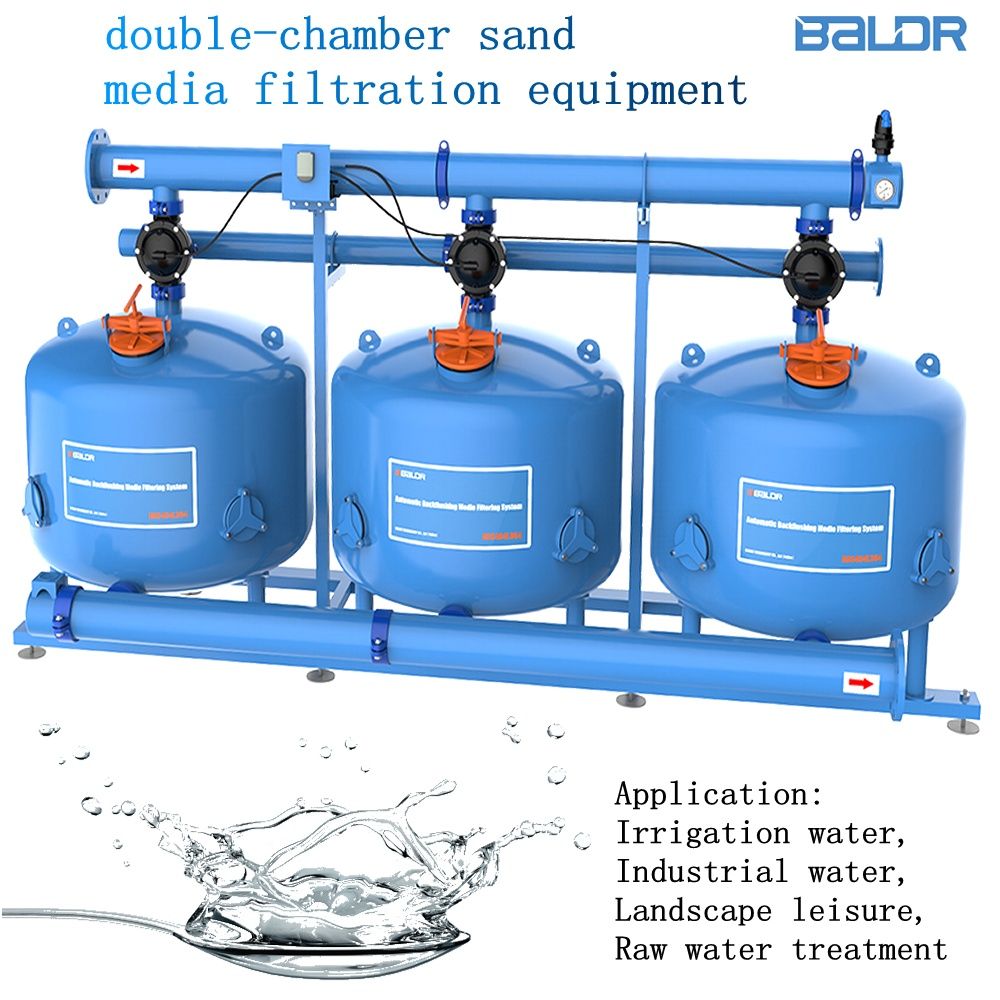

Double-chamber Configurations
BALDR double-chamber sand media filtration system on a number of water collectors evenly arranged,smooth and rapid flow of water.Backflush,the sand in the upper and lower water pressure under the force,repeated friction stripping contaminants.Side of the watering,it is easy to maintain the latter part.
Typical Application:
Irrigation water,Industrial water,Landscape leisure,Raw water treatment
Products Features & Advantages
1.high filtration rate,low pressure loss,large filtration water,especially the filtration effect for suspended floating objects in water;
2.modular design,can be installed according to the flow requirements,theoretically can expand arbitrarily;
3.the system filter unit has 16 (400mm)to 60(1500 mm) specifications,and various installation methods are available;
4.carbon steel material is treated by phosphating,electrostatic spraying,good corrosion resistance,can be installed indoor and outdoor,long service life;
5.the system controller has built-in computer chip,the water pressure sensor collection and program setting can realize automatic control of unattended;
6.online automatic backflush of dirt and impurities,take turns cleaning each unit and continuously filter the water supply;
7.the selected quartz sand or garnet can be used as the filter medium,and the size of the filter media can be selected according to the water quality.The minimum diameter of 0.16 mm can be selected as the homogeneous filter material;
8.it can be convenient to observe the internal situation,humanized design of access port,clean and service at any time,easy maintenance.
The Composition of Filtration System
The filter system consists of filter unit,three-way back flushing valve,automatic back flushing controller and other major components,and to connect with Y-type filter,air valve,pressure gauge,manifold,support frame and other spare parts,the filter unit is filled with the appropriate filter media.

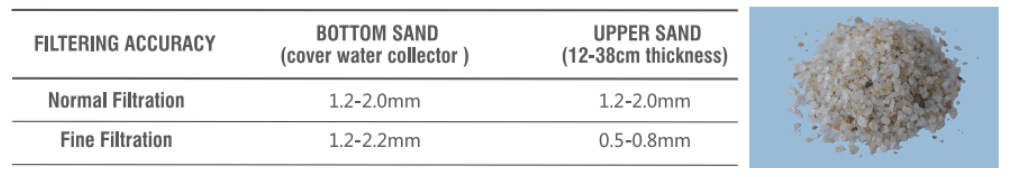

Filter Media Size & Use Level
Related Parameters:
| model | BBSS483D64 |
| Sand cylinder number | 3 |
| Sand cylinder Diameter(mm/in) | 1200 48" |
| Control vales (in) | 4" |
| Outlet&inlet diameter (mm/in) | DN150 6" |
| Drain outlet diameter(in) | 4" |
| Back flushing flow rate(m3 /h) | 80 |
| Filtering surface(m2) | 3.48 |
| Max working pressure(Mpa) | 0.6 |
| Flow rate range(m3/h) | 150-270 |

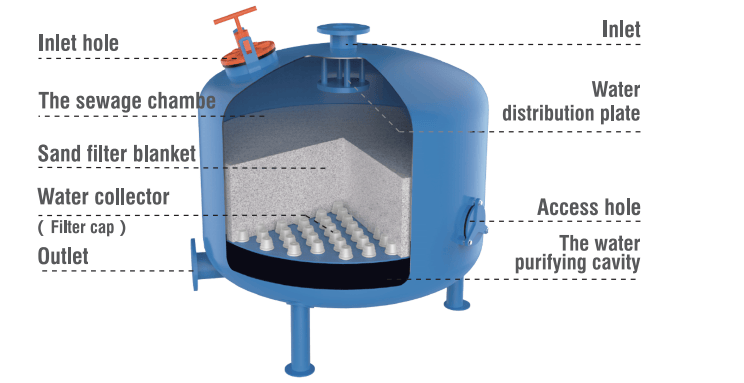

Working Principle
System Water Filtration State
Under the control of the automatic controller,when the whole system are in the filter state,the sewage enter with the high pressure,through a unique water distributor to keep the water distribution filter sand smooth,the flow of laminar flow through the filter layer,Impurities are trapped in the filler layer.Through the bottom of the distribution of multiple water collectors,Filtered can clean water,evenly collected through the outlet pipe out.The advection filter allows the filter to operate at high flow rates.
System Backflushing State
As the impurities accumulate in the filter medium,the pressure loss increases,and when the differential pressure increases to a certain setting value or reaches the setting cleaning time,the system automatically switches to the backflush state.The pressurized water enters the filter medium through the water collecting device,flushes it,separates the trapped contaminants and discharges the filtration through the sewage outlet.The back-flush ends after 2 minutes,the back flushing control valve returns to the filter state,then the rinsed filter tank continues to enter the filter working condition.The automatic controller issues an instruction to start the back-flushing process of the next filter sand column,until all the filter cylinders are rinsed again.
About company and factory
Found in October 2012,BALRD is a Sino-US joint venture,a professional environmental equipment manufacturer.Through introduction of advanced water filtration technology and air deodorant patented technology of BALDR INTERNATIONAL LLC in the United States,we are committed to developing and producing equipment of the water treatment,water filtration systems and air deodorization.BALDR products are widely applied in agriculture irrigation,urban landscape irrigation,golf course irrigation,industrial water recycle and municipal industrial air deodorization.

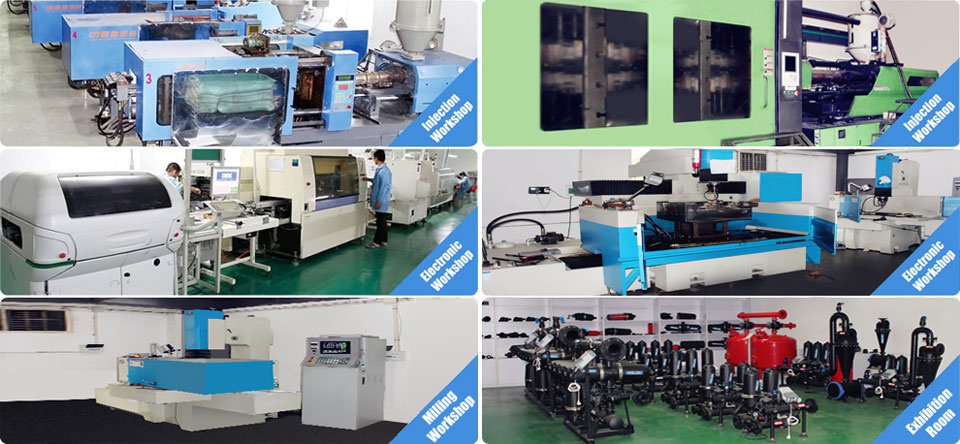

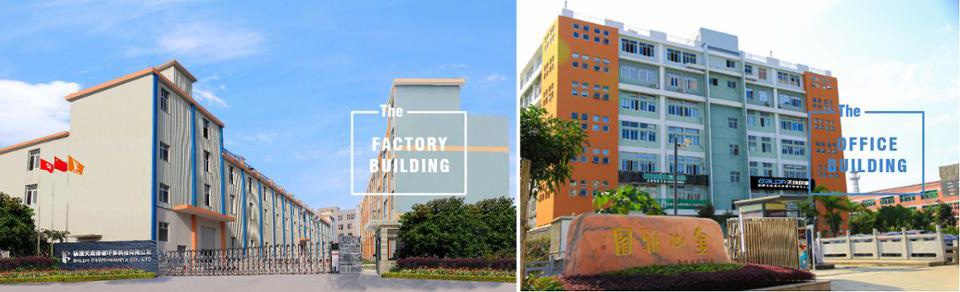

Our company is located in Fuzhou,China,have more than 300 employers,1500 m2 office space,500 m2 R&D CENTER,300 m2 show room, we also possess 10000m2 modernized industrial plants ,including the molding,plastic injection,metal stamping,electronic appliances and assembly lines.
Our company is strong capacity in supplying chain management,integrated production and manufacturing,deeply researching in industrial automation control,signal wireless transmission,cloud platform data collection,Internet of things linkage control and so on.These technologies can be applied in water recycling which contribute to water saving and environmental protection;and also they can be applied in agricultural drip irrigation and fertilization that contribute to the large agricultural scientific cultivation.
Our Services
1. providing professional technical guidance and design solution FOC.
2. professional production line ,strict quality control system and rich manufacturing skills ,make sure the products high-level quality.
3. Fast, efficient and professional online service.
4. OEM/ODM services are provided.
5. Warranty: One year since the date after delivery. If there is any wearing parts which isn't caused by operation improperly be broken within the warranty , we would offer the new parts for free.
