Filter Stainless Steel Wire Mesh
| Price: |
US $ 10/Square Meter |
| Min Order: |
50/Square Meter |
| Pay Type: |
L/C,T/T |
| Prod Model: |
filter wire mesh |
| Fineness: |
1-2800mesh |
| Disc Diameter: |
5-600mm |
| Size: |
According to Your Requirement |
| Hole Shape: |
Square |
| Application: |
Gas Filtration |
| Style: |
Filter Disk |
| Material: |
304,304L,316,316L |
| Type: |
Filter Screen |
Product Description

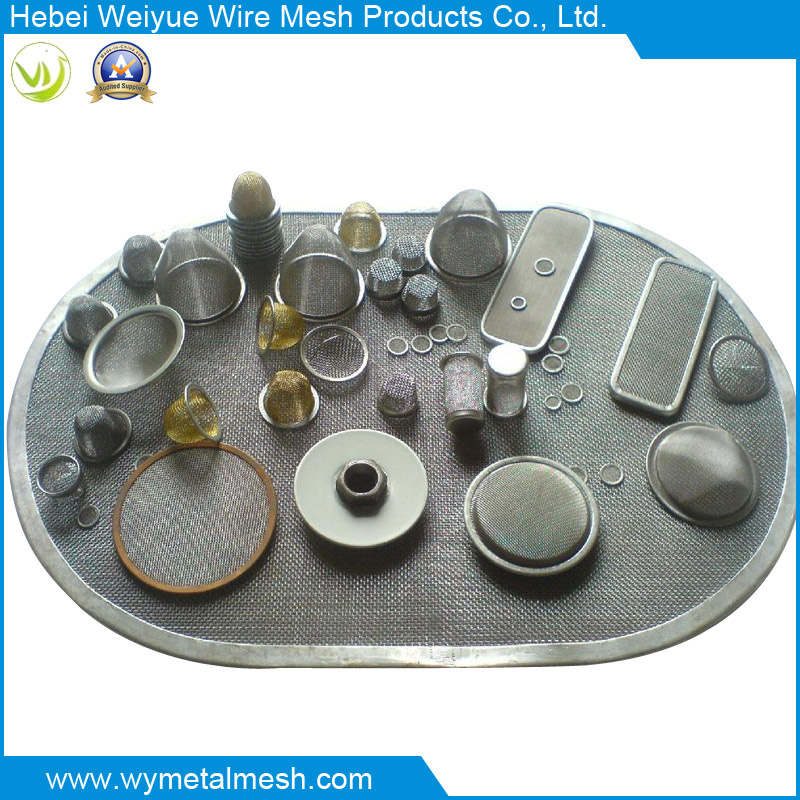

Filter discs are mainly used in the absorption, evaporation and filtration process in petroleum, chemical, medicine, metallurgy, machinery, ship and automobiles to delete the mist drop or liquid foam or used as air filter in cars and trucks.
It is also can be used for the filtration of air, the medium cleaning and flow control of lubrication oil, fuel oil, hydraulic pressure and air pressure system.
Any outline size and filtration rating available as the requirements of the customer.
The frame can be S.S., aluminum and nicked copper and the filter can be single layer and multi-layer, Above all depends on the requirement of our customers.

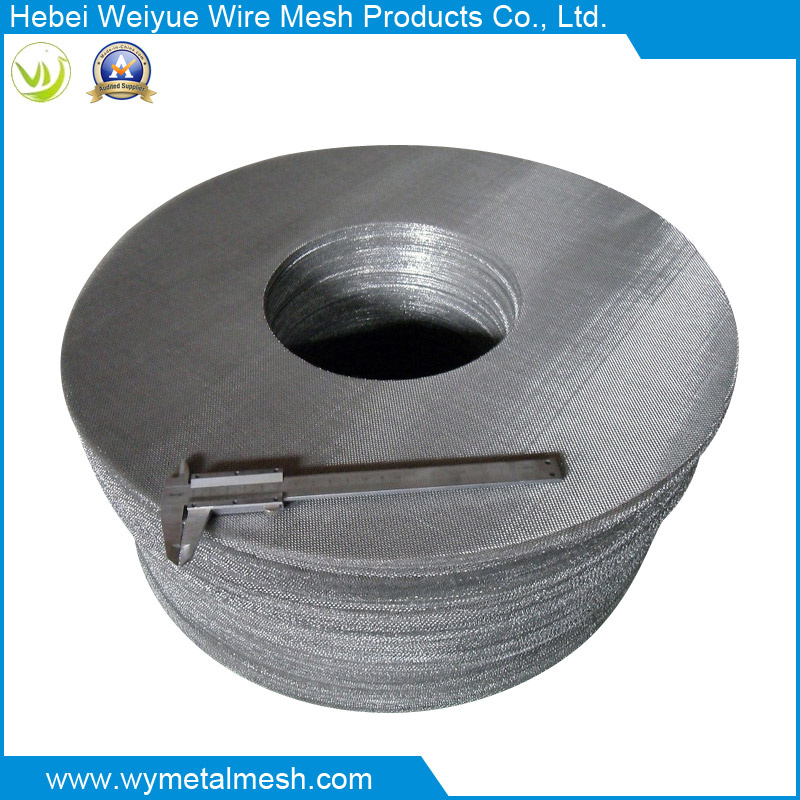

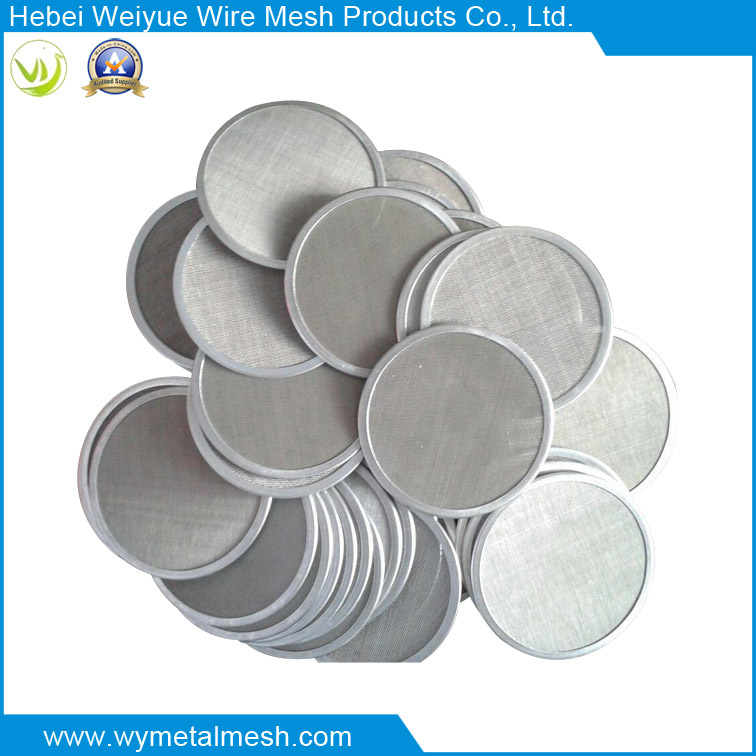

Wire mesh filter disc
Disc diameter: From 5mm to 600mm
Fineness: From 1mesh to 2800mesh
Specification| Specification of Stainless steel filter mesh screen |
Mesh |
Wire Dia. (MM) |
Opening (MM) |
Material (AISI) |
7 |
1.00 |
2.63 |
304 or 316 |
10 |
0.60 |
1.94 |
304 or 316 |
12 |
0.50 |
1.62 |
304 or 316 |
16 |
0.40 |
1.19 |
304 or 316 |
16 |
0.35 |
1.24 |
304 or 316 |
18 |
0.35 |
1.06 |
304 or 316 |
20 |
0.40 |
0.87 |
304 or 316 |
24 |
0.26 |
0.80 |
304 or 316 |
30 |
0.30 |
0.55 |
304 or 316 |
35 |
0.17 |
0.56 |
304 or 316 |
40 |
0.23 |
0.40 |
304 or 316 |
50 |
0.20 |
0.31 |
304 or 316 |
60 |
0.15 |
0.27 |
304 or 316 |
70 |
0.12 |
0.24 |
304 or 316 |
80 |
0.13 |
0.19 |
304 or 316 |
90 |
0.12 |
0.16 |
304 or 316 |
100 |
0.10 |
0.15 |
304 or 316 |
120 |
0.09 |
0.12 |
304 or 316 |
150 |
0.063 |
0.11 |
304 or 316 |
180 |
0.053 |
0.09 |
304 or 316 |
200 |
0.053 |
0.07 |
304 or 316 |
220 |
0.05 |
0.065 |
304 or 316 |
250 |
0.04 |
0.062 |
304 or 316 |
270 |
0.035 | | |
Company ProfileHebei Weiyue Wire Mesh Products Co.,Ltd makes and sells primary wire mesh and wire products. It's located in "the hometown of wire mesh", Anping County of China.
The company introduces precise making machines and technics, combining scientific inner managing method and quality control system.Since the year it was established, we developed our powder and credit standing and got reliances of our customers in home and abroad. Our products is checking by very high standeard, and the qualified ones leaved the factory to the whole country and some abroad countries, such as Southeast Asia, Middle East, America, Japan, and some Africa countries.
We have always been sticking to provide our clients with high quality products,favorable prices and first-class sales service,to develop excellent customers relationship with every valuable customers all over the world.Contact Us
Hebei Weiyue Wire Mesh Products Co., Ltd makes and sells primary wire mesh and wire products. It's located in "the hometown of wire mesh", Anping County of China.
Since its beginning, we have been working at four points, they are High Quality, Quick Delivery, Better Price and Thorough Service. Rely on the product quality and our credit standing, we have got favourable comments from the customers.
The company introduces precise making machines and technics, combining scientific inner managing method and quality control system. Since the year it was established, we developed our powder and credit standing and got reliances of our customers in home and abroad. Our products is checking by very high standeard, and the qualified ones leaved the factory to the whole country and some abroad countries, such as Southeast Asia, Middle East, America, Japan, and some Africa countries.
Hebei Weiyue Wire Mesh Co. Ltd makes and sells kinds of wire products which are widely used in extensive areas, petrolem, chemical, architecture, foodstuffs and so on. Main selling products are stainless steel wire mesh, perforated metal, expanded metal, galvanized square mesh, window screen, crimped screen, fences, chain link mesh, barbed wire, razor barbed wire, filed fence, welded wire mesh, hexagonal wire netting, fiberglass wire mesh and so on. We also sellss relative further products with the wire meshes above.
Weiyue keeps product quality and credit standing to be the first degree. In virtue of wire mesh, we wish to develop good relationships with you, all around the world.
