| Prod Model: |
MT-P38 |
| Lock/Inner Range: |
6~38mm |
| Voltage: |
220V/240V/380V/415V(Optional) |
| Power: |
3kw/4kw |
| Withhold Accuracy: |
0.01mm |
| Diemensions: |
1160*565*1100mm |
| System Pressure: |
31.5MPa |
| Buckling Pressure: |
500t |
| Efficiency: |
200PCS/Hour |
| Mold Quantity: |
8 Sets |
| Product Name: |

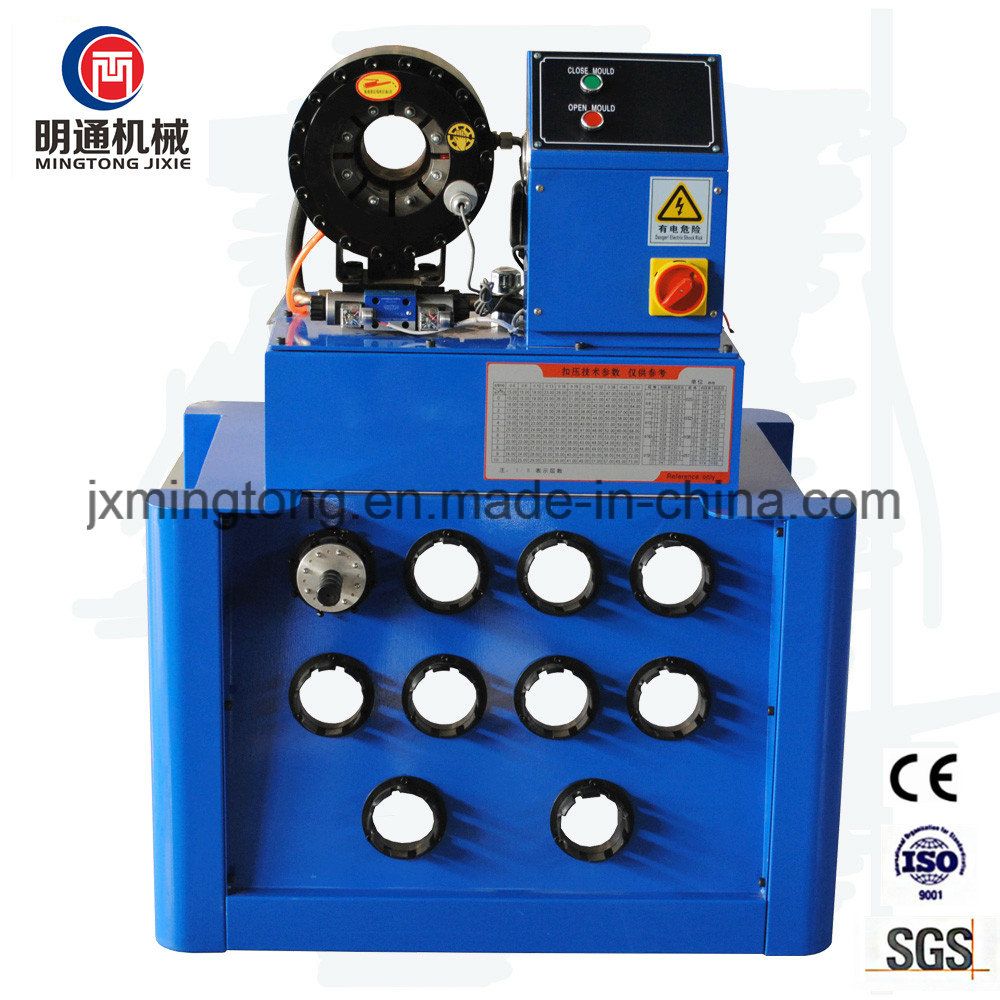

1.5 Inch Hydraulic Hose Crimping Machine |
Product Description
FINLAND POWER IMPORTED CRIMP P20 P32 P52 FINN POWER HYDRAULIC MT-P38 hydraulic hose crimping machine/hose crimper
The MT-P38(P32/P52) type CNC hose crimping machine is suitable for hooping processing of the assembly of high pressure rubber tube, fibre pipe and plastic pipe used in industry, agriculture and fluid drive of engineering machinery. It has the advantages of wide hooping range, high precision (adopt PLC control), high degree automation, This machine features small and portable appearance, big force, low noise and easy to operate.
Advantages:
1. Crimping capacity can be precisely controlled, repeat precision of 0.01mm
2. Increasing the opening, and good passing performance.
3. Added with base-protective resin gasket to not damage the working surface.
4. Speed is fast although equipped with single phase
5. Big swaging force suitable for 2 inch 6 wires hose
Machine parameter table
Product Name | hose crimping machine |
Crimping Range (Inner Diameter) | 6~38mm ( 1/4~1.5" ) |
Free Dies | 8 Sets of dies |
Item No. of dies | 15.19.23.26.31.36.41.47 |
Accuracy | 0.01mm |
Volume of oil tank | 2.5L / 5L / 10L (Optional) |
System Pressure | 26MPa / 31.5MPa (Optional) |
Motor Power (as your requirements) | 3kW / 4kW 1 2 3 phase |
Voltage (as your requirements) | 220V-415V 50/60Hz |
Buckling Pressure | 500T |
Efficiency | 200pcs/h |
Maximum Open Diameter | 114mm |
The max open tolerance | ± 30mm |
Control system | Electric Automatic |
Control model | Micro control with Button control with pedal |
Hydraulic oil | 46# |
Package Dimension | 1300*700*1200 mm |
Contact me now:
Ms Serena Yu:
Crimping Effect
We can custom any models like:DX51 DX68 P32 P52 P20 Finn power!Contact Us
FAQs
Why choose us?
1.More than 10 years of production experience
2.Timely after-sales service
3.A wide range of products to meet all customer needs
4.No middlemen to make price difference in direct sales
5.Short delivery time, within 3~7 days
6.Support Alibaba Trade Assurance protection
What can we offer?
1.Affordable first price
2.Quality assurance, certificate of origin, no fakes
3.OEM and ODM support

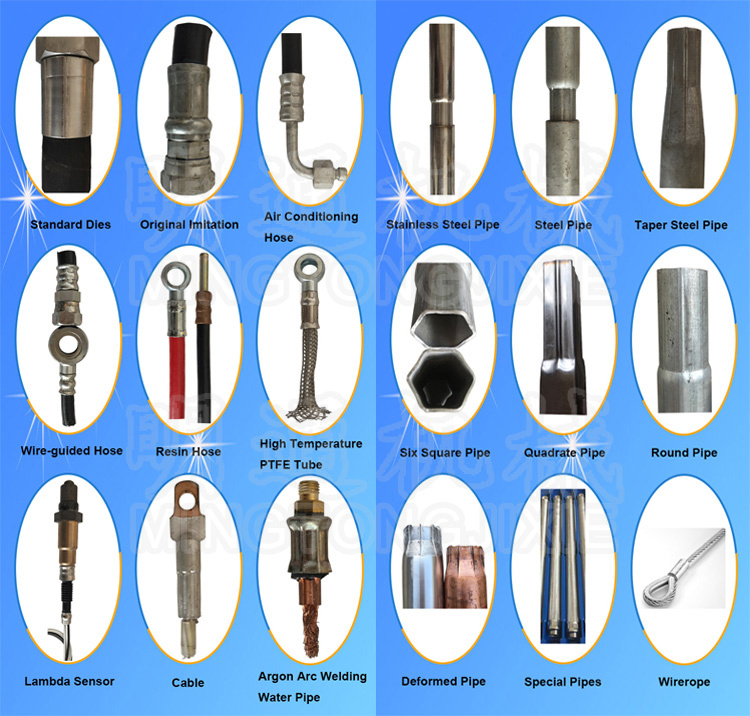

What our machine can crimp?
Hose, excavator oil hose, construction machinery oil hose,
coal mine hose, air conditioning hose, PTFE hose, resin hose,
wire guide pipe, air spring, bath pipe, steel wire rope,
building steel pipe, stainless steel pipe, etcFINLAND POWER IMPORTED CRIMP P20 P32 P52 FINN POWER HYDRAULIC
Our company supplies different kinds of products. High quality and favorable price. We're pleased to get your inquiry and we will come back to as soon as possible. We stick to the principle of "quality first, service first, continuous improvement and innovation to meet the customers" for the management and "zero defect, zero complaints" as the quality objective. To perfect our service, we provide the products with good quality at the reasonable price.
Ping Li, general manager of our factory, proficient in a variety of buckle machine performance characteristics, with strong professional and technical capacity.
Our factory delivery efficiency is high, single order, the day can be packaged factory, more than 15 days to purchase packaging factory shipment.
Support OEM or OMD, each machine before delivery performance testing, quality control to strictly.
I plant with more than 10 years of design and production experience, support bulk custom products, large concessions.
Our factory to sell each of the machines, are provided after-sales maintenance services, professional after-sales team to keep in touch with you in real time.
Various configurations are available, If you are interested, come and talk to us!
Welcome customers to our factory to visit the guide, understand our company's products.
