| Prod Model: |
YZ series |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Profile Thickness: |
4mm Standard |
| Width: |
10mm up 5mm Each |
| Fire Rating: |
30minutes to 120minutes |
| Cover: |
PVC Box |
| Edge: |
Tapered |
| Shape: |
Rectangle |
| Material: |
Graphite |
| Refractory Temperature: |
Varies |
| Grade: |
30minutes-120minutes |
| Type: |
Intumescent Seal |
| Usage: |
Fire Door |
| Surface Finishing: |
None |
| Thickness: |
3mm-10mm |
| Appearance: |
PVC Box |
| Color: |
Brown, White and Black |
Product Description

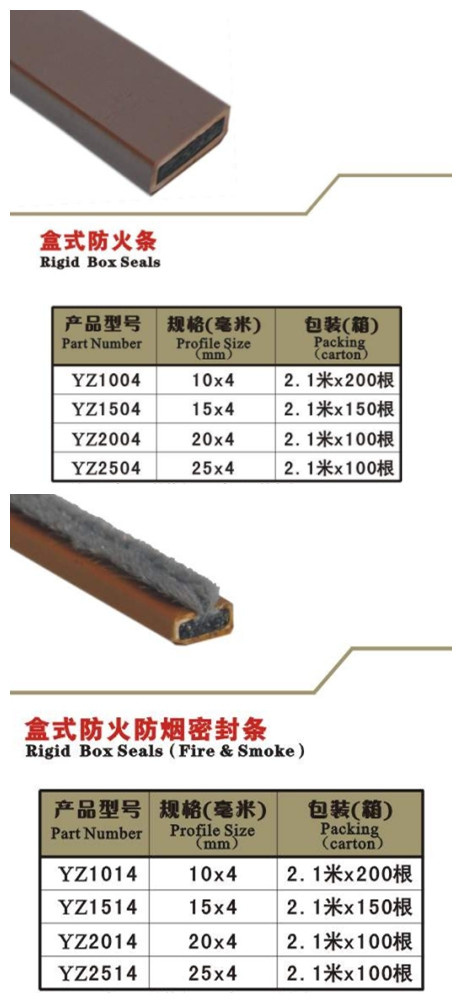

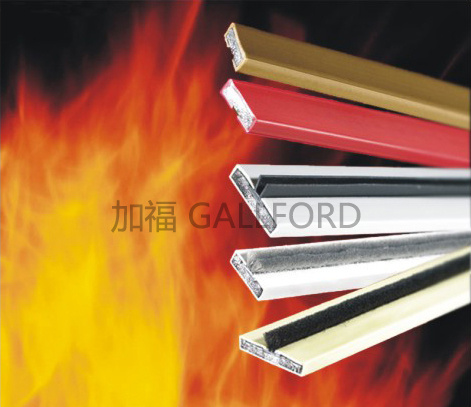

1) Rigid box seals provide the traditional seal for fire rated timber door edges and frames-the most effective solution.
2) Suitable for fitting to: Rebates in timber door leaf or frame-single and double action single or double doors.
3)New build and retro-fit applications.
| Function: | Fireproof |
| Main Materials: | Fire resistance PVC and Intumescent Mat. |
| Length: | Standard 2.1m/L,other required length available |
| Carton Size: | Standard 2140*195*125MM |
| Color: | Various color |
| Installation: | Self-adhesive |
| Expansion Rate: | Up to 25 times |
| Activation temprature: | 180ºC |
| Characteristic: | 1.Weather resistance |
| 2.Not affected by water and humilidity |
| 3.Inside and outside materials co-extrusion |

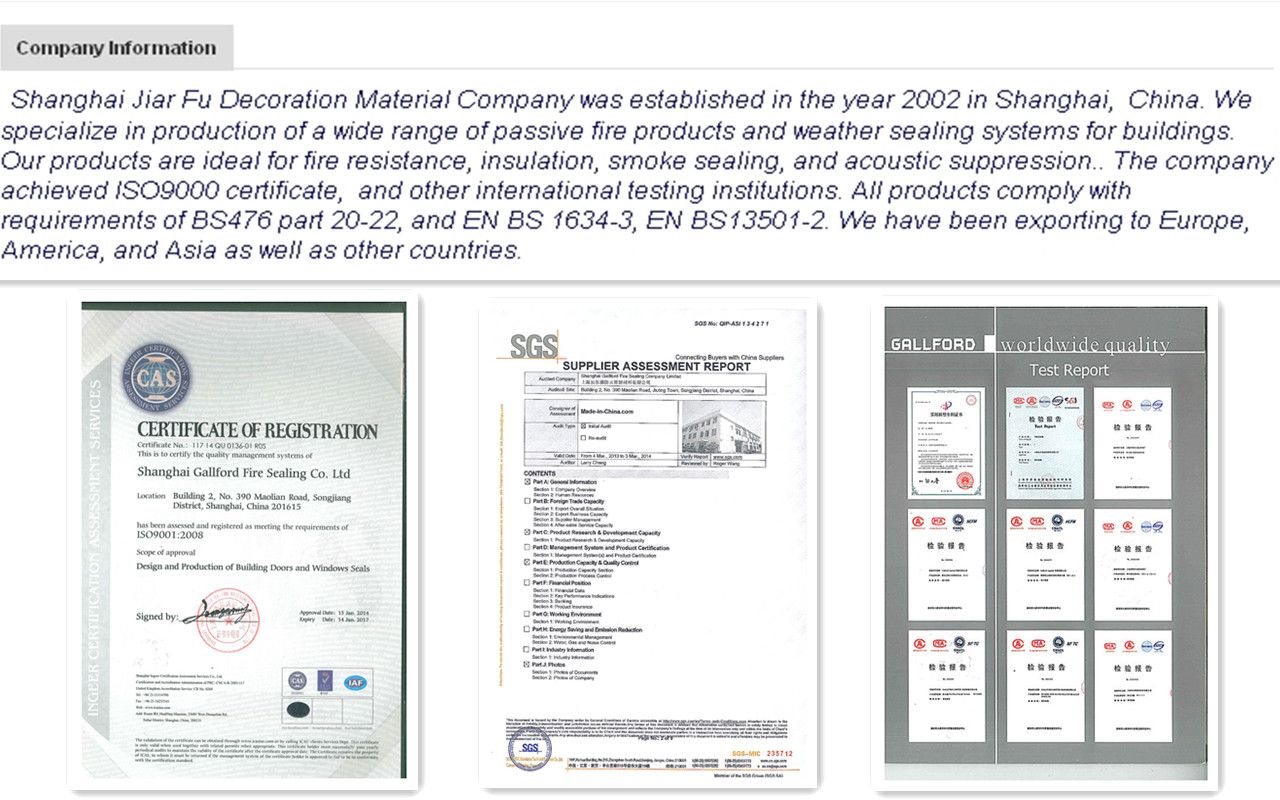

Shanghai Gallford Fire Sealing Co., Ltd was established on year of 2002, with the foundations of succeded in innovation, high quality and good service, we have now more focus on supply our products with more safety and comfort. Gallford products is widely used in public, commercial and residential buildings and has gained excellent reputation.

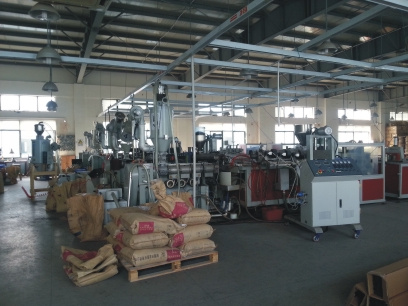

Gallford has its own manufacture which is Shanghai Pyro Seals Factory with location of Shanghai industrial zone, we have manufacture:
"Pyro seals"Intumescent fire door products. Such as strips, flexible seals, rigid seals and some special extrusions. Fire proof door vieweretc.
"Gallford"extruded weather strips for Public, commercial and buildings
"Gallford"aluminium Automatic bottom door seals
"Gallford"DIY bottom door seals
"Gallford"DIY EPDM foam seals
In future, Gallford look forward new challenges and will continue to generate success for its customers through sustained investment in carefully researched products.
