| Prod Model: |
stone cutting blade |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Product Name: |
Diamond Cutting Blade |
| Cutting Life: |
Long |
| Segment Bond: |
Diamond |
| Quality: |
High Performance |
| Use: |
Edge and Block Cutting Blade |
| Advantage: |
Dry and Wet |
| Price: |
Cheap |
| Authentication: |
ISO9001-2008, SGS, TUV |
| Graininess: |
800# |
| Thickness: |
20mm |
| Shape: |
Round |
| Kind: |
Stone Sawing Machine |
| Manufacturing Arts: |
Sinter |
| Usage: |
Stone Cutting, Abrasive and Carving, Engineering Material, Optical Glass Cutting, Lab Use Super-thin Saw Blade, Semiconductor Cutting, Arts Cutting, Fire-Retardant, Porcelain, Plastics, Laminate Plate |
| Customized: |
Customized |
| Brand: |
Wanlong |
| Saw Blade External Diameter: |
All Kinds |
| Specification: |
Available Upon Request. |
Product Description

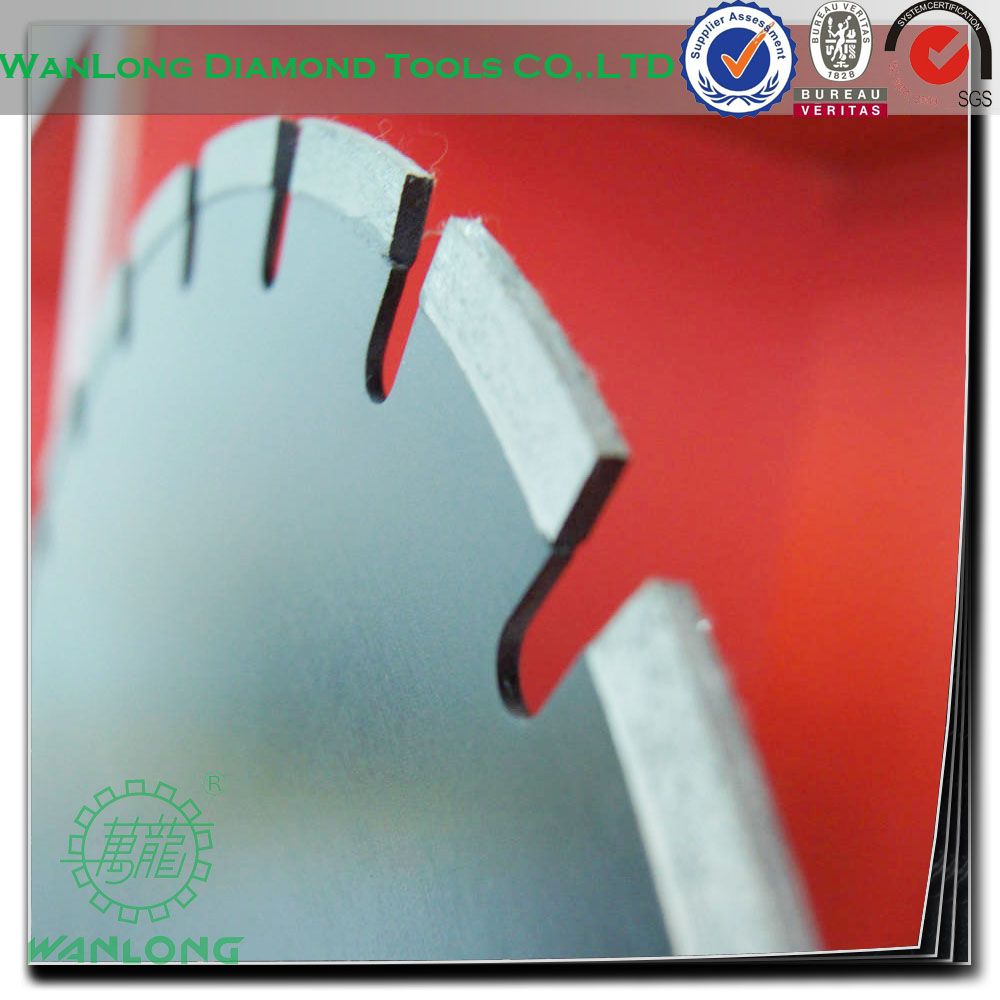

We are the diamond blades manufacturers Our 14 inch saw blade is applicable for cutting processing, good safety and definition. And it is more suitable for granite, marble,limestone,basalt etc. Special formula for different cutting request.Various sizes can be chosen from 110mm to 3500mm . If you have any interested in our products, please contact us.
Application :
marble,granite,concrete,asphalt,ceramic tile,steel,brick,wall,etc.
Features :
1.fast cutting with long life.
2.perfect performance.
3.excellent quality for smooth cut.
4.strict product quality inspection processes and Sophisticated detection equipment for blades.
Diameter(mm) | Segment Dimension(mm) | Born/mm | No. |
|---|
| 105 | 20×1.8×7.5 | 16,20 22.23 25.4,50 | 8 |
| 115 | 20×1.8×8.0 | 16,20 22.23 25.4,50 | 9 |
| 125 | 20×2.0×8.0 | 16,20 22.23 25.4,50 | 10 |
| 150 | 20×2.0×7.5 | 16,20 22.23 25.4,50 | 10 |
| 180 | 20×2.2×8.0 | 16,20 22.23 25.4,50 | 14 |
| 200 | 20×2.2×8.0 | 16,20 22.23 25.4,50 | 14 |
| 230 | 20×2.4×8.0 | 16,20 22.23 25.4,50 | 16 |
| 250 | 20×2.4×8.0 | 16,20 22.23 25.4,50 | 18 |
| 300 | 20×2.6×8.0 | 16,20 22.23 25.4,50 | 22 |
| 350 | 20×2.8×8.0 | 16,20 22.23 25.4,50 | 24 |
| Diameter(mm) | Steel core(mm) | Head size(mm) | No. | Shape | Application |
|---|
| 400 | 2.6 | 40×3.8/3.4×15(20) | 28 | RT SPLITTING | Granite |
| 450 | 3.0 | 40×4.2/3.8×15(20) | 32 | RT SPLITTING | Granite |
| 500 | 3.0 | 40×4.2/3.8×15(20) | 36 | RT SPLITTING | Granite |
| 550 | 3.6 | 40×5.0/4.4×15(20) | 40 | RT SPLITTING | Granite |
| 600 | 3.6 | 40×5.0/4.4×15(20) | 42 | RT SPLITTING | Granite |
| 650 | 4.0 | 40×5.4/4.8×15(20) | 46 | RT SPLITTING | Granite |
| 700 | 4.0 | 40×5.4/4.8×15(20) | 50 | RT SPLITTING | Granite |
| 750 | 4.0 | 40×5.4/4.8×15(20) | 54 | RT SPLITTING | Granite |
| 800 | 4.5 | 40×6.0/5.4×15(20) | 57 | RT SPLITTING | Granite |
| 850 | 4.5 | 40×6.0/5.4×15(20) | 58 | RT SPLITTING | Granite |
| Diameter(mm) | Steel core(mm) | Head size(mm) | No. | Shape | Application |
|---|
| 900 | 5.0 | 24×7.0/6.2×13(15,20) | 64 | Z3T/Z3T-M (conical) | Granite |
| 1000 | 5.0 | 24×7.0/6.2×13(15,20) | 70 | Z3T/Z3T-M (conical) | Granite |
| 1200 | 5.5 | 24×7.4/6.6×13(15,20) | 80 | Z3TZ3T-M (conical) | Granite |
| 1400 | 6.0 | 24×8.0/7.2×13(15,20) | 92 | Z3T/Z3T-M (conical) | Granite |
| 1400 | 6.5 | 24×8.4/7.6×13(15,20) | 92 | Z3T/Z3T-M (conical) | Granite |
| 1600 | 7.2 | 24×9.2/8.4×13(15,20) | 108 | Z3T/Z3T-M (conical) | Granite |
| 1800 | 7.5 | 24×10/9.2×13(15,20) | 120 | Z3T/Z3T-M (conical) | Granite |
| 2000 | 8.0 | 24×11/10×15(20) | 128 | Z3T/Z3T-M (conical) | Granite |
| 2200 | 9.0 | 24×11/10×15(20) | 132 | Z3T/Z3T-M (conical) | Granite |
| 2500 | 9.0 | 24×12/11×20(30) | 140 | Z3T/Z3T-M (conical) | Granite |
| 2700 | 9.0 | 24×12/11×20(30) | 140 | Z3T/Z3T-M (conical) | Granite |
| 3000 | 9.3 | 24×13/12×20(30) | 160 | Z3T/Z3T-M (conical) | Granite |
| 3500 | 9.5 | 24×13.5/12.5×20(30) | 180 | Z3T/Z3T-M (conical) | Granite |
Other specifications are available upon request.
Fujian Diamond Tool Co., Ltd. Was established in 1998, with imported advanced technology and cutting grinding machines, firstly cuts stone into 3-5mm laminated with Aluminum and Aluminum Honeycomb. This opens a new stage of stone building material industry in our country. With our great efforts and full experiences to improve our technology, we are successfully reduced the cost and promoted this kind of products to international market. Our annul output of Stone Panel reach 50000 square meters, and it has met good demand in USA, Europe, and Korea, etc. Recently, we newly use the Stone panel made into stone table top Panel, Stone countertop panel. We have been in a constant pursuit of enterprise spirit "Creative, Enterprising" redoubling our efforts for further im provements of innovations, we have created a new landmark in stone industry.
In the United States has an excellent and very professional exclusive partner SPI, and SPI just like a big family, they are working together with American people and helping them design wonderful, gentle and graceful homes...Any friends who from USA are interested in our products, please not hesitate to contact with our exclusive partner SPI in the United States, Surely SPI will take care of all your requests and supply you a very wonderful service.
Now is looking for agents in others countries, welcome you to join us and create a very wonderful future together.
