| Prod Model: |
FMS25502 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Rated Input Power: |
1800W |
| Blde Diameter: |
255mm |
| No Load Speed: |
5000rpm |
| Bevel Angles: |
0-45 Degree |
| Model Number: |
Fms25502 |
| Cutting Capacity Cross Cut At 0/0 Degree: |
90 X 305mm |
| Cutting Capacity Mitrecut At 0/45 Degree: |
38 X 305mm |
| Cutting Capacity Mitrecut At 45/0 Degree: |
90 X 215mm |
| Cutting Capacity Cut At 45/45 Degree: |
38 X 215mm |
| Weight: |
16.5kg |
| Saw Type: |
Miter Saw |
| Power Source: |
Electricity |
| Application: |
Tile/Brick Saw |
| Type: |
Fixed |
| Brand: |
Fixtec |
Product Description
Product Description

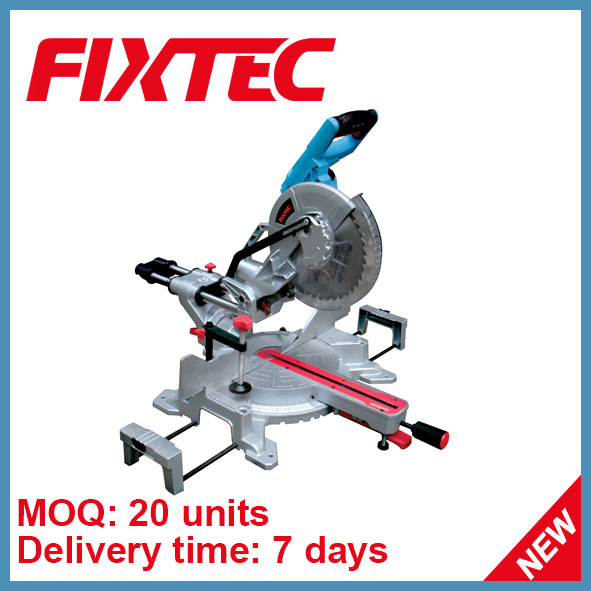

Whether you're cutting baseboards or crown molding, the FIXTEC 255mm double-bevel sliding compound miter saw provides quick, accurate cuts to complete the job. Thanks to a powerful motor, an easy-to-adjust cam-lock miter handle, convenient miter and bevel stops, plus a tall fence for accomodating oversized moldings, this saw is ready for a range of crosscutting and miter cutting applications.
Smart, Powerful Design for Quick, Accurate Cuts
The FIXTEC double-bevel sliding compound miter saw's 255mm blade is backed by a powerful and dependable 1800W motor. Offering a no-load speed of 5, 000 RPM, it makes quick work of cutting framing or molding, as well as other crosscutting and miter-cutting jobs.
This sturdy saw is designed to deliver precise cuts, allowing for the versatile setups required for miter applications. The precise miter system's adjustable stainless steel miter detent plate features 9 positive stops for easy setup and improved efficiency. An easy-to-adjust cam-lock miter handle delivers quick and accurate miter angles, and features a convenient detent override, which allows you to adjust the miter setting without the saw slipping into the miter detents.
Tall Fencing and Compact Sliding Rails
The fence slides out of the way easily when it's time to make bevel cuts. This saw stays compact thanks to its sliding saw dual horizontal steel rails, which feature an innovative clamping mechanism and linear ball bearings for increased accuracy and durability.
Increased Bevel Capacity and Convenient Stops
This saw is designed to deliver quick, accurate bevel cuts. You can easily set up for bevel cuts that measure between 0 and 45 degrees to the left and to the right. This handy setup provides increased capacity for big jobs and allows you to flip the saw instead of the material. Plus, with several bevel stops, it makes finding and setting the bevel angles a quick, easy process.
Ideal for a range of applications, the saw's unique back fence design allows it to deliver clean, 45-degree bevel cuts through dimensional lumber.
Portable and Compatible with the Laser System
This lightweight sliding compound miter saw weighs just 16.5Kg and features a built-in carry handle, so you can move it around the jobsite easily and lift it comfortably when it comes time to stow the saw at the end of the day.
For additional accuracy and ease of use, this saw is compatible with the laser system, which ensures that the cutting line is easy to see via a red laser line.
What's in the box?
1.1pc dust bag
2.1pc 255mm blade
3.2pcs extension wing
4.1pc work clamp
5.1pc hex key
6.1 set carbon brush
7.1 instruction manual
About us
FIXTEC, a unique brand of power tools and accessories, is developed to make professional tools more affordable. FIXTEC team is based in China to support global marketing and we are looking for local distributors as our long term partners instead of setting up our own sales team to save the cost and maximize the benefits of our partners. Through continuous innovation and improvement, we will provide exceptional value to our partners. FIXTEC, better tool, better life.
Customer questions & answers
Q: What's your MOQ of power tools?
A: Our MOQ is 20 units per model for FIXTEC brand.
Q: What's your payment terms?
A: We could accept L/C sight, T/T and Paypal.
Q: What's the delivery time?
A: We could deliver the power tools within 7 days after order confirmed. Just like purchase from your local distributor, but with more cometitive prices.
Q: Can I get free samples of power tools and accessories?
A: Yes, we could provide free samples and deliver with freight collected.
| Model Number | FMS25502 |
| Voltage | 220-240V ~ 50-60Hz |
| Rated power | 1800W |
| No load speed | 5000rpm |
| Dimension of saw blade | 255mm |
| Mitre table angles | -50 0 /-31.6 0 /-22.5 0 /-15 0
0 0 /15 0 /22.5 0 /31.6 0 /50 0 |
| Bevel angles | 0-450 |
| Cutting capacity, |
|
| cross cut at 0° mitre, 0° bevel | 90 x 305mm |
| mitre cut at 45° mitre, 0° bevel | 90 x 215mm |
| compound cut at 45° mitre, 45° bevel | 38 x 215mm |
| bevel at 45° bevel | 38 x 305mm |
| Weight | 16.5Kg |
| Protection class | II |
