Flange Ball Valve with ISO 5211 CF8
| Price: |
US $ 15.7-16/Set |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
10/Set |
| Pay Type: |
L/C,T/T,Western Union |
| Prod Model: |
Q41F-2 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Connection: |
Flange |
| Size: |
1/2"--6" |
| Certification: |
CE,ISO |
| Connection Form: |
Flange |
| Channel: |
Straight Through Type |
| Structure: |
Floating Ball Valve |
| Type: |
Floating Ball Valve |
| Application: |
Household Usage |
| Material: |
Stainless Steel or Wcb |
| Nominal Pressure: |
150lb/300lb |
Product Description
| Feature of product |
| Name |

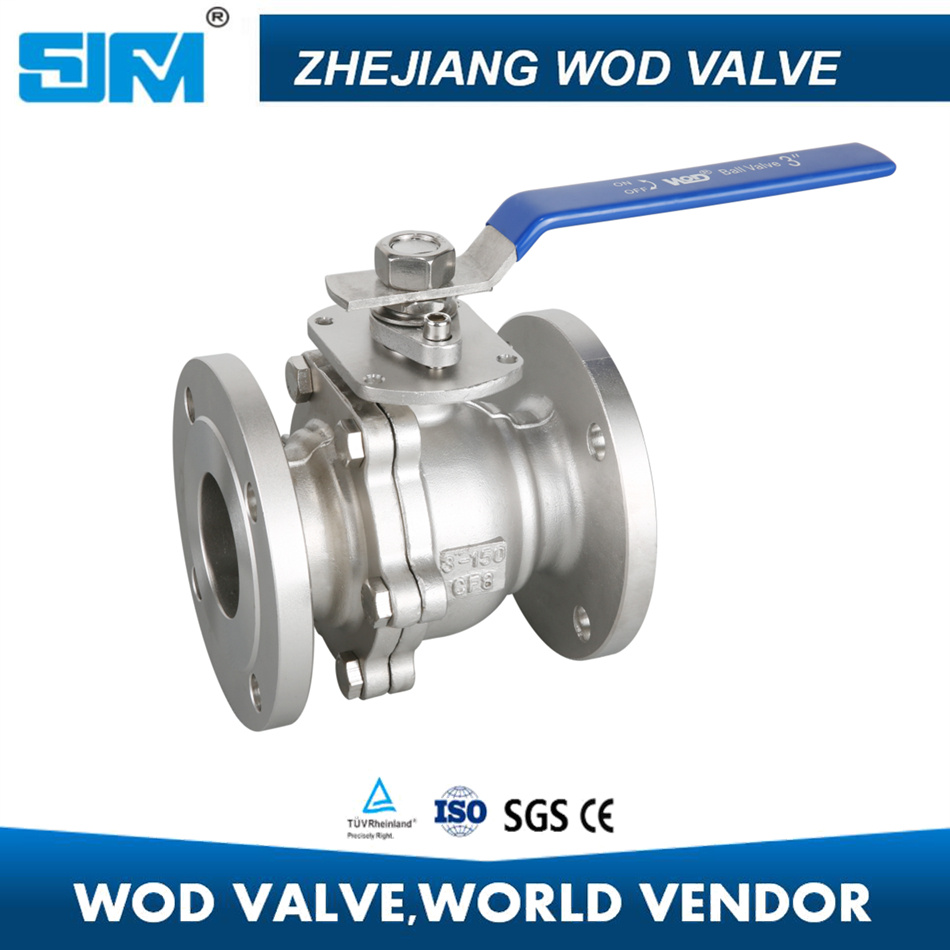

flange ball valve with ISO 5211 CF8 |
| Design | full port |
| Material of construction | investment casting |
| Material | SS304/SS316/SS201/WCB |
| Working pressure | 150LB-300LB |
| Size range | 1/2"--6" |
| End Connection | flange |
| Mode of operation | manual |
| Options | with ISO 5211 |
| Specification |
| Nominal pressure | 150LB/300LB |
| Strength testing pressure | PT:2.4,3.8,6.0,9.6M.pa |
| Seat testing pressure(hight pressure) | 1.8,2.8,4.4,7.1Mpa |
| Applicable media | water oil gas Nitric acid Acetic acid |
| Applicable temperature | -40ºCto210ºC |
| Product standard | ASME B16.34 |
| Wall thickness standard | ASME B16.34 GB12224 |
|
| Inspection standard | API598 EN12266 |
| Product certification | PED 97/23/EC(CE2138) ISO900 |
Company ShowZhejiang WOD Valve Co.,Ltd. Was founded in 2008. WOD company is a diversified manufacturer of valves. It deals with research, design, manufacture, sales, import and export autonomy, self customs clearance
It is located in China Valve City---Wenzhou Economic and Technological Development Zone,Zhejiang Province, it is about 5 minutes away from Wenzhou International Airport, and half an hour from Wenzhou Train Station . Ningbo Port and Shanghai Port are also very close to our factory.
WOD Company mainly produces medium and low pressure valves, Such as 1pc ball valve,2pc ball valve,3pc ball valve,flange ball valve, gate valve, globe valve, check valve, Y strainer.etc. The material has ASTM 304, 316, WCB,etc. Valves' standard including API6D, ASTM, MSS, ANSI, JIS, DIN, ISO, GB, etc. WOD series valves are widely used in oil, gas, chemical, electric power, metallurgy, lifting , water supply, auto ship manufacturing oil-water road heating system control, food, pharmaceutical, daily chemical industry, municipal construction, mechanical equipment, etc.
WOD company has obtained C E, I S O 9 0 0 1 certifications, also been inspected and approved by S G S,T U V As "Pursuing Survival with Quality,Winning Market with Price" .WOD valves have been exported to all over the world,especially in North American,South American ,Europe,Middle East and so on.
Why choose us?1,Quality is superiorand price is reasonable
2,Well done !perfect after service
3, Monthly output: 400, 000.00 set/month
4, Payment term: L/C or T/T
5, Delivery time: 30-45 days after received the deposit.
6, Package detail: Inner CTN, ourside ply-wooden case
choose me1, We are according to the requirements of customer to print logo
2, Our products are well received both at home and abroad
3,Please be assured the quality is passed the CE certification
4,If you need we will meet all the demands
5. We are manufacturer
6,We will be answer within 24 hours, glad to contact with us if you have any problems, We are looking forward to cooperating with you.
Zhejiang WOD Valve Co., Ltd. Was founded in 2008. WOD company is a diversified manufacturer. It deals with research, design, manufacture, sales, import and export autonomy, self customs clearance
It is located in China Valve City---Wenzhou Economic and Technological Development Zone, Zhejiang Province, it is about 5 minutes away from Yongqiang Airport, and half an hour from Wenzhou Train Station. Ningbo Port and Shanghai Port are very close to our factory.
WOD Company mainly produces medium and low pressure valves, Such as ball valve, gate valve, globe valve, check valve, strainer, cam lock coupling, manhole cover, water equipment etc. The material has ASTM 304, 316, WCB, etc. Products' standard including API6D, ASTM, MSS, ANSI, JIS, DIN, ISO, GB, etc. WOD series products are widely used in oil, gas, chemical, electric power, metallurgy, lifting, water supply, auto ship manufacturing oil-water road heating system control, food, pharmaceutical, daily chemical industry, municipal construction, mechanical equipment, etc.
WOD company has obtained CE, ISO9001 certifications, also been inspected and approved by SGS, TUV
Our production spirit and service concept is "Innovation, Serves attentively ". Welcoming customers from all over the world come to visit WOD company and attend technical exchange
