| Prod Model: |
Q41/11F |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Pressure: |
150lb |
| Body: |
C95800 |
| Ball: |
C95800 |
| Stem: |
C95800 |
| Seat: |
PTFE |
| Material: |
Brass |
| Connection Form: |
Flange |
| Channel: |
Straight Through Type |
| Structure: |
Floating Ball Valve |
| Type: |
Floating Ball Valve |
| Application: |
Household Usage |
Product Description

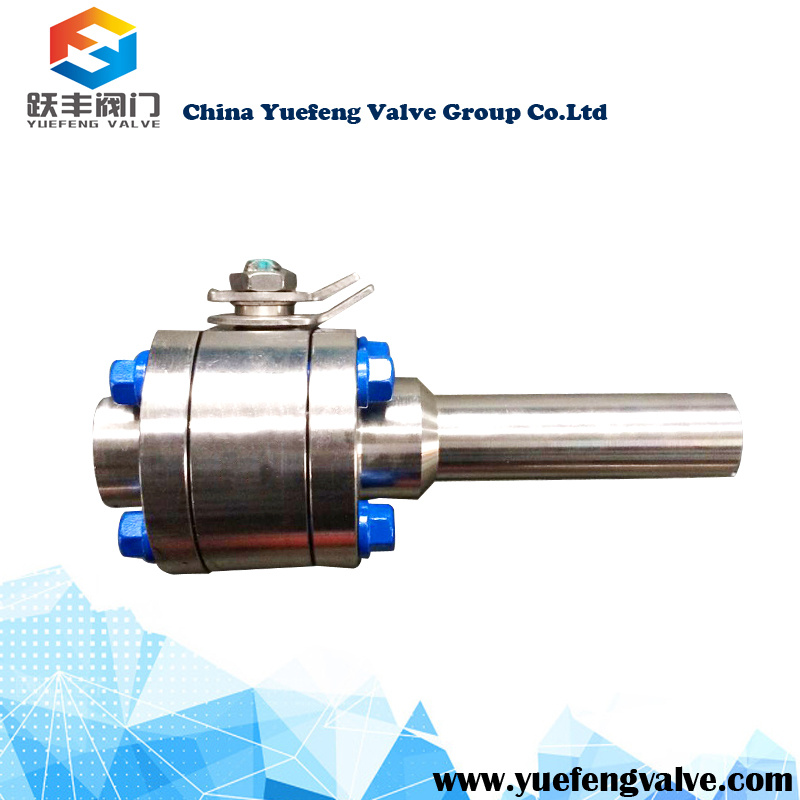

Principle of the cast steel floating ball valve: This kind of ball valve has a floating ball supported by two valve seats. Under the medium pressure effect, a certain displacement can be generated by the ball itself so as to be pressed onto the seat seal ring at the outlet, guaranteeing tightness at the outlet.
The floating ball valve is mainly divided into such two structures as the single-body type and double-body type float ball valve structures
Design FeaturesThe ball valve are designed in accordance with ISO17292,API 608,BS 5351,GB/T 12237;
Simple structure with good tightness and small torque;
Have reduce bore type and full bore type with the minimum flow resistance (zero actually);
Low emission packing;
Fire safe, anti-static and anti-blowout stem design;
Optional locking device
Optional ISO 5211 top flange
Product RangeBody material: carbon steel, stainless steel, alloy steel
Nominal diameter:1/2"~6"(DN15~DN150)
End Connection: RF, BW, THR
Pressure range: Class150 - 300(PN16~PN40)
Working temperature: -46ºC - +200ºC
Operation : wrench, worm gear, electric, etc
Brand: | Yuefeng |
| Applicable Media: | Water, Oil, Gas, Nitric Acid, Acetic Acid |
| Certification: | CE/RoHS/ISO9001-2008 |
| Original | Lishui,Zhejiang Province |
| Packing: | Plastic Bag, Carton & Plywood Case/According to customers' requirement. |
| Payment: | T/T, L/C, D/P, Western Union. |
| Port: | Shenzhen, Customers' Request |
| Delivery Time: | Within 15days after receiving T/T deposit Payment |
| Term of Delivery: | EXW/FOB/CNF/CIF, Customers' Request |

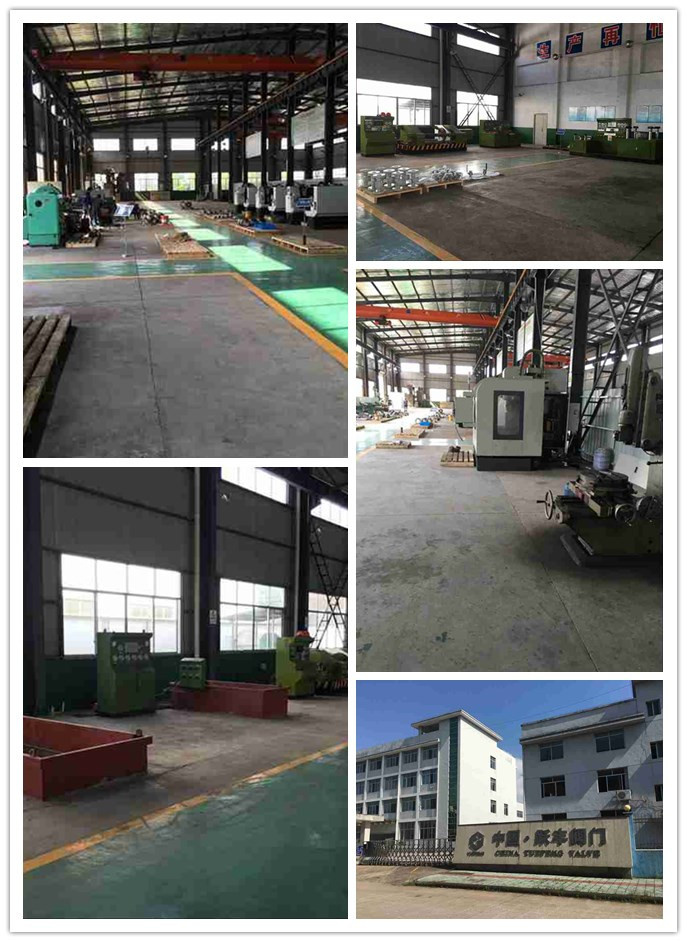

WORKSHOP

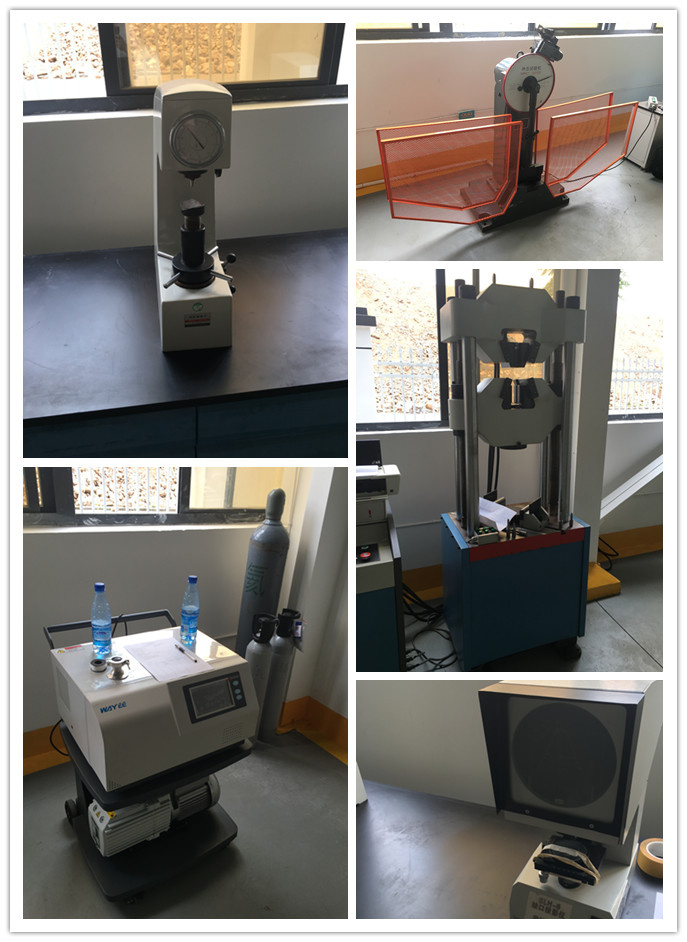

TEST EQUIPMENT

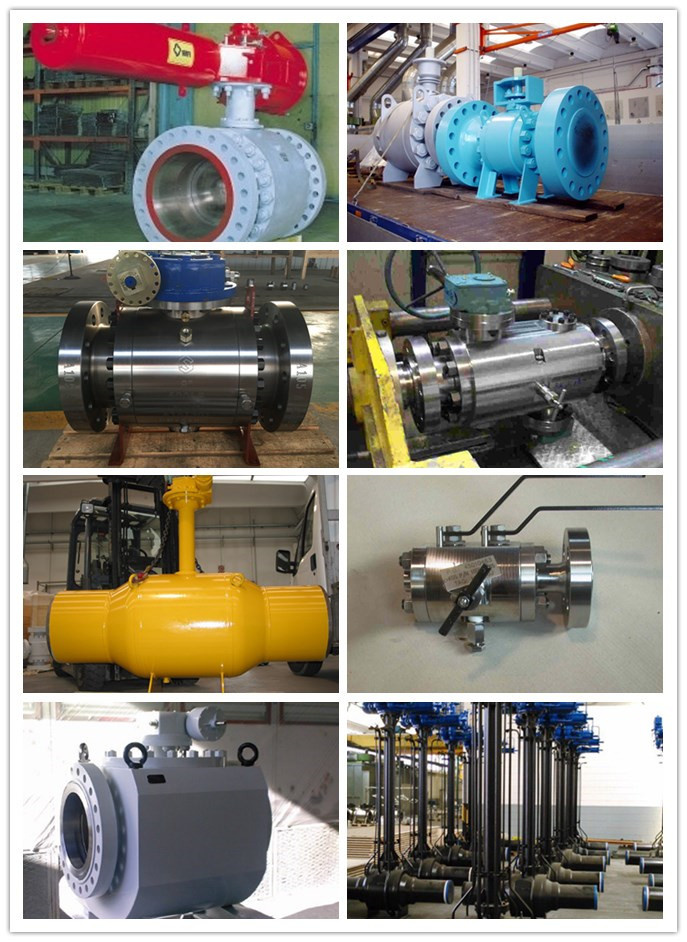

product
China YueFeng Valve Manufacturing Co., Ltd was established in 2003, located in Yangliuhe industrial zone, yunhe town, zhejiang province. Yuefeng is a comprehensiveness non-affiliated enterprises which specialized in ball valve production and sales. In recent years, Yuefeng is mainly engaged in the development and production of welded ball valve, all-welded ball valve, directly-buried ball valve, large didameter welding ball valve, forged steel ball valve, high class ball valve, pigging valve and other valves.
Yuefeng built CAD/CAM valve disign center and Three-dimensional simulation system for manufacturing testing and designing. We have a number of practical patents. And Yuefeng has the right of import and export, with ISO9001 national quality system certification, ISO14001 environment management system certification, OHSAS18001 Occupational health and safety management system certification, national pressure piping components manufacturing license TS authentication, the United States API 6D authentication, the European Union CE certification. All of these above provide us the technical support to enter the international market.
Yuefeng covers the total area of 13, 000 square meters, with the existing staff more than 100 people within 3 senior engineers, 12 specialized engineers. We also have our machine ceters, digital controlled lathe, the physics and chemistry centers, the spectral analysis facilty and other advanced facilities for production and testing. Yuefeng products are all designed by modernized CAD, CAM, UG, PRO/E three dimensional design system and produced strictly according to the ISO9001-2015 International quality system certification. Our main products all-welded ball valve, forged steel ball valve, high pressure ball valve and pigging valve hold advantages in domestic market share for years. And our products also exported to Europe, Amercia, Southeast Aisa and Ausralia and other counties and areas. Our products share a good reputation in both domestic and abroad market. Yuefeng owns customers' belief with the high quality products, professional technical supports and impeccable customer services.
Yuefeng are willing to cooperate with customers all around the world. Our policy is to continuously improve customer satisfaction by supplying high quality products when promised at a good value. Yuefeng are looking forward to creat a glorious tomorrow.
