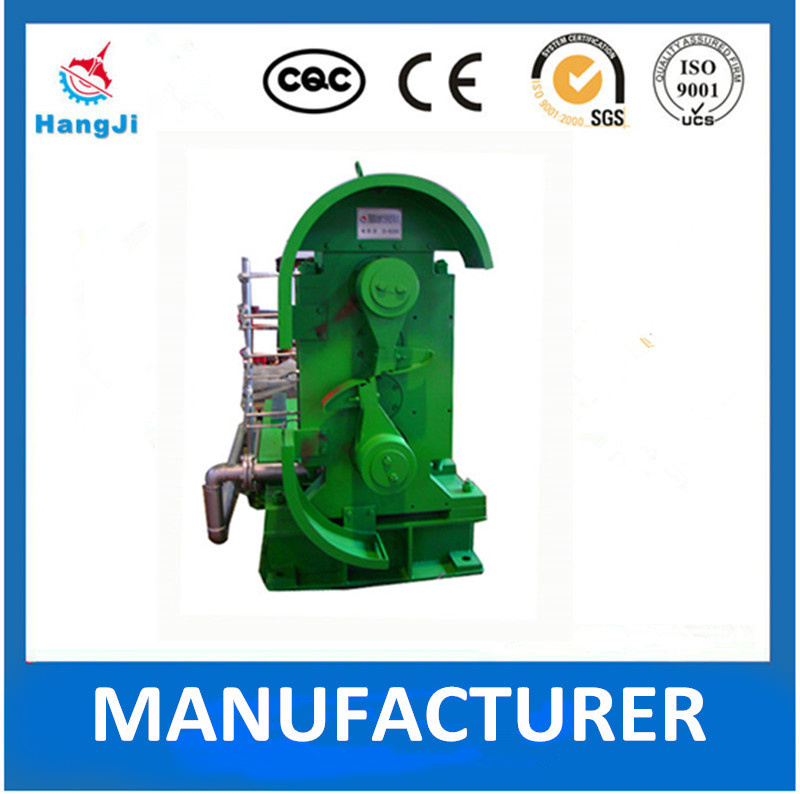

Flying Shear for Steel Rolling Mill Line
| Price: |
US $ 100000/Piece |
| Trade Terms: |
FOB |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T |
| Prod Model: |
HJ-005 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Item: |
Flying Shear |
| Color: |
According to Customers'quest |
| Dimension: |
According to Requirments |
| Warranty: |
1 Year |
| After Sale Services: |
Engineers Available to Service Machinery Overseas |
| Brand: |
Hangji |
| Temperture: |
850 Degree |
| Rotary Sword Diameter: |
800mm |
| Motor Speed: |
255-465r/Min |
| Cutting Speed: |
7-12m/S |
| Type: |
Cutting Equipment |
| Certification: |
CE |
Product Description
The function of the flying shear1, As the head and rear part of the rolling parts have some defect or the temperature of steel is too low, the flying shear need to cut the head and rear to insure the quality of the rolling parts before it gets into the finishing mill. 2, The flying shear will cut the rolling parts immediately if any failure occurs to the finishing mill, then the switch will turn the parts to snap shear to snap.Main technical performance| Steel to be processed | Carbon steel, low alloy steel |
| Material diameter | dia12.7-dia18 |
| Rolling speed | 7-12m/s |
| Cutting temperature | 850°C |
| Product length | 150~230mm |
| Rotary sword diameter | 800mm |
| Motor power | 112KW |
| Motor speed | 255-465r/min |
Equipment composition and structural characteristics.
1. Perfect rolling mill solutions including rolling passes design, production line setup, and workshop layout according to customer's requirements.
2. Sophisticated rolling mill stands and auxiliary equipments/spare parts used in the rolling mill production line. (Such as roller box, gearbox reduction, coil laying head, vertical and side loops, flying shears, chopping shears and gripping shears, pinch roll machine and so on)
3. Technical services and post-sale technical supports.
4. Professional engineers available for overseas installation and maintenance.

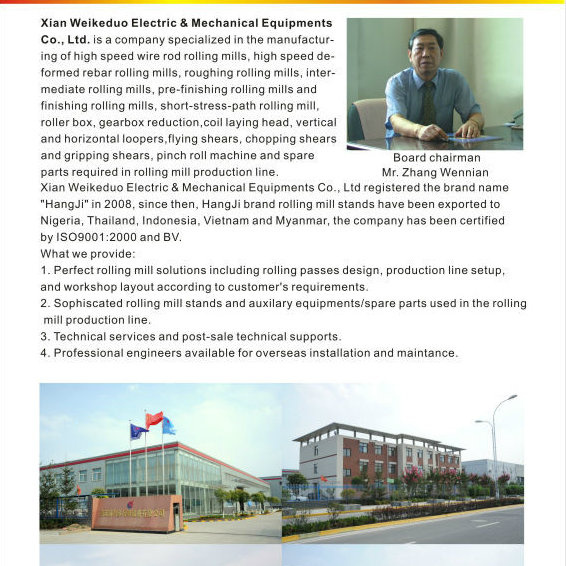

Xi'an Weikeduo Electrical & Mechanical Equipment Co., Ltd. is a professional manufacturer of high-speed wire-rod, high-speed tray screw steel, hard-faced gearbox and relative homemade spare parts of all kinds. We have been in the line over 22 years and gather lots of technical and production experiences. Depending on the advanced techniques and constantly absorbing the hi-tech of domestic and international markets, we choose high technicians and completely precision equipment from domestic and overseas markets.
With a wide range, good quality, reasonable prices and stylish designs, our products are extensively used in electrical and mechanical industries.
Our company uses the specific manufacture way to achieve the excellent product with the best quality. Our purpose is to satisfy our clients. Our high-quality products have passed ISO9001 certificate and we update our level to international standards. According to GB/T19001, we build the metallurgical high speed finishing wire mill and hard-faced gearboxes quality administrational system.
Our trademark "Hangji" is the famous brand in China. In the meantime, short-stress line bar mil, high-speed wire-rod finishing rolling mill and finishing rolling mill have acquired the national patents.
High-speed wire-rod production lines include heating furnace, roughing finishing rolling mill, middle finishing rolling mill, pre-finishing rolling mill, finishing rolling mill, pinch roll, laying head, picker and other high precision equipment. It is the technology-intensive product that combines modern rolling techniques with machine, electron, hydraumatic, pneumatic and instrument. Only a few countries in the world can offer the complex, high precision and difficult technology.
Our company has built cooperative relationships with SMS Siemag AG, DEMAG and JPMorgan Chase, and digested and absorbed the advanced product manufacture techniques. We integrate the processing, test methods and special manufacture methods to build our own administration system, quality system and techniques system. Our products are widely recognized and trusted by users and can meet continuously developing economic and social needs.
We look forward to cooperate with you.
