| Prod Model: |
T30 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Usage: |
Stone Edg Polishing |
| Manufacturing Arts: |
Sinter |
| Kind: |
Diamond Wheel |
| Thickness: |
20mm, 30mm, 40mm |
| Brand: |
Extra Sharp |
| Saw Blade External Diameter: |
60mm |
| Type: |
Router Bits |
| Use: |
Edg Polishing |
Product Description

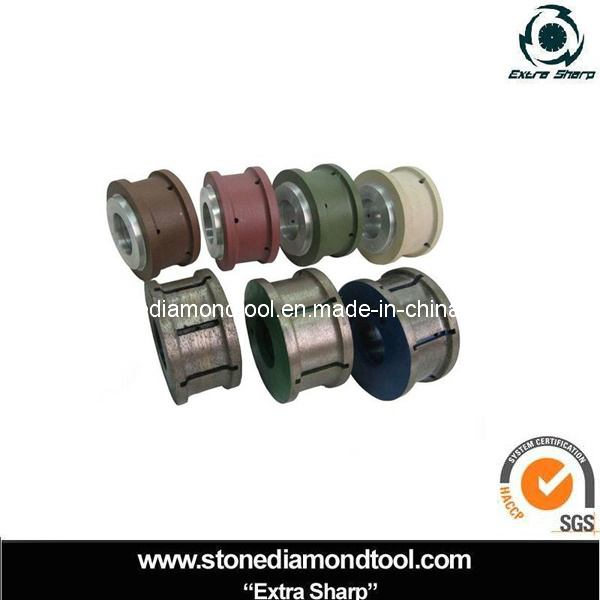

T Shape Zero Tolerance Wheel Profiling Wheel Drum Wheel for CNC Machine
CNC Profiling wheels are equipped on CNC stone processing machine, the excellent leader in irregular shape stone processing tools. Thanks to it precised profiling, high efficiency, it is widely used in the edge processing of vanity top and counter-top, etc.
We have developed the outstanding sets of profiling wheel for the CNC machine to profile granite, marble and engineered stone.
T Shape Zero Tolerance Wheel Profiling Wheel Drum Wheel for CNC Machine
Available for working on 22mm&35mm CNC machine.
Different profiles, different shapes like A, B, E, F, H, T, V etc are available.
XIAMEN MURAT DIAMOND TOOLS Imp. & Exp. Co., Ltd. Specialized in researching, designing and manufacturing various types of diamond tools for stone and construction industry. Our cutting, grinding/polishing and coring tools are engineered in a variety of grades for DIY Customers and professional users.
Specially designed tools are available for any standard apllication. We can customize tools as per your exact needs.
All of our products are under strict quality standards. Our quality syestem conforms to ISO 9001 rules. Our products have achieved the exact safety standard demanded for certification by the MPA Standards Group of Germany. Constant attention to quality details in the manufacturing process and rigorous oversight guarante repeatable precision performance.
We have cooperated with customers from the USA, Canada, Germany, the UK, the Netherlands, Italy, Portugal, Poland, Czech, Brizil, Chile, Australia and South Africa. We are dedicated ourselves to providing customers with high quality products and favorable prices.
| Position | Type of Working Layer | Grit | Working Procedure | RPM
g/min | Feed Speed (mm/min) | Removal
mm |
| Pos.0 | Meter sintered,Segmented | 30/40 | Chamforing | 4500 | 500-600 | shape |
| Pos.1 | Meter sintered,Segmented | 30/40 | Shaping | 4500 | 500-600 | shape |
| Pos.2 | ABR hot pressed,Continous | 70/80 | Coarse finishing | 4500-4600 | 1000-1400 | 0.3+/-0.05 |
| Pos.3 | ABR hot pressed,Continous | 140/170 | Medium finishing | 4500-4600 | 1000-1400 | 0.2+/-0.05 |
| Pos.4 | ABR hot pressed,Continous | 230/270 | Finishing | 1200-1500 | 600-800 | 0.1+/-0.05 |
| Pos.5 | ABR hot pressed,Continous | 400 | Good finishing | 1200-1500 | 600-800 | 0.05+/-0.025 |
| Pos.6 | ABR hot pressed,Continous | 800 | Polishing | 1200-1500 | 600-800 | 0.05+/-0.025 |
| Pos.7 | ABR hot pressed,Continous | 1500 | Polishing and buff | 1200-1500 | 600-800 | 0.05+/-0.025 |
| Pos.8 | ABR hot pressed,Continous | 3000 | Polishing and buff | 1200-1500 | 600-800 | 0.05+/-0.025 |
Xiamen Diamond Tools Co., Ltd. We're a leading Diamond tool products manufacturer and exporter in Fujian China More than 10 years' history. With perfect and full industrial chain for diamond tools, as well as convenient delivery system. We always commit to manufacture diamond tools. Based on advanced technology and comprehensively systematic research and analysis, After years of hands on experience on industrial complication, trouble shooting and successes, we have been developing diamond tools in different application featured with continuous and reliable quality.
Our main products are various of specification diamond saw blade, flexible polishing pads, diamond grinding wheel, diamond segments, diamond cup wheels, diamond wire etc. All these products have reached international advanced standard, which extensively used for cutting, polishing & grinding stone, concrete, asphalt, porcelain, glass and so on. Our company is well-known for high quality, Fast Delivery, reasonable price and good service in this line.
At present, our products are well-accepted all over domestic market, and also exported to USA, Canada, Germany, Italy, Portugal, Poland, Russia, Brazil, Chile, Australia, UAE, South Africa, etc.
Listens closely to your requirements and then translate your specifications into high quality products and services. If any questions, please feel free to contact us at any time.
