| Prod Model: |
EFGC(H)105,115,125,135,145,155,165,175,185,195 |
| Flail Mower: |
Efgc |
| Type: |
Rotary Mowers |
| Moving Way: |
Tractor-Mounted |
| Cutter Type: |
Rotary Lawn Mower |
| Applicable Area: |
500-1000m² |
| Feature: |
Mulch |
| Certification: |
CE |
| Cutter Kind: |
Straight Metal Blade |
| Mowing Requirements: |
Ground Type |
| Usage: |
Common Lawn |
| Power Source: |
Power |
Product Description

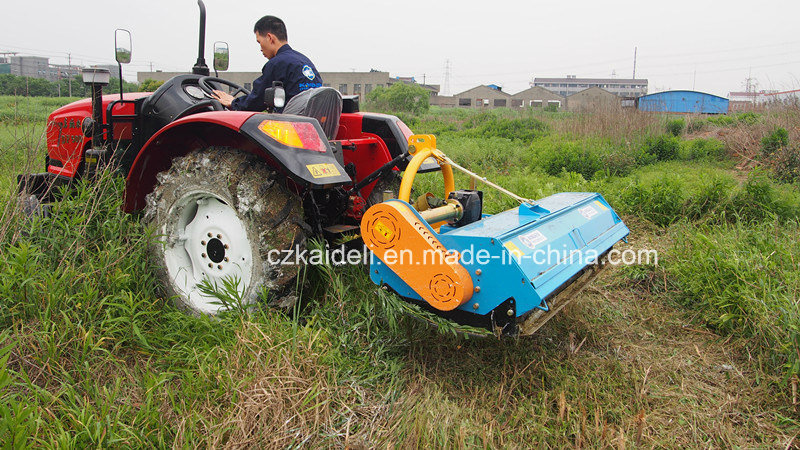

For small to medium hobby farmer power 50hp flail mower (EFGC105)
Product Description
Side-shift Heavy Flail Mower - EFGCH
Uses:
The EFGC & EFGCH models are stronger and more powerful for maintaining more rugged landscape areas including heavy grasses, storm debris, sticks, vines and more around farms, properties, parklands and roadsides~ Idea for thick grass, sticks, undergrowth and light vine mulching~ Vegetable & pasture topping~ Roadside maintenance
Feature:
The EFGC & EFGCH Series are heavy duty flail mower that are strong and reliable for heavier work loads~ The low weight and power requirement of the flail mowers make it suitable for use with small to medium sized tractor~ The EFGC & EFGCH range of flail mowers are fitted with a high power 50hp gear box and robust drive line to give hassle free mowing~ Cutting height controlled by adjustable skids~ Height strength mulching blades~ Safety flaps~ Extra strong and designed with safety in mind~ Support leg for storage~ Solid hitch.
| Model | EFGCH105 | EFGCH115 | EFGCH125 | EFGCH135 | EFGCH145 |
| Structure Weight | 285kg | 300kg | 312kg | 327kg | 352kg |
| Working Width | 1020mm | 1120mm | 1220mm | 1320mm | 1420mm |
| PTO Turning Speed | 540r/min | 540r/min | 540r/min | 540r/min | 540r/min |
| Flail Type | Y Blade / Hammer |
| Number Of Flails | Hammer: 16 / Y Blade: 32 | Hammer: 20 / Y Blade: 40 | Hammer: 20 / Y Blade: 40 | Hammer: 24 / Y Blade: 48 | Hammer: 24 / Y Blade: 48 |
| Tractor HP | 18-25hp | 15-25hp | 18-25hp | 20-30hp | 30-35hp |
| Shift Distance | 170mm | 170mm | 348mm | 348mm | 348mm |
| Model | EFGCH155 | EFGCH165 | EFGCH175 | EFGCH185 | EFGCH195 |
| Structure Weight | 332kg | 347kg | 359kg | 385kg | 412kg |
| Working Width | 1520mm | 1620mm | 1720mm | 1820mm | 1920mm |
| PTO Turning Speed | 540r/min | 540r/min | 540r/min | 540r/min | 540r/min |
| Flail Type | Y Blade / Hammer |
| Number Of Flails | Hammer: 24 / Y Blade: 48 | Hammer: 28 / Y Blade: 56 | Hammer: 28 / Y Blade: 56 | Hammer: 32 / Y Blade: 64 | Hammer: 32 / Y Blade: 64 |
| Tractor HP | 30-40hp | 35-45hp | 40-50hp | 45-85hp | 45-85hp |
| Shift Distance | 348mm | 348mm | 348mm | 348mm | 348mm |
| Model | EFGC105 | EFGC115 | EFGC125 | EFGC135 | EFGC145 |
| Structure Weight | 250kg | 265kg | 277kg | 292kg | 317kg |
| Working Width | 1020mm | 1120mm | 1220mm | 1320mm | 1420mm |
| PTO Turning Speed | 540r/min | 540r/min | 540r/min | 540r/min | 540r/min |
| Flail Type | Y Blade / Hammer |
| Number Of Flails | Hammer: 16/ Y Blade: 32 | Hammer: 20 / Y Blade: 40 | Hammer: 20 / Y Blade: 40 | Hammer: 24 / Y Blade: 48 | Hammer: 24 / Y Blade: 48 |
| Tractor HP | 18-25hp | 18-25hp | 18-25hp | 20-30hp | 30-35hp |
| Model | EFGC155 | EFGC165 | EFGC175 | EFGC185 | EFGC195 |
| Structure Weight | 332kg | 347kg | 359kg | 385kg | 412kg |
| Working Width | 1520mm | 1620mm | 1720mm | 1820mm | 1920mm |
| PTO Turning Speed | 540r/min | 540r/min | 540r/min | 540r/min | 540r/min |
| Flail Type | Y Blade / Hammer |
| Number Of Flails | Hammer: 24 / Y Blade: 48 | Hammer: 28 / Y Blade: 56 | Hammer: 28 / Y Blade: 56 | Hammer: 32 / Y Blade: 64 | Hammer: 32 / Y Blade: 64 |
| Tractor HP | 30-40hp | 35-45hp | 40-50hp |
2017 AGRI TECHNICA Hanover 12-18 November in Germany, Kaideli Implements sincerely invite you to visit our Booth 27-D15, we are looking forward to meeting with you!

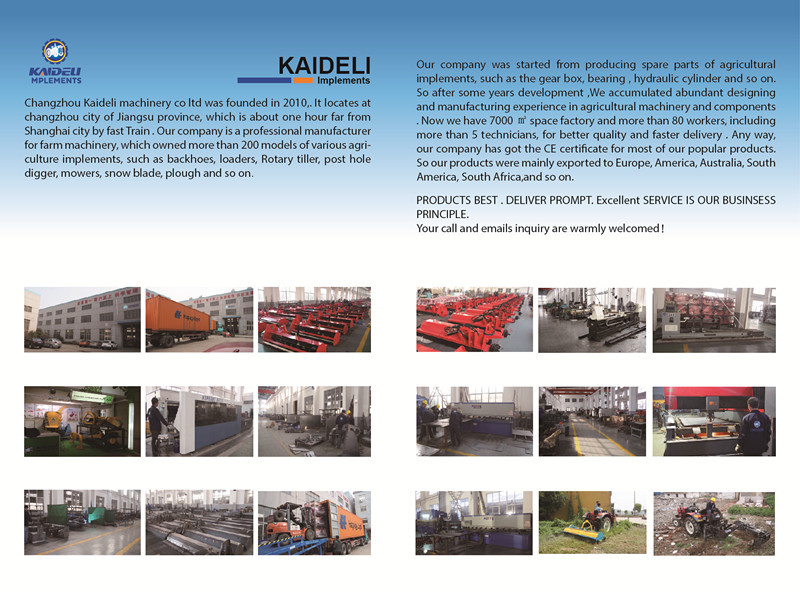

Changzhou Kaideli machinery co Ltd was founded in 2010, . It locates at changzhou city of Jiangsu province, which is about one hour far from Shanghai city by fast Train. Our company is a professional manufacturer for farm machinery, which owned more than 200 models of various agriculture implements, such as backhoes, loaders, Rotary tiller, post hole digger, mowers, snow blade, plough and so on
Our company was started from producing spare parts of agricultural implements, such as the gear box, bearing, hydraulic cylinder and so on. So after some years development, We accumulated abundant designing and manufacturing experience in agricultural machinery and components. Now we have 7000 space factory and more than 80 workers, including more than 5 technicians, for better quality and faster delivery. Any way, our company has got the CE certificate for most of our popular products. So our products were mainly exported to Europe, America, Australia, South America, South Africa, and so on.
PRODUCTS BEST. DELIVER PROMPT. Excellent SERVICE IS OUR BUSINSESS PRINCIPLE.
Your call and emails inquiry are warmly welcomed!
Our flail mower rotor can be from 1300mm to 2200mm, balace test within 25g.

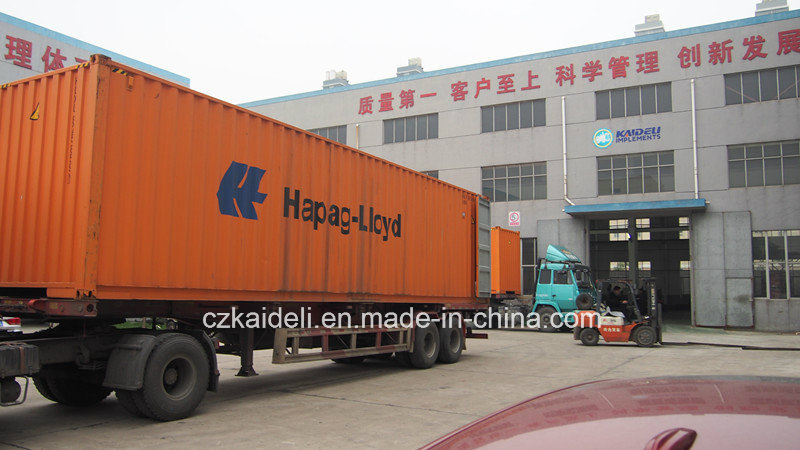

We export about 300 PCS conatiners of goods to 30 different countries, and we are looking for cooperating with you and your company.
We are looking for your reply.
Best regards,
Kaideli Team
