for Water Conservancy Machinery Rod End Joint Bearing Phs5 Phs12 Phs14 Phs16 Phs18

Prod Model:	PHS16 PHS18
Place Of Origin:	Shandong China (Mainland)
Model Number:	Si, Nhs, Nos, POS, Phs, SA, Sazp
Sample:	Availabe
OEM:	Acceptable
Structure:	Rod End
Material:	Bearing Steel
Load Direction:	Radial Spherical Plain Bearing
Add Lubricant:	Non Self-lubricating
Outer Structure:	Whole Outer Ring
Rod End:	Rod End
Model:	Phs

Product Description

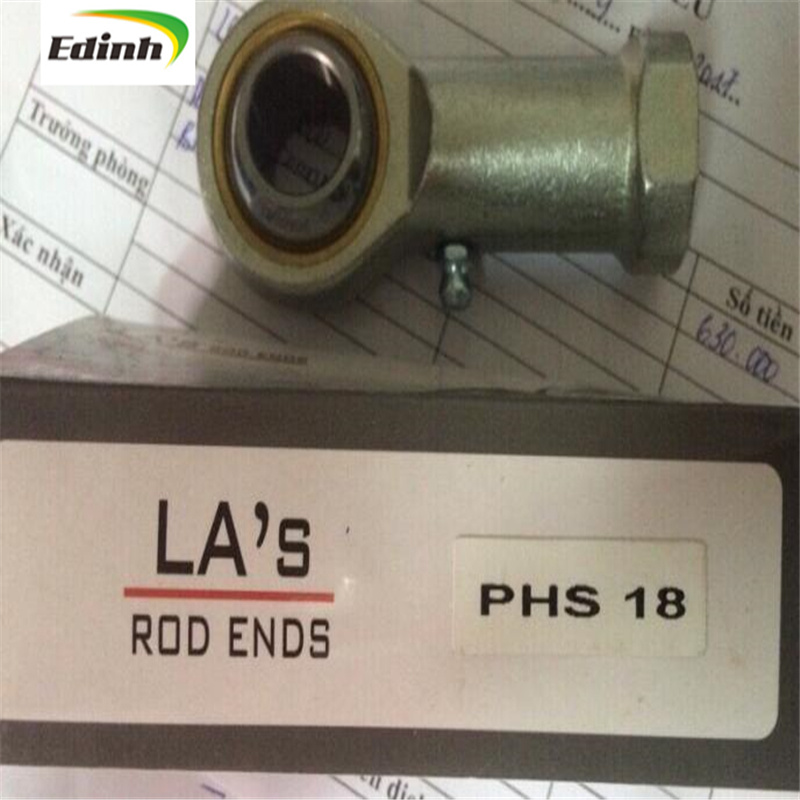

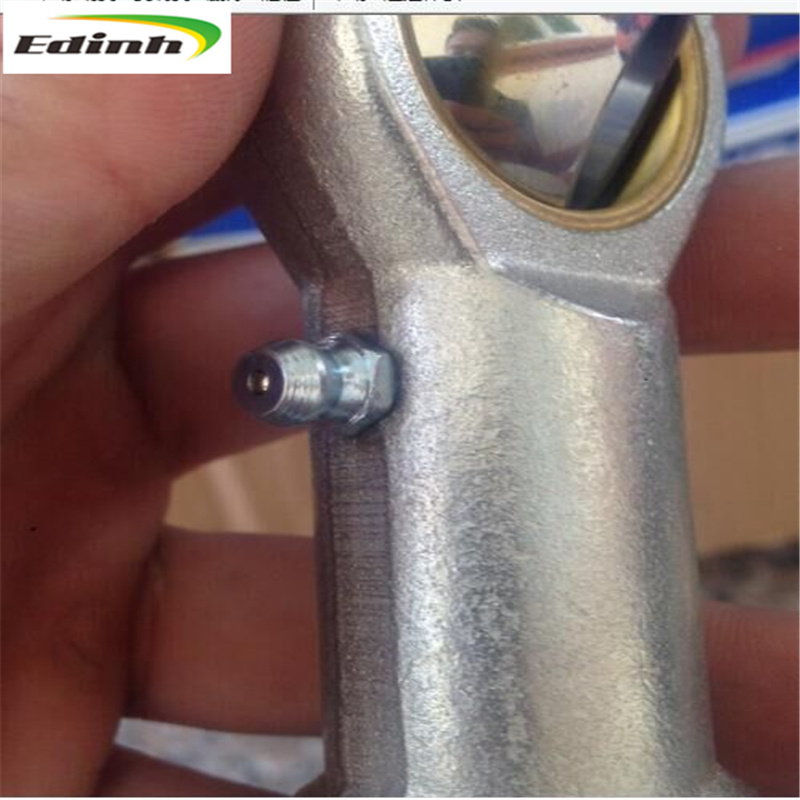

for water conservancy machinery rod end joint bearing PHS5 PHS12 PHS14 PHS16 PHS18


The rod end joint bearing is a spherical plain bearing, which is composed of the inner and outer rings of the contact surface of the spherical sliding surface. The joint bearing is mainly composed of an inner ring with an outer sphere and an outer ring with inner spherical surface, which can bear larger load. According to different types and structures, the combined load can be subjected to radial load, axial load, radial or axial load. Because of the composite material is inlaid on the outer sphere of the inner ring, the bearing can generate self lubrication in the work. Generally used for low speed swing motion, also can be in a certain angle range for tilt motion, when the bearing shaft and shaft shell hole is not concentric, still can work properly. Self lubrication joint auxiliary for water conservancy, professional machinery and other industries. Because of the joint bearing, spherical sliding contact area is large, the slant angle is large and because most of the joint bearing take the special craft processing methods, such as surface phosphating, galvanized, chrome or outside the sliding surface lining, padded, spraying. Therefore, there is a large load capacity and impact resistance, and has anti - corrosion, wear - resistance, self - adjustment, lubrication or self - lubrication without lubrication contamination of the characteristics of dirt, even if the installation of dislocation can work properly. Therefore, the joint bearings are widely used in the lower speed of the swing movement, tilt motion and rotary motion.
Rod end Joint bearing is widely used in engineering hydraulic cylinder, forming machine tools, engineering machinery, automation equipment, automobile shock absorber, water conservancy machinery and other industries.

Type	Structure	Designation	Size Range (ID)
Radial	Fitting Crack	GE..E, GE..ES,GE..GE, GEF..ES	4-200mm
	Wide Inner Ring	GEEW..ES	20-80mm
	Two Pieces	GEXS/K, GEKXS	20-150mm
	Inch Dimension	GEZ...ES, GEGZ...ES, GEWZ...ES	1/2"-6"
	Maintenance-free	GE..C, GEG..C,GEE..T, GEX..T, GEGXT, GEZET	4-200mm
Angular Contact	Normal	GACS	20-200mm
	Inch Dimension	GACZS	1/2"-6"
	Maintenance-free	GACT	20-200mm
Thrust	Normal	GXS	20-200mm
	Maintenance-free	GXT	20-200mm
Fixed- End	Combination	SI..E, SI..ES, SA..E, SA..ES	5-60mm
	Maintenance-free	SIJKC, SIC, SAJKC, SAET, SAC	5-60mm
	Inlaid Liner	SI..BPS, SA..BPS	5-60mm
	Welding Shank	SK..ES, SF..ES	20-60mm
	Ball Joint	SQ	5-20mm

Quick Details
Type: Rod End, CS CSZ ES ESM DC DH PI QD QI SQ SQZ
Bore Size: 5 - 33 mm

Model Number: PHS5-30
Precision Rating: P0, P6, P5, P4, P2
Material: Brass, bronze, iron, Gcr15 steel, plastic, nylon
Dimensions: Metric dimension, inch dimension
Clearance: C0 C2 C3 C4 C5
Vabration: Z1, Z2, Z3, Z4
Trade type: Industry and trade integration
Bearing steel liner: GCr15/100Cr6/SUJ2
Model Number: SA...E, SA...ES, SAL...E, SAL...ES series, SI, NHS, NOS, POS, PHS, SA, SAZP, SIZP
Lubrication: Self lubrication, dry, oil, grease, graphite

Inner layer: PTFE, teflon, POM, graphiteintermediate layer:
Porous bronze, brass, iron, steel, stainless steel
Backing material: Steel. Stainless steel, bronze
Other related bushings: SI, SIZP, SA, SAZP, NHS. PHS, POS

Samples:
Free of stanard size China manufacture bearings

Specifications
Rod end bearings
1. All kinds of sliding bushings
2. Fast delivery
3. Stable quality

Detail

1. Left and right hand rod threaded
2. Male or female rod ends
3. Zinc plated or nickel plated rod ends
4. Machining or forging rod ends
5. Metric and inches sizes available
6. Non-standard available
7. Stainless steel material available

Packaging & Delivery
Packaging Detail: Boxes+Carton+Pallet Standard packing also can according to customers requirement
Delivery Detail: 5-15days

SI...T/K	SA...T/K	PHS...	POS...	PHSB...
POSB...	NHS...	NOS...	CF...	CF...S
CM...	CM...S	CF...T	CM...T	CF...Y
CF...YS	CM...Y	CM...YS	XF...	XM...
GIR...DO	GAR...DO	GIR..UK	GAR..UK	GIR..ET 2RS
GAR...ET 2RS	SQZ..RS	SQ..RS	GE...E(S)	GE...ES 2RS
GEG...E(S)	GEG...ES 2RS	GE...LO	GK...DO	GF...DO
GIHO-K..DO	GIHR-K..DO	GIHN-K..DO	GE...C	GEG...C
PB...	GEBJ...	COM../HCOM..	COM..T/HCOM..T	GE...ET 2RS



PHS5/POS5	SI5T/K/SA5T/K	NHS5/NOS5	PHSB3/POSB3	PB5/GEBK5S
PHS6/POS6	SI6T/K/SA6T/K	NHS6/NOS6	PHSB4/POSB4	PB6/GEBK6S
PHS8/POS8	SI8T/K/SA8T/K	NHS8/NOS8	PHSB5/POSB5	PB8/GEBK8S
PHS10/POS10	SI10T/K/SA10T/K	NHS10/NOS10	PHSB6/POSB6	PB10/GEBK10S
PHS12/POS12	SI12T/K/SA12T/K	NHS12/NOS12	PHSB7/POSB7	PB12/GEBK12S
PHS14/POS14	SI14T/K/SA14T/K	NHS14/NOS14	PHSB8/POSB8	PB14/GEBK14S
PHS16/POS16	SI16T/K/SA16T/K	NHS16/NOS16	PHSB10/POSB10	PB16/GEBK16S
PHS18/POS18	SI18T/K/SA18T/K	NHS18/NOS18	PHSB12/POSB12	PB18/GEBK18S
PHS20/POS20	SI20T/K/SA20T/K	NHS20/NOS20	PHSB16/POSB16	PB20/GEBK20S
PHS22/POS22	SI22T/K/SA22T/K	NHS22/NOS22		PB22/GEBK22S
PHS25POS25	SI25T/K/SA25T/K	NHS25/NOS25		PB25/GEBK25S
PHS28/POS28	SI28T/K/SA28T/K	NHS28/NOS28		PB28/GEBK28S
PHS30/POS30	SI30T/K/SA30T/K	NHS30/NOS30		PB30/GEBK30S
