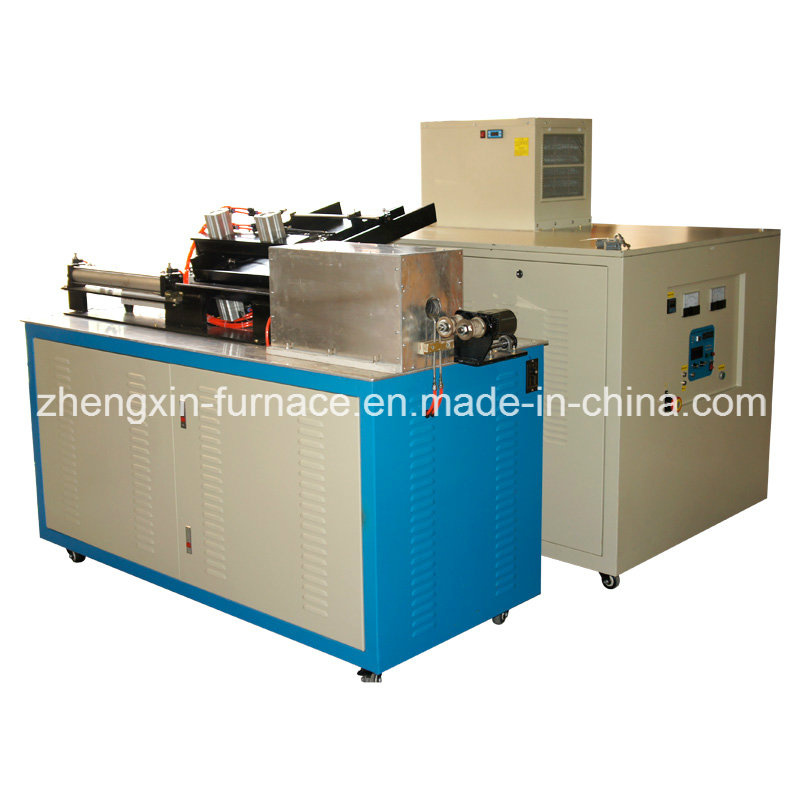

Forging Furnace Induction Heating Machine (ZXM-100AB)
| Price: |
US $ 1000-100000/Piece |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T,D/P,Western Union,Paypal |
| Prod Model: |
ZXM-100AB |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Export Markets: |
Global |
| Main Part: |
IGBT, Kgps |
| Aplication: |
Copper/Iron/Steel Rod, Bars, Rolls |
| Processing Object: |
Metal |
| Molding Style: |
Forging |
Product Description
Application of Forging Furnace:Heating (hot forging, hot fitting and melting)Hot forging aims to fabricate the work pieces of certain temperature (different materials require different temperatures) into other shapes through forging press with the help of punch press, forging machine or other equipments, for instances, hot extrusion of watch case, watch flan, handle, mold accessory, kitchen and table ware, art ware, standard part, fastener, fabricated mechanical part, bronze lock, rivet, steel pin and pin.
Equipment composition:

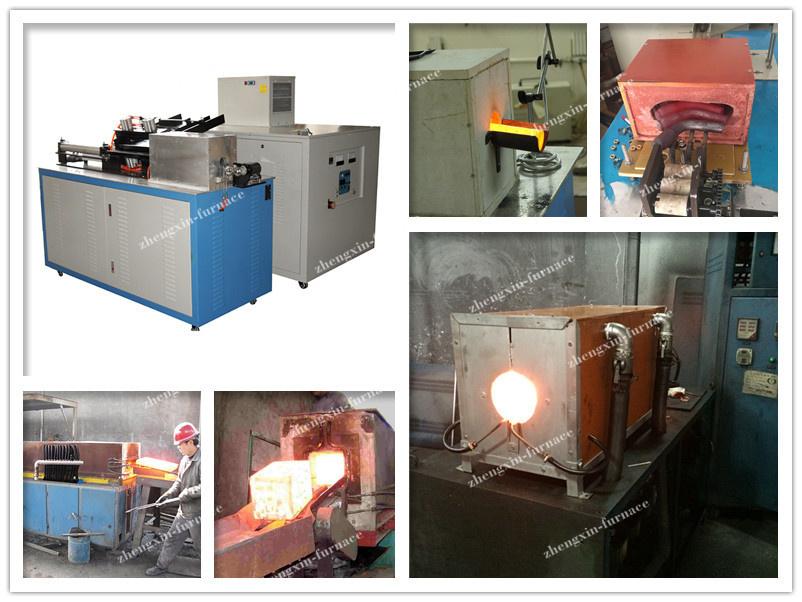

The equipment includes: Medium frequency induction heating machine, induction coil, Infrared temperature detector, feeding machine, worktable and some other parts.
Major Features:
1. Wide frequency range: 1khz - 20khz, according the diameter of workpiece to choose suitable frequency.
2. When heating a whole piece of material, the length of induction coil can be made from 500mm - 1m, when heating multiple pieces, better penetrating results can be guaranteed.
3. It adopts continuously heating method, with uniform load in induction coil, it can solve the problem of great voltage change in output power during heating process when the temperature of workpiece reach 1100ºC.
4. When heating bronze, aluminum and other nonferrous metal, by suitable design of induction coil and capacitance, the actual output power of machine can be above 85% efficiency than calculated.
5. Compare with controllable silicon frequency machine, our equipment is of small size, easy maintenances, and can save power by approximately 15 - 20%.
| Specification | Max output power | Heating capability for common materials |
| GYM-25 forging furnace | 25KW | Recommending for diameter 15-30mm steel bar heating |
| GYM-40 forging furnace | 40KW |
| GYM-60 forging furnace | 60KW | Recommending for diameter 15-50mm steel bar heating |
| GYM-100 forging furnace | 100KW |
| GYM-160 forging furnace | 160KW | Recommending for diameter 15-80mm steel bar heating |
| GYM-200 forging furnace | 200KW |
| GYM-250 forging furnace | 250KW | Recommending for diameter above 80mm steel bar heating |
What information should I know if we want to make a quotation? A. For melting furnace: melting material, capacity demands, SCR or IGBT power, whether need crucible, aluminum shell or steel shell, overturning method, etc; B. For hardening machine: material, dimension, depth of hardening, SCR or IGBT power, Vertical type or Horizontal type, etc; C. For other heating machine: material, dimension, capacity demands, heating temperature, etc;

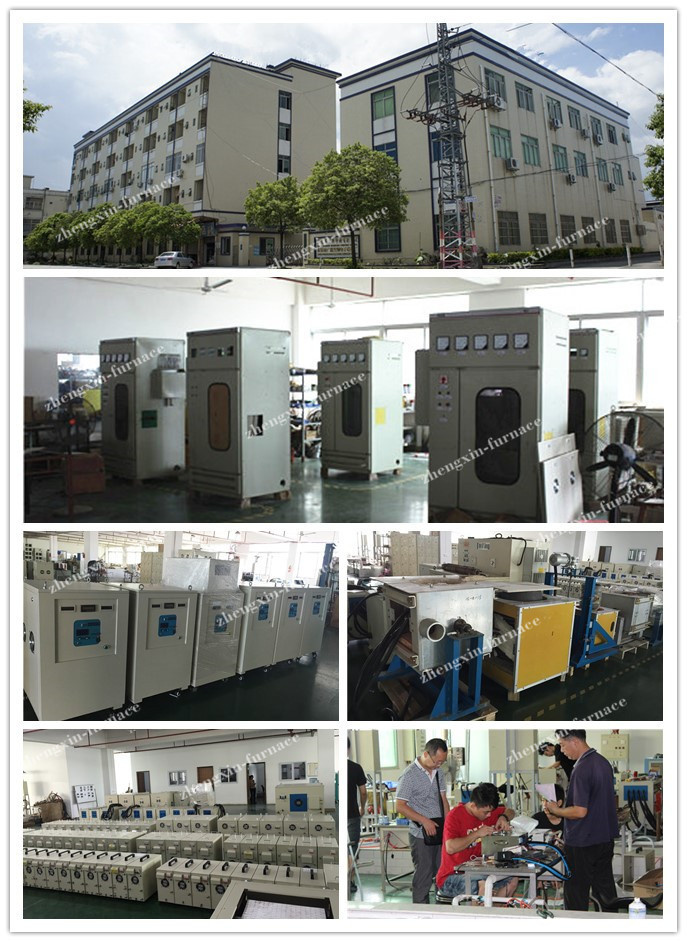

Dongguan Zheng Xin Medium Frequency Furnace Factory is a specialized manufacturer of medium frequency and high frequency induction heating equipment, located in Wanjiang, a town in Dongguan, Guangdong which is famous for hardware products. It is adjacent to G107 national road and Guang-Shen highway, and only one-and-a-half-hour drive both from Guangzhou Baiyun Airport and Shenzhen Airport. The traffic is very convenient. Zheng Xin dedicates itself in the R&D, design, manufacturing, marketing and service. Its products are well sold in domestic market, and exported to Korea, Vietnam, Indonesia, Sri Lanka, Malaysia and the countries in Middle East, Africa, Southeast Asia etc.
Our main products are SCR Medium Frequency Power, Medium Frequency Melting Furnace, Medium Frequency Qunching Complete sets of Equipment, Medium Frequency Induction Heat penetration Furnace, IGBT High Frequency Melting Furnace, High Frequency, Ultrahigh Frequency and Super Audio induction heating machine and Forging Furnace, Braze Welding Machine, etc. We have a great variety of products, of which the quality are reliable, and the performance are excellence. To meet the different requirement in the real production, customized design and product with different model and power is available. Our equipments are widely being used in the industry of melting, casting, forging, heating, heat preservation, sintering, hot rolling, brazing, annealing, quenching, hot fitting, bending before heat treatment, etc. Of gold, silver, copper, iron, aluminum, zinc, iron and steel, nickel and other non-ferrous or black metal and alloy material. Zheng Xin is responding to the demand of its customers in a large number of user industries.
We have professional technical team in which everyone is rich in experiences in heat treatment. We have many advanced and professional manufacture facilities and detecting instruments. The product components we used are being advanced CNC machining. Moreover, we commit to producing the induction heating equipment which are PRO-environment, and energy-efficient. Therefore, our products have the features of low energy consumption, non-pollution, improving working condition and reducing the labor intensity. It is the best choice for the modernized heating industrial production.
"The best quality, the best service" is our principle. We pay great attention to the product quality, at the same time, we try our best to provide our customers the good service --we care about their requirements; We care about their benefits; We offer them free technical guidance and operator training. The good quality, the excellence service, with reasonable price we offered, so we win the support and trust of our new and old customers.
Hoping that Zheng Xin play a role in the prosperity of your enterprise.
