Home Toolbuy Products Foshan Good Quality 2 Way Adjustable Hydraulic 3D Cabinet Hinge

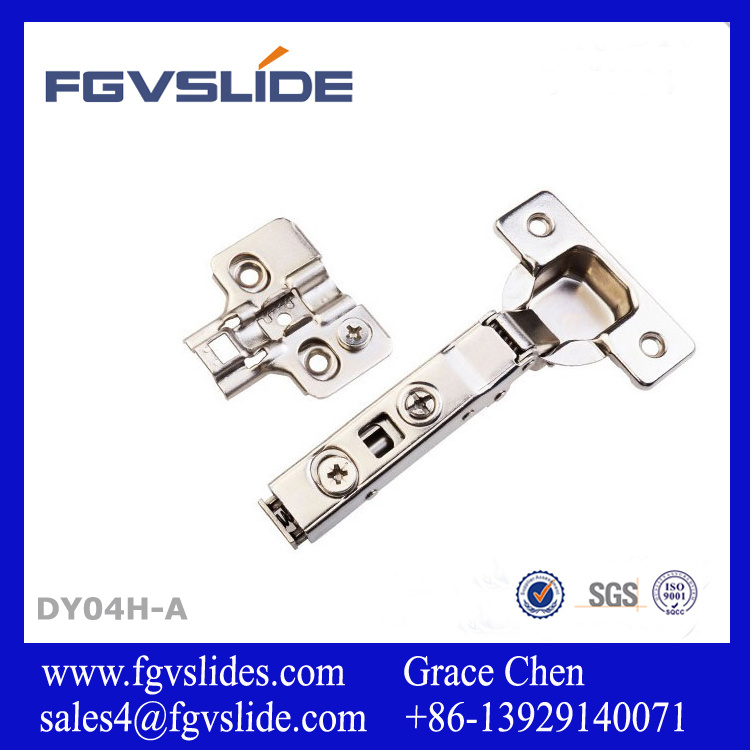

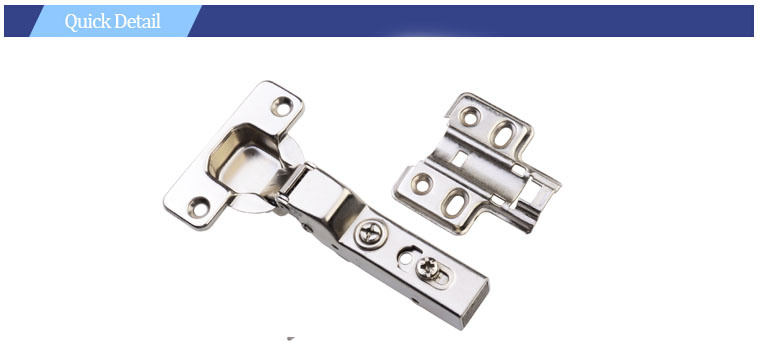

Foshan Good Quality 2 Way Adjustable Hydraulic 3D Cabinet Hinge

Foshan Good Quality 2 Way Adjustable Hydraulic 3D Cabinet Hinge
Price: US $ 0.28-0.51/Piece
Min Order: 2000/Piece
Pay Type: T/T,Western Union,Paypal,Money Gram
Prod Model: DY04H 0817
Cycling Test: 50000times
Surface: Nickel Plated
Overlay: Full Overlay, Half Overylay, Insert
Opening Angle: 105degree
Cup Diameter: 35mm
Cup Drilling Depth: 11.3mm
Surface Treatment: 48hours Salt Spray Test
Type: 105
Specification: 35
Thickness: 1.0

Product Description

TEM NAME

Foshan good quality 2 way adjustable hydraulic 3D cabinet hinge
ITEM NO.
DY04H
MATERIAL
Steel
FINISH
Nickel Plated

CUP DIAMETER

35mm

CUP HOLE DISTANCE

45 / 48 / 52 mm
FUNCTION
Standard
HOLE PATTERN
2 holes or 4 holes or 3D

STYLE

Full overlay / Half overlay / Inset

OPEN ANGLE

100 -105 Degree



 Detail:

1. Type:  2 way kitchen cabinet concealed hinge W/4 hole base

2. Material: Steel

3. Finishing: Nickle

4. Style: Half overlay / Full Overlay / Inset

5. Opening angle: 90-110 degree

6. Cup Diameter: 35mm

7. Cup hole distance: 48mm

8. Depth: 11.5mm

9. Plank thickness: 14-21mm

10. Door(c) distance: 3-7mm

11. Weight: 60-65g

12. Certification: ISO9001

13. Test: SGS

14. Nickel plated

15.50000 times open-close SGS test

16. spring hinge



Testing

SGS TEST

Passed over 50,000 open-close

Passed 48 hours salt spray test

Sample

Sample free and small order can be accepted

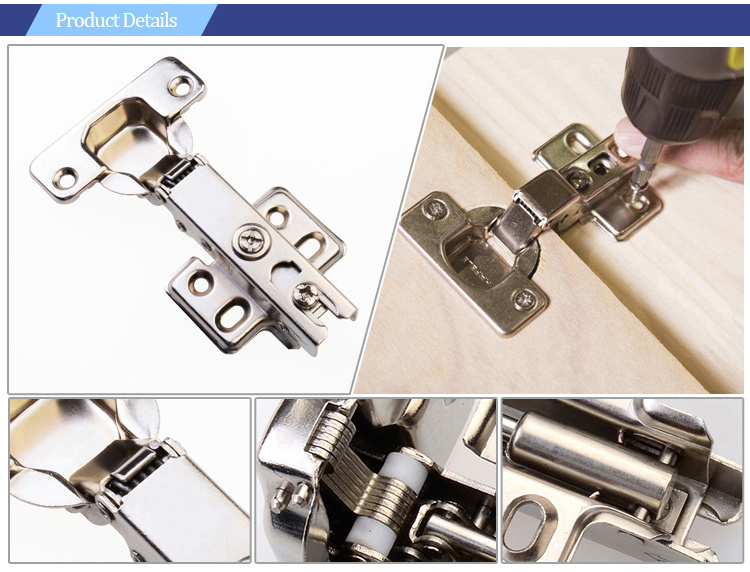

Features

Strengthened adjustable screw can widen the adjustable ranges and longer using life.

Widening manganese steel spring,can disperse force when the hinge closed.

Strengthened spring, thickness 2.5mm instead of  common one thickness: 1.2mm

Adopt advanced hydraulic system,longer life time,smaller volume



We supply two kinds of hinge'spackage mostly:

1.100 pieces into one plastic bag, one plastic bag into one carton;

2. 2 pieces with screws into one small plastic bag, 100 plastic bags into one carton.

Plastic bags can be customized base on 120 thousand pieces hinges inquiry.

Item No

Description

N.W(kg)

G.W(kg)

CTN Size/MM

Q'ty/CTN

 DY165H-3D

 3D hinges

 10.4

 10.9

 400*255*200

 100

1. What's the MOQ for the first time purchasing?

If make logo and brand package, MOQ is 50000pcs. If need colorful bags, then MOQ need 120000pcs; If there

is no need for brand logo and package, MOQ is 5000pcs for normal hinge. And 1000pcs for soft close hinge.

2. Before purchasing, how can we get to know the quality?

We can send sample to you to check. Also customer can appoint some agent to inspect the mass production quality

 in our factory to make sure the quality.

3. What will be the loading capacity for 20ft container?

Max loading capacity is 27 tons, but exact loading capacity depends on the slide model you choose and the country

 you are from, for further information, please consult from our sales.

4. What will be the delivery time?

Normally is 25-45 days after order confirmed by both parties.

5. What are the payment terms?

TT or Cash or LC,30% deposit, 70% before shippment if you book the shippment, or 70% against scanned B/L

if we book the shippment.

6. What should we do if goods are received with some quality problems?

All goods have been inspected during the assembling and packing, the chance to get defective slide is very rare. If

there are some quality problems, such as finish problem, damaged problem, please kindly take some photos and

show to us proof, also please show us the carton image to locate the quality supervisor. After we verified the

problem, we will give refund or resend the goods.

7. What's the price term?

EXW/FOB/CNF/CIF depends on customer's requirement.

-------------------------------------------------------------------------------------------------
Grace Chen
Website : http://www.fgvslides.com


Tel:(86)757-22898377     Fax:(86)757-22898376
MP: (86)13929140071

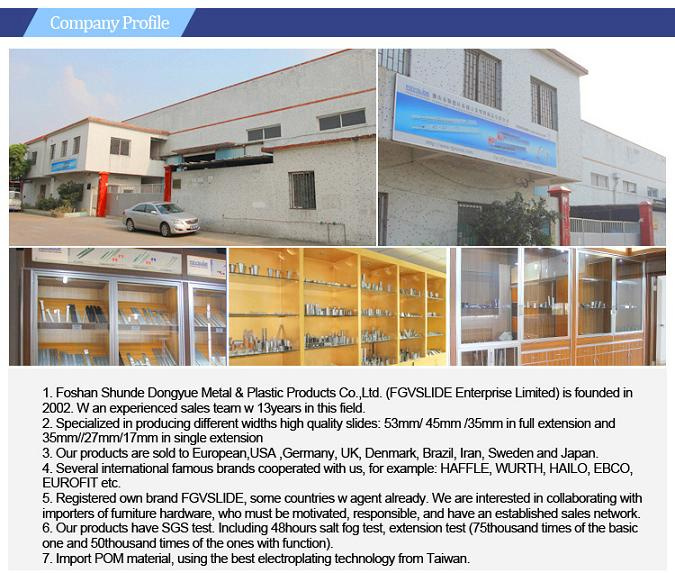

Foshan Shunde Dongyue Metal & Plastic Products Co., Ltd, also known as FGVSLIDE Enterprise Ltd. And FIFAN Hardware, are experience furniture hardware manufacturer since 2005 and have been supplier of HAFELE Korea, Mobile, Wurth and The Home Depo for more than five years. 90% export. Main market in US, Canada, South America, Europe and Middle East ect.

Since our foundation, we are aim to manufacture the most durable furniture hardware to make your daily life more convenient and assured! In order to reach that goal, we work hard on developing new technologies, and focus most of our time on products quality control during the producing! We will do the drawer slides & hinges cycle tests by ourselves for each order, and we can also provide SGS test if required!

Each year, we will attend different Exhibitions of the hardware industry, such as the CIFF & the Canton Fair in China, the IWF in USA etc. During the Exhibitions, we will present our new develop products and meeting with our old and new clients!

If you have any hardware require, please feel free to contact us now. We sincerely hope to become your most reliable friends who help you enlarge your business and earn more market share!

Thank you so much.

Welcome to contact us

Yours best friend

Phyllis Wu

Send your message to this manufacturer

  • Foshan Shunde Dongyue Metal & Plastic Products Co., Ltd.
