| Prod Model: |
SS mesh |
| Max Width: |
6m |
| Material: |
SUS304 |
| Hole Shape: |
Square |
| Application: |
Window Curtain |
| Type: |
Stainless Steel Plain Wire Mesh |
| Material Type: |
Stainless Steel Wire |
| Weave Technique: |
Plain Weave |
| Wire Mesh Width: |
1m |
| Technique: |
Woven |
| Nickels: |
8% |
| Certification: |
ISO9001 |

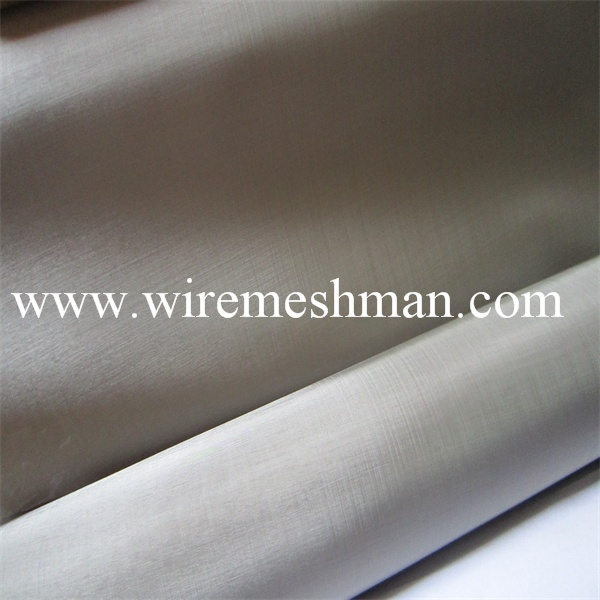

Product Description
Stainless steel wire meshStainless steel wire mesh can be supplied in square mesh or space mesh as a result of different weaving patterns or to meet the demand of specific application devices. This kind of wove Mesh is formed by interlocking wire to produce a given aperture. Arch offers a range of woven wire meshes from 10 micron to the heavy industrial meshes with big apertures. Special weaves for intense filter cloth applications can also be supplied.
Wire Materials:
Stainless Steel Wire: Aisi 304, 304L, 316, 316L, 310, 314, 410, 430.
Special Steel: Cromax, Incoloy, Alloy Ni-Cr, Inconel, Nichel, Monel, Titanium, Duplex.
Woven wire mesh is also available with carbon steel, low carbon steel, galvanized steel, brass, bronze, copper, aluminum alloy, etc.
Plain Weave Description:
Plain Weave is a kind of commonly used weaving method. The warp wire establishes the length of the wire mesh and the weft wire, paralleles to the width, crosses one another, alternates one on the top and one under and formes a 90° angle between each other.Solid woven wire mesh may have a square or rectangular opening.
Stainless steel Wire Mesh Specification Stainless Steel Wire Mesh and Wire Cloth, Plain Weave |
Mesh | Wire Dia. (MM) | Opening (MM) | Material (AISI) |
7meshx7mesh | 1.00 | 2.63 | 304 or316 |
10meshx10mesh | 0.60 | 1.94 | 304 or316 |
12meshx12mesh | 0.50 | 1.62 | 304 or316 |
16meshx16mesh | 0.40 | 1.19 | 304 or316 |
16meshx16mesh | 0.35 | 1.24 | 304 or316 |
18meshx18mesh | 0.35 | 1.06 | 304 or316 |
20meshx20mesh | 0.40 | 0.87 | 304 or316 |
24meshx24mesh | 0.26 | 0.80 | 304 or316 |
30meshx30mesh | 0.30 | 0.55 | 304 or316 |
35meshx35mesh | 0.17 | 0.56 | 304 or316 |
40meshx40mesh | 0.23 | 0.40 | 304 or316 |
50meshx50mesh | 0.20 | 0.31 | 304 or316 |
60meshx60mesh | 0.15 | 0.27 | 304 or316 |
70meshx70mesh | 0.12 | 0.24 | 304 or316 |
80meshx80mesh | 0.13 | 0.19 | 304 or316 |
90meshx90mesh | 0.12 | 0.16 | 304 or316 |
100meshx100mesh | 0.10 | 0.15 | 304 or316 |
120meshx120mesh | 0.09 | 0.12 | 304 or316 |
150meshx150mesh | 0.063 | 0.11 | 304 or316 |
180meshx180mesh | 0.053 | 0.09 | 304 or316 |
200meshx200mesh | 0.053 | 0.07 | 304 or316 |

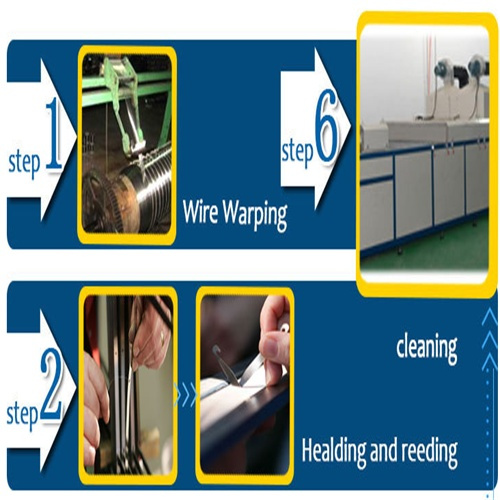

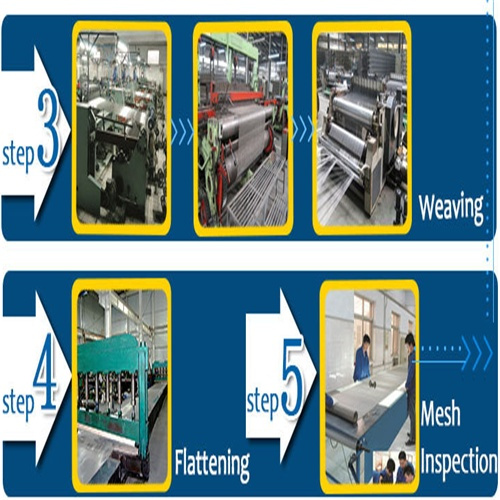

Stainless Steel Wire Mesh Manufacture Process
Stainless steel wire mesh products uses:
Chemicals: acid solution filtration, chemical experiments, chemical particulate filter, gas filter corrosive, caustic dust filtration
Oil: oil purification, oil mud filtration, separation of impurities, etc.
Medicine: Chinese medicine decoction filtration, the solid particulate filtration, purification and other drugs
Electronics: Circuit board framework, electronic components, battery acid, radiation module
Printing: Ink filtration, carbon filtration, purification and other toner
Equipment: vibrating screen
Stainless Steel Wire Mesh Product Features:
Heat, acid, corrosion resistance, wear resistance. Surface smooth, clean, non-toxic, health, environmental protection
Stainless steel wire mesh offers high filtering efficiency, low pressure loss, constant mesh opening, good dimensional stability, high opensurface area and good fireproof property.
Anping County Huaxi Wire Mesh Co., Ltd. Is a big wire mesh manufacturer located in Anping of Hebei Province, the famous Wire Mesh Land of China. Huaxi is specialized in wire drawing, galvanizing and wire mesh weaving. With over 100 sets of production machines, first-class technology, excellent management system and R & D capability, we have won trust and praises from many customers.
Huaxi mainly produces Stainless Steel Wire Mesh, Metal Wire, Binding Wire, Welded Wire Mesh, Crimped Wire Mesh, PVC Coated Wire Mesh, PVC Sprayed Wire Mesh, Barbed Wire, Chain Link Fence, Wire Conveyor Belt, Circle Wire, Mesh Fencing as well as other wire processed products for a wide applications in petroleum, mine, construction and other industries. Our products are well sold in China and exported far to the USA, Europe, Japan, the Middle-East and Southeast Asian countries.
We try to build our own brand and reputation with choice products, and have set up a complete system from raw material purchasing, production, inspection, packing and delivery to after-sales services. We sincerely hope to build good business relationship with you on the basis of mutual benefit.
