| Prod Model: |
DRD350 |
| Power(Kw): |
4 Kw |
| Capacity(Kg/H): |
1000 |
| Dicing Size (mm): |
3~10 |
| External Dimension (mm): |
1533*1460*1028 |
| Weight (Kg): |
580 |
| Certification: |
Ce |
| Type: |
Meat Slicer |
| Voltage: |
380V |
| Customized: |
Customized |
Product Description

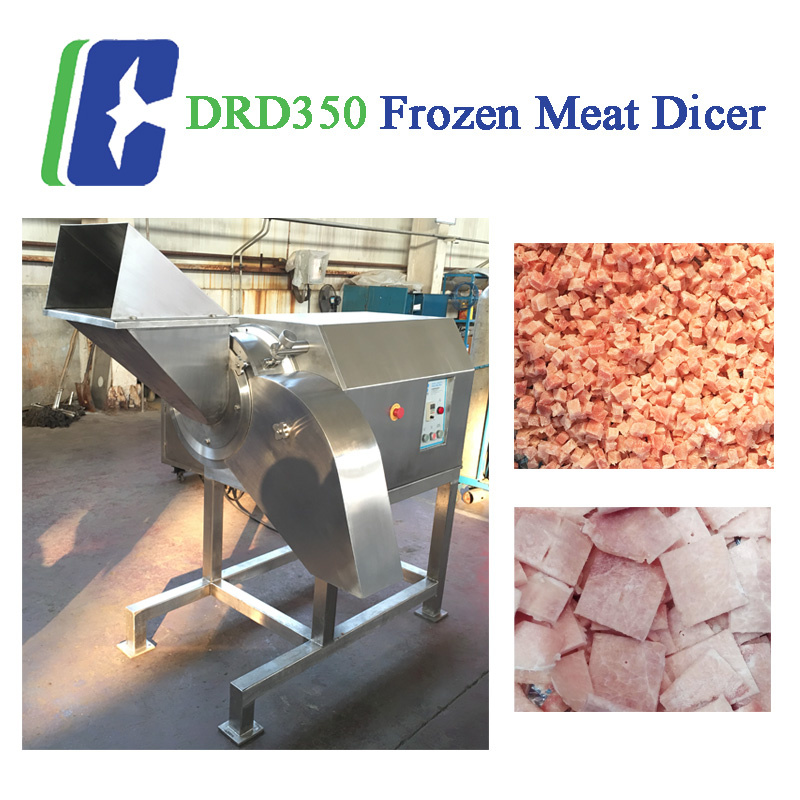

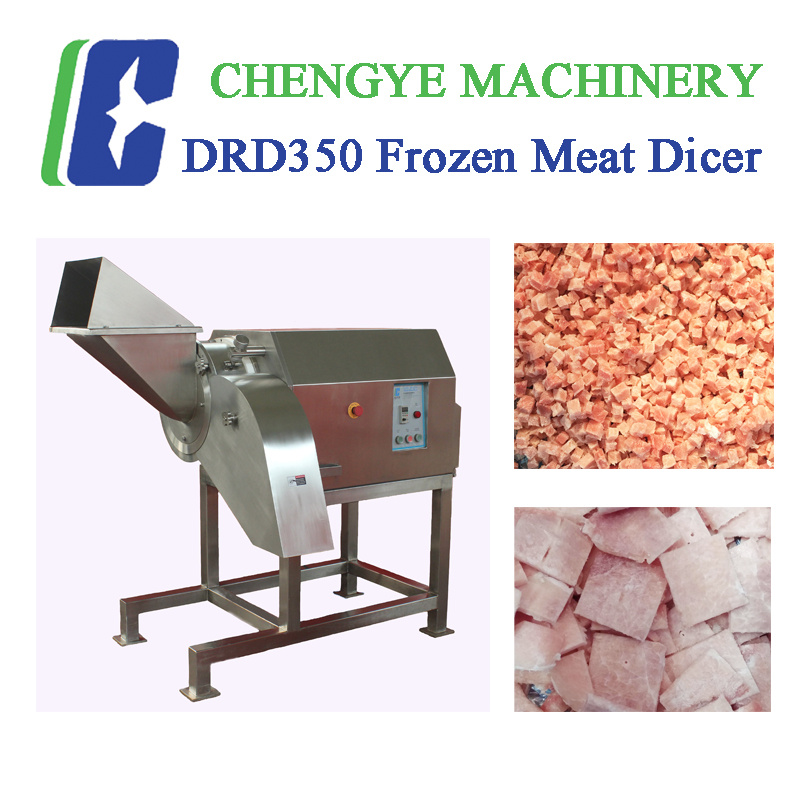

Frozen Meat Dicer DRD350
1.China exclusive frozen meat dicer machine
2. Pefect frozen meat dicing effect
3. Easy clean and maintenance of frozen meat dicer DRD350
4. PLC control and frequency convertor for frozen meat dicer
5. CE certificate for frozen meat dicer DRD350
Application
Frozen meat dicer DRD350 dices frozen meat such poultry, chicken, pork to small
cubes/dices.
Material:
SUS304 Stainless steel
Accuracy & quality:
Very uniform cutting result with a minimum of product waste
Reliability:
Robust drive.
This high-capacity machine continuously delivers a perfect cutting quality.
Hygiene:
Drive zone and product zone of the machine are completely separated.
Central lubricating nipples beneath the door giving access to the drive.
Safety:
Completely designed according to European CE safety directives: Machinery directive 2006/42/EC, Low voltage directive 2006/95/EC, EMC directive (electro magnetic compatibility) 2004/108/EC
Standard in-feed and discharge chute extensions
Cutting Principle:
The infinitely adjustable slicing knife first cuts the product in slices.
Next, the circular knives cut the slices into strips. Finally, the crosscut knife spindle cuts neat dices to the desired height.
Suitable Temperature for different Meat when cutting cubes and slices:
Chicken Cubes and chicken slices:
Cubes:-3ºC~-8ºC
Slices: 0ºC~-3ºC
Pork Cubes and pork slices:
Cubes: -3ºC~-6ºC
Slices: -3ºC~-6ºC
Beef/Mutton Cubes and Slices:
Cubes: -4ºC~-6ºC
Slices: -3ºC~-7ºC
Specifications:
Product Name |
Frozen Meat Dicer/ Frozen Meat Slicer and Dicer |
Item No |
DRD350 |
Power |
4KW |
Capacity |
1000kg/h |
Meat Temp. |
-5~ -10 °C |
External Dimension |
1533*1460*1028mm (L*W*H) |
Dice Specification |
3*3*3/5*5*5/6*6*6/9*9*9/10*10*10mm |
Weight per ctn |
NW: 580kg |
Package |
Fumigation wooden case |
Material |
SUS304 Stainless steel |
Electric parts: Omron, Delixi, Mitsubishi, Delta |
SKF/NSK Bearing |
Feature |
Slice, Crosscut, Circular cut at the same time, high working efficiency |
Easy to clean and maintain |
Surface designed as Curve shape, water and vegetable can not stay |
Guarantee |
1 Year |
Certification |
CE,ISO certification |
Lead Time |
7~45 days after receipt of deposits |
Lading Port |
Xingang, Tianjin |
MOQ |
1 Set |
Payment Terms |
TT with 30% deposit, and 70% balance before delivery |
Other Service |
OEM |
Customers' logo accepted |
Package: Fumigation Wooden Case
Company Profile
Hebei Chengye Machinery Manufacturing Co., Ltd is specialized in researching,
manufacturing and marketing of food processing machines, including all kinds of meat
cutters, vegetable cutters, saline injectors, bowl cutters, sausage machines, smokehouse
and various flour processing machines.
Excellent After-sale Service:
1. Technicians will be sent if necessary, to install and adjust the machine perfectly. Besides, train your workers for the correct usage and daily maintenance.
2. Any spare parts you need will be sent to you directly from us.
3. Anything wrong with the machine, we will reply within 8 hours. Technicians will be sent to your working site if you can not solve it under our guidance.
Hebei ChengYe Intelligent Technology Co., Ltd was funded in 2007, which is a wholly-owned subsidiary of Hebei Chengye Group located in Shijiazhuang National Economic and Technical Development Zone, Hebei, China. As a leading manufacturer, we specialize in researching and producing various food processing machines and non-standard equipment.
Our machines are widely used in meat processing industry, wheaten food and quick-frozen food processing industry, including three- dimensional frozen meat dicer, high-speed bowl cutter, smokehouse, vacuum refrigeration tumbler, vacuum flour mixer, noodle production line, shaomai-making machine, etc. We apply several national patents for our machines; The main prodcucts have passed CE certifications, exported to Europe, Australia, Middle East, Southeast Asia and South America. Our brand "Chengye" win good reputation from customers.
We devote ourselves to science technology development. Relying on strong design and construction capabilities of Chengye Group, we can offer a series of services and technical support, such as reconstructing or expanding food factories, planning and designing land, building workshops, installing and commissioning food equipment and pipes, etc.
Practical and innovative, Chengye people adhere to the management philosophy: " Sincerity and Quality First", making mutual development and bright future with all food enterprises.
