| Prod Model: |
FSD |
| Cutting Edge Diameter: |
3-20mm |
| Flute Length: |
16-80mm |
| Shank Diameter: |
4-20mm |
| Shank Length: |
28-50mm |
| Overall Length: |
49-135mm |
Product Description
FSD Solid Carbide Drill with Flat Bottom
Features:- All dimension is fixed by our norm and also accepted non standard order.
- Tolerance of dc m7; tolerance of ds h6.
- Point angel 180°;better centering ability, chip evacuation smoothly because of point geometry and flute design suitable for machining inclined hole. drilling on ball surface and thin sheet, restraining the burr also.

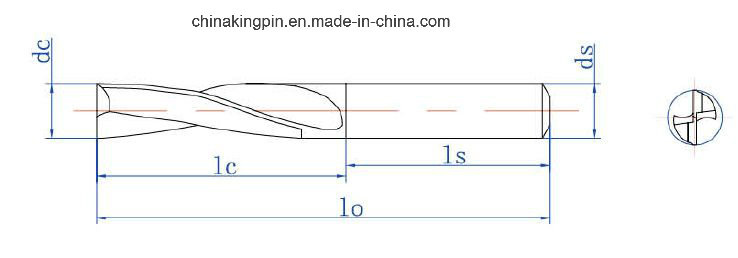

Picture:
Specification: | Basic type order No.(coating) | Cutting Edge Diameter | Flute Length | Shank Diameter | Shank length | Overall Length |
| EA5A3001 | dc | lc | ds | ls | lo |
| EA5A3002 | 3.00 | 16 | 4 | 28 | 49 |
| EA5A3003 | 3.30 | 16 | 4 | 28 | 49 |
| EA5A3004 | 3.40 | 16 | 4 | 28 | 49 |
| EA5A3005 | 3.50 | 16 | 4 | 28 | 49 |
| EA5A3006 | 3.60 | 16 | 4 | 28 | 49 |
| EA5A3007 | 3.65 | 16 | 4 | 28 | 49 |
| EA5A3008 | 3.70 | 16 | 4 | 28 | 49 |
| EA5A3009 | 3.75 | 16 | 4 | 28 | 49 |
| EA5A3010 | 3.80 | 16 | 4 | 28 | 49 |
| EA5A3011 | 4.00 | 16 | 4 | 28 | 49 |
| EA5A3012 | 4.20 | 20 | 6 | 36 | 61 |
| EA5A3013 | 4.50 | 20 | 6 | 36 | 61 |
| EA5A3013 | 4.60 | 20 | 6 | 36 | 61 |
| EA5A3014 | 4.70 | 20 | 6 | 36 | 61 |
| EA5A3015 | 4.80 | 20 | 6 | 36 | 61 |
| EA5A3016 | 5.00 | 20 | 6 | 36 | 61 |
| EA5A3017 | 5.10 | 24 | 6 | 36 | 65 |
| EA5A3018 | 5.30 | 24 | 6 | 36 | 65 |
| EA5A3019 | 5.50 | 24 | 6 | 36 | 65 |
| EA5A3020 | 5.60 | 24 | 6 | 36 | 65 |
| EA5A3021 | 5.70 | 24 | 6 | 36 | 65 |
| EA5A3022 | 5.80 | 24 | 6 | 36 | 65 |
| EA5A3023 | 6.00 | 24 | 6 | 36 | 65 |
| EA5A3024 | 6.50 | 28 | 8 | 36 | 69 |
| EA5A3025 | 6.60 | 28 | 8 | 36 | 69 |
| EA5A3026 | 6.70 | 28 | 8 | 36 | 69 |
| EA5A3027 | 6.80 | 28 | 8 | 36 | 69 |
| EA5A3028 | 6.90 | 28 | 8 | 36 | 69 |
| EA5A3029 | 7.00 | 28 | 8 | 36 | 69 |
| EA5A3030 | 7.30 | 32 | 8 | 36 | 73 |
| EA5A3031 | 7.40 | 32 | 8 | 36 | 73 |
| EA5A3032 | 7.50 | 32 | 8 | 36 | 73 |
| EA5A3033 | 7.70 | 32 | 8 | 36 | 73 |
| EA5A3034 | 7.80 | 32 | 8 | 36 | 73 |
| EA5A3035 | 8.00 | 32 | 8 | 36 | 73 |
| EA5A3036 | 8.50 | 36 | 10 | 40 | 81 |
| EA5A3037 | 8.70 | 36 | 10 | 40 | 81 |
| EA5A3038 | 8.80 | 36 | 10 | 40 | 81 |
| EA5A3039 | 9.00 | 36 | 10 | 40 | 81 |
| EA5A3040 | 9.30 | 40 | 10 | 40 | 85 |
| EA5A3041 | 9.50 | 40 | 10 | 40 | 85 |
| EA5A3042 | 9.60 | 40 | 10 | 40 | 85 |
| EA5A3043 | 9.70 | 40 | 10 | 40 | 85 |
| EA5A3044 | 9.80 | 40 | 10 | 40 | 85 |
| EA5A3045 | 10.00 | 40 | 10 | 40 | 85 |
| EA5A3046 | 10.20 | 44 | 12 | 45 | 94 |
| EA5A3047 | 10.50 | 44 | 12 | 45 | 94 |
| EA5A3048 | 10.70 | 44 | 12 | 45 | 94 |
| EA5A3049 | 10.80 | 44 | 12 | 45 | 94 |
| EA5A3050 | 11.00 | 44 | 12 | 45 | 94 |
| EA5A3051 | 11.20 | 48 | 12 | 45 | 98 |
| EA5A3052 | 11.50 | 48 | 12 | 45 | 98 |
| EA5A3053 | 11.70 | 48 | 12 | 45 | 98 |
| EA5A3054 | 11.80 | 48 | 12 | 45 | 98 |
| EA5A3055 | 12.00 | 48 | 12 | 45 | 98 |
| EA5A3056 | 12.50 | 52 | 14 | 45 | 102 |
| EA5A3057 | 12.70 | 52 | 14 | 45 | 102 |
| EA5A3058 | 12.80 | 52 | 14 | 45 | 102 |
| EA5A3059 | 13.00 | 52 | 14 | 45 | 102 |
| EA5A3060 | 13.50 | 56 | 14 | 45 | 106 |
| EA5A3061 | 13.70 | 56 | 14 | 45 | 106 |
| EA5A3062 | 13.80 | 56 | 14 | 45 | 106 |
| EA5A3063 | 14.00 | 56 | 14 | 45 | 106 |
| EA5A3064 | 14.50 | 60 | 16 | 48 | 113 |
| EA5A3065 | 14.70 | 60 | 16 | 48 | 113 |
| EA5A3066 | 14.80 | 60 | 16 | 48 | 113 |
| EA5A3067 | 15.00 | 60 | 16 | 48 | 113 |
| EA5A3068 | 15.50 | 64 | 16 | 48 | 117 |
| EA5A3069 | 15.70 | 64 | 16 | 48 | 117 |
| EA5A3070 | 15.80 | 64 | 16 | 48 | 117 |
| EA5A3071 | 16.00 | 64 | 16 | 48 | 117 |
| EA5A3072 | 16.50 | 68 | 18 | 48 | 121 |
| EA5A3073 | 16.70 | 68 | 18 | 48 | 121 |
| EA5A3074 | 16.80 | 68 | 18 | 48 | 121 |
| EA5A3075 | 17.00 | 68 | 18 | 48 | 121 |
| EA5A3076 | 17.50 | 72 | 18 | 48 | 125 |
| EA5A3077 | 17.70 | 72 | 18 | 48 | 125 |
| EA5A3078 | 17.80 | 72 | 18 | 48 | 125 |
| EA5A3079 | 18.00 | 72 | 18 | 48 | 125 |
| EA5A3080 | 18.50 | 76 | 20 | 50 | 131 |
| EA5A3081 | 18.60 | 76 | 20 | 50 | 131 |
| EA5A3082 | 18.70 | 76 | 20 | 50 | 131 |
| EA5A3083 | 18.80 | 76 | 20 | 50 | 131 |
| EA5A3084 | 19.00 | 76 | 20 | 50 | 131 |
| EA5A3085 | 19.50 | 80 | 20 | 50 | 135 |
| EA5A3086 | 19.70 | 80 | 20 | 50 | 135 |
| EA5A3087 | 19.80 | 80 | 20 | 50 | 135 |
| EA5A3088 | 20.00 | 80 | 20 | 50 | 135 |
