Prod Model: |
GJX |
Application: |
Communication |
Type: |
Single-mode Fiber |
Connection Structure: |
FC-FC |
Certification: |
ETL |
Brand: |
Shengda |
Product Description
-------------------------------------------------------PRODUCT----------------------------------------------------
[General]
1. Name: FTTH Communication and Telecom Drop Optical Fiber Cable
2. Item Code: GJX
3. Characteristics:
1) Suitable for aerial dropping in separate residential buildings;
2) Adopt all-dry structure and fiber with small bending radius, offering good bending resistance.;
3) Easy cable stripping without need of tools, easy cable fixation and low cost of installation;
4) Suitable as cable extending from outdoor (as aerial cable) to indoor;
5) Low smoke, zero halogen and flame retardant sheath, environment-friendly, good safety.

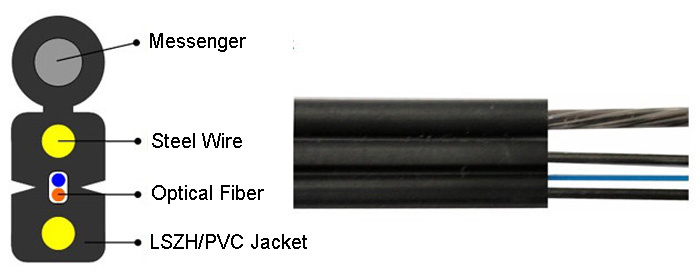

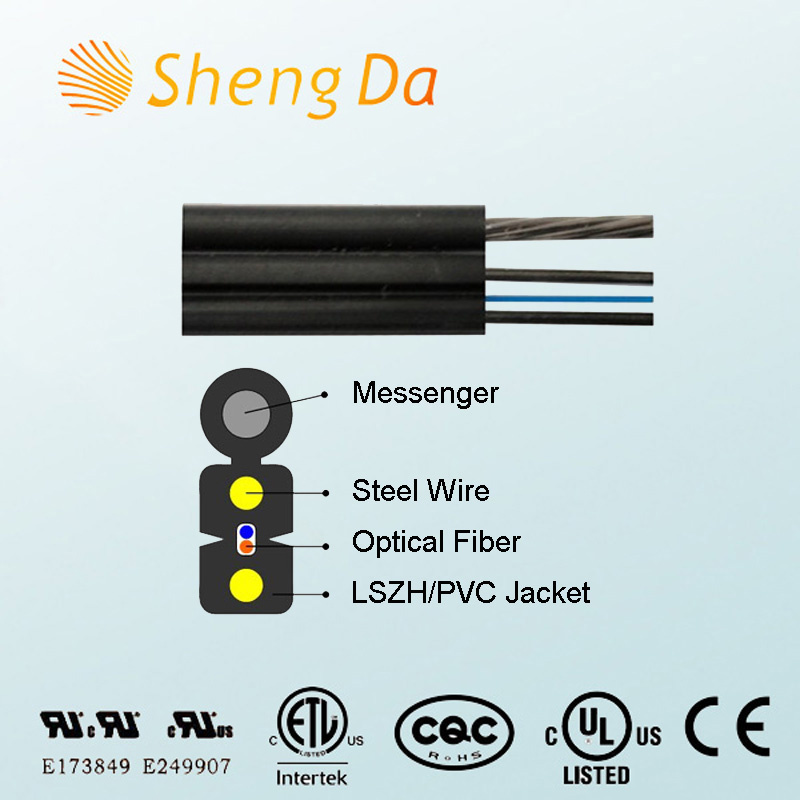

4. Picture:
[Specification]
Item No | GJYXFCH-1B6a2 | GJYXCH-1B6a2 | GJXFH-1B6a2 |
Size (mm) | 5.2×2.0 | 5.2×2.0 | 5.2×2.0 |
Weight (Kg/km) | 18.9 | 21.0 | 7.5 |
Tensile Strength Long/Short Term (N) | 300/600 | 300/600 | 40/80 |
Crush Resistance Long/Short Term (N/100mm) | 1000/2200 | 1000/2200 | 500/1000 |
Bending Radius Static/Dynamic (mm) | 15/30 | 15/30 | 15/30 |
Storage/operating Temperature (ºC) | -20~+60 | -20~+60 | -20~+60 |

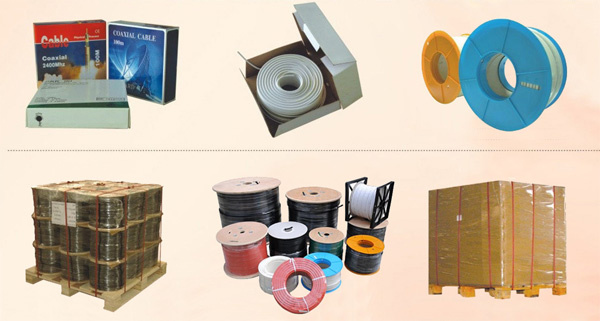

[Packing]
-------------------------------------------------------COMPANY----------------------------------------------------

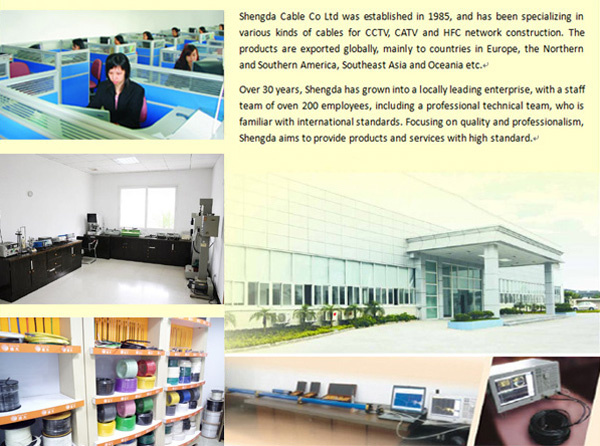

[Overview]
[Workshop]

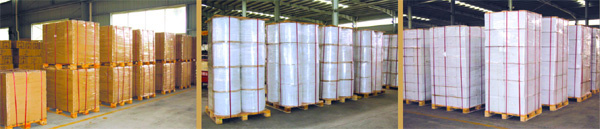

[Storehouse]

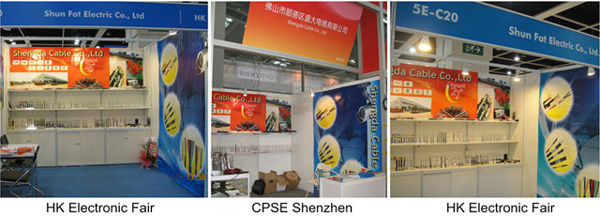

[Trade Show]
-------------------------------------------------------CONTACT----------------------------------------------------
Shengda Cable Co Ltd
Address: No.100, Changbao West Rd, Ronggui, Shunde, Foshan, Guangdong, China
Website: www.shengda-cable.com
Contact: Derek Li
Tel: 86-757-2638-9090
Fax: 86-757-2662-5464
Cell: 86-139-2487-1973
Shengda Cable Co Ltd, formerly known as Shun Fat Electric Manufactory, is affiliated to Shun Fat Innovations Limited, a company incorporated in Hong Kong. Located in Pearl River Delta, the most dynamic region in China Mainland, Shengda enjoys the benefits of what a center of advanced manufacturing and modern service industries brings.
Established in 1985, Shengda has over 300 skilled workers and a team of marketing and engineer experts. In October 2006, Shengda moved its office and factory into Shunde High Tech. Industrial Park, the most famous high tech. Industrial center in China. Shun Fat has a factory site of over 40, 000 square meters. In its 20, 000- square- meter gardenesque workshop, there are series of integrated production appliances, among which are 4 physical foaming machines, 4 PVC Jacket extrusion machines, 2 machines for production of alarm and security cables. There are also over 400 sets of braiding machines, 100 of them are of high speeding and the remaining are of multi-function. To make sure the quality control mechanism works effectively, Shengda is equipped with various kinds of testing instrument and facilities.
Shengda manufactures wide range of products from coaxial cables to security cables with a capacity of over 250, 000 kilometers and annual turnover of nearly RMB100 million. Its products meet standard globally and have been certified or approved by ISO9001, , CCC for China, UL & ETL for US, CSA for Canada, CE & LVD for Europe.
Shengda takes pride in its human assets, its professional staff with caring minds to serve and to improve. Shengda and its working team are making continuous efforts to pursue perfectionism in providing products and service.
