| Prod Model: |
DY3601S |
| Name: |
Cabinet Hardware Full Extension Bearing Ball Beari |
| Finish: |
Zinc-Plated |
| Mouting: |
Under Mounting |
| MOQ: |
510 Pairs Each Size |
| Test: |
SGS Test |
| Feature: |
Durable, Low Profile |
| Thickness: |
1.0*1.0*1.2mm or 1.2*1.2*1.5mm |
| Loading Rate: |
40kg (18inch) |
| Gap: |
12.7+-0.2 |
| Cooperating Brand: |
Hafele, Ebco, Wurth, Dvp, Hailo, Ebco, Home Depot |
| Rail: |
Linear |
| Structure: |
Three Knots |
| Slide Type: |
Steel Ball Type |
| Material: |
Cold Rolled Steel |
Product Description

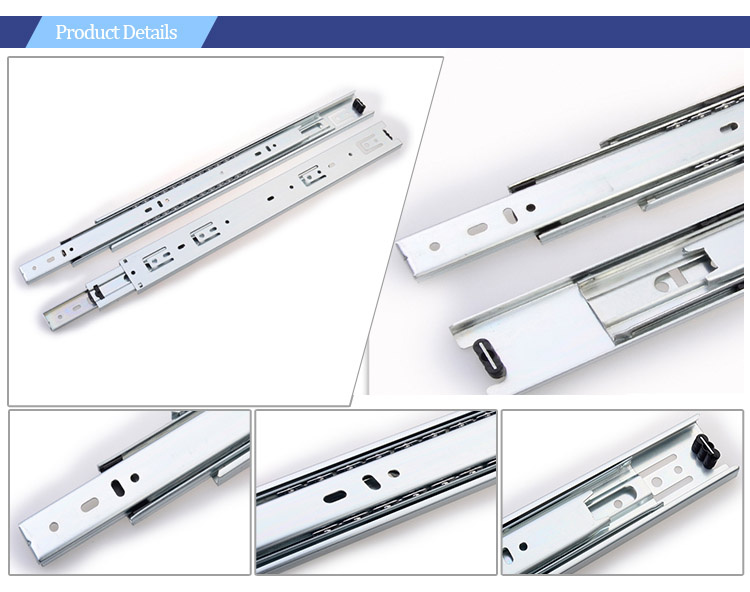

cabinet hardware full extension bearing ball bearingProduct Details
| ITEM NAME | cabinet hardware full extension bearing ball bearing | ITEM NO. | DY3601S |
| MATERIAL | Cold rolled steel | FINISH | Zinc Plated |
| WIDTH | 35 mm | LENGTH | 10 to 24 inches |
| THICKNESS | 1.0*1.0*1.2 / 1.2*1.2*1.5 mm | HOLE PATTERN | Standard |
| COLOR | Clear or Black | LOAD RATING | 35 KGs / 45 KGs |
| BALLS | 2 Balls / 3 Balls | EDGE | Oral / Square |
Thickness(O/M/I): 1.0*1.0*1.2 mm/ 1.2*1.2*1.5 mmLoad capacity: 35 kg/45 kgLength: 250-600 mm (10"-24")Material: Work hardened cold rolled steelFinish: Zinc-plated Width: 45 mmGap: 12.7±0.2 mmInstallation: Side installationCertification: ISO9001Test: SGS test, 48 hours salt spray test,Extension: Full extension / single extensionBrand name: FGVSLIDEMOQ: 500 pairsSupply ability:100000 pairs per week
Our Service1. Prompt and flexible quotation
2. Customized package
3. Considerate after-sale service
4. Well-known global market
5. Reliable quality

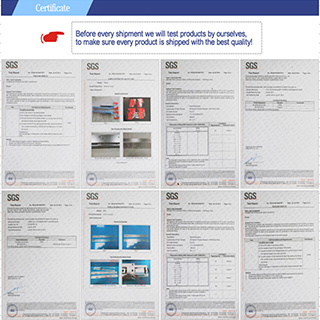

| Testing | SGS TEST |
| | Passed over 50,000 open-close |
| | Passed 48 hours salt spray test |
| | Passed 75 pounds load test |
| Sample | Sample free and small order can be accepted |
| Features | Strengthened adjustable screw can widen the adjustable ranges and longer using life. |
| | Widening manganese steel spring, can disperse force when the hinge closed.
Strengthened spring, thickness 2.5mm instead of common one thickness:
1.2*1.2*1.5mm or 1.0*1.0*1.2mm |
| | Adopt advanced hydraulic system,longer life time,smaller volume |
Packing Details| Thickness(mm) | Length(mm) | N.W.(kg)/box | G.W.(kg)/box | CTN SIZE(mm) |
| 1.0*1.0*1.2 | 250 | 11.25 | 11.75 | 270*200*100 |
| 1.0*1.0*1.2 | 300 | 13.5 | 14 | 320*200*100 |
| 1.0*1.0*1.2 | 350 | 15.75 | 16.25 | 370*200*100 |
| 1.0*1.0*1.2 | 400 | 18 | 18.5 | 420*200*100 |
| 1.0*1.0*1.2 | 450 | 20.25 | 20.75 | 470*200*100 |
| 1.0*1.0*1.2 | 500 | 22.5 | 23 | 520*200*100 |
| 1.0*1.0*1.2 | 550 | 24.75 | 25.25 | 570*200*100 |
| 1.0*1.0*1.2 | 600 | 27 | 27.5 | 620*200*100 |
Company Profile- Foshan Shunde Dongyue Metal & Plastic Co., Ltd. (FGVSLIDE Enterprise Limited) is located in 2002, with an experienced sales team with 13 years i this field.
- Specialized in producing different widths high quality slides: 53mm/45mm/35mm in full extension and 35mm/27mm/17mm in single extension
- Our products are sold to European, USD, Germany, UK, Denmark, Brazil, Iran, Sweden and Japan.
- Several international famous brands cooperated with us, for example: HAFELE, WURTH, HAILO, EBCO, EUROFIT, etc..
- Registered own brand FGVSLIDE, some countries with agent already. We are interested in collaborating with importers of furniture hardware, who must be motivated, responsible, and have an established sales network.
- Our products have SGS test. Including 48 hours salt fog test, extension test(75000 times of the basic one and 50000 times of the ones with fuction).
- Import POM material, using the best electroplating technoligy from Taiwan.
ExhibitionsWe took part in the Canton Fair since the 108th Canton Fair. In the meanwhile, we also took part in foreign exhibitions like: International Woodwork Fair in U.S.A., Hardware Exhibitions in Brazil and South Africa.FAQ1. What's the MOQ for the first time purchasing?If make logo and brand package, MOQ is 50000pcs. If need colorful bags, then MOQ need 120000pcs; If there is no need for brand logo and package, MOQ is 5000pcs for normal hinge. And 1000pcs for soft close hinge.2. Before purchasing, how can we get to know the quality?We can send sample to you to check. Also customer can appoint some agent to inspect the mass production quality in our factory to make sure the quality.3. What will be the loading capacity for 20ft container?Max loading capacity is 27 tons, but exact loading capacity depends on the slide model you choose and the country you are from, for further information, please consult from our sales.4. What will be the delivery time?Normally is 25-45 days after order confirmed by both parties.5. What are the payment terms?TT or Cash or LC,30% deposit, 70% before shippment if you book the shippment, or 70% against scanned B/L if we book the shippment.6. What should we do if goods are received with some quality problems?All goods have been inspected during the assembling and packing, the chance to get defective slide is very rare. If there are some quality problems, such as finish problem, damaged problem, please kindly take some photos and show to us proof, also please show us the carton image to locate the quality supervisor. After we verified the problem, we will give refund or resend the goods. 7. What's the price term?EXW/FOB/CNF/CIF depends on customer's requirement.Contact Us Now!
Foshan Shunde Dongyue Metal & Plastic Products Co., Ltd, also known as FGVSLIDE Enterprise Ltd. And FIFAN Hardware, are experience furniture hardware manufacturer since 2005 and have been supplier of HAFELE Korea, Mobile, Wurth and The Home Depo for more than five years. 90% export. Main market in US, Canada, South America, Europe and Middle East ect.
Since our foundation, we are aim to manufacture the most durable furniture hardware to make your daily life more convenient and assured! In order to reach that goal, we work hard on developing new technologies, and focus most of our time on products quality control during the producing! We will do the drawer slides & hinges cycle tests by ourselves for each order, and we can also provide SGS test if required!
Each year, we will attend different Exhibitions of the hardware industry, such as the CIFF & the Canton Fair in China, the IWF in USA etc. During the Exhibitions, we will present our new develop products and meeting with our old and new clients!
If you have any hardware require, please feel free to contact us now. We sincerely hope to become your most reliable friends who help you enlarge your business and earn more market share!
Thank you so much.
Welcome to contact us
Yours best friend
Phyllis Wu
