| Prod Model: |
MDL-150H |
| Application: |
Urban Subway, High-Rise Buildings, Airport, Geothe |
Product Description

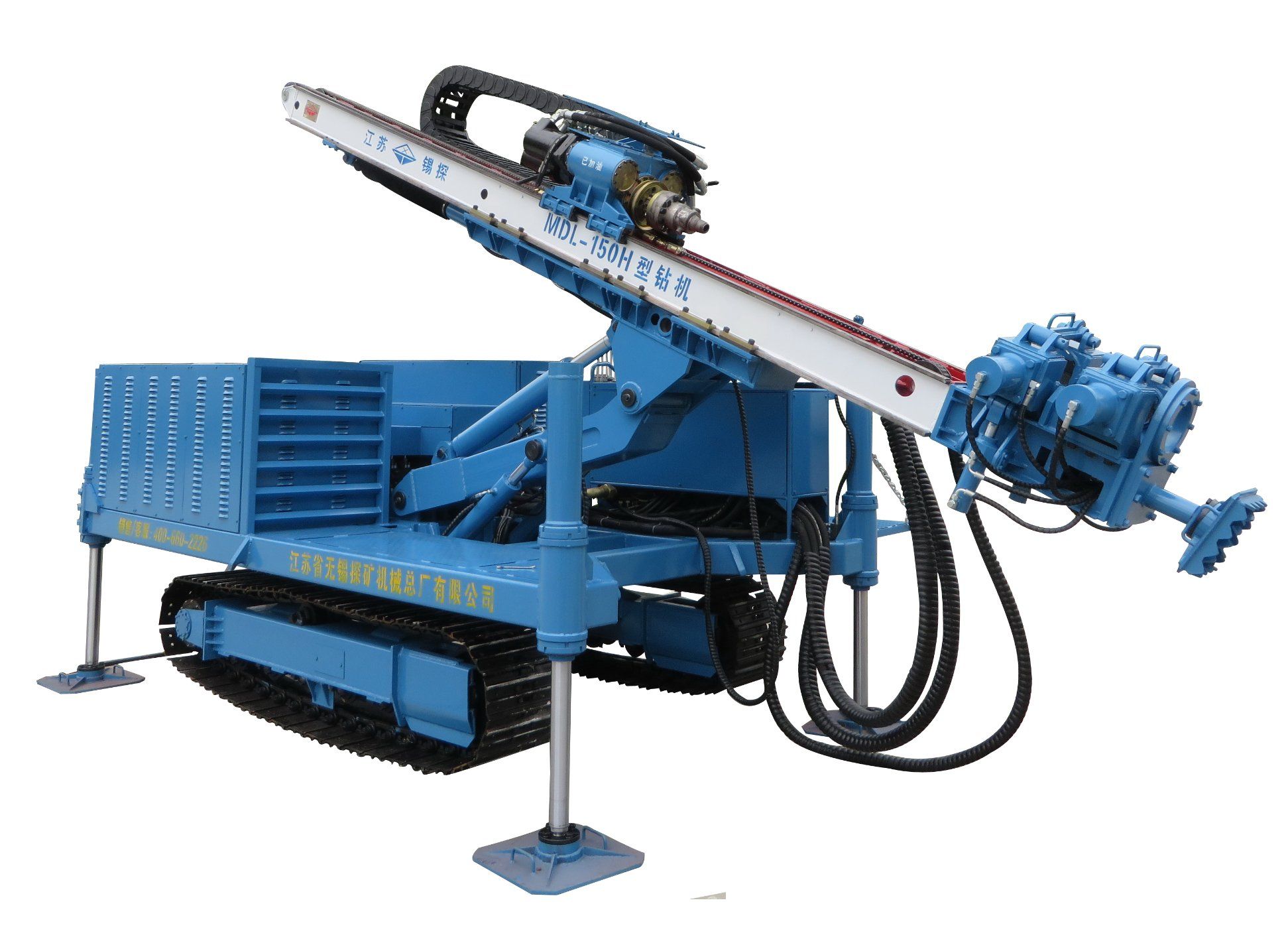

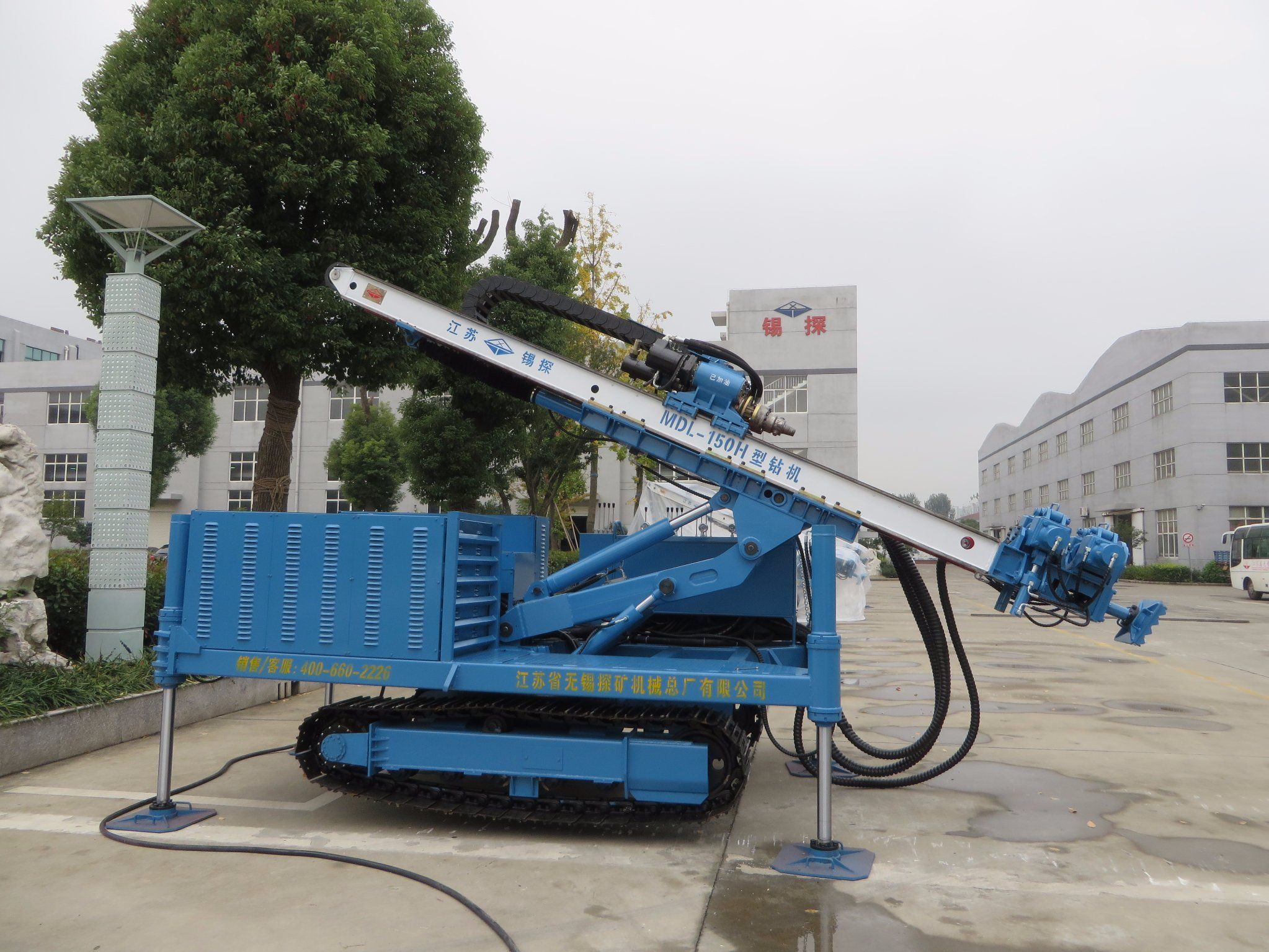

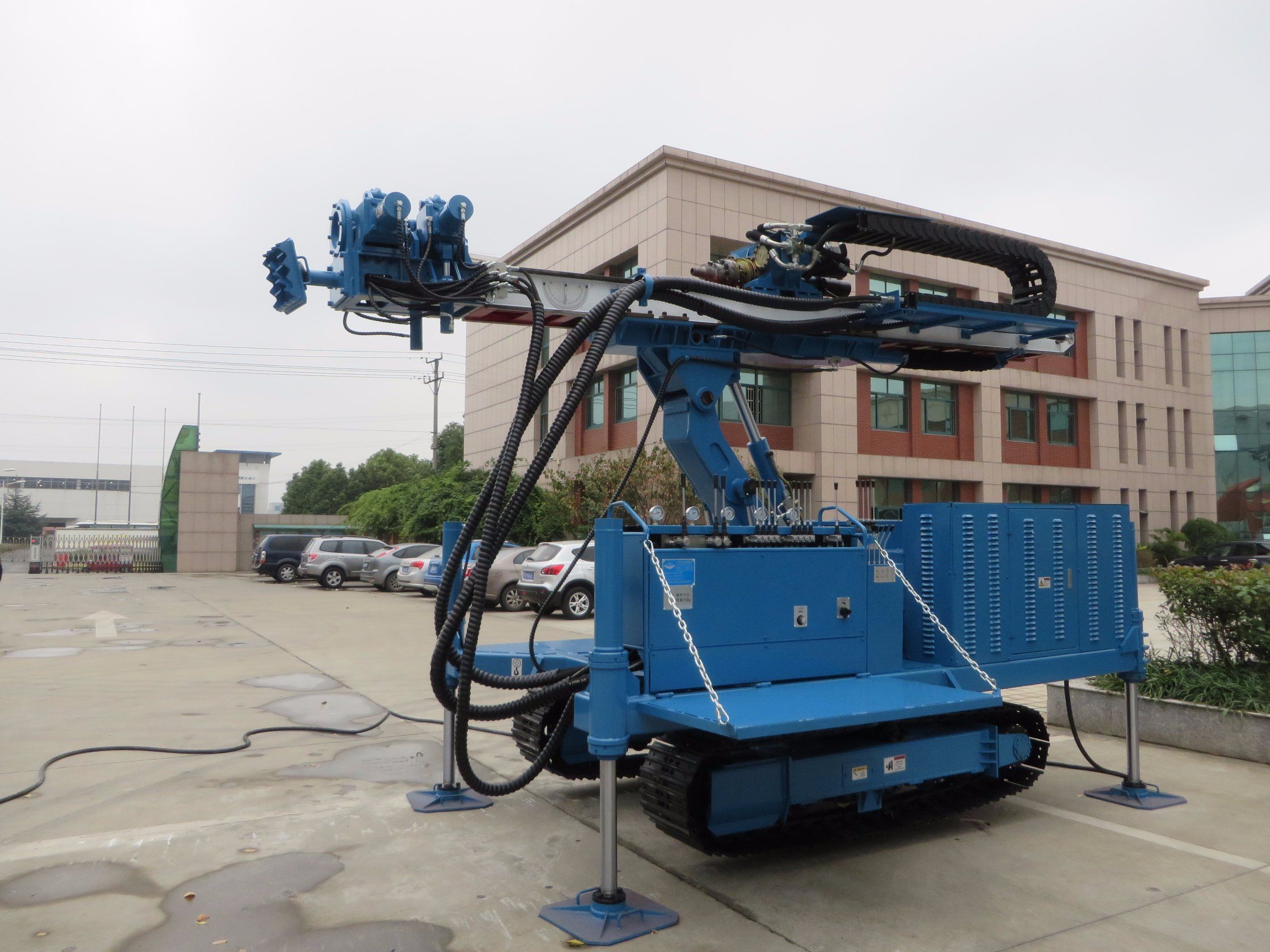

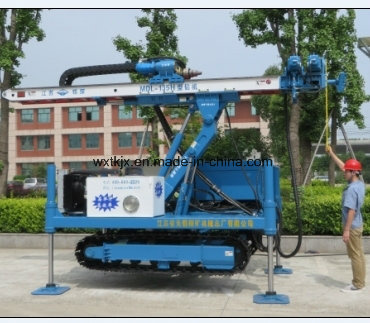

MDL-135H/150H CRAWLER ANCHOR DRILLING RIG_________________________________________________________________________________________
Discription:1..MDL-135/150H drilling rig is a kind of full hydraulic multifunctional power head crawler drilling rig. It is mainly applied in anchoring hole of deep foundation,urban subway,slope supporting, tunnel,high building,airport,geothermal construction,pipe shed and so on.2. The route of shaft bracket is 3.4 meters, so the 150H crawler anchor drilling rig can have complex rod & casing drill for 3 meters. The rig is applicable to rod boring, casing drilling and complex rod & casing drilling.3. MDL-135/150H crawler drilling rig has level system (drill arm) is able to adjust mast in different angle and height without moving drilling rig, This can adjust to the max level of 3.3m.4. The big arm like excavator with double cylinders has the stability of any lifting condition.5. The crawler from the ground space is so large to adapt for bad environment construction.6. The hydraulic clamp & wrench device enormously decreases the assistant time and also reduces the intensity of operating work.Application:1. Urban subway, high-rise buildings, airport, Geothermal hole,foundation anchoring.2. Jet grouting and dewatering.3. The blast hole,the anti-floating anchoring hole .4. It can be also used for pipe shed engineeringSpecification:| TYPE | MDL-135H | MDL-150H |
| Diameter(mm) | Φ150~Φ250 | Φ150~Φ250 |
| Depth(m) | 100-140 | 130-170 |
| Rod dia(mm) | Φ73,Φ89,Φ102,Φ114 | Φ73,Φ89,Φ102,Φ114 |
| Drill angle(°) | 0-100 | 0-100 |
| Max drill arm level height(m) | 3.3 | 3.3 |
| Crawler max height to ground(m) | 0.7 | 0.7 |
| Rotary head speed(r/min) | 10/20/25/40/50/
60/70/100/120/140 | 10/20/30/35/40/60/
65/70/85/130/170 |
| Rotary head Torque(N.m) | 6800 | 7500 |
| Stroke(mm) | 3400 | 3400 |
| Mast sliding stroke(mm) | 900 | 1500 |
| Rotary head lifting force(KN) | 65 | 70 |
| Rotary head lift speed(m/min) | 0~1.4/7/18/26 | 0~5/7/23/30 |
| Rotary head feeding force(KN) | 33 | 36 |
| Feeding speed(m/min) | 0~2.8/14/36/80 | 0~10/14/46/59 |
| Power(KW) | 55+18.5+2.2 | 55+18.5+2.2 |
| Weight(kg) | 6400 | 6500 |
| Overall(L×W×Hmm) | 5400×2100×2000 | 5400×2100×2000 |
| Weight(kg) | 6400 | 6500 |
Jiangsu Wuxi Mineral Exploration Machinery General Factory Co., Ltd. (brief name: Jiangsu XiTan ) was was founded in 1956 with a registered capital of 20 million and is a large-scale key enterprise in the industry of geological exploration field.
Our factory covers more than 60, 000 square meters. Equipped with more than 60 years professional manufacturing experience and professional production team as well as more than 200 excellent skillful workers, more than 20 experienced engineers and more than four hundred sophisticated equipments, the high quality drilling equipments will be manufactured.
Our company has advanced and scientific production technology and capacity as well as rapid innovation ability, so that our products account for a large market share in the domestic market. At the same time, our drilling rigs have been exported to Vietnam, Brunei, Iran, Britain, Nigeria and other countries and regions.
We have received the ISO9001-2000 quality system certification. We also obtain the science and technology progress award and second prize issued by the China National Light Industry Association.
Our company is located in Wuxi City. It is 2 km away from the railway station, convenient in traffic and beautiful in environment.
Our company supplies different kinds of products. High quality and reasonable price. We stick to the principle of "quality first, service first, continuous improvement and innovation to meet the customers" for the management and "zero defect, zero complaints" as the quality objective. To perfect our service, we provide the products with good quality at the reasonable price.
