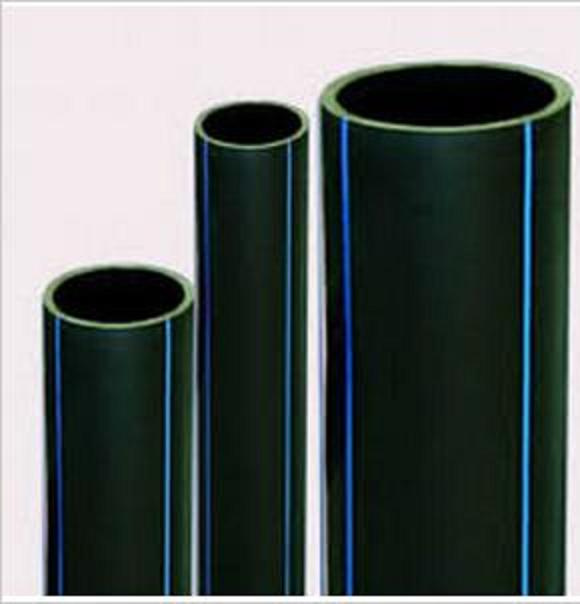

Full Range Diameter Water Supply PE Pipe

Full Range Diameter Water Supply PE Pipe
Price: US $ 1/Meter
Min Order: 1/Meter
Pay Type: L/C,T/T
Prod Model: dn20-dn1200
Material: PE
Hardness: Hard Tube
Type: Thermoplastic Pipe
Hollow: Hollow
Shape: Round
Usage: Water Supply Pipe
Color: Black with Blue Stripe

Product Description

"Senpu" PE pipe features
1. Long working lifespan as min. 50 years.
2. Excellent performance on shock-resistance and low-temperature resistance, brittle temperature could be -70°C.
3. Good Chemistry stability, corrision resistance of all kinds of acid,alkali and salt.
4. Good toughness, warp and earthquake resistance.
5. Sanitary enough, no secondary pollution to drinking water(pipe for water supply).
6. Light weight, convenient to carry and transport.
7. Easy to construct, simple welding process,low project cost.
8. Heat or electric fusion connection, reliable property, low rate of fracture or leakage.
9. High quality raw material, PE80 or PE100.
10. Reach or above the national standard GB/T13663-2000.
Suitable for liquid tranportation which temperature not above 40°C(buried or hided).

PE pipe for water supply specification:
PE Pipe for Water Supply(PE100)
Nominal outside diameter dn(mm)Nominal wall thickness(mm)
PN0.6PN0.8PN1.0PN1.25PN1.6
SDR26SDR21SDR17SDR13.6SDR11
20----2.3
25---2.3 2.3
32--2.3 2.4 3.0
40-2.3 2.4 3.0 3.7
502.3 2.4 3.0 3.7 4.6
632.4 3.0 3.8 4.7 5.8
752.9 3.6 4.5 5.6 6.8
903.5 4.3 5.4 6.7 8.2
1104.2 5.3 6.6 8.1 10.0
1254.8 6.0 7.4 9.2 11.4
1405.4 6.7 8.3 10.3 12.7
1606.2 7.7 9.5 11.8 14.6
1806.9 8.6 10.7 13.3 16.4
2007.7 9.6 11.9 14.7 18.2
2258.6 10.8 13.4 16.6 20.5
2509.6 11.9 14.8 18.4 22.7
28010.7 13.4 16.6 20.6 25.4
31512.1 15.0 18.7 23.2 28.6
35513.6 16.9 21.1 26.1 32.2
40015.3 19.1 23.7 29.4 36.3
45017.2 21.5 26.7 33.1 40.9
50019.1 23.9 29.7 36.8 45.4
56021.4 26.7 33.2 41.2 50.8
63024.1 30.0 37.4 46.3 57.2
71027.2 33.9 42.1 52.2 63.6
80030.6 38.1 47.4 58.8 72.7
90034.4 42.9 53.3 66.2 81.8
100038.2 47.7 59.3 73.5 -
120046.2 57.1 70.6 --




As a wholly-owned subsidiary established by Sichuan Senpu Pipe Co., Ltd. (hereinafter referred to as "Sichuan Senpu") for local product manufacturing and sales, Tianjin Senpu Pipe Co., Ltd. (hereinafter referred to as "Tianjin Senpu"), covering an area of 100mu, is located at Anda Industrial Park, Dagang development Zone in Tianjin Binhai New Area, a national key economic development zone. It is adjacent to urban area of Tianjin and Tanggu and close to Jingang Highway, Tangjin Expressway, Tianjin Airport and Tanggu Harbor with highly convenient traffic.

Tianjin Senpu is specialized in the development, manufacturing and sales of plastic pipes and products, including water feeding polyethylene (PE) pipes and pipe fittings; Buried and gas-feed PE pipes; Cold/hot water PE (PP-R) pipes and pipe fittings, PE single/double resistance pipe for coal mine and pipe fittings; Chlorinated polyvinyl chloride (C-PVC) cable sheath pipes and pipe fittings; Floor-heating heat-resistant PE (PE-RT) and crosslinked polyethylene (PE-X) pipe fittings; Buried and water-discharge PE (STHDPE) double-wall corrugated pipe; Buried and water-discharge steel reinforced PE (GPE) spiral corrugated pipe, with almost 1, 000 specifications and annual output is above 20, 000t per year. Senpu passed ISO9001, ISO14001, CQC cartificates, is the "New and High-tech Enterprise" of Tianjin Binhai New Area. It is also one of the five exam base of "Special Type Device Welding Operation Staff". Relying on advanced production equipment, mature technical process and complete test equipment, Tianjin Senpu is highly competitive in the industry.

By adhering to the quality policy of "Offering Environmentally Friendly, Energy-Saving, Economical and Reliable Plastic Pipe System to the Society", market servicing concept of "Trustworthy Senpu Pipe", as well as the enterprise mission of "Creating Wealth for Society, Value for Customer, Return for Shareholder and Future for Staffs", Tianjin Senpu won the trust, support and reputation from society, customers and staffs. Based on high-quality products and thoughtful services, it has taken prevalence among all kinds of foreign and domestic customers in market and reached high level in market share. Moreover, Tianjin Senpu would like to cooperate with experts, peers, colleges & universities and scientific research units at home and abroad to make positive contribution to the environmentally friendly and energy-saving plastic products of China!
