| Price: | US $ 0.9-2.7/Pairs |
|---|---|
| Min Order: | 1000/Pairs |
| Pay Type: | T/T,Western Union,Paypal,Money Gram |

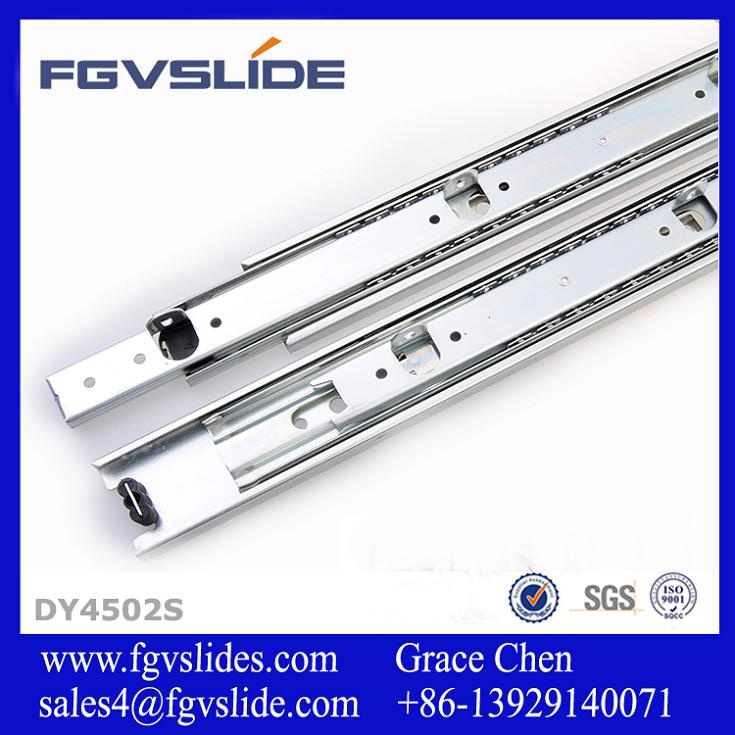

| Prod Model: | DY4502S-0905 |
|---|---|
| Load Rate: | 45kg |
| Product Mount Method: | Side Mounting |
| Width: | 45mm |
| Test: | SGS |
| Finish: | Electro-Zinc Plated or Black |
| Gap: | Gap of Every Side Is 12.7+_0.2mmmm |
| Thickness Of Material(O/M/I): | 1.0*1.0*1.2mm;1.2*1.2*1.5 |
| Material: | Iron |
| Rail: | Linear |
| Structure: | Two Knots |
| Slide Type: | Steel Ball Type |
|
Thickness(O/M/I):1.0*1.0*1.2 mm/ 1.2*1.2*1.5 mm
Load capacity: 35kg/45kg
Length: 250-600 mm (10"-24"), customized sizes available
Material: Work hardened cold rolled steel
Finish: Zinc-plated
Width: 45mm
Gap: 12.7+-0.2mm
Installation: Side installation
Certification: ISO9001
Test: SGS test, 48 hours salt spray test,
Extension: Full extension / single extension
Brand name: FGVSLIDE
MOQ: 20 feet container
Supply ability:100000 pairs per week

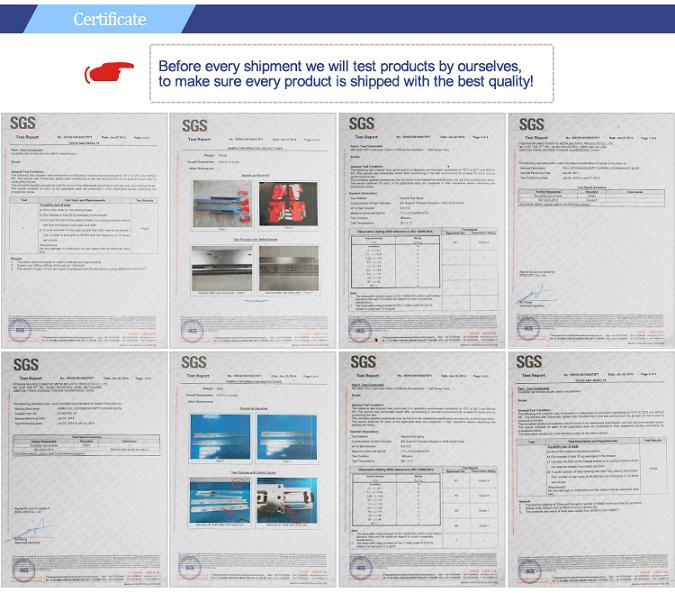

Testing | SGS TEST |
Passed over 50,000 open-close | |
Passed 48 hours salt spray test | |
Passed 45 pounds load test | |
Sample | Sample free and small order can be accepted |
Features | Strengthened adjustable screw can widen the adjustable ranges and longer using life. |
thickness : 1.5*1.5*1.5mm | |
longer life time,smaller volume |
Thickness(mm) | Length(mm) | N.W.(kg)/box | G.W.(kg)/box | CTN SIZE(mm) |
1.0*1.0*1.2 | 250 | 11.25 | 11.75 | 270*200*100 |
1.0*1.0*1.2 | 300 | 13.5 | 14 | 320*200*100 |
1.0*1.0*1.2 | 350 | 15.75 | 16.25 | 370*200*100 |
1.0*1.0*1.2 | 400 | 18 | 18.5 | 420*200*100 |
1.0*1.0*1.2 | 450 | 20.25 | 20.75 | 470*200*100 |
1.0*1.0*1.2 | 500 | 22.5 | 23 | 520*200*100 |
1.0*1.0*1.2 | 550 | 24.75 | 25.25 | 570*200*100 |
1.0*1.0*1.2 | 600 | 27 | 27.5 | 620*200*100 |
1. What's the MOQ for the first time purchasing?
If make logo and brand package, MOQ is 20 feet container. If there is no need for brand logo and
package, MOQ is 500 pairs per size.
2. Before purchasing, how can we get to know the quality?
We can send sample to you to check. Also customer can appoint some agent to inspect the mass
production quality in our factory to make sure the quality.
3. What will be the loading capacity for 20ft container?
Max loading capacity is 27 tons, but exact loading capacity depends on the slide model you choose
and the country you are from, for further information, please consult from our sales.
4. What will be the delivery time?
Normally is 25-30 days after order confirmed by both parties.
5. What are the payment terms?
TT or Cash or LC,30% deposit, against B/L
6. What should we do if goods are received with some quality problems?
All goods have been inspected during the assembling and packing, the chance to get defective slide is
very rare. If there are some quality problems, such as finish problem,
-------------------------------------------------------------------------------------------------
