| Prod Model: |
FY- MXTA |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| OEM Service: |
Available |
| Warranty: |
1 Year |
| Certificate: |
Ce, ISO9001:2008 |
| Working Pressure: |
700 Bar |
| Type: |
Torque Wrench |
| Material: |
Aluminum Alloy |
| Standard: |
Metric |
| Feature: |
Anti-Explosion |
| Brand: |
Feiyao |
| Surface Treatment: |
Anodising |
Product Description

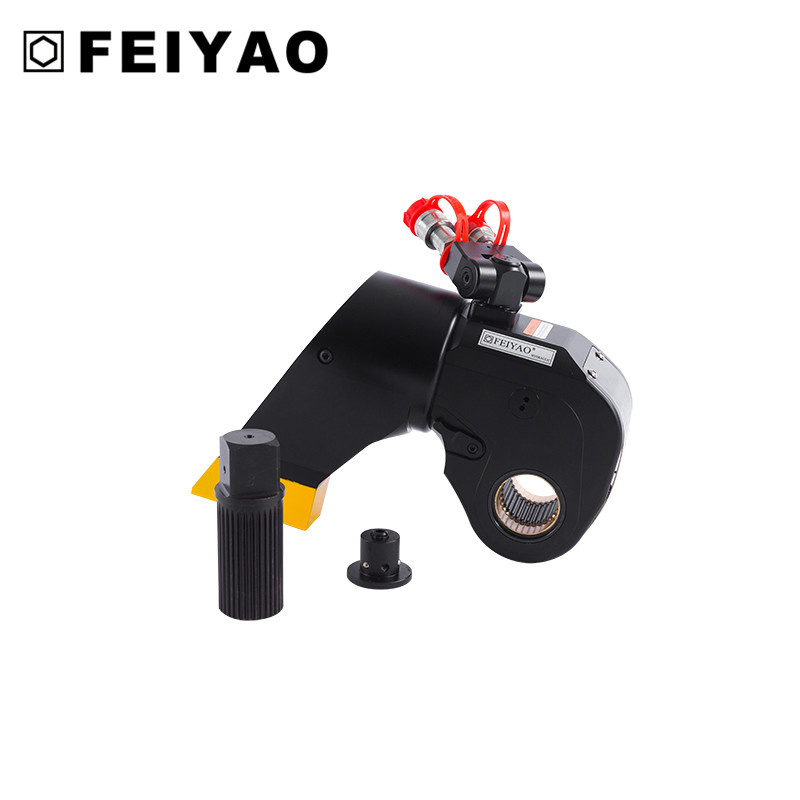

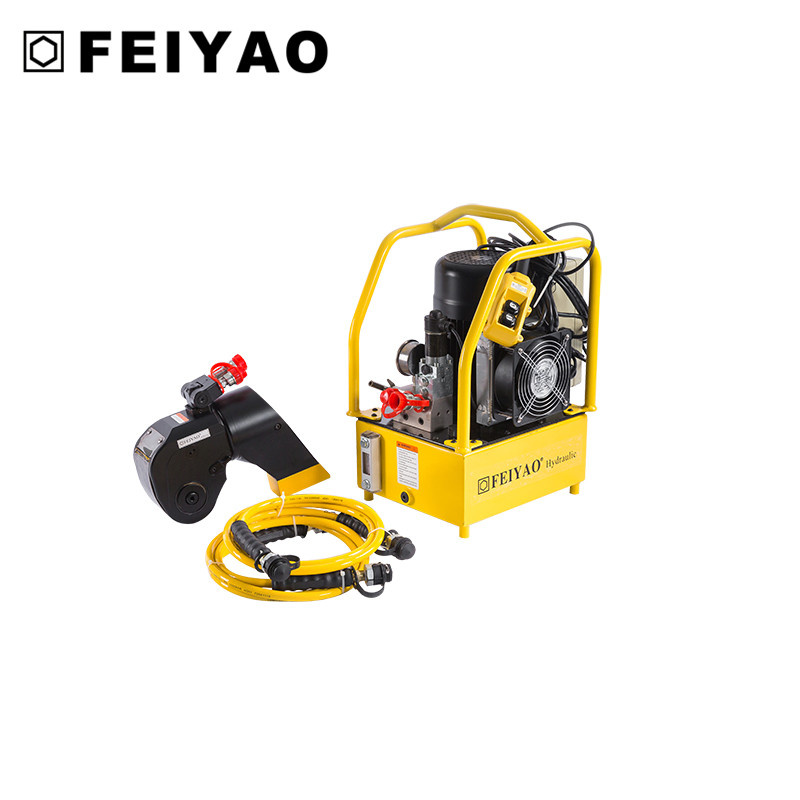

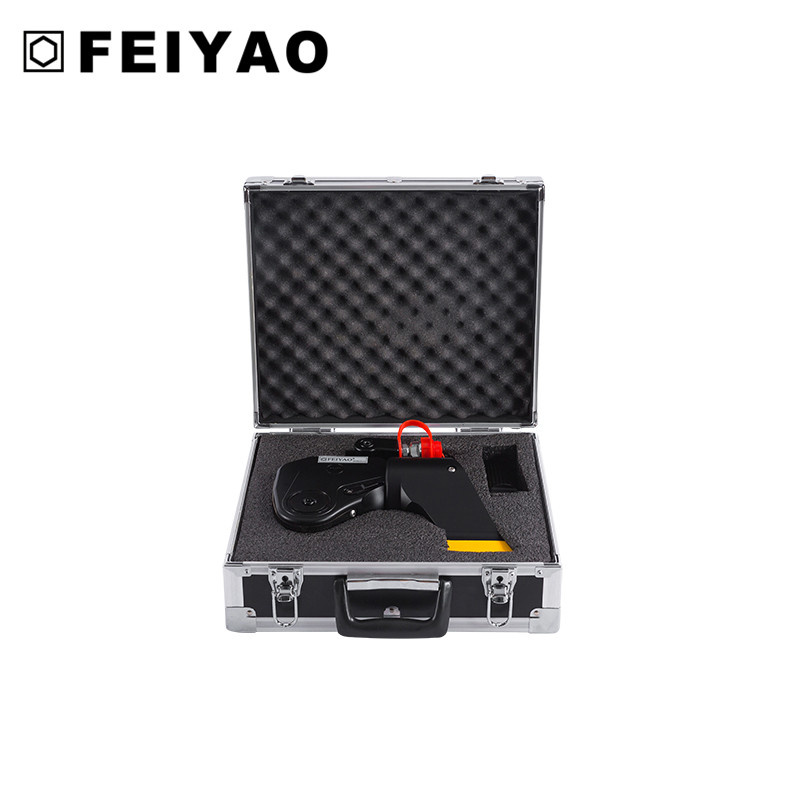

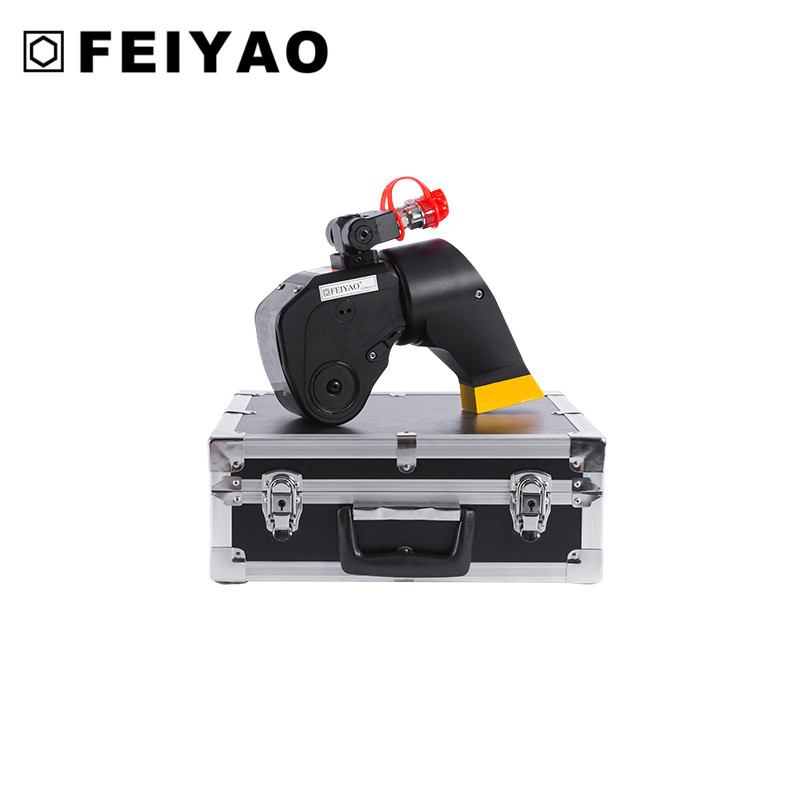

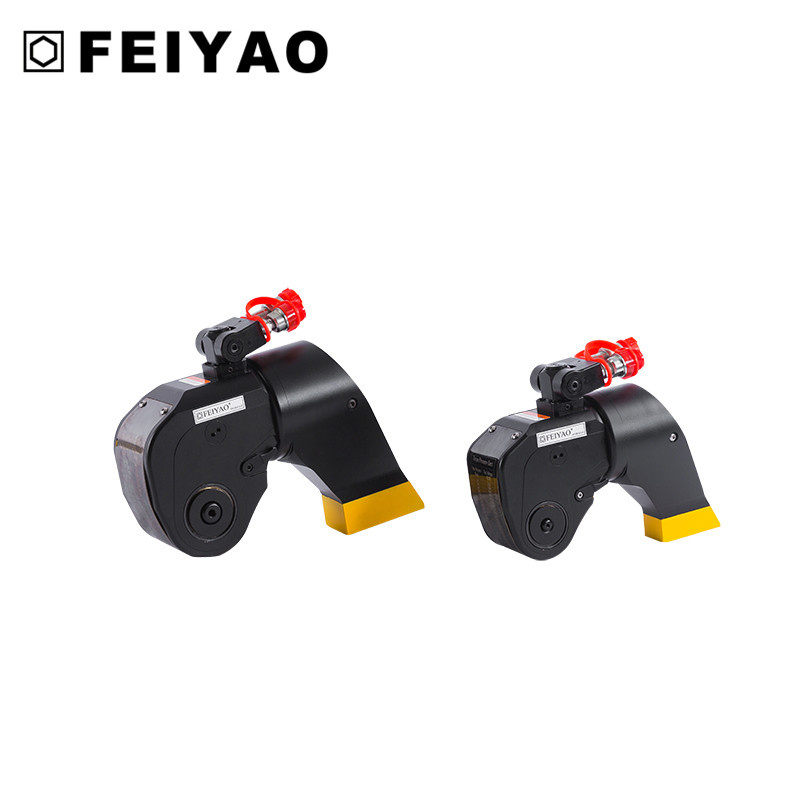

The description of FY- 08 MXTA series square drive hydraulic torque wrench
Very high torque to weight ratio
High speed, double acting operation
High degree of rotation angle
Never jam mechanism
High repeatability, with accuracy ± 3%
The 360 degree swivel coupler can be freely operated, and allow easy access in all position.
The trigger style lock can be pressed easily, and it may situate the reaction arm of 360 degree trimming style on the support freely.
Push button drive release; No tools needed to reverse square or allen key drives for tighening or loosening
Application
Our products have been widely used in industrial field such as steel plant, cement industry, chemical and refinery, bridge, railway construction and maintenance.
About our company

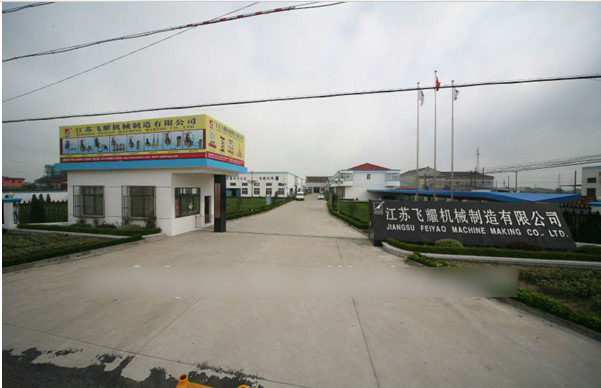

Established in 2004, Jiangsu feiyao machinery manufacturing factory is an professional leading manufacturer of hydraulic tools in China. Such as PLC lifting system, hydraulic cylinder, torque wrench, nut splitter, flange spreader, gear pullers, hydraulic pumps and accessories ect.
Our products have been widely sold to Europe, south East Asia and Middle East, and have got high appreciation and trust from all our customers. Whenever you need hydraulic products, please remember our company is always your reliable friends.
Our well equipped facilities and excellent quality control enables us meet customers` satisfaction. Besides, we have gained CEand ISO9001certificates.
We warmly welcome all overseas customers to talk with us about business or other corporations
Model
| FY- 02MXTA
| FY- 05MXTA
| FY- 08MXTA
| FY- 10MXTA
| FY- 16MXTA
| FY- 20MXTA
| FY- 27MXTA
| FY- 39MXTA
| FY- 50MXTA
| FY- 60MXTA
|
Max. Torque (N.M)
| 1940
| 4763
| 8012
| 10704
| 15633
| 20782
| 28286
| 39584
| 50844
| 58673
|
Min.torque(N. M)
| 139
| 340
| 572
| 765
| 1117
| 1484
| 2020
| 2827
| 3632
| 4263
|
Screw size(mm)
| 24-55
| 32-75
| 41-85
| 46-95
| 55-105
| 60-115
| 65-130
| 75-145
| 95-170
| 105-185
|
Bolt size(M)
| 16-36
| 22-48
| 27-56
| 30-64
| 36-72
| 39-80
| 42-90
| 48-100
| 64-120
| 72-130
|
axle
| 3/4"
| 1"
| 1-1/2"
| 1-1/2"
| 1-1/2"
| 2-1/2"
| 2-1/2"
| 2-1/2"
| 2-1/2"
| 2-1/2"
|
weight (kg)
| 2.3
| 5.2
| 8
| 12
| 14.8
| 18.9
| 28
| 41.2
| 46.3
| 53.5
|
Concentrate on the design and manufacture of hydraulic products, Jiangsu Feiyao Machinery Manufacturing Co., Ltd is a professional hydraulic manufacturer who integratesR&D, marketing, customer service and import & export. With strict and efficient manufacturing&operation system and perfect quality control and guarantee system, FEIYAO provides a full range of engineering solutions for customers.
Relies on advanced research and application technology and with joint effort of domestic professionals, FEIYAO has developed high-end hydraulic products (already has a number of invention patents) and capacity of customizing a variety of scientific and reasonable solutions in rich product lines. Through continual innovations in designs and applications, FEIYAO provides high-quality hydraulicproducts for customers.
Based on the advanced computer control technology, in the past decades, FEIYAO has been devoted itself to providing customers with engineering solutions in the heavy load, high precision control, multi logical action and multi-point control fields, etc., and offering safe&efficient equipment and services in all kinds of applications like multi-point synchronous push, translation, lifting, stretching, walking, asymmetric component weighing, tension, space adjustment, intelligent walking, handling large equipment.
At present, the company's products have been widely used in many industries at home and abroad, such as the construction and maintenance of roads and bridges, installation and moving of offshore oil platform, historic buildings, sports gymnasiums, blast furnaces, power equipment and ocean shipping manufacturing.
The synchronous hydraulic lifting systems have made a great contribution to the bridgelifting and maintenance in China, which has won praise from numerous bridge construction enterprises!
