| Price: | US $ 1000-1500/Piece |
|---|---|
| Trade Terms: | FOB,CFR,CIF |
| Min Order: | 1/Piece |
| Pay Type: | L/C,T/T,Western Union,Paypal,Money Gram |
| Prod Model: | FY-EP |
|---|---|
| Markets: | North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Name: | Electric Hydraulic Pump |
| Color: | Yellow |
| Working Pressure: | 700bar |
| OEM Service: | Available |
| Warranty: | 1 Year |
| Certificate: | Ce, ISO9001:2008 |
| Voltage: | 220V/380V |
| Frenquence: | Can Be Customized |
| Flow: | 0.4-5L/Min |
| Power: | 0.55-5.5kw |
| Pressure Medium: | Oil |
| Type: | Desktop |

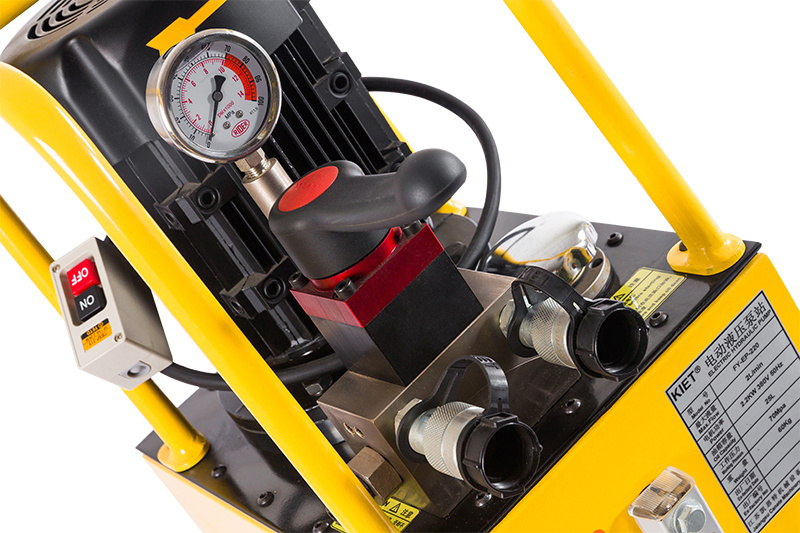

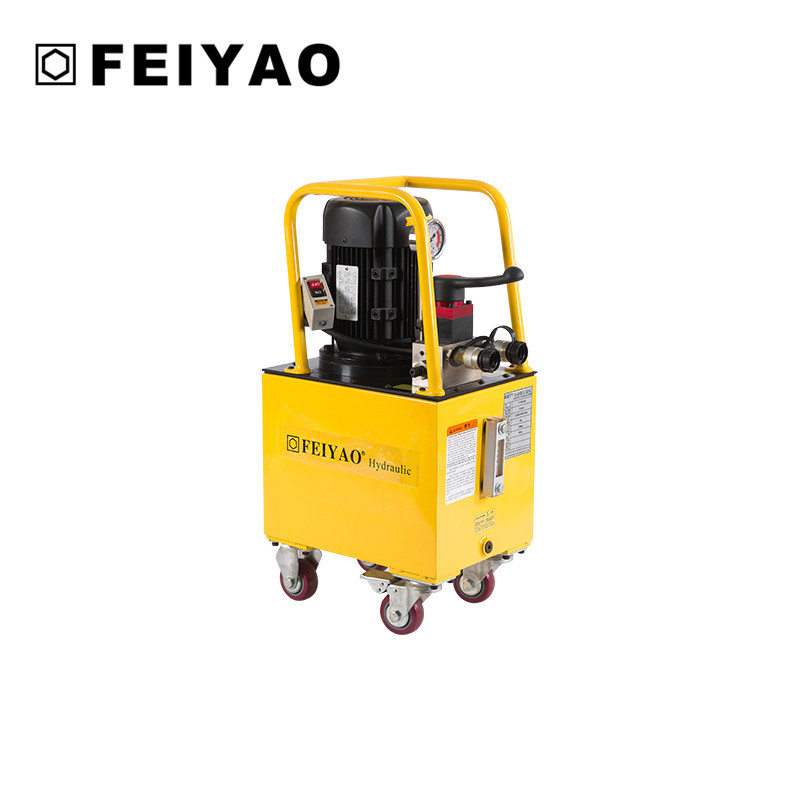

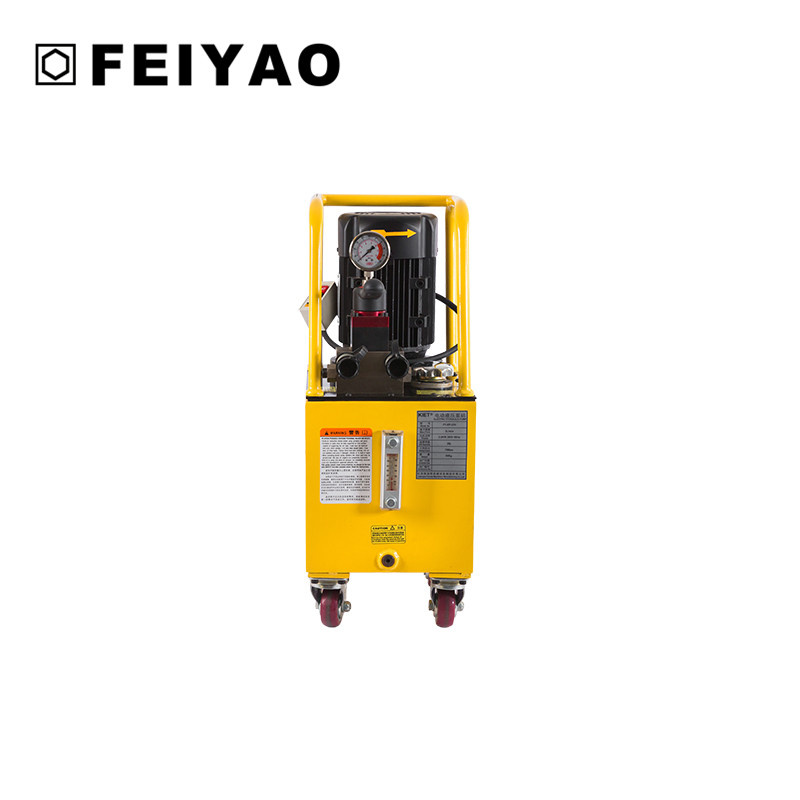

FY-EP high quality two stage double acting hydraulic electric pump
Double-speed designed, infinitely variable pressure adjustment between 0-700 bar. Double-acting electric hydraulic pump with manual valve EP series 70Mpa electric pump,hydraulic pump.
Features
1. Two stage pump with heat exchange, 380v, 50Hz, three phase
2. The maximum operating pressure: 70Mpa
3. Flow: low pressure 10 L/min, high pressure 4L/min
4. Operation: suitable for single and multioperation (2 pair ports)
Specifications
| Model | Working Pressure(Mpa) | Flow (L/Min) | Tank Capacity | Motor Power(kw) | Voltage(v) | Dimension(L×W×H) (mm) | Weight(kg) | ||
| high pressure | low pressure | high pressure | low pressure | (L) | |||||
| FY-EP-75 | 70 | 0.8 | 12 | 0.75 | 380 | 400×260×440 | 30 | ||
| FY-EPR-150 | 70 | 0.8 | 12 | 1.5 | 220 | 400×260×440 | 30 | ||
| FY-EP-150 | 70 | 10 | 1 | 6 | 24 | 1.5 | 380 | 500×350×600 | 60 |
| FY-EP-220 | 70 | 10 | 1.5 | 7 | 50 | 2.2 | 380 | 500×350×600 | 90 |
| FY-EP-220 | 70 | 10 | 1.5 | 7 | 60 | 2.2 | 380 | 610×450×860 | 90 |
| FY-EP-550 | 70 | 10 | 4 | 10 | 100 | 5.5 | 380 | 750×540×880 | 120 |
Brief Introduction of FEIYAO
Established in 1978, Jiangsu Feiyao Machinery Manufacturing factory is an professional leading manufacturer of hydraulic tools in China, such as PLC lifiting systerm, hydraulic cylinders, torque wrench, nut splitter, flange spreader, gear pullers, hydraulic pumps and accessories etc.
Our products have been widely sold to Europe, South-east Asia and Middle East, and have got high appreciation and trust from all our customers. Whenever you need hydraulic products, please rememmber our company is always your reliable friends.
Our well-equipped facilities and excellent quality control enables us meet customers' satisfaction. Besides, we have gained CE and ISO9001 certificates.
We warmly welcome all overseas customers to talk with us about business or other cooperations.Any phone call, E-mali, Fax from you would be a beginning of happy cooperation.
Workshop

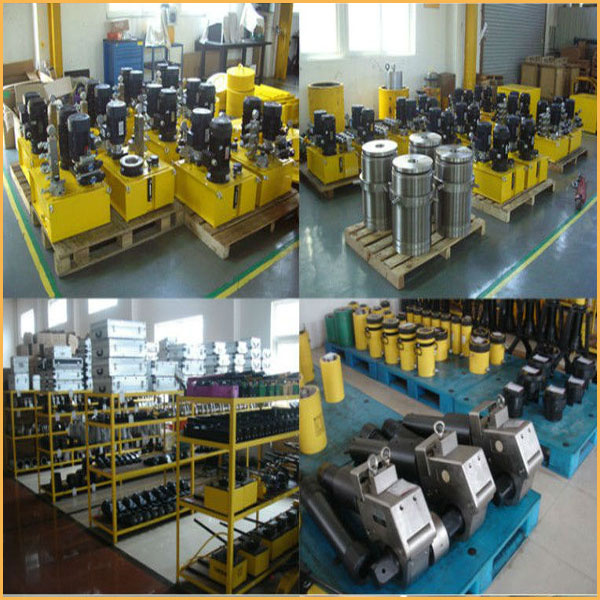

Warehouse
FAQ
Q1: How to contact sales?
A1: Please email or call: +86-13901432906 for pre-sales.
Q2: How to make payment?
A2: Once order confirmed, we will prepare proforma invoice with our banking details.
Q3: How long does it take to process orders?
A3: It usually takes 10-14 business days to process most orders for no stock. If stock available, it only takes 2-3 business days.
Q4: What is the packing method?
A4: For small piece, we use carton box; for big piece, we use exporting grade plywood case.
Q5: How to ship?
A5: Sea freight, Air freight or International express(DHL, FEDEX,UPS...) all are available.
Q6: What is the warranty?
A6: 12 months against B/L date.
Contact Us
Jiangsu Feiyao Machinery Manufacturing Co., Ltd
Contact Person: Mr. Kevin
Tel: +86-13901432906
Web: www.fyhydraulic.com
