| Price: | US $ 1000-10000/Piece |
|---|---|
| Min Order: | 1/Piece |
| Pay Type: | L/C,T/T,Western Union,Paypal |
| Prod Model: | FY-MXTA |
|---|---|

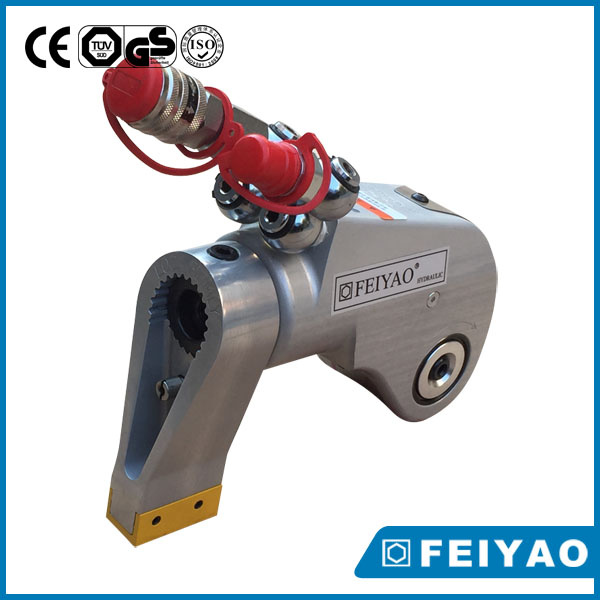

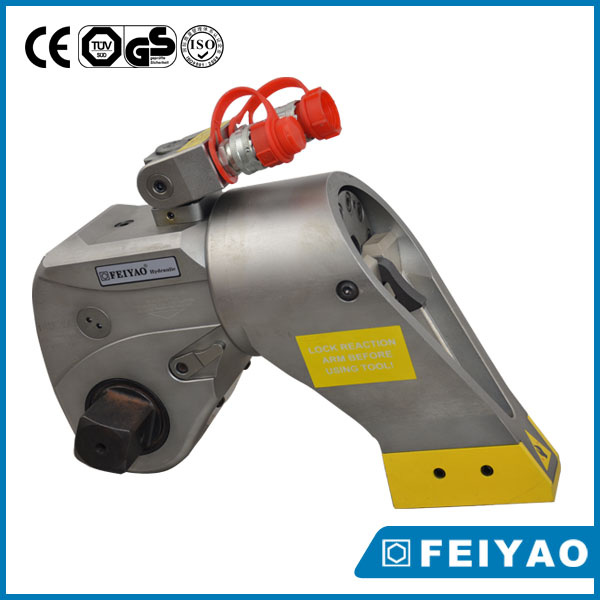

| Product Name: | Low Price Square Drive Hydraulic Torque Wrench |
| Material: | Al-Ti Alloy |
| Color: | Silvery |
| Business Type: | Manufacturer |
| Power: | Hydraulic |
| Standard: | Standard |
| MOQ: | 1PC |
| Torque Range: | 183-48666nm |
| Nut Hex: | 24-165mm |
| Bolt Size: | 16-115mm |
♣ no tools needed for changing hexagon heads
♣ versatility: one hydraulic drive unit per torque capacity can be used to drive any hexagon head within that range
♣ innovative, pinless wrench construction with quick release drive and automatic crank engagement fast operation due to the large nut rotation per wrench cycle(30 degree)and rapid return stroke, double acting
♣ constant torque output provides high accuracy (±3%) across the full stroke
♣ 360 degree swivel manifold with screw lock couplers
♣ optional interchangeable metric and imperial hexagon heads and reducer inserts
Application
Our products have been widely used in industrial field such as steel plant, cement industry, chemical and refinery, bridge, railway construction, ship building and maintenance.
Product Parameter
| Model | FY-1MXTA | FY-3MXTA | FY-5MXTA | FY-8MXTA | FY-10MXTA | FY-20MXTA | FY-25MXTA | FY-35MXTA |
| Torqu Range(N.M) | 183-1837 | 451-4512 | 752-7528 | 1078-10780 | 1551-15516 | 2666-26664 | 3472-34725 | 4866-48666 |
| Torqu Range(Lbf.ft) | 135-1359 | 334-3339 | 556-5571 | 835-7977 | 1148-11482 | 1973-19731 | 2569-25697 | 3601-36013 |
| Nut Opposite Side Length (mm) | 24-55 | 34-75 | 41-85 | 46-95 | 55-105 | 65-110 | 75-145 | 95-165 |
| Bolt size(M) | 16-36 | 22-48 | 27-56 | 30-64 | 36-72 | 42-90 | 48-100 | 64-115 |
| Square Drive(inch) | 3/4" | 1" | 1-1/2" | 1-1/2" | 1-1/2" | 2-1/2" | 2-1/2" | 2-1/2" |
| Weight(kg) | 2 | 4.4 | 7.5 | 9.1 | 13.2 | 23.2 | 31 | 43.2 |

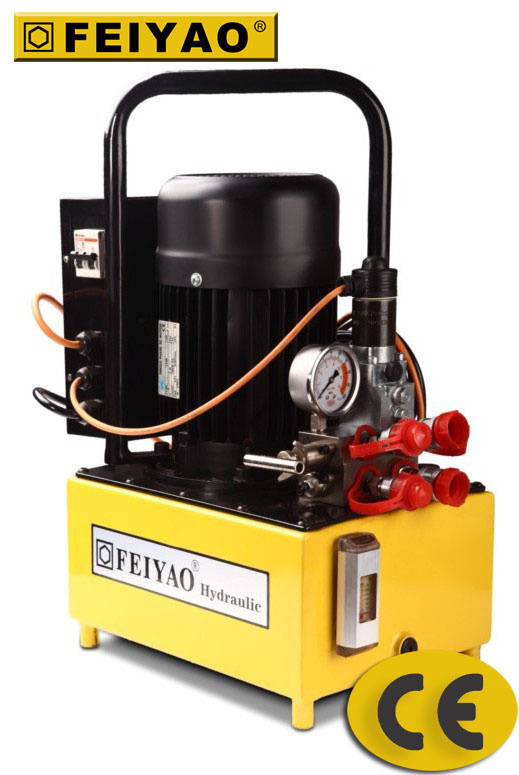

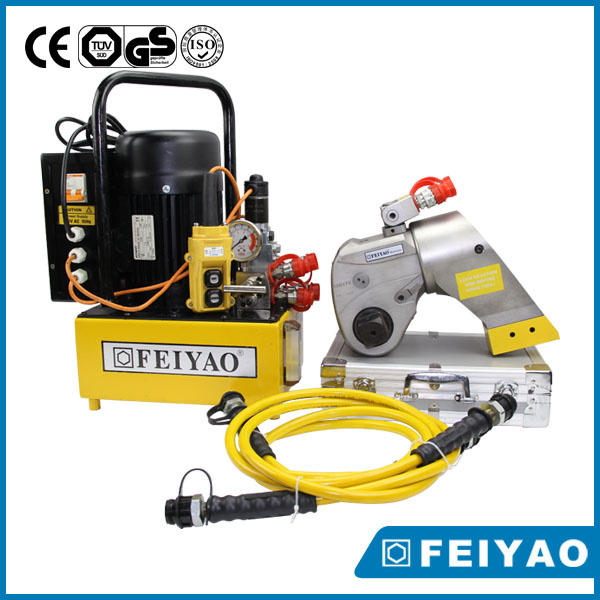

SUITABLE HYDRAULIC ELECTRIC PUMP
HYDRAULIC CONNECTING HOSE
ID: 1/4"
Couplers: 3/8" or 1'4'' Screw Connection ( Ball or needle Type )
Rating: 4:1
Working Pressure: 10,000 psi ( 700 Bar )
Burst Pressure: 40,000 psi ( 2800 Bar )
Construction: Steel Braid
Length: 6m,7.5m,10m,15m and any lengths available
Company Introduction
Jiangsu Feiyao Machinery Manufacturing Co., Ltd. is a professional hydraulic tools manufacturer with 30-year experience in the design, production, sale and service of Hydraulic Products, Electrical Control Equipment and Mechanical Devices.
Jiangsu Feiyao has been in hydraulic tools industry since 1978. Mainly export:
Hydraulic cylinder jacks (5-1500ton), single double acting, hollow plunger; low height, lock nut;
Hydraulic torque wrenches(100-72000Nm);
PLC synchronous lifting system;
Hydraulic lifting pumps, manual and electric type;
Hydraulic pullers, manual and hydraulic type;
Hydraulic bolt tensioners;
Hydraulic flange spreader, manual and hydraulic type;
Hydraulic steel wire rope press machine;
Hydraulic accessories(hoses, couplers, oil distributors, etc.);
Over the years we have grown into a diversified market based that now services customers all over the world. We enjoy listening to our customers needs and ideas while working hard to provide the best service and delivering the highest quality of parts.
We believe "service" is our number one customer. We hope our commitment to provide our customers quickly and efficiently with competitive prices will keep you coming back.

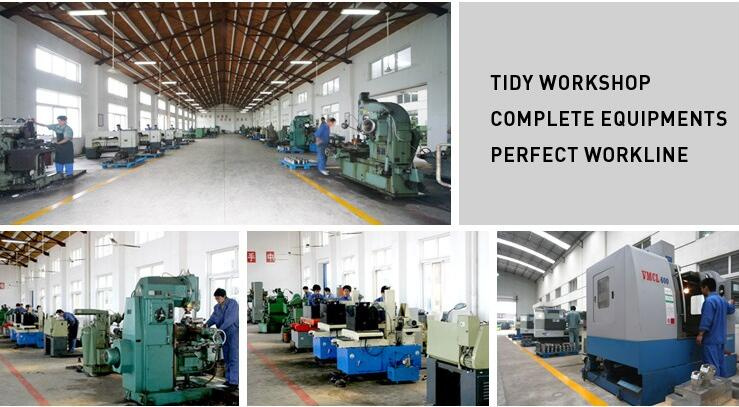

Factory Show
FAQ
Q1: How to contact sales?
A1: Please call: +86-180-1829-0911 for pre-sales.
Q2: How to make payment?
A2: Once order confirmed, we will prepare proforma invoice with our banking details.
Q3: How long does it take to process orders?
A3: It usually takes 10-14 business days to process most orders for no stock. If stock available, it only takes 2-3 business days.
Q4: What is the packing method?
A4: For small piece, we use carton box; for big piece, we use exporting grade plywood case.
Q5: How to ship?
A5: Sea freight, Air freight or International express(DHL, FEDEX,UPS...) all are available.
Q6: What is the warranty?
A6: 12 months against B/L date.
