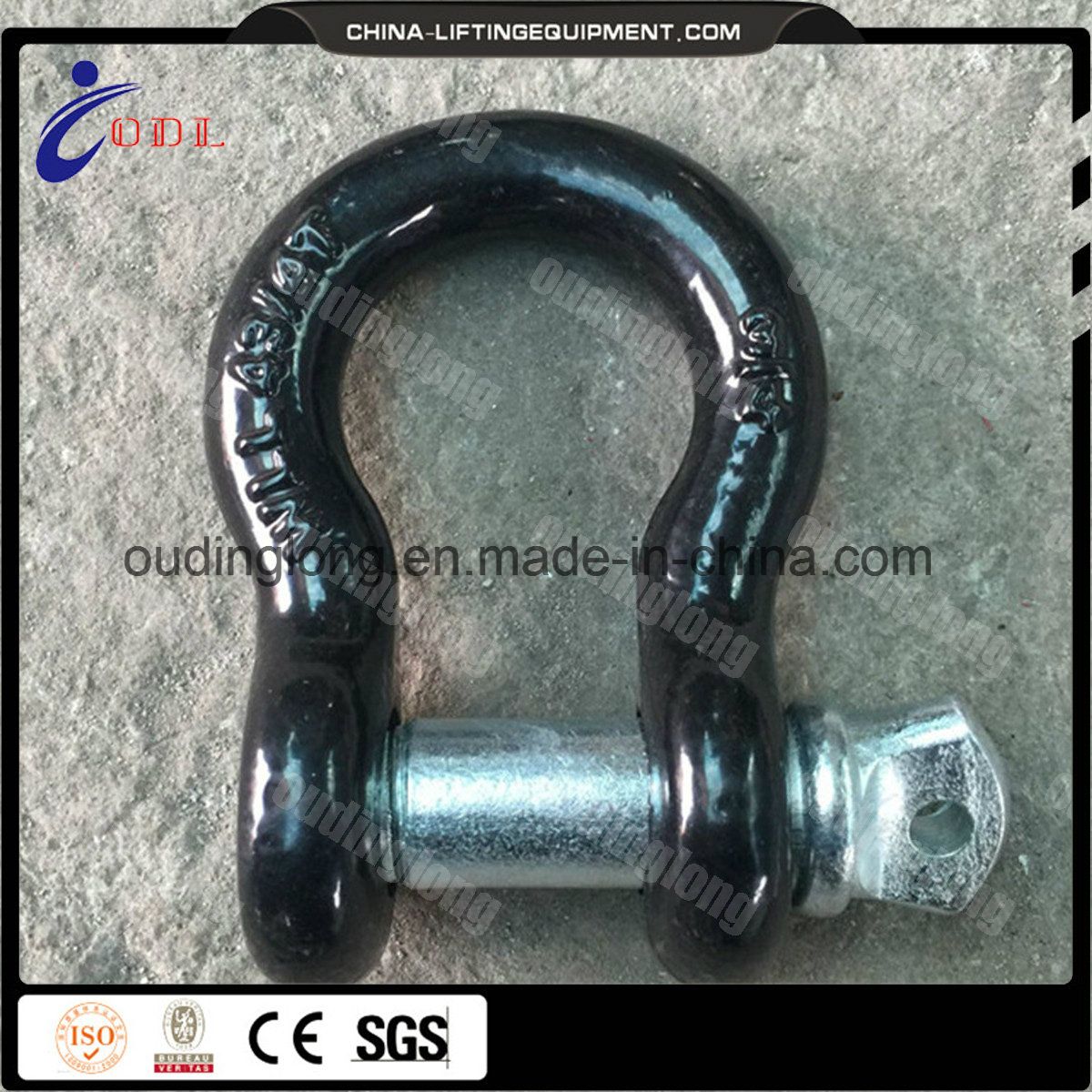

G209 Hot Dipped Galv. Us Type Drop Forged Bow Shackle

G209 Hot Dipped Galv. Us Type Drop Forged Bow Shackle
Price: US $ 0.28-0.3/Piece
Min Order: 100/Piece
Pay Type: L/C,T/T,D/P,Western Union
Prod Model: G209
Brand Name: Odl
Others Surface Treatment: Galvanized, Hot Galvanis
Shackle Material: 45#
Package: According to The Customer
Size: 3/16-2 1/2
Safe Factor: 4:1/6:1
Process: Forged
Delivery Time: Within 15-25days
HS Code: 7326909000
Certification: SGS, Ce, ISO
Material: Alloy Steel

Product Description



Name: G209 Hot Dipped Galv. Us Type Drop Forged Bow Shackle
Material: 45#
Surface: Galvanized
Size: 3/16-4
Safe Factor: 4:1/6:1
Brand Name: ODL

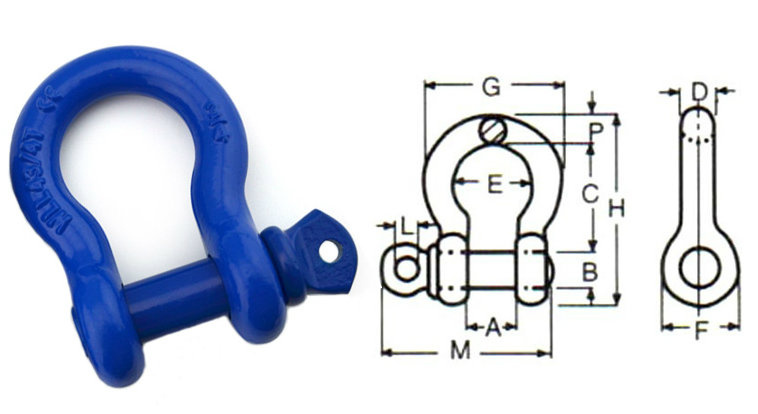

SizeWLL(t)Main technical parametersWeight(kg/pc)
A(mm)B(mm)C(mm)D(mm)E(mm)F(mm)G(mm)H(mm)
  3/160.339.76.422.44.815.214.224.937.30.03
  1/4 0.511.97.928.76.419.815.532.546.70.05
  5/160.7513.59.730.97.921.319.137.353.10.09
  3/8 116.811.236.69.726.223.145.263.20.14
  7/161.519.112.742.911.229.526.951.673.90.17
  1/2 220.61647.812.733.330.258.783.30.33
  5/8 3.2526.919.160.51642.938.174.7106.40.62
  3/4 4.7531.822.471.419.150.84688.9126.21.07
  7/8 6.536.625.484.122.457.953.1102.4148.11.64
1      8.542.928.795.325.468.360.5119.1166.62.28
1  1/8 9.54531.810829.573.968.3131.1189.73.36
1  1/4 1251.635.1119.132.882.676.2146.1209.64.31
1  3/8 13.557.238.1133.436.192.284.1162.1232.76.14
1  1/2 1760.541.4146.139.198.692.2174.82547.8
1  3/4 2573.250.8177.846.7127106.4225314.412.6
2      3582.657.2196.952.8146.1122.2253.2347.520.41
2  1/2 55104.969.9266.768.8184.2144.5326.9453.138.9






























About Us:


OUDINGLONG is located in the beautiful coastal port city ---Qingdao.

OUDINGLONG is a manufacturer of all kinds of riggings with excellent geographical location, exquisite technology, professional skills, enthusiasm for the service we show the world its eternal vitality.

Our main products are all kinds of riggings (Shackle, Turnbuckle , Hook, Wire rope clips ,Chain, Stainless steel riggings and Thimbles. )


With a wide range, good quality, reasonable prices and stylish designs, our products are extensively used in shipping and other industries. Our products are exported to Southeast Asia, the Middle East  Africa,  the United States, Australia, and most countries of Europe.

Choose us, Trust us, is your best choose! !





Our company supplies different kinds of products. High quality and favorable price. We're pleased to get your Inquiry and we will come back to as soon as possible. We stick to the principle of "quality first, service first, continuous improvement and innovation to meet the customers" for the management and "zero defect, zero complaints" as the quality objective. To perfect our service, we provide the products with good quality at the reasonable price.
