G2130 Us Type Drop Forged Bow Shackle Rigging Hardware
| Price: |
US $ 0.2/Piece |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
1000/Piece |
| Pay Type: |
L/C,T/T,D/P,Western Union,Paypal |
| Prod Model: |
G2130 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Size: |
3/16"-4" |
| Price: |
$0.2-$100 |
| Advantage: |
Lowest Price & Good Quality |
| Processing Way: |
Drop Forged |
| Material: |
Steel |
| Shape: |
Bow |
Product Description
Product Description

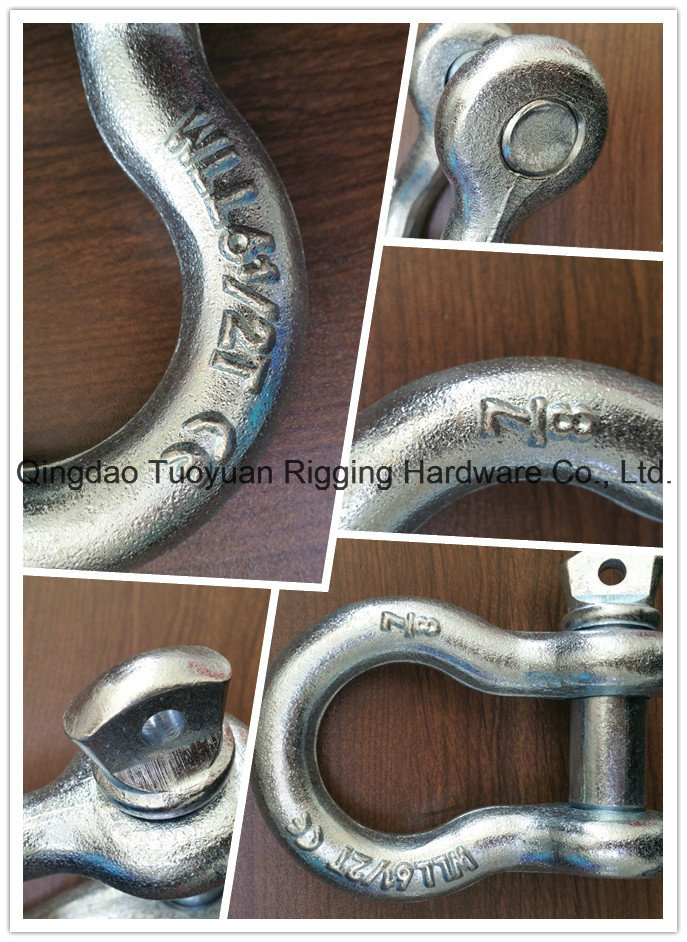

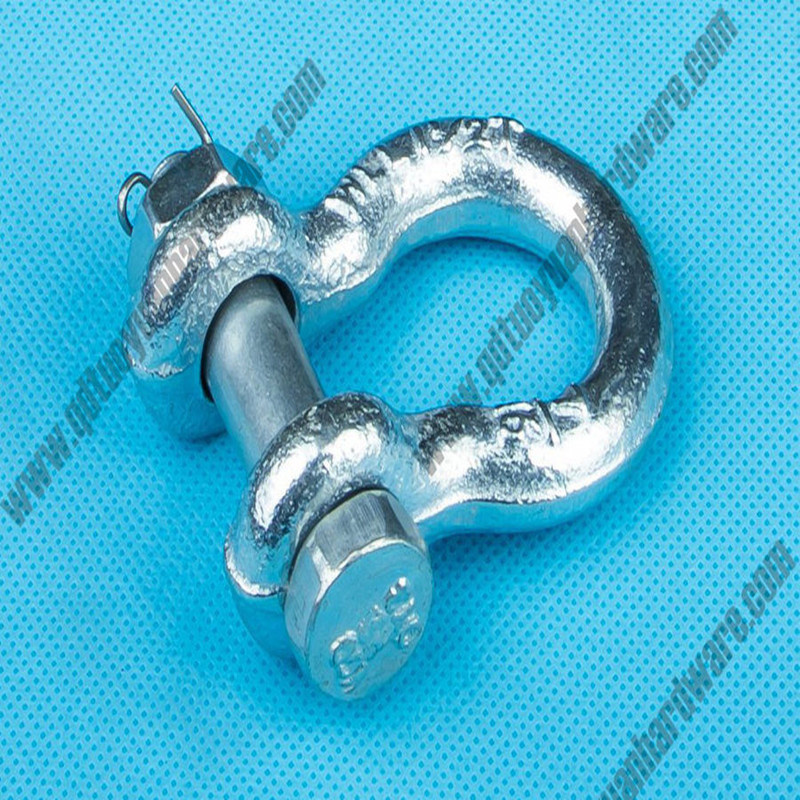

G2130 Us Type Drop Forged Bow Shackle
1.manufacture of rigging hardware for about 30 years
2.Self colour,zinc plated,red painted and so on.
3.Good warranty and after-sales service
4.Competitive price and high quality Nominal
Size
(in.) | Working
Load
Limit
(tons) | Dimensions(in.) |
| A | B | C | D | E | F | G | H | L | M | N |
| 1/4 | 1/2 | 0.47 | 0.31 | 0.25 | 0.25 | 0.97 | 0.61 | 0.88 | 1.59 | 0.19 | 1.38 | 1.34 |
| 5/16 | 3/4 | 0.53 | 0.38 | 0.31 | 0.31 | 1.16 | 0.75 | 1.03 | 1.91 | 0.22 | 1.66 | 1.59 |
| 3/8 | 1 | 0.66 | 0.44 | 0.38 | 0.38 | 1.41 | 0.91 | 1.25 | 2.30 | 0.25 | 2.03 | 1.86 |
| 7/16 | 11/2 | 0.75 | 0.50 | 0.44 | 0.44 | 1.63 | 1.06 | 1.44 | 2.66 | 0.31 | 2.38 | 2.13 |
| 1/2 | 2 | 0.81 | 0.63 | 0.50 | 0.50 | 1.81 | 1.19 | 1.63 | 3.03 | 0.36 | 2.69 | 2.38 |
| 5/8 | 31/4 | 1.06 | 0.75 | 0.62 | 0.63 | 2.31 | 1.50 | 2.00 | 3.75 | 0.44 | 3.34 | 2.91 |
| 3/4 | 43/4 | 1.25 | 0.88 | 0.81 | 0.75 | 2.75 | 1.81 | 2.38 | 4.53 | 0.50 | 3.97 | 3.44 |
| 7/8 | 61/2 | 1.44 | 1.00 | 0.97 | 0.88 | 3.19 | 2.09 | 2.81 | 5.33 | 0.50 | 4.50 | 3.81 |
| 1 | 81/2 | 1.69 | 1.13 | 1.00 | 1.00 | 3.89 | 2.36 | 3.19 | 5.94 | 0.56 | 5.07 | 4.53 |
| 11/8 | 91/2 | 1.81 | 1.25 | 1.25 | 1.13 | 4.06 | 2.69 | 3.58 | 6.78 | 0.63 | 5.59 | 5.13 |
| 11/4 | 12 | 2.03 | 1.38 | 1.38 | 1.25 | 4.53 | 3.00 | 3.94 | 7.50 | 0.69 | 6.16 | 5.50 |
| 13/8 | 131/2 | 2.25 | 1.50 | 1.50 | 1.38 | 5.00 | 3.31 | 4.38 | 8.28 | 0.75 | 6.84 | 6.13 |
| 11/2 | 17 | 2.38 | 1.62 | 1.62 | 1.50 | 5.38 | 3.62 | 4.81 | 9.06 | 0.81 | 7.35 | 6.50 |
| 13/4 | 25 | 2.88 | 2.12 | 2.12 | 1.75 | 6.38 | 4.19 | 5.75 | 10.97 | 1.00 | 9.08 | 7.75 |
| 2 | 35 | 3.25 | 2.00 | 2.00 | 2.00 | 7.25 | 4.81 | 6.75 | 12.28 | 1.22 | 10.34 | 8.75 |
| 21/2 | 55 | 4.13 | 2.62 | 2.62 | 2.62 | 9.38 | 5.69 | 8.00 | 14.84 | 1.38 | 13.00 | -- |

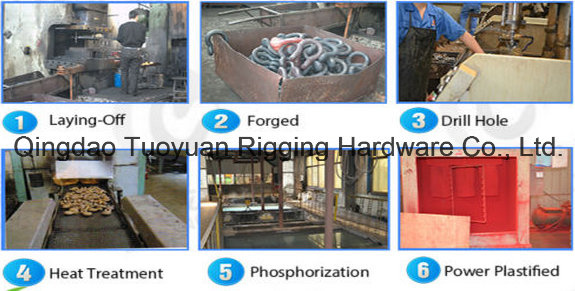

TECHNOLOGY

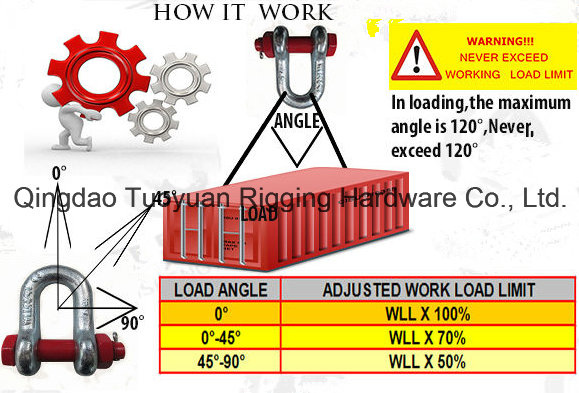

HOW IT WORK
Advantageous Service.1. Customers' special need is welcomed, from mold to samples within 10 days.2. With 10 years' exporting experience, all inquiries responded within 12 hours.3. Exported to over 50 countries, products test reports provided on request.4. ISO, CE Certificated, product quality strictly controlled by QC depart.5. No MOQ limit, Timely delivery, High quality and competitive prices.6. Our Creed: Better because of Specialization.Our Main Products.Our main produce include shackles, turnbuckles, load binders, hooks, eye bolts and nuts, wire rope clips, swivels, snap hooks, stainless steel riggings etc.ABOUT US.......................................................Qingdao TuoYuan Rigging Hardware co.,ltd. is an enterprise that mainly manufactures rigging products. The Factory possesses favorable geographical position, being close to Qingdao and adjacent to Qingdao International Airport Freight Wharf in the south.The Factory mainly engages in producing shackles, turnbuckles, wire rope clips and cast rings with a production capacity of more than several hundreds tons which are mainly exported to Europe, USA, and Asia and won great approval.CONTACT INFORMATION............................................
Qingdao Tuoyuan Rigging Hardware Co., Ltd. is a manufacturer of all kinds of riggings with excellent geographical location, exquisite technology, professional skills, enthusiasm for the service we show the world its eternal vitality.
Our main products are all kinds of riggings ( shackle, turnbucke, wire rope clip, hook chain, wire rope, load binder, eye bolt and nuts, Thimble, )
As a manufacturer, we have 30 years's produce and sales experinece, and we also have more better export service,
With a wide range, good quality, reasonable prices and stylish designs, our products are extensively used in shipping and other industries. Our products are exported to Southeast Asia, the Middle East, Afria, the United States, Australia, and most countries of Europe.
Choose us, Trust us, is your best choose! !
