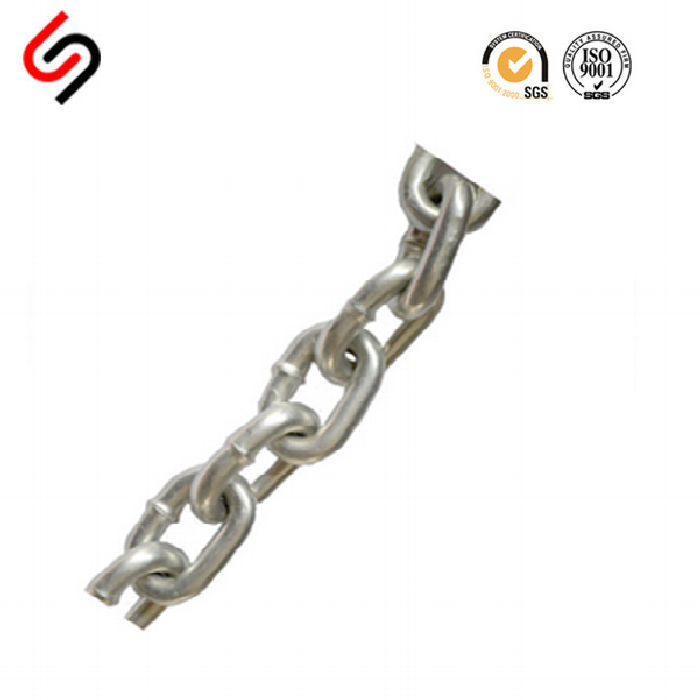

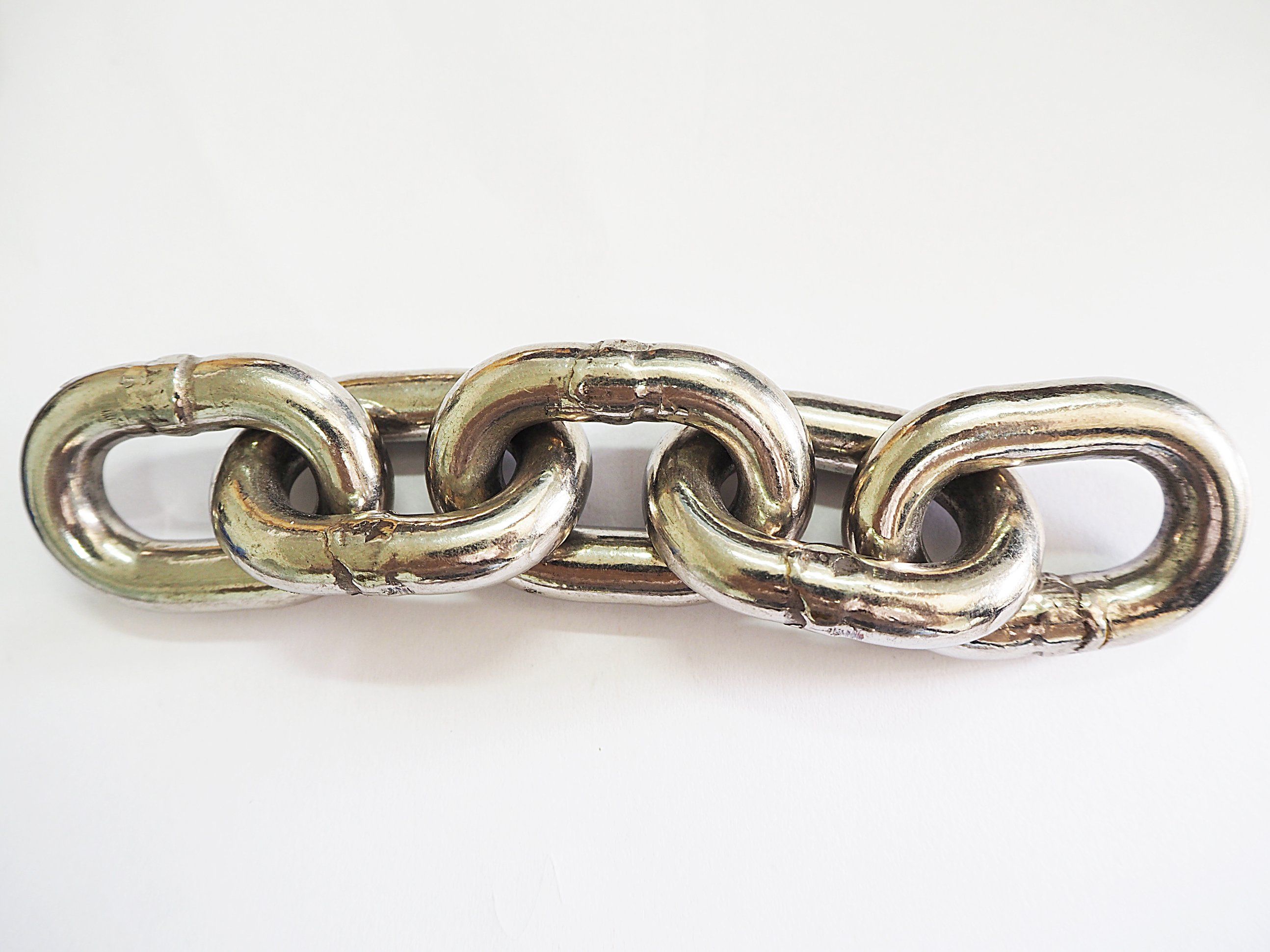

G50 Stainless Steel 304/316 Link Chain with High Quality-Diameter 32

G50 Stainless Steel 304/316 Link Chain with High Quality-Diameter 32
Price: US $ 91.64/Meter
Min Order: 1/Meter
Pay Type: L/C,T/T,D/P,Western Union,Paypal
Prod Model: G50-32
Standard: En818-2
Wll: 31.5t
Chain Size: Diameter=32mm

Product Description

our product
Standard:EN818-2
Safety Ratio:4 times
Application Rang:Lifting
Material:Hight Quality Alloy Containing Cr,Ni,Mo
Grade:G80
Product Marking:Mark Imprint Strenght Grade Ln Links
Sueface Treatment:Oild,Backing paint,Galvanized,Dipping Paint

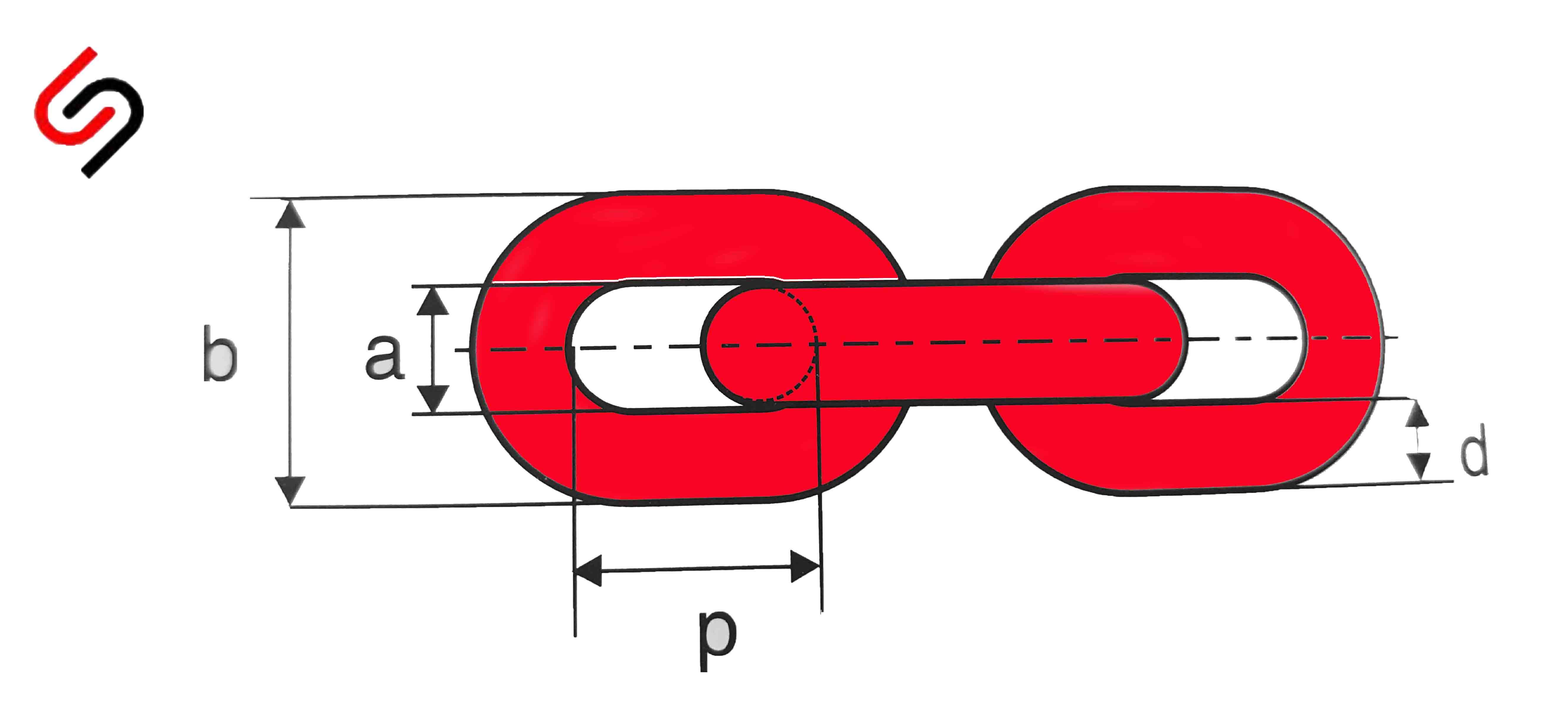

specification
dInner length(p)Width Weight
ModelToeranceDiameterMin (a)Max(b)WLL (T)( kg/m )Test load ( KN )Min Br.Force ( KN )
6±0.24187.822.20.90 0.84 22.64 36.16
8±0.322410.429.61.60 2.31 40.24 64.32
10±0.43013372.52 3.47 62.80 100.80
12±0.483615.644.42.263.47 90.40 144.72
13±0.523916.948.12.653.99 106.40 169.60
16±0.644820.859.247.04 160.80 257.60
18±0.95423.466.657.67 203.20 325.60
20±16026746.259.45 251.20 402.40
22±1.16628.681.47.511.45 304.00 486.40
26±1.37833.896.210.615.96 424.80 679.20
30±1.5903810614.1521.32 564.80 904.00
32±1.69641.611815.7524.15 643.20 1032.00
34±1.710244.2125.818.1527.30 724.80 1161.60
40±2120521482537.80 1008.00 1608.00
42±2.112654.6155.427.742.00 1108.00 1774.40
45±2.313558.516731.547.78 1272.00 2032.00
48±2.51446017036.2554.60 1160.00 2320.00

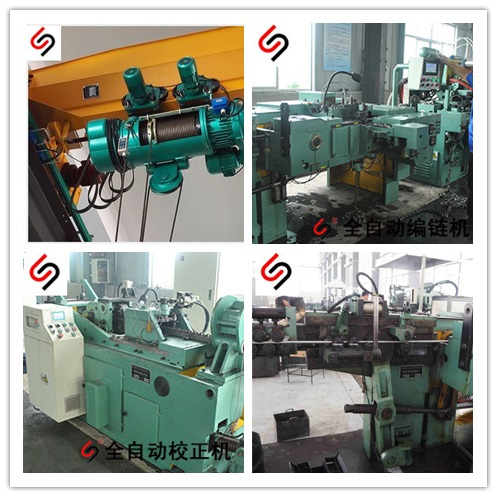

our equipment


certification

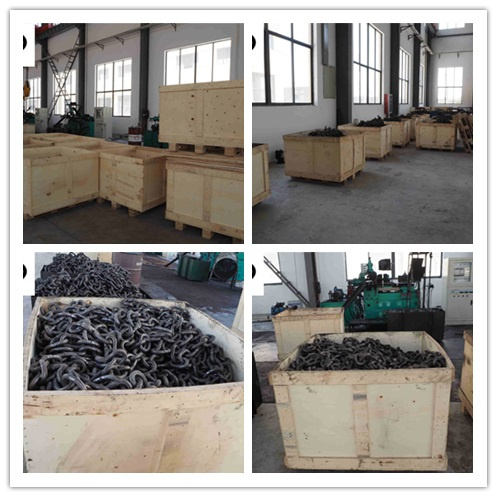

 packing

our factory

FAQ


1. Can I be your agent?
Yes, It is a great honor to be able to cooperate. We have big promotion of lifting chains and stainless steel chain in the market now. For the details please contact me.


2. Can I get a sample to check your quality?
After price confirmation, you can require for samples to check our quality. Free for the samples, but you need to pay for the freight.

3. What's your quality guarantee?
We have different kinds of products which can meet different quality standard.
Our QC department will teset products before shipping. We have 100% quality guarantee to customers. We will be responsible for any quality problem.

4. How about the delivery time?
The delivery time is depend on the products and the quantity. But generally, the delivery time for a container is about one month.

5. What's benefit will you bring?
Your client satisfied on the quality.


Stainless steel chains produced by our factory are all with high strength and high precision. Our craft is in the forefront of china. We believe that we can meet your satisfaction.
Jiangsu Juneng chains Co., Ltd. is established in Jan, 2014. The registered capital is 40 million yuan. It belongs to Zhengshen Group. Originally it was a chain workshop of Zhengshen in the past ten years.

We mainly design and manufacture G80 grade &G100 high strength lifting and lashing chains, we can also produce stainless steel link chain with high tensile & high accurance. We also produces non-standard chains and chain sling of which the diameter range from 6 to 42.

Company's technical team LED by a senior engineer which engaging in high-strength chain industry for nearly 30 years The company also has senior technical workers and more than 30 senior technicians. Mature and advanced production technology, strict production process control.

We seriously promises that each ring of the chains have been tested under 2.4 times (EU standard) rated working load (WLL) to ensure that every ring qualified.

We have fully automatic, semi-automatic chain equipment including heat treatment, surface treatment, stretch machines and other production equipment more than 30 sets, with 100 tons and 200 tons tensile testing machines and other test equipment more than 10 sets., all kinds of mold and technical equipment over one hundred sets.

We insist on the business philosophy of manufacturing the products of which they have the optimal comprehensive cost-effective in the world. We are able to create additional value for our customers

We have achieved the qualified certifications issued by Jiangsu quality supervision and inspection center for special type products of safety protecting. The certifications prove that our chains have reached G80 grade.

A large number of high quality clients use our products in the past ten years at home and abroad. And now they have become our long-term partners. Not only we have Dongfang Electric, Shanghai Electric, Xugong Group, China CNR, Baosteel, Nan Steel, Sha Steel and other domestic quality customers. Our products are also exported to the United States, Cana, Australia, Myanmar and other countries.

Juneng chains, every ring perfect.

Look forward to cooperating with you and gaining the result of win-win.
