| Prod Model: |
HS002 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Gabion Box Wire Gauge: |
2.0-4.0mm |
| Gabion Box Mesh: |
6*8cm, 8*10cm, 10*12cm, 12*15cm |
| Gabion Box Surface Treatment: |
Galvanized |
| Zinc Coating: |
245G/M2 Min |
| Material: |
Galvanized Iron Wire |
| Application: |
Construction Wire Mesh |
| Hole Shape: |
Square |
| Usage: |
Road Building |
| Technics: |
Woven |
| Surface Treatment: |
Galvanized |
| Size: |
2m x 1m x 1m |
| Aperture: |
80*100mm |
Product Description
1.Specifications
gabions box
Surface:galvanized,galfan
Wire: 3mm-5.0mm
Demension:2*1*1 m
ISO 9001,BV,SGS
Gabion basket are wire fabric containers, uniformly partitioned of variable size, interconnected with other similar containers and filled with stone at the site of use to form flexible, permeable, monolithic structures such as retaining walls, sea walls, channel linings, revetments and weirs for earth retention.Gabion basketare cages, cylinders, or boxes filled with soil or sand that are used in civil engineering, road building and military application.
2.Surface Treatment:
Heavily zinc galvanised wire
As above plus heavy duty PVC coating
Galmac (galfan) coated with a 95%Zinc + 5% Aluminium Mischmetal Alloy
As above plusheavy duty PVC coating
3. Advantages of Gabion basket :
* Permeability of the front face, ensuring drainage of backfill and no hydrostatic pressures behind the wall
* Flexibility, ensures the woven mesh gabions accommodate different settlements unlike rigid systems, for example, welded mesh cages
* Monolithic and flexible structures
* Tolerates differential settlement
* Uniform wire coating for extra durability
* Permeable structures
* One of the most economical retaining systems on the market
* Incorporation as required of vegetation throughout the structure
4.Gabion Box
We can supply various gabion box including welded gabions and woven gabions, detailed assortment as follows:
Electro galv.gabion box/mattress
Hot dipped galv.gabion box/mattress
Galfan coated gabion box/mattress
Galfan then pvc coated gabions
Galvanized then Pvc coated gabion box
5.Gabion box packing
In bult ,pallet or as your demands.
6.Detailed Specification
1). Gabion box/basket/mattress
The gabion Box is divided into cells by means of diaphragms positioned at approximately 1m centers.
Wire: 2.0-4.0mm
Mesh: 50×70mm,60×80mm, 80×100mm, 100×120mm, 100×150mm, 120×150mm
PVC coating thickness: 0.4-1.2mm
Galfan weight: 200-600g/m2
Hot dip galvanized can reach 290g/m2
Gaboins size: 1×1×1m,1.5×1×1m,2×1×1m,3×1×1m,4×1×1m, etc
Standard Gabion Size
Standard Gabion Size |
Length(m) |
Width(m) |
Height(m) |
Cells |
1.0 |
1.0 |
1.0 |
1 |
1.5 |
1.0 |
1.0 |
1 |
2.0 |
0.5 |
0.5 |
2 |
2.0 |
1.0 |
0.5 |
2 |
2.0 |
1.0 |
1.0 |
2 |
3.0 |
1.0 |
0.5 |
3 |
3.0 |
1.0 |
1.0 |
3 |
4.0 |
1.0 |
1.0 |
4 |
4.0 |
1.0 |
1.0 |
4 |
Custom sizes are also available |

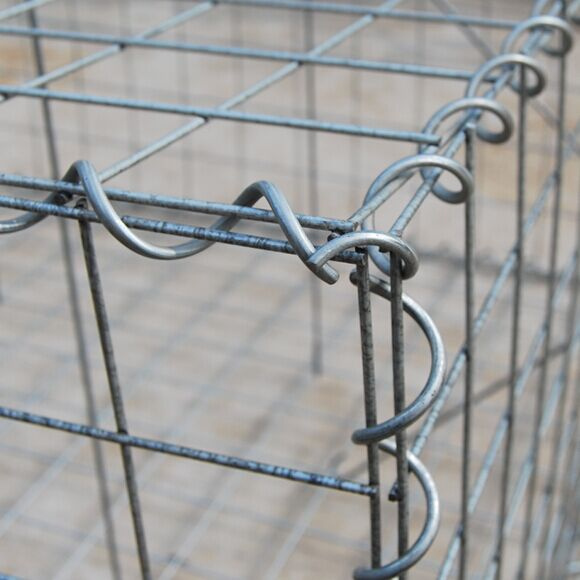

2). Welded Gabion box
Mesh(mm) |
Wire Dia.(mm) |
Usual Size(m) |
50×70 |
2.4 |
0.5×0.5×1 |
50×70 |
2.7 |
1×1×1 |
50×100 |
3.5 |
1×1×2 |
If you have any question pleade feel free to contact me !
