Galvanized Concertina Razor Wire/ High Security Concertina Razor Barbed Wire
| Price: |
US $ 1-2/Meter |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
1000/Meter |
| Pay Type: |
L/C,T/T,Western Union |
| Prod Model: |
razor barbed wire |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Wire Type: |
Blade Thickness |
| Blade Thickness: |
0.4mm~0.6mm |
| Blade Width: |
15mm~32mm |
| Material Type: |
Stainless Steel, Low Carbon Steel |
| Surf Treatment: |
Galvanized |
| Material: |
Galvanized Steel Wire |
| Twist Method: |
Single Twist |
| Application: |
Fence Mesh |
| Finish: |
Hot Dipped Galvanized |
| Razor Barbed Type: |
Cross Razor |
| Barb Length: |
22mm |
| Coil Outside Diameter: |
500mm |
| Wire Gauge: |
2.5mm |
| Barbed Distance: |
34mm |
| Color: |
Silver |
Product Description

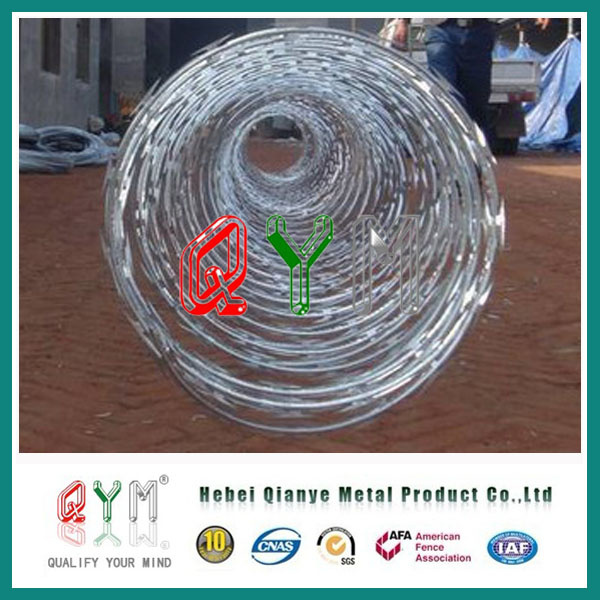

QYM-Concertina Razor Wire
When you have to take the security seriously, Razor Wire is the best choice. Less cost and higher efficiency made it widely used in high security applications. Razor wire has a central strand of high tensile strengthsteel wire, and a steel tape punched into sharp barbs. The multiple blades of the razor wire are designed to inflict serious injury on any vandal, robber or saboteur, and therefore it has a strong psychological deterrent effect.
It is very difficult to cut the razor wire and passing it through with specialized tools is also slow and dangers. Thus, razor wire is a durable and efficient safety barrier, which is known and trusted by security professionals.
Standard Specifications: | Reference Number | Blade Style | Thickness | Wire Dia | Blade
Length | Blade
Width | Blade
spacing |
| BTO-10 | | 0.5±0.05 | 2.5±0.1 | 10±1 | 15±1 | 26±1 |
| BTO-12 | | 0.5±0.05 | 2.5±0.1 | 12±1 | 15±1 | 26±1 |
| BTO-22 | | 0.5±0.05 | 2.5±0.1 | 22±1 | 15±1 | 34±1 |
| BTO-25 | | 0.5±0.05 | 2.5±0.1 | 25±1 | 16±1 | 40±1 |
| CBT-30 | | 0.5±0.05 | 2.5±0.1 | 30±1 | 18±1 | 45±1 |
| CBT-60 | | 0.6±0.05 | 2.5±0.1 | 60±2 | 32±1 | 100±2 |
| CBT-65 | | 0.6±0.05 | 2.5±0.1 | 65±2 | 21±1 | 100±2 |
Barbed Tape Concertina (CBT);Barbed Tape Obstacle (BTO)
Standard materials are either galvanized or stainless steel.430/304/316
Standard packages products are shown in the tables above, special specifications available on request.
|

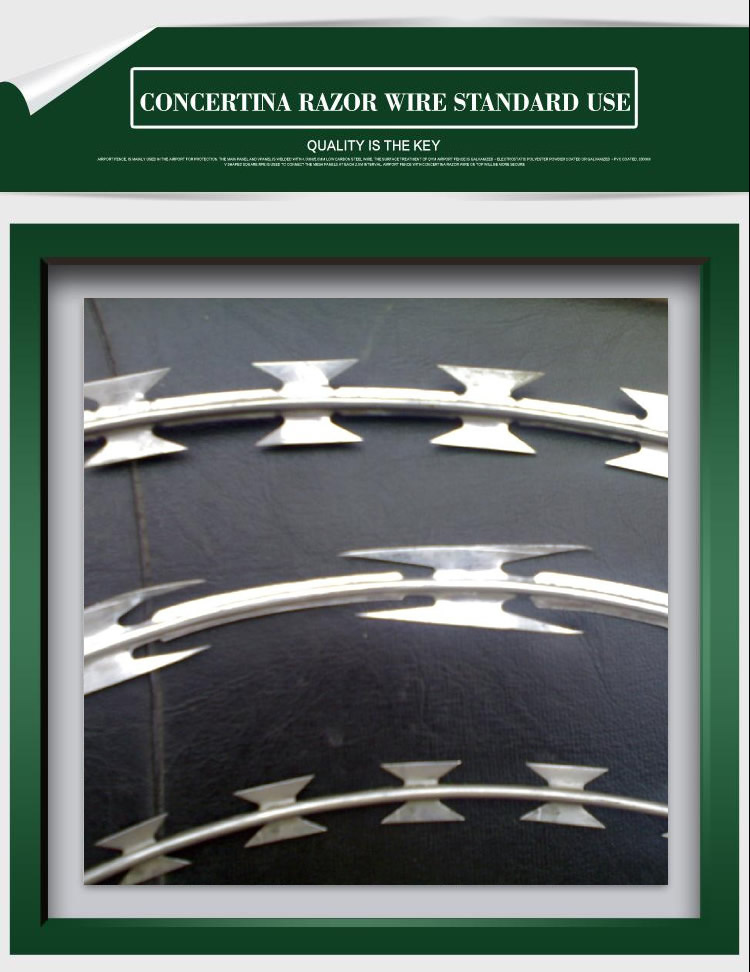

Concertina razor wire standard use: | |
| Outside Diameter | No. of Loops | Standard Length per Coil | Type | Notes |
| 450mm | 33 | 7-8M | 10 | Single coil |
| 500mm | 56 | 12-13M | CBT-60.65 | Single coil |
| 700mm | 56 | 13-14M | CBT-60.65 | Single coil |
| 960mm | 56 | 14-15M | CBT-60.65 | Single coil |
| 450mm | 56 | 8-9M (3 CLIPS) | BTO-10.12.18.22.28.30 | Cross type |
| 500mm | 56 | 9-10M (3 CLIPS) | BTO-10.12.18.22.28.30 | Cross type |
| 600mm | 56 | 10-11M (3 CLIPS) | BTO-10.12.18.22.28.30 | Cross type |
| 600mm | 56 | 8-10M (5 CLIPS) | BTO-10.12.18.22.28.30 | Cross type |
| 700mm | 56 | 10-12M (5 CLIPS) | BTO-10.12.18.22.28.30 | Cross type |
| 800mm | 56 | 11-13M (5 CLIPS) | BTO-10.12.18.22.28.30 | Cross type |
| 900mm | 56 | 12-14M (5 CLIPS) | BTO-10.12.18.22.28.30 | Cross type |
| 960mm | 56 | 13-15M (5 CLIPS) | BTO-10.12.18.22.28.30 | Cross type |
| 980mm | 56 | 14-16M (5 CLIPS) | BTO-10.12.18.22.28.30 | Cross type |
Company Information
Hebei Qianye Metal Product Co., Ltd is a company engaged in production and exportation of metal fence as well as other metal products, such as airport fence, barb wire, chain link fence, concertina razor wire, double wire fence, euro fence, palisade fence, temporary fence, welded mesh, welded mesh fence, wire mesh, etc. Its registered capital is RMB50, 100, 000(about USD 7, 400, 000), covering a land area of 30, 000 square meters.
Service
1>Quality Products:
We follow the policy of Seeking Development through Quality and Establishing Reputation via
Quality Products. We try to meet customers' requirements with excellent quality products.
2>Honest Service:
We offer honest service to customers. We provide products with sincere and excellent service and the most prompt delivery.
3>Innovation:
We have advanced inspection and production equipment and can develop new products to meet the demand of market. We can also accept customized orders. Our strong R&D capability enables us to innovate almost everyday.

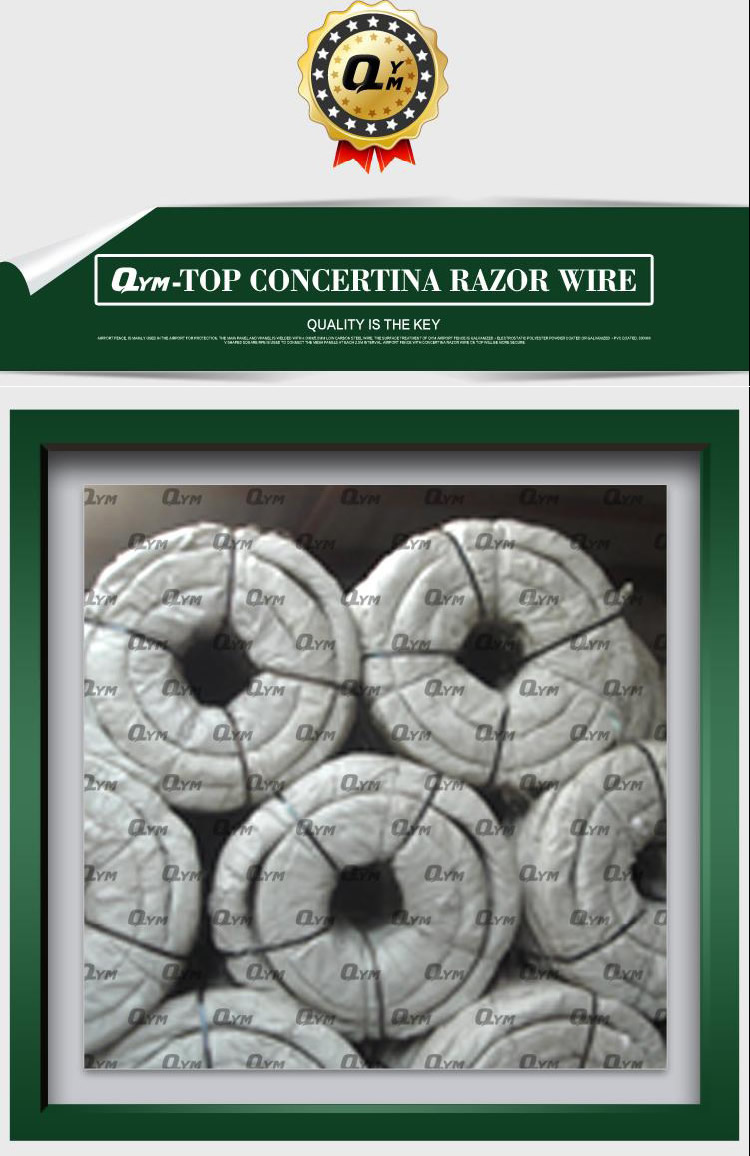

Packing & Shipping
1>Panel Packing:
It has soft sponge at the botom of the pallet to avoid the botom fence panel to be damaged by metal pallet.
It has 4 metal corners to keep the pallet be more strong.
It has metal plate under the plastic bandage to avoid the bandage to presure the fence panel.
It has wood plate on the top of pallet to keep the above pallet to de destroyed by the pallet.
2>Post Packing:
The post is covered with plasti cap then packed with plastic flim. Clips packed by set.
3>Accessories:
Plastic bags + carton boxes
FAQ
Q: What's QYM's after service policy?
A: QYM's after service staff will contact you when you received the products, and ask for your comments on the products. Any issues on QYM's products, please send email or call us. QYM will service you timely with whole-heartedness and profession.
Q: What's the MOQ of QYM's product?
A: Different item has different MOQ. Normally 1X20FCL is preferred, LCL could be negotiable.
Q: How can we get the quotation from QYM?
A: Please send your inquiry to QYM's official email.
Q: How to be QYM's agent, wholeseller or distributor in my country?
A: Please send your company's basic information and application to my email adress. A feedback will be sent to you within 7 working days.
Hebei Qianye Metal Product Co., Ltd is a company engaged in production and exportation of metal fence as well as other metal products. Its registered capital is RMB50, 100, 000(about USD7, 400, 000), covering a land area of 30, 000 square meters.
Since its foundation in 2002, this company has been always adhering to the principle of uncompromising integrity and credibility first in doing things. We making our own Brand QYM and has been exporting the QYM-Welded Mesh Fence, QYM-Airport Fence, QYM-High Security Fence, QYM-Palisade Fence and other high grade protective fences to over 100 countries and regions in Europe, America, Africa, Middle East and Australia. In 2008, our export of 120 km metal fence to America made us an apparent leader in the local fence industry; In 2009, we successfully took and completed the orders from UN which perfectly proved our good reputation and our strong production capability.
Through years of production experience, we deeply understand that the qualified product is the factory basis for survival and development. In order to ensure consistency of product quality, our company introduced a fully automatic panel fence welding equipment, automatic electrostatic spraying production line, as well as advanced welding machines, cutting machines, punching machines and bending machines. We have first-class product design department responsible for new product reserch, first-class quality control department responsible for timely monitoring of product at each production process and first-class one-to-one sales staff to provide you with efficient services.
