Galvanized Garden Steel Fence /Welded Wire Mesh for Building Used
| Price: |
US $ 10/Roll |
| Min Order: |
50/Roll |
| Pay Type: |
L/C,T/T |
| Prod Model: |
weiyue wire mesh welding wire mesh |
| Wire Diameter: |
12#~24# |
| Width: |
30cm~250cm |
| Length Of Roll: |
30m and as Your Requirement |
| Feature: |
Easily Assembled, Eco Friendly |
| Business Type: |
Factory |
| Kinds: |
Rolls and Panels |
| Technology: |
Welded Wire Mesh |
| Material: |
Galvanized Iron Wire |
| Hole Shape: |
Square |
| Application: |
Filter |
| Type: |
Welded Mesh |
| Certification: |
ISO9001 |
| Condition: |
New |
| Mesh Size: |
1/4",3/8",1/2",1",2"... |
| Surface Treatment: |
Galvanized,PVC,Stainless Steel |
| Weave Technique: |
Welded |
| Color: |
White,Green,Silver |

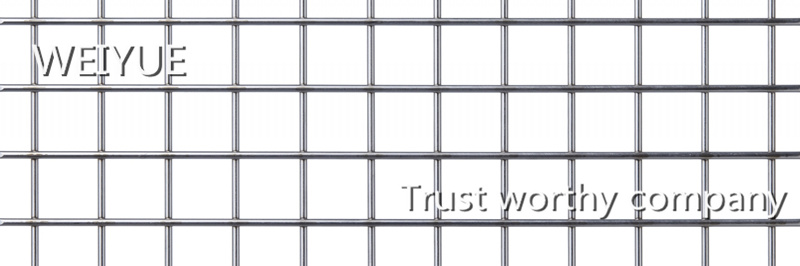

Product Description

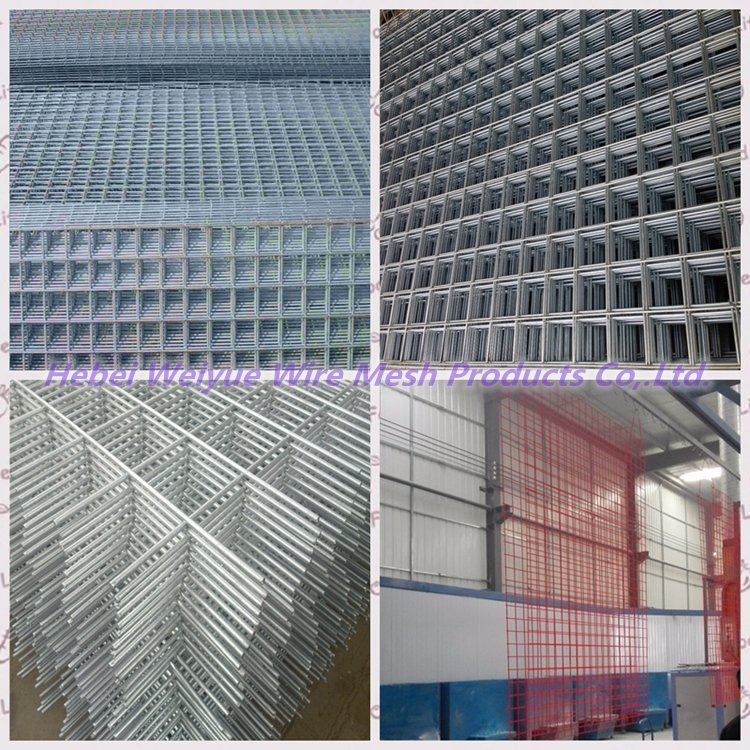

1. Material:electro galvanized Welded wire meshhot dipped galvanized welded wire meshPVC coated galvanized welded wire meshblack wire/ no coated welded wire mesh2.CharacteristicsThe welded wire mesh is welded by excellent low carbon steel wires and Passivated and plasticized through cold plating (electroplating), hot dipping And PVC plastic coating. With flat surface, even mesh count, firm welding Spots and stable structure, it features its strong completeness, partial good Machining performance, stability, excellent corrosion resistance and rush Prevention.3. Uses: widely used in industry, agriculture, construction, transportation, mining, golf course, lawn, aquaculture and other sectors of the fence, decoration, machine protection, and so on. 4. We can produce all kinds of welded wire mesh.a. Electro galvanized before weldedb. Electro galvanized after weldedc. Hot dipped galvanized before weldedd. Hot dipped galvanized after weldede. PVC coated welded wire meshf.Stainless steel wire meshg. welded wire mesh panel
Specification List of Welded Wire Mesh |
Opening | Wire diameter | Width |
1/4" x 1/4" | 0.5mm-0.7mm | 300mm-1828mm |
3/4" x 3/4" | 0.7mm-2.0mm | 300mm-1828mm |
3/8" x 3/8" | 0.7mm-1.1mm | 300mm-1828mm |
5/8" x 5/8" | 0.8mm-1.2mm | 300mm-1828mm |
1/2" x 1/2" | 0.45mm-1.6 mm | 300mm-1828mm |
1" x 1" | 0.7mm-3.0mm | 300mm-2000mm |
1" x 1/2" | 0.8mm-1.6mm | 300mm-1828mm |
1-1/2" x 1-1/2" | 0.7mm-3.5mm | 300mm-1828mm |
1" x 2" | 1.6mm-2.1mm | 300mm-1828mm |
2" x 2" | 0.7mm-4.0mm | 300mm-2500mm |
2" x 3" | 1.5mm-3.5mm | 300mm-2000mm |
2" x 4" | 2.0mm-4.0mm | 300mm-1828mm |
3" x 3" | 1.0mm-4.5mm | 300mm-2500mm |
3" x 4" | 1.5mm-4.5mm | 300mm-2000mm |
4" x 4" | 1.0mm-4.5mm | 300mm-2500mm |
5" x 5" | 2.5mm-4.5mm | 300mm-2500mm |
6" x 6" | 2.5mm-4.5mm | 300mm-2500mm |
Technical Note:
1,Standard roll length:15.24m,30m,50m
2,Special sizes available at request

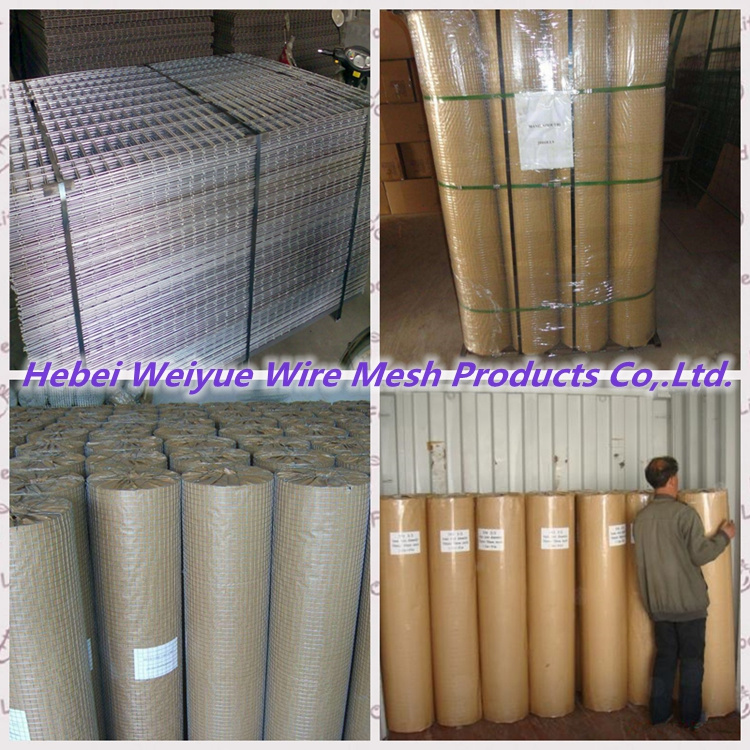

3,Packing: in waterproof paper in rolls. Custom packing available at request. |
| Specification List of Welded Wire Mesh |
| Opening | Wire Diameter |
| In inch | In metric unit(mm) |
| 1/4" x 1/4" | 6.4mm x 6.4mm | 22,23,24 |
| 3/8" x 3/8" | 10.6mm x 10.6mm | 19,20,21,22 |
| 1/2" x 1/2" | 12.7mm x 12.7mm | 16,17,18,19,20,21,22,23 |
| 5/8" x 5/8" | 16mm x 16mm | 18,19,20,21, |
| 3/4" x 3/4" | 19.1mm x 19.1mm | 16,17,18,19,20,21 |
| 1" x 1/2" | 25.4mm x 12.7mm | 16,17,18,19,20,21 |
| 1-1/2" x 1-1/2" | 38mm x 38mm | 14,15,16,17,18,19 |
| 1" x 2" | 25.4mm x 50.8mm | 14,15,16 |
| 2" x 2" | 50.8mm x 50.8mm | 12,13,14,15,16 |
Technical Note:
1.Standard roll length: 30m;width: 0.5m to 1.8m
2.Special sizes available at request
3.Packing: in waterproof paper in rolls. Custom packing available at request. |
Payment Term: T/T 30% payment in advance,70% balance against copy of B/L
Delivery time: within 30 days after your advance payment

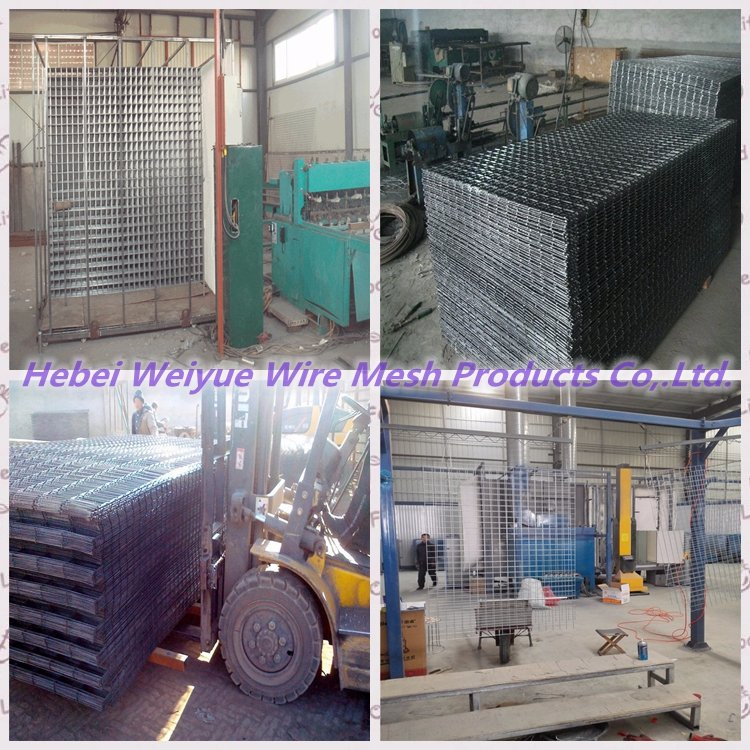

Hebei Weiyue Wire Mesh Products Co., Ltd makes and sells primary wire mesh and wire products. It's located in "the hometown of wire mesh", Anping County of China.
Since its beginning, we have been working at four points, they are High Quality, Quick Delivery, Better Price and Thorough Service. Rely on the product quality and our credit standing, we have got favourable comments from the customers.
The company introduces precise making machines and technics, combining scientific inner managing method and quality control system. Since the year it was established, we developed our powder and credit standing and got reliances of our customers in home and abroad. Our products is checking by very high standeard, and the qualified ones leaved the factory to the whole country and some abroad countries, such as Southeast Asia, Middle East, America, Japan, and some Africa countries.
Hebei Weiyue Wire Mesh Co. Ltd makes and sells kinds of wire products which are widely used in extensive areas, petrolem, chemical, architecture, foodstuffs and so on. Main selling products are stainless steel wire mesh, perforated metal, expanded metal, galvanized square mesh, window screen, crimped screen, fences, chain link mesh, barbed wire, razor barbed wire, filed fence, welded wire mesh, hexagonal wire netting, fiberglass wire mesh and so on. We also sellss relative further products with the wire meshes above.
Weiyue keeps product quality and credit standing to be the first degree. In virtue of wire mesh, we wish to develop good relationships with you, all around the world.
