Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Sizes: |
3X100' and 4X100' |
Material: |
Low-Carbon Iron Wire |
Hole Shape: |
Square |
Surface Treatment: |
Galvanized |
Application: |
Filter |
Color: |
Green |
Type: |
Welded Mesh |
Condition: |
New |
Mesh Size: |
3/4", 1/2", 1", 2" |
Weave Technique: |
Welded |
Product Description
Welded Wire MeshProduct Description
All Kinds Of Welded Wire Mesh
>Hot-dipped Galvanized Welded Wire Mesh
>Electro Galvanized Welded Wire Mesh
>Black Iron Wire Mesh
>Galvanized or Black iron wire mesh is made of quality low carbon steel wire.

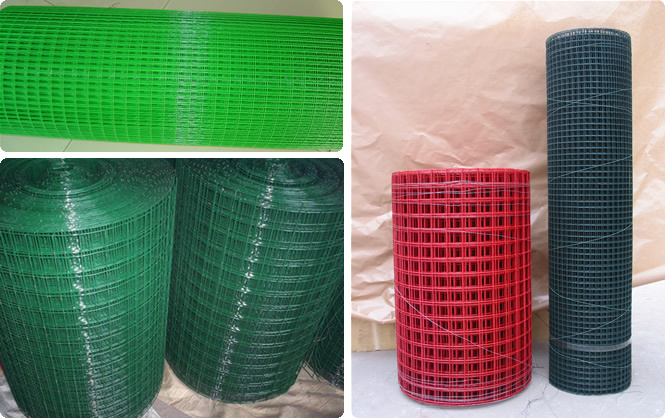

>PVC Coated (Green, White, Yellowect)
PVC coated welded wire mesh is made of quality low carbon steel wire or stainless steel wire inside then coated with PVC coated outside.
All kinds of colors can be coated according to customers' special requires
>Stainless Steel Welded Wire Mesh
>Stainless Steel Welded Wire Mesh is made of different grads material, such as 201, 202, 304, 304L, 316, 316Letc.
Welded wire mesh |
Normal Sizes: Length X Width: 3'x100' (0.914X30.48M) 4'X100'(1.219X30.48M) |
Wire mesh | BWG(Gauge) | Packing dia. (cm) |
1"X1" | 25.4X25.4mm | 15 | 1.82 | 37 |
1"X1" | 25.4X25.4mm | 16 | 1.65 | 33 |
1"X1" | 25.4X25.4mm | 17 | 1.47 | 32 |
1"X1" | 25.4X25.4mm | 18 | 1.24 | 28 |
1"X1" | 25.4X25.4mm | 19 | 1.06 | 25.5 |
2"X2" | 50.8X50.8mm | 14 | 2.1 | 38 |
2"X1" | 25.4X50.8mm | 14 | 2.1 | 39 |
1/2"X1" | 12.7X25.4mm | 16 | 1.65 | 34 |
1/2"X1" | 12.7X25.4mm | 17 | 1.47 | 32 |
1/2"X1" | 12.7X25.4mm | 18 | 1.24 | 29 |
1/2"X1/2" | 12.7X12.7mm | 16 | 1.65 | 35 |
1/2"X1/2" | 12.7X12.7mm | 17 | 1.47 | 33 |
1/2"X1/2" | 12.7X12.7mm | 18 | 1.24 | 30 |
1/2"X1/2" | 12.7X12.7mm | 19 | 1.06 | 27.5 |
1/2"X1/2" | 12.7X12.7mm | 20 | 0.88 | 25 |
1/2"X1/2" | 12.7X12.7mm | 21 | 0.81 | 23 |
3/4"X3/4" | 19.05X19.05mm | 16 | 1.65 | 35 |
3/4"X3/4" | 19.05X19.05mm | 17 | 1.47 | 33 |
3/4"X3/4" | 19.05X19.05mm | 18 | 1.24 | 29 |
3/4"X3/4" | 19.05X19.05mm | 19 | 1.06 | 26 |
3/4"X3/4" | 19.05X19.05mm | 20 | 0.88 | 24 |
3/8"X3/8" | 9.52X9.52mm | 20 | 0.88 | 26 |
3/8"X3/8" | 9.52X9.52mm | 21 | 0.81 | 25 |
3/8"X3/8" | 9.52X9.52mm | 22 | 0.71 | 23 |
1/4"X1/4" | 6.35X6.35mm | 22 | 0.71 | 23 |
1/4"X1/4" | 6.35X6.35mm | 23 | 0.63 | 21.5 |
1/4"X1/4" | 6.35X6.35mm | 24 | 0.55 | 20 |
5/8"X5/8" | 15.9X15.9mm | 18 | 1.24 | 29 |
5/8"X5/8" | 15.9X15.9mm | 19 | 1.06 | 26 |
5/8"X5/8" | 15.9X15.9mm | 20 | 0.88 | 24.5 |
Package:
>Waterproof paper outside per roll.
>Plastic film outside per roll.
>Waterproof paper inside and plastic film outside per roll.
>Special requires package and brand label will be accepted.
Usage:
It mainly used for general building facades, concrete, high-rise residential structure plays an important role in the insulation system, It can effectively reinforce the wall to prevent the wall cracks, hollowing phenomenon. It's also widely used in industry, farming construction, transportation, safety segregation, keeping of poultry.
Anping County Maorong Wire Mesh Products Co., Ltd is located in famous "China Wire Mesh-Anping Town", we're a specialized Manufacture and Self-managerial Import &Export Authority factory.
For our company products variety:
Our company products are mainly in wire mesh, fence and iron wire. It's detail in covering such as welded wire mesh, waving wire netting, galvanized and black iron wire, barbed and razor barbed wire, stainless steel wire or mesh, square mesh, gabion, window screen series, expanded steel sheet, perforated metal and wire mesh fence including highway, railway and airport fence etc. The products are used in industry, farming construction, transportation and mining for protection of structure, safety segregation, keeping of poultry and livestock and decoration etc.
For our company products price, quality and service:
Our company is armed with advanced precision mold manufacturing equipment, automatic assembly line and inspection/testing devices to produce according to IS9001 standard. The company adheres to the business principle of "attractive in price and quality", and provides considerate service based on its years of experience in these products.
For our company sales team:
Our company has strengthened sales operation with a team of experienced and responsible members to open market throughout the world, such as Europe, South America, Africa, Russia and Southeast Asia.
