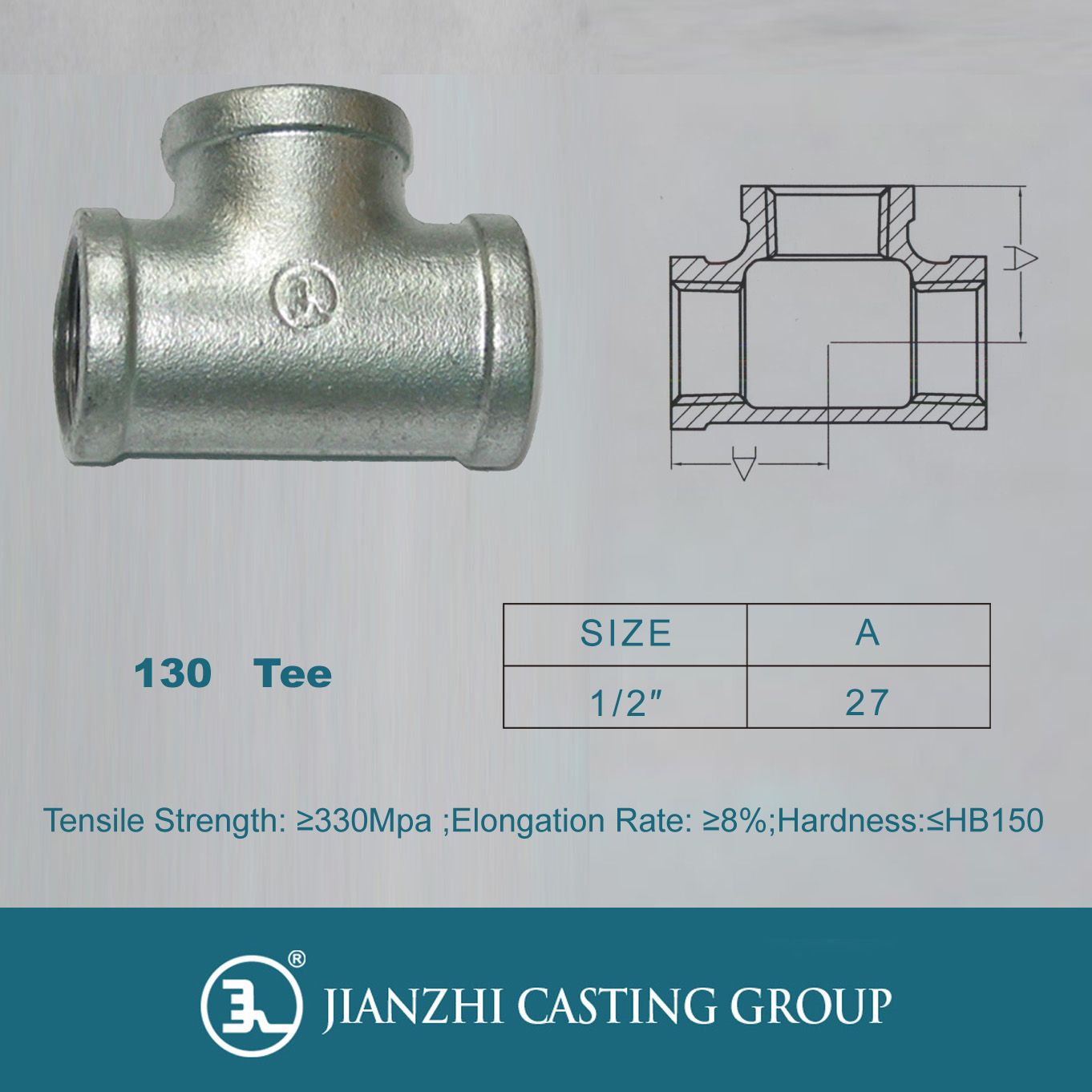

Galvanized Malleable Iron Tee Fitting
| Price: |
US $ 6500-6800/Ton |
| Min Order: |
4/Ton |
| Pay Type: |
L/C,T/T |
| Prod Model: |
1/8"-6" |
| Suitable: |
Pressure Max 1.6MPa,Temperature Max 200°c |
| Use For: |
Pipeline Holding Water,Oil,Gas. |
| Finishing: |
Black,Galvanized |
| Tensile Strength: |
Over 330MPa |
| Elongation Rate: |
Over 8% |
| Hardness: |
Below 150 |
| Type: |
Equal |
| Connection: |
Male |
| Material: |
Iron |
| Shape: |
Equal Tee |
| Lateral: |
90??Tee |
| Head Code: |
Square |
| Wall Thickness: |
SCH40 |
| Finish: |
Hot Galvanized |
| Technics: |
Casting |
| Standard: |
BS |
| Certification: |
UL |
| Pressure Rating: |
330MPa |
Product Description
Products list |
1 | M&F Long Sweep Bend | 290 | Beaded Plug |
2 | Long Sweep Bend | 291 | Plain Plug |
85 | Crossovers | 301 | Round Cap |
90 | Elbow | 310 | Backnut |
92 | M&F Elbow | 330 | Union,Flat Seat |
95 | Union Elbow Flat Seat | 331 | M&F Union ,Flat Seat |
97 | M&F Union Elbow Flat Seat | 340 | Union,Taper Seat |
120 | 45° Elbow | 529 | M&F Socket |
130 | Tee | 90R | Elbow Reducing |
180 | Crosshead Female | 130R | Tee Reducing |
270 | Entire Threads Socket | 240 | Socekt Reducing |
270 | Part Threads socket | 241 | Bushing |
280 | Hexagon Nipple | 245 | Nipple Reducing |

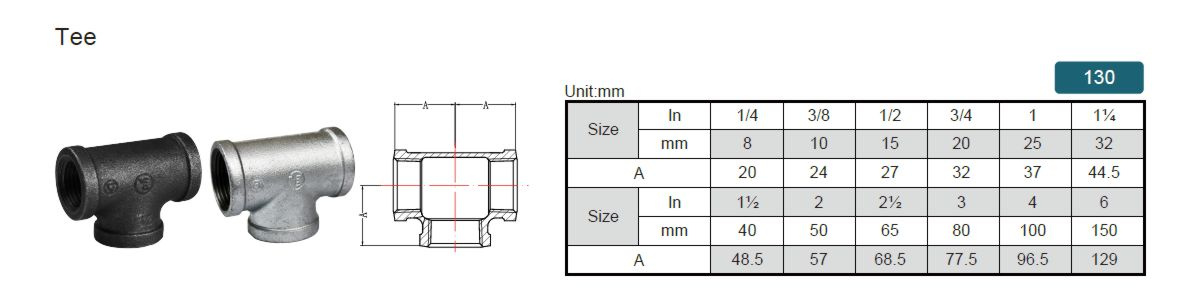

Size | 3/8"-6" | Material | Malleable Iron |
Finishing | (Black) Painting, Galvanizing, Elctro-plating |
Type | Banded, Beaded |
Standard | ISO5922/IS049/ISO7-1 , BS EN1562:1997, DIN 2950/1692/2999 |

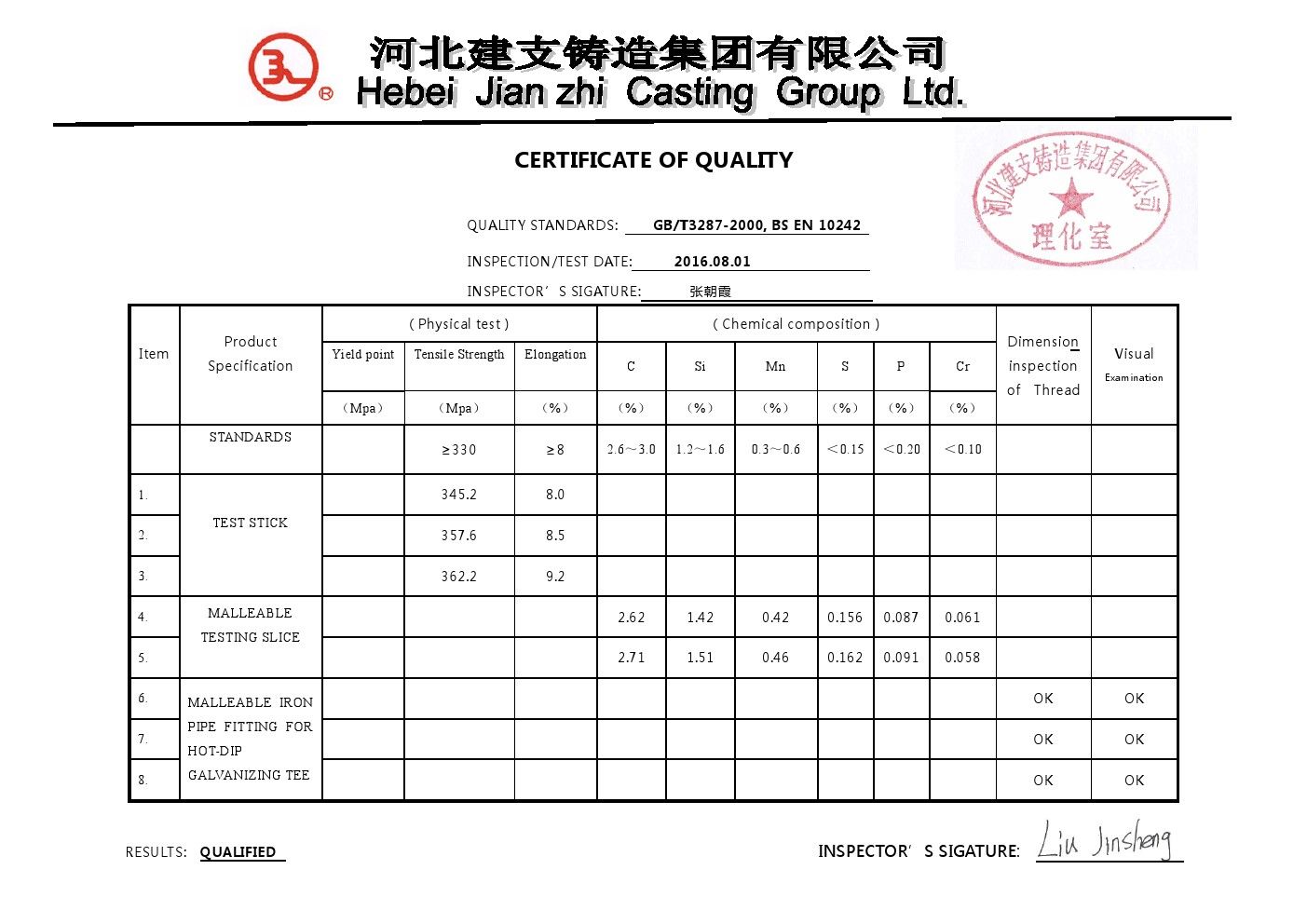

Mechanical Properties | Tensile Strength≥330MPA, Elongation rate≥8%, Hardness≤HB150 |
Mechanical Properties | C:2.4~2.9 Si:1.2~1.7 Mn:0.3~0.55P:0.12 S:0.18 Cr:0.09 |
Working pressure | Max 1.6MPA | Working temperature | Max 200°C |
Producing Process | Pattern making - sand casting - heat treatment - galvanizing - threading - air pressure testing - packing |
Usage | Fro pipeline convey water ,oil ,gas and so on |

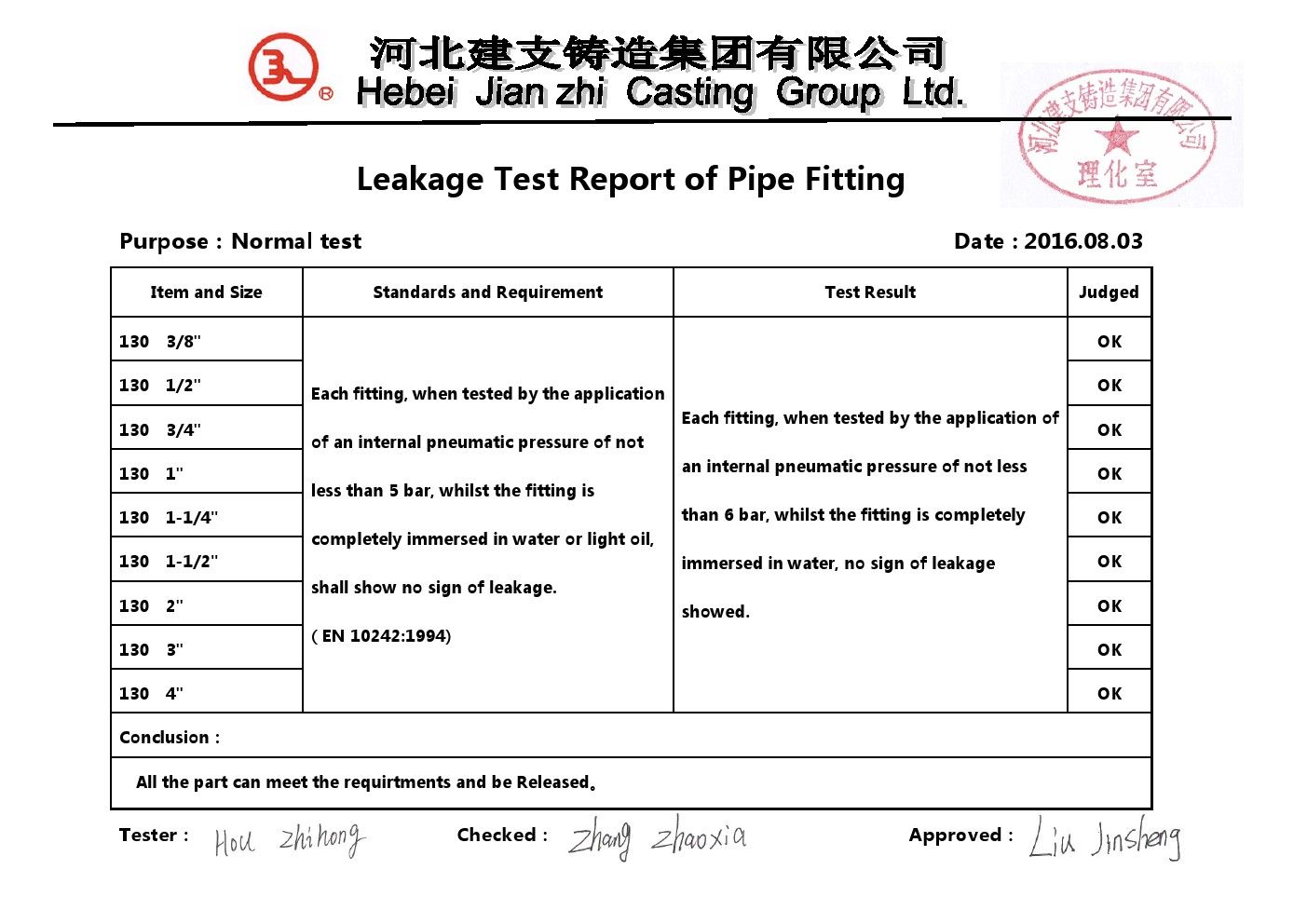

Testing | 100% Air pressure testing |
Hebei Jianzhi Casting Group Ltd. Established in 1982 is a large enterprise manufacturing pipe fittings for more than thirty years. The company covers an area of 680, 000 square meters and the total assets value is 1 billion RMB. It has more than 4000 employees, over 300 advanced and intermediate engineering technicians included. It is supplying Ductile iron grooved fittings, Malleable iron threaded fittings, Malleable cast iron liner plastic fittings, various Lines fittings and Mechanical spare parts and the annual production is more than 80, 000 metric tons. Jianzhi products have been sold to over 30 provinces in China and exported to more than 40 countries and regions, It is the leader in the fitting industry in domestic.
Hebei Jianzhi Casting Group Ltd. has won the provincial and ministerial science and technology progress awards for many times, and obtained more than 20 patents, among which the JSS-12 energy-saving annealer and the new type Light Malleable Iron fittings were granted the National Key New Products.

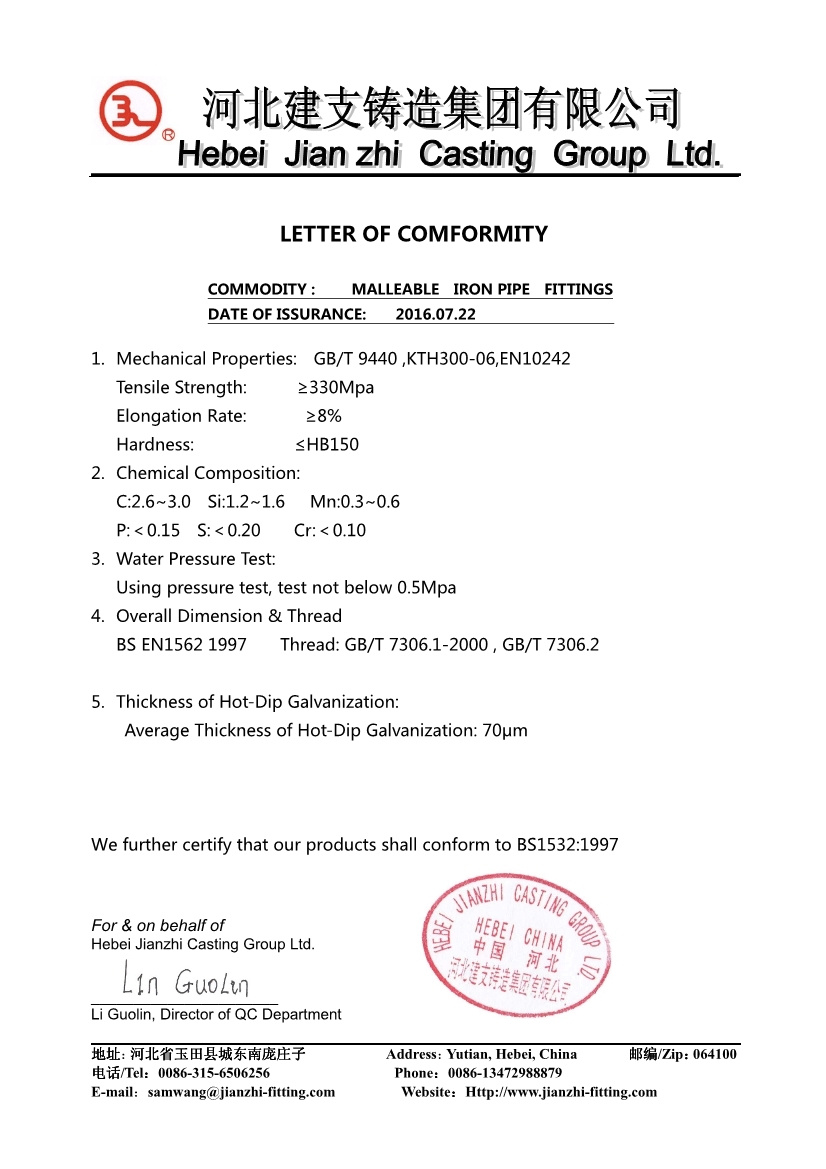

Hebei jianzhi Casting Group Ltd. Is stressing on quality and credibility. The company has acquired ISO9001, ISO14001 and OHSAS18001, certifications of UL and FM of America, CE of the EU, ABNT of Brazil, TSE of Turkey China Compulsory Certification and other certificates and honors, "Hebei Creditable Enterprise" since 1996, "Hebei province High-integrity Enterprise"since 2008, "the Famous Product in Hebei province" since 1996, "Famous Brand of Malleable Iron Pipe Fittings in China"since 2013, "China Well-known Trademark" in 2014.
Hebei Jianzhi Casting Group Ltd. locates in the southeast of YuTian county, Hebei province, the Golden Triangle of Beijing, Tianjin, and Tang shan.
Welcome friends call negotiations.
