| Prod Model: |
BY-Stainless Steel Wire Mesh -1 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Size: |
1'' |
| Width: |
1.8m |
| Length: |
30m |
| Delivery Time: |
20days |
| Material: |
Stainless Steel Wire |
| Hole Shape: |
Square |
| Mesh Size: |
1 Inch |
| Application: |
Filter |
| Color: |
Silver |
| Type: |
Welded Mesh |
| Condition: |
New |
| Surface Treatment: |
Galvanized or PVC Coated or No |
| Weave Technique: |
Welded |
Product Description

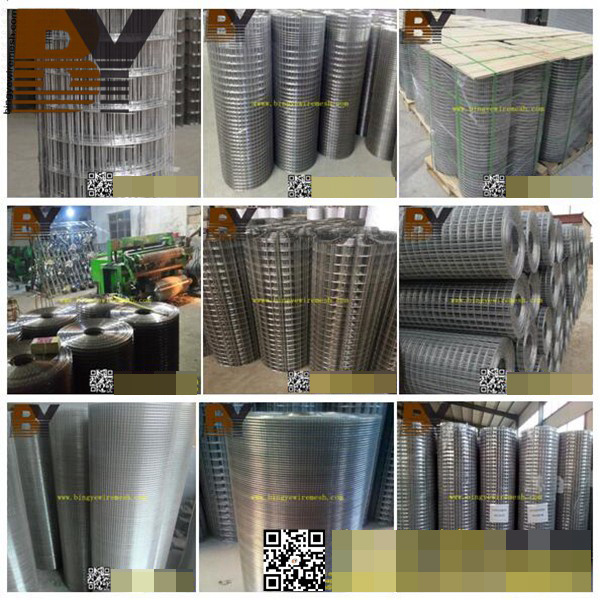

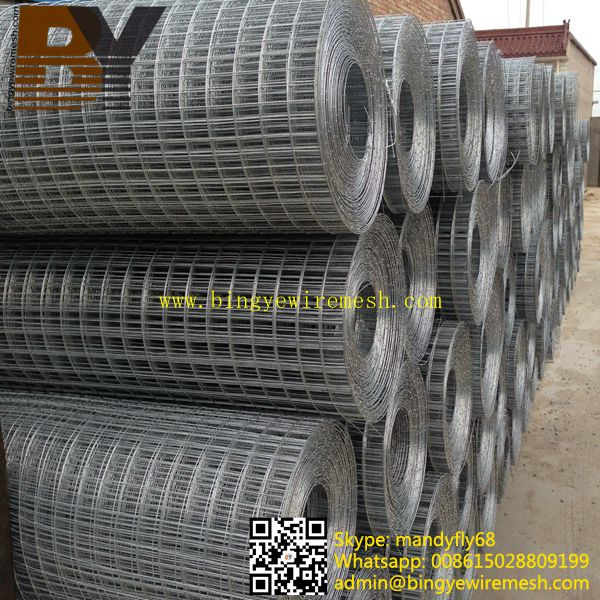

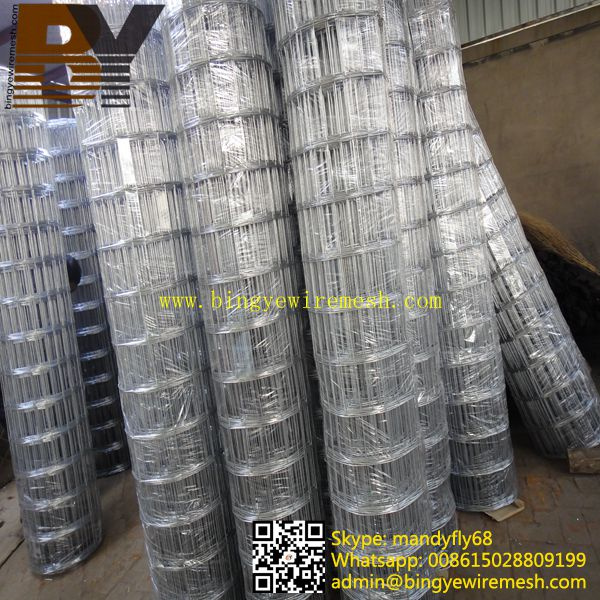

Welded Wire Mesh in Bingye Wire Mesh factoryThe welded wire mesh is welded by excellent low-carbon steel wires and passivated and plasticized through cold plating (electroplating), hot dipping and PVC plastic coating. With flat surface, even mesh count, firm welding spots and stable structure, it features its strong completeness, partial good machining performance, stability, excellent corrosion resistance and rush prevention.
1.Welded Wire Mesh Material: Low carbon steel wire,Stainless steel wire
2.Welded Wire Mesh Type:
Electro galvanized after or before welded wire mesh
Hot dippd galvanized after or before welded wire mesh
PVC coated welded wire mesh
Stainless steel welded wire mesh
3. Advantage: good corrosion resistance and oxidation resistance
4. Application: Strengthen protection and temperature keeping materials in the form of mesh container, stone cage, isolation wall, boiler cover or poultry fence in construction, petroleum, chemical, breeding, garden and food processing industries,building construction,General Use
5.Specification:
| Specification List of Welded Wire Mesh |
| Opening | Wire Diameter |
| In inch | In metric unit(mm) |
| 1/4" x 1/4" | 6.4mm x 6.4mm | 22,23,24 |
| 3/8" x 3/8" | 10.6mm x 10.6mm | 19,20,21,22 |
| 1/2" x 1/2" | 12.7mm x 12.7mm | 16,17,18,19,20,21,22,23 |
| 5/8" x 5/8" | 16mm x 16mm | 18,19,20,21, |
| 3/4" x 3/4" | 19.1mm x 19.1mm | 16,17,18,19,20,21 |
| 1" x 1/2" | 25.4mm x 12.7mm | 16,17,18,19,20,21 |
| 1-1/2" x 1-1/2" | 38mm x 38mm | 14,15,16,17,18,19 |
| 1" x 2" | 25.4mm x 50.8mm | 14,15,16 |
| 2" x 2" | 50.8mm x 50.8mm | 12,13,14,15,16 |
Technical Note:
1,Standard roll length: 30m;width: 0.5m to 1.8m
2,Special sizes available at request
3,Packing: in waterproof paper in rolls. Custom packing available at request. |
Stainless steel welded wire mesh
Stainless Steel welded wire mesh is made of high quality stainless steel wire and welded by advanced computer-controlled machines. It possesses features of excellent corrosion resistance, beautiful look, and longer work time. Compared with galvanized welded iron wire mesh or PVC coated welded iron wire mesh, these features can compensate for its seemingly higher cost. Commonly used material wires are SS304 and SS316.
Stainless Steel Welded Mesh
Application:
With the above-mentioned features, Stainless Steel welded wire mesh is a good choice for fishery industry, food drying, marine use, rodent proofing, cages for animals, and decoration, etc.
Quality Management:
Stainless Steel Wire Quality:
For stainless steel welded wire mesh, the material quality control is regarded as the vital importance. We have signed Long-term Buying Contract with Chinese best stainless steel wire manufacturer-Taiyuan Stainless Steel Wire Corp, this ensure our stainless steel wire are the top quality in China.
Digital Controlled Machines & Well-Trained Staff:
Our Digital Controlled Welding Machines and our well-trained workers also ensure ourstainless steel welded wire mesh can satisfy the top quality requirement from worldwide
Heavy Galvanized Welded Wire Mesh
| Galvanized Fencing Mesh | | Opening | Wire Diameter | | In inch | In metric unit(mm) | | 2" x 3" | 50mm x 75mm | 2.0mm,2.5mm,1.65mm | | 3" x 3" | 75mm x 756mm | 2.67mm,2.41mm,2.11mm,1.83mm,1.65mm | | 2" x 4" | 50mm x 100mm | 2.11mm,2.5mm | | 4" x 4" | 100mm x 100mm | 2.0mm,2.5mm | Technical Note:
1,Standard roll length: 30m;width: 0.5m to 1.8m
2,Special sizes available at request
3,Packing: in waterproof paper in rolls. Custom packing available at request. |
|

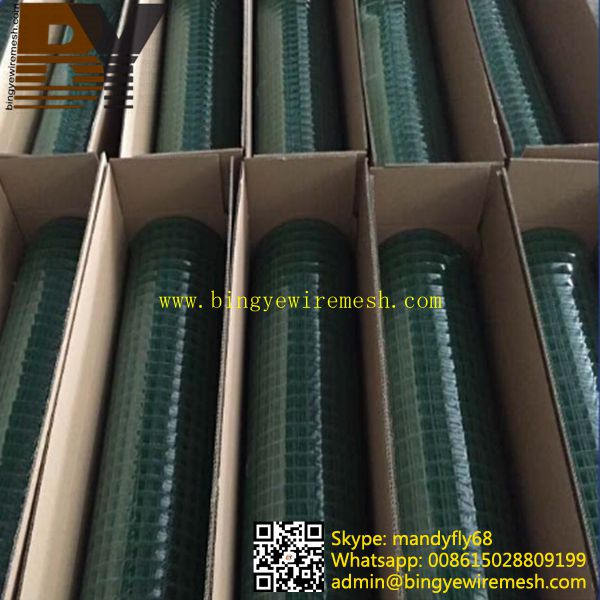

PVC Coated Welded Wire Mesh
| PVC Coated Welded Mesh |
| Opening | Wire Diameter |
| In inch | In metric unit(mm) |
| 1/2" x 1/2" | 12.7mm x 12.7mm | 16,17,18,19,20,21 |
| 3/4" x 3/4" | 19mm x 19mm | 16,17,18,19,20,21 |
| 1" x 1" | 25.4mm x 25.4mm | 15,16,17,18,19,20 |
Technical Note:
1,Standard roll length: 30m;width: 0.5m to 1.2m
2,Special sizes available at request
3,Packing: in waterproof paper in rolls. Custom packing available at request. |
