| Price: | US $ 0.04-0.3/Piece |
|---|---|
| Min Order: | 10000/Piece |
| Pay Type: | L/C,T/T,D/P,Western Union,Paypal |
| Prod Model: | M26 |
|---|---|
| Color: | Yellow/Silver/Red/Green |
| Application: | Cars and Engineering Machinery |
| OEM: | Accept |
| ODM: | Accept |
| Delivery: | About 3-20 Days According to Quantity |
| Quality: | Guaranteed |
| MOQ: | Small Quantity Is Accept |
| Stock: | Some Model Have in Stock |
| Price: | Wholesale Price |
| Drawing: | Accept and Can Be Supplied |
| Type: | Bonded Gasket |
| Material: | Iron+Rubber |

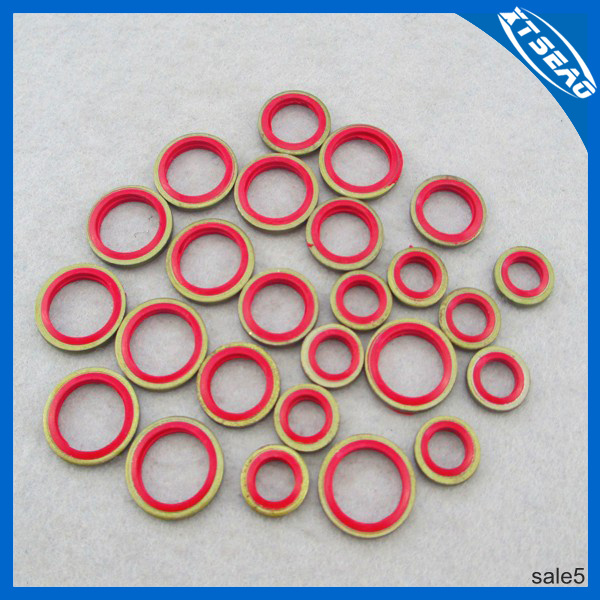

Galvanized Rubber and Metal Bonded Washer
Specification:
| Bonded gasket with zinc plated | Copper bonded gasket | Selfcentering bonded seals | Bonded gasket with metric threads | |||
| size | size | size | size | |||
| φ6-12 | φ6 | M4 | 1/8" | |||
| φ14 | φ8 | M5 | 1/4" | |||
| φ16 | φ10 | M6 | 3/8" | |||
| φ18 | φ12 | M8 | 1/2" | |||
| φ20 | φ14 | M10 | 5/8" | |||
| φ22 | φ16 | M12 | 3/4" | |||
| φ24 | φ18 | M14 | 1" | |||
| φ27 | φ20 | M16 | ||||
| φ30 | φ22 | M18 | ||||
| φ33 | φ24 | M20 | ||||
| φ36 | φ27 | M22 | ||||
| φ39 | φ30 | M24 | ||||
| φ42 | φ33 | |||||
| φ45 | φ36 | |||||
Material:
NBR+iron / Viton+stainless steel / HNBR+copper Genuine material
Rubber Bonded Seals/washer/gasket
Color:
Brown / red / green as customer required
Brand and logo:
XTSEAO brand / OEM brand / as customer requirements Motorcycle spare parts bonded gasket
Printing letter:
When quantity upto certain ,can make printing letter as your requirements.
Application:
Wire harnessing in industries
Hose and cable protection for the automotive
Heavy equipment and marine industries
Car accessorise
Rotating Shaft
Industrial Machinery
Bearing
Pump
Earth Moving Equipment
Agricultural Vehicles
Large cylinders
Presses
Motorcycle spare parts bonded gasket
Agricultural machinery
Mills
Packing:
PP bag +carton / customer required is accepted
Export market:
European marketing / South America marketing Motorcycle spare parts bonded gasket
Quality:
Good quality ,we had a professional quality control team contral the quality
Equipment
Inernal Mixers, Pressure ting machines,auto-spray adhesive machine, vulcanizer,plastic injection molding machine
Quantity:
More quantity ,more discount
Material specification:
Gas phase silica gel
Good resistance to high and low temperature shock
Fast vulcanization
Very low odor; the curing process releases harmful to humans
With a variety of substrates without the use of an adhesive primer
Excellent heat resistance, ozone resistance and resistance to chemical attack
Excellent electrical insulation properties
Aging and oil resistance, Wearable
Minderal oil based hydraulic fluid
barely flammable hydraulic fluids,water,air and others.
Standard or can fit the groove: DKB
Different Quality Level for Customers to Choose
Full Excavator Parts Product Lines
Bonded Gasket
1> Material: Rubber+ Metal,
Rubber: NBR, Viton
Metal: Galvanized Copper, Galvanized Iron, Iron,Steel
2> Sizes: Standard and non-standard, various sizes are available, also can make according to your order
3> Allow diameter tolerances: + 0.12-0.20.
4> Working pressure: permission to use 400Kg/cm2 (work pressure 39.2 MPa).
5> Working temperature: -25 °C to 80 in between.
6> Performance: acid resistant, alkali resistant, oil resistant, ageing resistance, high temperature resistant, etc;
7> Big and small orders accepted.
8> PP bag or paper roller+ Carton. Or according to your order.

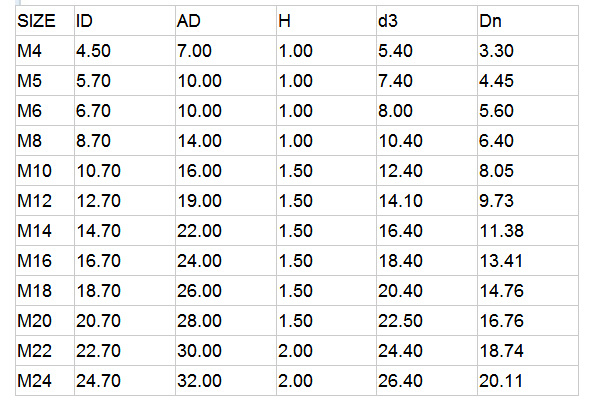

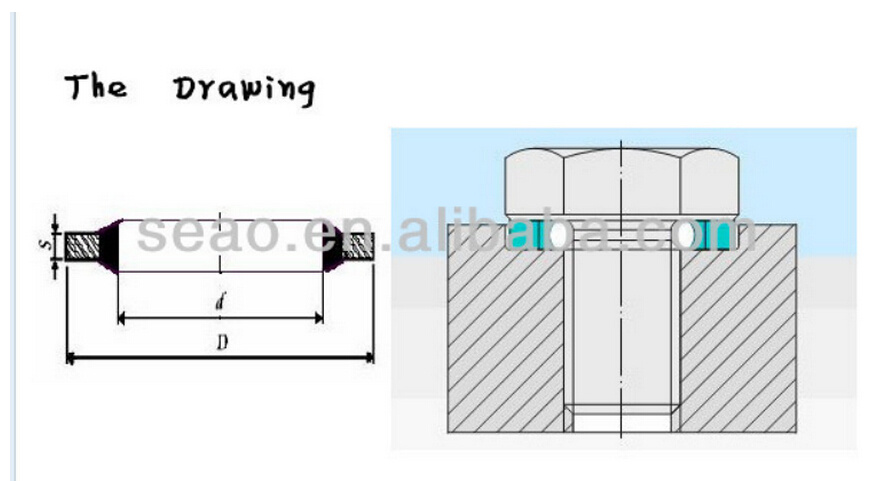

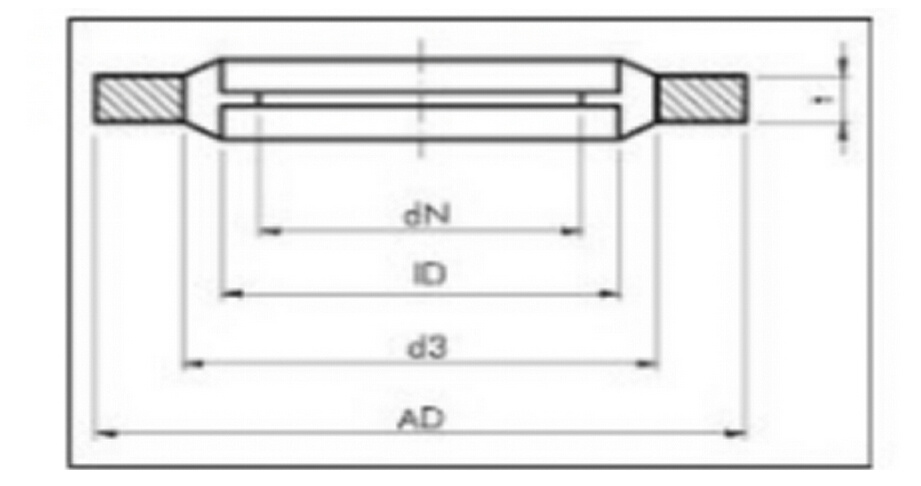

Drawing and size:
