| Prod Model: |
CH-GD282 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Model No: |
Remote Driving Garage Door |
| Panel Width: |
430-550mm, Adjusted |
| Material Thickness: |
0.35mm, 0.45mm (White Only) |
| Tracks: |
Single Track or Double Track |
| Max Length Of Panel: |
12m |
| Foaming Process: |
Automatically |
| Foaming Material: |
Polyurethane |
| Door Material: |
Galvanized Steel |
| Position: |
Garage |
| Export Markets: |
Global |
| Material: |
Steel |
| Thickness: |
40mm |
| Opening Type: |
With Remote Control |
| Motor Shaft: |
3.3m |
| Power: |
100W |
| Output Torque: |
1000N |
| Door Panel Pattern: |
Linear |
| Color: |
Grey |
| Surface Finishing: |
Finished |
| Opening Style: |
Overhead |
Product Description

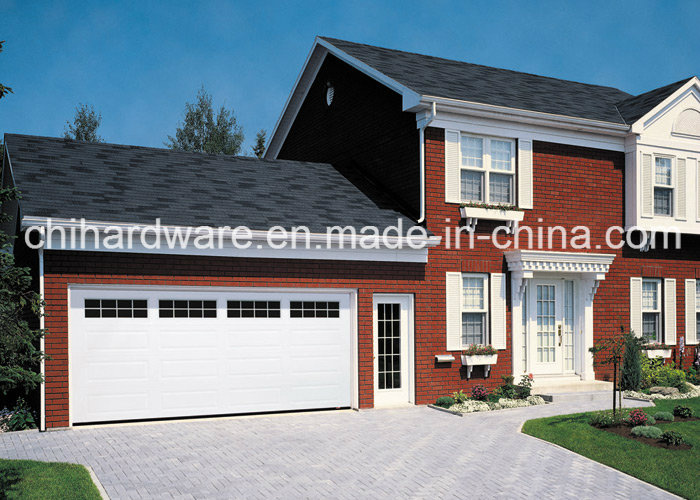

Details of Sectional Garage Door
1. Product Name: Sectional Garage door
2. Brand: CHI
3. Material: Coloured-steel plate
4. Structure: Sandwich (steel-polyrerthane-steel)
5. Panel Thickness: 40mm
6. Panel height: 430 - 550mm, Adjusted
7. Max length: 12M
8. Surface: Woodgrain, orange peel, flush, fold
9. Surface Design: Rectangle (Cassette), Stripe lines
10. Standard Color: Off white RAL9016
11. Available Solid Color: Silver RAL9006, Brown RAL8014, Light beige RAL1014, Ebony RAL7016.
12. Available Timber Color: Manahogany, Walnut, Gold Oak, Dark Oak
13. Property: Weather fastness, heat preservation, heat protection, dust protect
Optional Sectional Panels:
SF40S: 40mm Finger protection
SF40: 40mm New Finger protection
SN40: 40mm Non-finger protection
Garage Door Accesories Equipment
SST: Standard single track, for min headroom 350mm
SDT: Standard double track, for low headroom 150mm
Optional equipment
L profile support for vertical track to instead of Jamb bracket for easy installation, suit for both Single track and Double track.

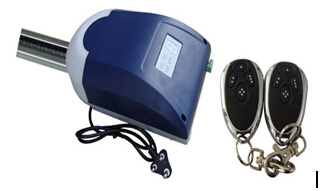

Garage Door Opener
Input Power: AC230V, Or AC110V
Output Power: 24V DC
Output Torque: 800N, 1000N, 1200N, 1500N
Steel rack: 3M, 3.3M, 3.6M, 3.9M, 4.2M, 4.5M
Standard equipment: 2 transmitters with mounting brackets
Optional accessories: Wired wall switch, Wireless wall switch, Wireless keypad, Photocell sensor, Passing door protection

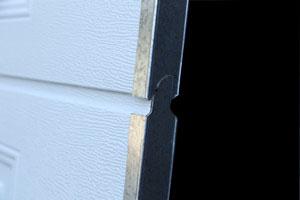

Panel:
Type: Pinch proof panel
Thickness: 40mm, PU form inside with good and enough density, and without any air bubble.
Width: 420~550mm
Length: ≤ 12m
Surface treatment: Orange skin/ Woodgrain then Powder coating
Color: Regularly White, custom made for any color(MOQ: 30 sets)
Style: Block/ Horizontal line

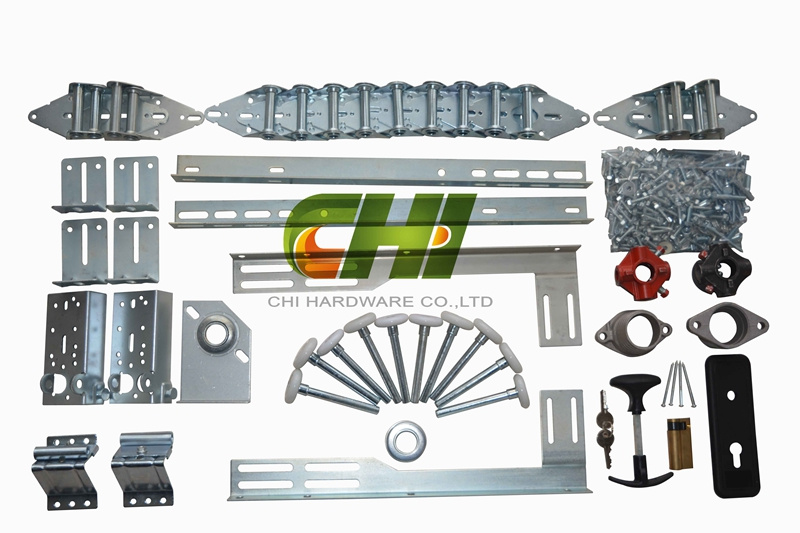

Hardware:
Material: Zinc pleated steel/Aluminium
Surface treatment: Zinc plated/ Powder coated
Color: Zinc/ White/ costum made available
| Low MOQ: One set is available for checking our quality first conveninently | |
| Good Quality: You client satisfied on our quality. You can get good reputation from your market and obtain more orders | |
| Good Service: Our professional service before and after sale | |
| The reasonable price | |
| Fast & Cheap Delivery: We gave big discount from forwarder(Long contract) | |
| OEM is welcome | |
CHI Hardware Co., Ltd is located in WUXI, Jiangsu, China. It is a rapidly growing company and also one of the best hardware enterprise which consists of manufacturing, sourcing, sales and engineering.
We specialize in roller shutter accessories and door and window accessories, which had exported mainly to Europe, and also USA, Argentina, South Africa. We had developed very quickly for its continuous products innovation, wide products range, very competitive price, on-time deliveries, extensive marketing and strong technical support.
CHI aims to be a long term, reliable supplier with a wide product range and solid product quality. So it would be a good choice to select us to by your supplier, and we also hope we could develop together with you.
