| Prod Model: |
YQL |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Size: |
Do as Customers' Requirement |
| Color: |
Any Color |
| Material: |
Steel |
| Usage: |
Auto |
| Load Type: |
Compression |
| Shape: |
Slender |
Product Description

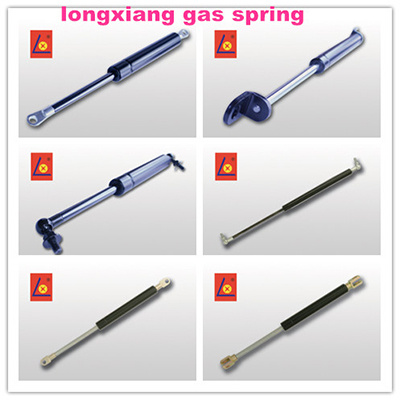

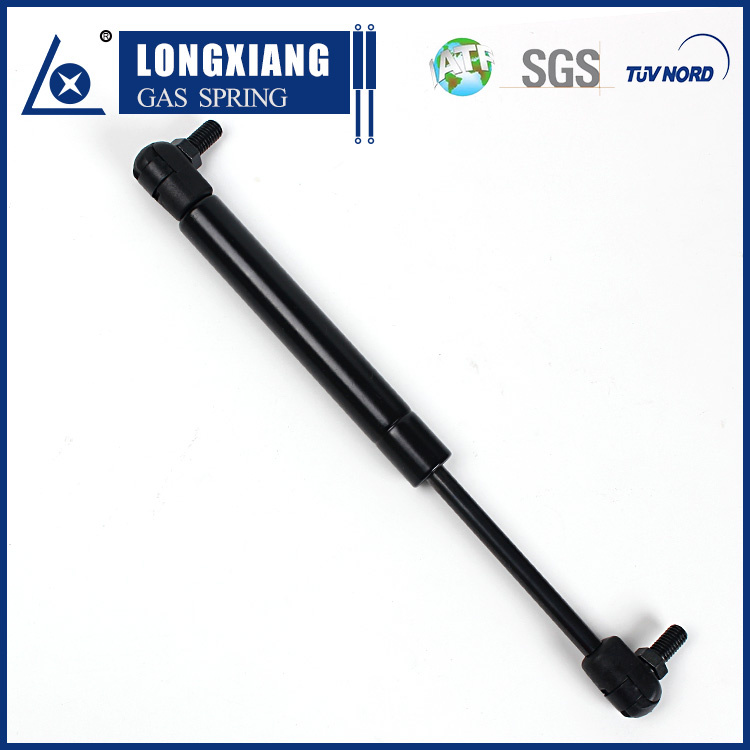

Gas Strut for Industrial equipment/gas spring for machinary

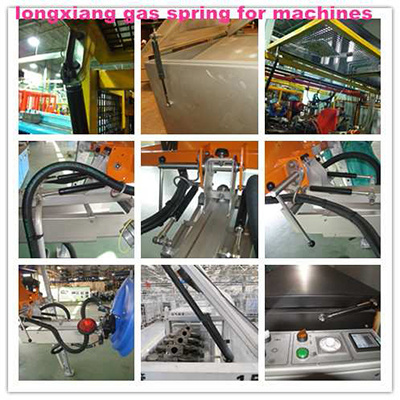

Can be used in all kinds of machinery to strut the cover
Quality
180, 000 times -passed TUV fatigue test
RoHS certificated by SGS
Passed ISO9000: 2001 International Quality System Certification
ISO/TS 16949
Spec.
Can be used in all kinds of machinery&atuo, cars to strut the cover
Open Length: 100mm-600mm 600mm-1200mm 1200mm-3000mm
Pressure: 30N-500N 500-1000N 1000N-4000N
DIA: 12/4 15/6 18/8 22/10 25/12 28/14 28/16 40/20
Material: Steel/ss304/ss316
Color: Silver/black/others
Connector: Ball connector/metal eye/clevis and so on
The size can be made according the customer requirment
Advantage
1). We can supply samples for free.
2). Competivite price.
3). Fast delivery time.
4). Easy to install.
| Product No. | Extended length | Stroke | DIA | Force |
| YQL | 100-300 | 30-100 | 12*4 | 5-100N |
| YQL | 300-600 | 100-200 | 15*6 | 10-300N |
| YQL | 600-900 | 200-300 | 18*8 | 50-600N |
| YQL | 900-1200 | 300-400 | 22*10 | 100-1200N |
| YQL | 1200-1600 | 400-500 | 25*12 | 100-1800N |
| YQL | 1600-2000 | 500-600 | 28*14 | 100-3000N |
| YQL | 2000-2500 | 600-700 | 28*16 | 100-3000N |
| YQL | 2500-3000 | 700-900 | 40*20 | 300-4000N |
| | The size can be made according the customer requirment. |
| Quality | 1.180,000 times -passed TUV fatigue test |
| 2.ROHS certificated by SGS |
| 3.Passed ISO9001 and ISO/TS 16949 International Quality System Certification |
| Use | Automobile;Auto,car;Furniture;Machines,mechanical equipment; Boat,container,etc. |
| Material | steel/ss304/ss316 |
| Color | silver/black/others |
| Connector | ball connector/metal eye/clevis and so on |
| Advantage | 1.pass 180,000 times fatigue times |
| 2.we can supply samples for free |
| 3.Competivite price |
| 4.Fast delivery time:1000 pcs 3 days |
| The size can be made according the customer requirment. |

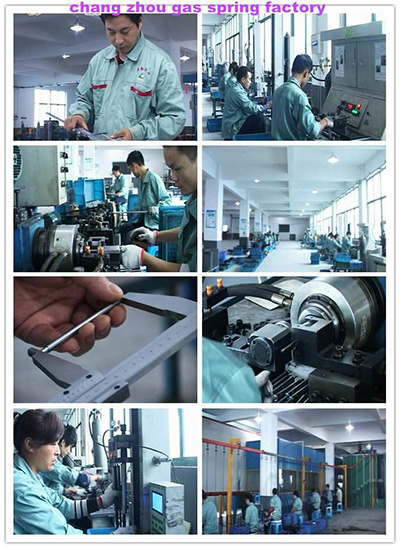

Changzhou Longxiang Gas Spring Co., Ltd. Supplies a full range of high quality compression gas springs, locking gas springs, tension gas spring, stainless steel gas springs, dampers. Our factory is located in Wujin District, Changzhou City, Jiang Su Province, China, Nearby Shanghai.
Our company, having RoHS certificate approved by SGS. We also passed 180, 000 times fatigue test from TUV for our gas spring. All of our products are covered by 3years guarantee.
Over the years, we have developed expertise in design and development of full range of gas springs. We manufacture gas springs to your specifications and needs. At present, we have production capacity of 3 million gas springs per year. The quality assurance and testing facilities comply with world standards. Customer satisfaction and continuous improvement are our goals.
LX had exported to 60countries for diiferent applications with different design purpose.
Please feel free to contact if you have any questions about gas springs.
