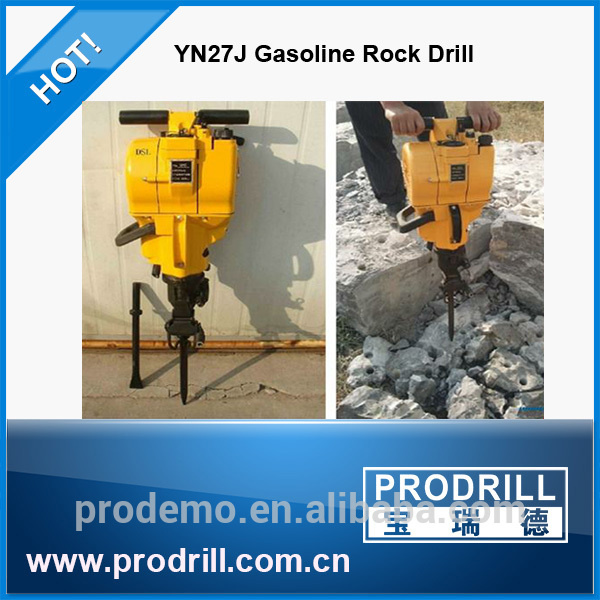

Gasoline Internal Combustion Jack Hammer Rock Drill Yn27j

Prod Model:	Yn27J
Type Of Engine:	Single Cylinder, Air Colled Tow Strokes
Rotating Speed Of Engine:	>2450 R/Min
Drilling Speed:	>250mm / Min
Fuel Consumption:	0.12L/M
Max. Drilling Depth:	>6 M.

Product Description

Gasoline Internal Combustion Rock Drill Type YN27J is a very efficient machine with the special feature
that the structure is very compact, Less of the-easy-to-damage-parts, and very easy to control. It can
adapt to these outside situations there is no water and no electronic power. It is a Kind hand held drill built up with gasoline engine, Air pump, rock drill and the rotation plumbum equipment for running or stop. It can be used as a tool for breaking, percussive drilling, tamping besides rock.
Other type: YN27A,YN28,YN30A,YN30W



YN27 diesel rock drill for coal

Instruction of YN27C
YN27C Rock Drillis is a very efficient machine, composed of gasoline engine, Air pump, rock drill.
It adapt to these outside situations without water and electronic power.
Meanwhile it is a hand- held drill, during operation, rock power is blown away by the compressed air produced by the machine itself.

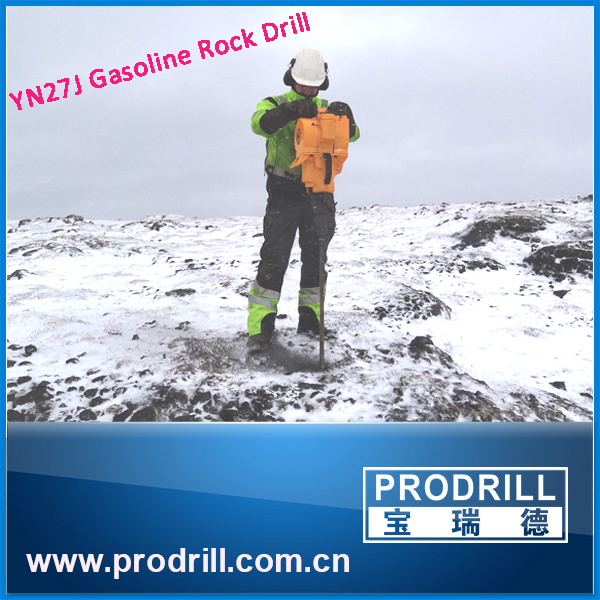

Its suited to work on high mountains, plains, hot and cold area with no power and no water supply and air compressing equipments, and especially suits the projects that the machine has to be carried at any time and in any area.

Features of YN27C

1. Easy to operate, just turn the handle to make it work.
2. Time and labor saving, Drilling fast and high efficiency.
3. First-class level Drilling Tools, suitable for site without power or pressure equipment, it has wide adaptability for high mountain and plain, extreme temperature (40 to -40)
4. Used to drill vertical downward hole(max depth 6m) and and <45° Upward hole.
5. Light Drilling Tools, only 27kgs, easy to carry.


Advantage:

1. Structure is very comact
2. Less of the easy o damage parts, easy to control
3. Adapt to these outside situations there is no water and no electronic power

Weight of main machine	27kg
Overall dimensions(L*W*H)	746*315*229mm
Cylinder diameter*stroke of piston	Φ58*70mm
Rotation speed of engine	≥2450rpm
Displacement of engine piston	185cm³
Type of carburetor	hand needle valve, floatless type
Ignition system	controllable silicon, contactless system
Drilling speed (mean value of five holes)	≥250mm/min
Drilling hole diameter	Φ28-42mm
Max drilling depth	6m
Fuel consumption	≤0.12L/m
Tank capacity	≥1.5liter

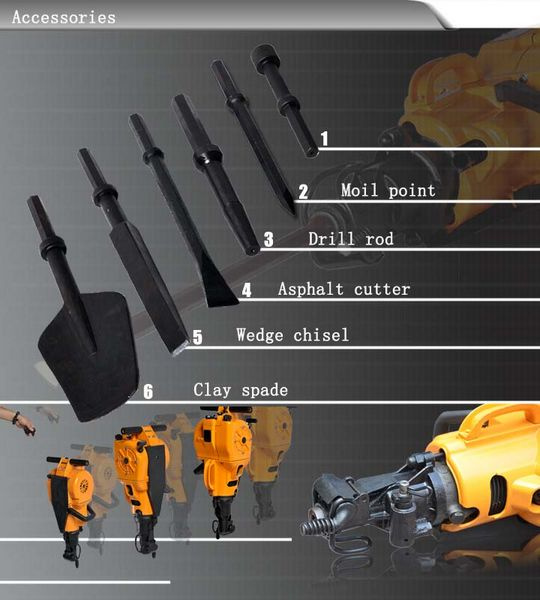

Drill rod and breaker shank	Hex22*108mm
Rotating speed of drill rod	≥200rounds/min
Clearance of spark plug	0.5-0.7mm

Ps.: Others
1. Besides C1 C2 C3 non explosive blasting chemicals , we also sell other Stone drilling tools:
1) Rock drill:
Handheld rock Drill: Y10, Y18, Y20, Y24, Y26, TY24C, etc;
Airleg rock drill: YT24, YT28, etc;
2) Drill rod: Taper rod (hex. 22 * 108mm)
3) Drill bit: Taper button bit, Taper chisel bit, Taper cross bit
4) Splitter: Handheld stone splitter (or shims and wedges or plug and feather), G10 pneumatic splitter
5) Breaker: G10, TPB, etc;

2. Advantages:
Compared with the oversea brands, our advantages are bellowing:
a. Our products can match over 95% against the original products
b. Price are competitive against the famous brands and best quality against the small factory

3. About Us:
1.    Our factory has been specialized in manufacturing drilling tools and spare parts for over 10 years.
2.    We have advanced technology and equipment.
3.    Our technician has more than 13 year's professional working experience.
4.    Rock drilling tools are exported throughout the world. Main market: Norway, Turkey, USA, Canada, Australia, Brazil, Uruguay, Iran, Philippines, Thailand, India, etc.
